USE AND CARE GUIDE

BROUGHTON 42 IN. CEILING FAN

Item #1003 236 523

#1003 236 521

Model #YG671-BN

#YG671-EB

THANK YOU

Questions, problems, missing parts? Before returning to the store,

call Home Decorators Collection Customer Service

8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST Saturday

1-800-986-3460

HOMEDEPOT.COM/HOMEDECORATORS

Visual instruction of how to install this fan:

Visit www.homedepot.com and enter either the Item or Model number to nd

this fan and click the link of visual instruction in the product overview section.

Operation ......................................................................

Remote Control Operating Instructions ..................................

Reverse Switch Operating Instructions ..................................

Care and Cleaning .......................................................

Troubleshooting ...........................................................

Service Parts ................................................................

Table of Contents

Table of Contents ..........................................................

Safety Information .........................................................

Warranty .........................................................................

Pre-installation ..............................................................

Specications ..........................................................................

Tools Required .........................................................................

Hardware Included ..................................................................

Package Contents ....................................................................

Installation .....................................................................

Assembly ........................................................................

Hanging the Fan .......................................................................

Attaching the Fan Blades .......................................................

Installing the Light Kit ............................................................

READ AND SAVE THESE INSTRUCTIONS

Safety Information

3HOMEDEPOT.COM/HOMEDECORATORS

Please contact 1-800-986-3460 for further assistance.

WARNING: To reduce the risk of electric shock, this fan

must be installed with an isolating wall control/switch.

WARNING: To reduce the risk of personal injury, do not

bend the blade arms (also referred to as anges), when

installing the brackets, balancing the blades or cleaning the

fan.

WARNING: Do not insert foreign objects between rotating

fan blades.

WARNING: To reduce the risk of re, electric shock or

personal injury, mount the fan to the outlet box marked

acceptable for fan support with the screws provided with the

outlet box.

CAUTION: To reduce the risk of personal injury, use only

the screws provided with the outlet box.

1. To reduce the risk of electric shock, ensure electricity has

been turned off at the circuit breaker or fuse box before

beginning.

2. All wiring must be in accordance with the National Electrical

Code “ANSI/NFPA 70-1999” and local electrical codes.

Electrical installation should be performed by a qualied

licensed electrician.

3. The outlet box and support structure must be securely

mounted and capable of reliably supporting a minimum of 35

lbs (15.9 kg) or less. Use only UL-listed outlet boxes marked

“FOR FAN SUPPORT.”

4. The fan must be mounted with a minimum of 7 ft. (2.1m)

clearance from the trailing edge of the blades to the oor.

5. Avoid placing objects in the path of the blades.

6. To avoid personal injury or damage to the fan and other

items, be cautious when working around or cleaning the fan.

7. Do not use water or detergents when cleaning the fan or fan

blades. A dry dust cloth or lightly dampened cloth will be

suitable for most cleaning.

8. After making electrical connections, spliced conductors

should be turned upward and pushed carefully up into the

outlet box. The wires should be spread apart with the

grounded conductor and the equipment-grounding conductor

on one side of the outlet box and ungrounded conductor on

the other side of the outlet box.

9. All setscrews must be checked and retightened where

necessary before installation.

10. Suitable for use with solid-state speed control (UC7304RE

only).

11. This device complies with part 15 of the FCC Rules. Operation

is subject to the following two conditions: (1) This device may

not cause harmful interference, and (2) this device must

accept any interference received, including interference that

may cause undesired operation.

WARNING: Changes or modications to this unit not

expressly approved by the party responsible for compliance

could void the user's authority to operate the equipment.

NOTE: This equipment has been tested and found to comply

with the limits for a Class B digital device, pursuant to Part 15

of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a

residential installation. This equipment generates, uses and

can radiate radio frequency energy and, if not installed and

used in accordance with the instructions, may cause harmful

interference to radio communications.

However, there is no guarantee that interference will not occur

in a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be

determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more of

the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from

that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for

help.

NOTE: Suitable for use in damp locations.

The following responsible party designated in FCC §2.909 is

responsible for this declaration:

Model Number: YG671-BN, YG671-EB

Company Name: TAL INTERNATIONAL CORPORATION

Company Address: 2919 E. Philadelphia St., Ontario, CA 91761, U.S.A.

Full Name: James Lai Title: Manager

Telephone Number: (909) 923-2888 Fax: (909) 923-8337

SPECIFICATIONS

NOTE: These are approximate measures. They do not

include amps and wattage used by the light kit.

Warranty

Pre-InstallationPre-Installation

42 in.

Low

Medium

High

120

Fan size

Watts

RPM

CFM

Speed

Volts

Amps

2.19 cu. ft.

N.W.

G.W.

C.F.

0.26

0.38

0.46

15.98

34.83

55.54

113

149

1591

2539

3336

10.1 kg

(22.22 lbs.)

11.76 kg

(25.88 lbs.)

The manufacturer warrants the fan motor to be free from defects in workmanship and material present at time of shipment from the

factory for a period of lifetime after the date of purchase by the original purchaser. The manufacturer warrants the light kit (excluding any

glass), to be free from defects in workmanship and material present at time of shipment from the factory for a period of ve years after

the date of purchase by the original purchaser. The manufacturer also warrants that all other fan parts, excluding any glass or acrylic

blades, to be free from defects in workmanship and material at the time of shipment from the factory for a period of two years after the

date of purchase by the original purchaser. We agree to correct such defects without charge or at our option replace with a comparable or

superior model if the product is returned. To obtain warranty service, you must present a copy of the receipt as proof of purchase. All

costs of removing and reinstalling the product are your responsibility. Damage to any part such as by accident, misuse, improper

installation or by afxing any accessories, is not covered by this warranty. Because of varying climatic conditions this warranty does not

cover any changes in brass nish, including rusting, pitting, corroding, tarnishing or peeling. Brass nishes of this type give the longest

useful life when protected from varying weather conditions. A certain amount of “wobble” is normal and should not be considered a

defect. Servicing performed by unauthorized persons shall render the warranty invalid. There is no other express warranty. We hereby

disclaim any and all warranties, including but not limited to those of merchantability and tness for a particular purpose to the extent

permitted by law. The duration of any implied warranty which cannot be disclaimed is limited to the time period as specied in the

express warranty. Some states do not allow limitation on how long an implied warranty lasts, so the above limitation may not apply to

you. The retailer shall not be liable for incidental, consequential, or special damages arising out of or in connection with product use or

performance except as may otherwise be accorded by law. Some states do not allow the exclusion of incidental or consequential

damages, so the above exclusion or limitation may not apply to you. This warranty gives specic legal rights, and you may also have other

rights which vary from state to state. This warranty supersedes all prior warranties. Shipping costs for any return of product as part of a

claim on the warranty must be paid by the customer.

Contact the Customer Service Team at 1-800-986-3460 or visit www.HOMEDEPOT.COM/HOMEDECORATORS

TOOLS REQUIRED

Phillips

screwdriver

Flat blade

screwdriver

Step

ladder

Wire

stripper

Electrical

tape

Adjustable

wrench

Pre-Installation (continued)

HARDWARE INCLUDED

NOTE: Hardware not shown to actual size.

Plastic wire nut

Canopy mounting screw with lock washer (preassembled)

Blade attachment screw with at washer and rubber washer

Clevis pin (preassembled)

Cotter pin (preassembled)

Cross pin (preassembled)

Setscrew (preassembled)

Collar setscrew (preassembled)

Light kit mounting plate screw (preassembled)

Light kit mounting screw (preassembled)

1.5V AAA battery

Plastic wire nut

Hex wrench

Part

Description

Quantity

5HOMEDEPOT.COM/HOMEDECORATORS

Please contact 1-800-986-3460 for further assistance.

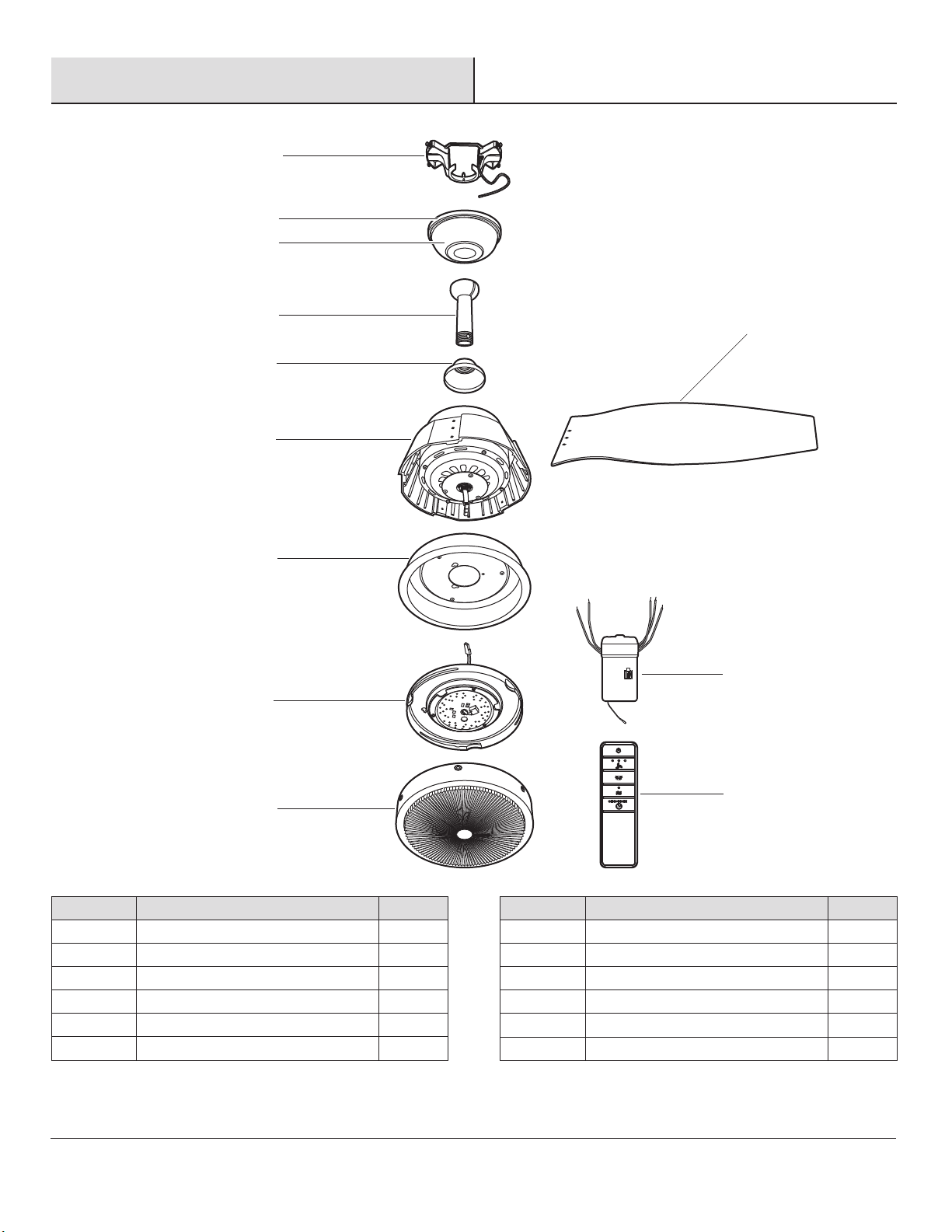

PACKAGE CONTENTS

Pre-Installation (continued)

Part

Description

Blade

Light kit mounting plate

14 watt LED Light kit

Light cover

Receiver

Remote control

Quantity

Part

Quantity

Description

Mounting bracket (preassembled)

Canopy ring (preassembled)

Canopy

Hanger ball/downrod assembly

Coupling cover

Fan motor assembly

ON ECE.

To hang your fan where there is an existing xture but no ceiling

joist, you may need an installation hanger bar (OO) (not included)

as shown above.

If your ceiling fan does not have an existing UL-listed mounting

box, then install one using the following instructions:

□Disconnect the power by removing the fuses or turning off

the circuit breakers.

□Secure the outlet box (NN) (not included) directly to the

building structure. Use appropriate fasteners and materials

(not included). The outlet box and its bracing must be able

to fully support the weight of the moving fan (at least 35

lbs.). Do not use a plastic outlet box.

The illustrations below show three different ways to mount the

outlet box (NN) (not included).

Installation

MOUNTING OPTIONS

WARNING: To reduce the risk of re, electric shock, or

personal injury, mount the fan to an outlet box marked

acceptable for fan support using the screws provided with the

outlet box. An outlet box commonly used for the support of

lighting xtures may not be acceptable for fan support and

may need to be replaced. If in doubt, consult a qualied

electrician.

NOTE: You may need a longer downrod to maintain proper

blade clearance when installing on a steep, sloped ceiling.

The maximum angle allowable is 18° away from horizontal. If

the canopy (C) touches the hanger ball/downrod assembly

(D), turn the canopy (C) 180° before attaching the canopy (C)

to the mounting bracket (A).

7HOMEDEPOT.COM/HOMEDECORATORS

Please contact 1-800-986-3460 for further assistance.

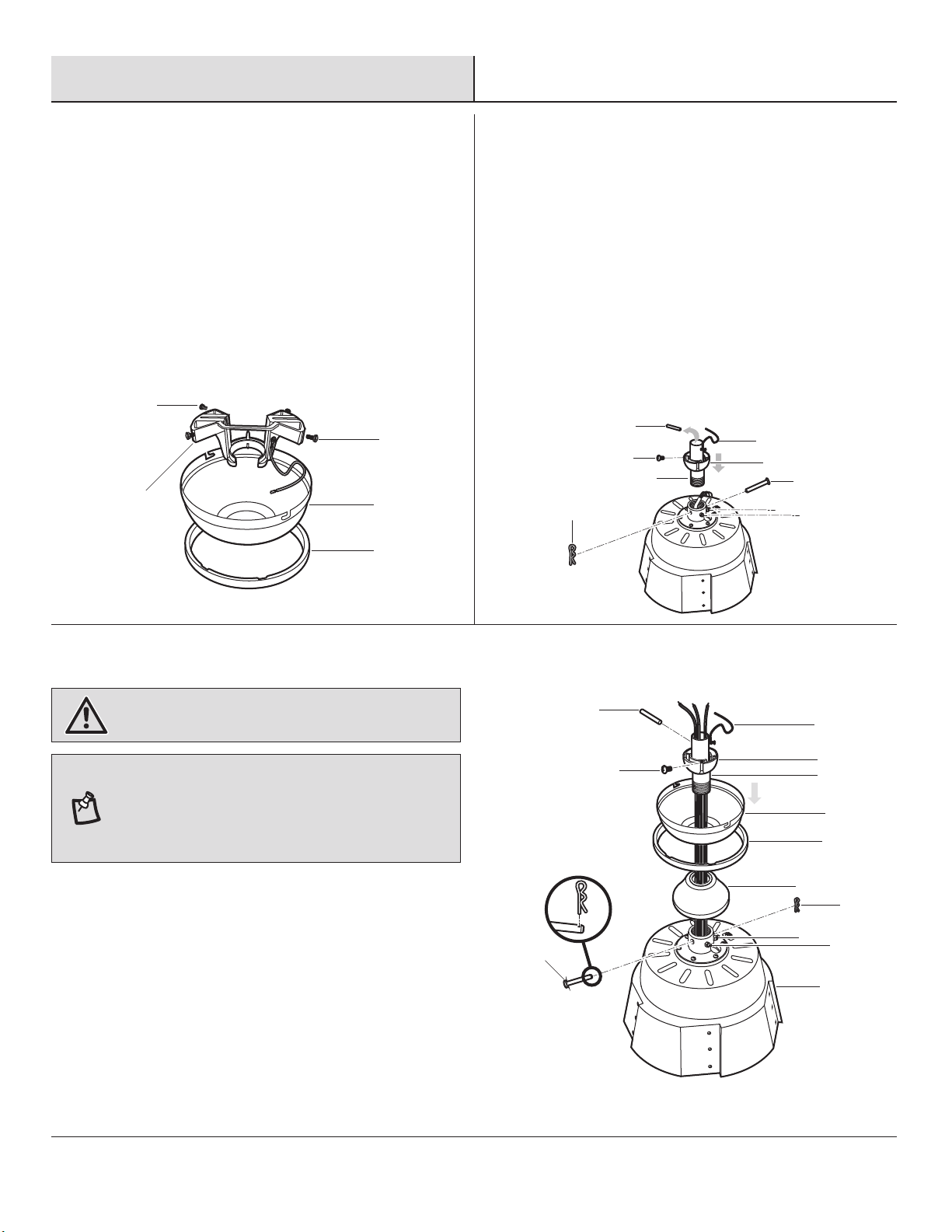

1Preparing the canopy 2Preparing the motor

□Remove the canopy ring (B) from the canopy (C).

□Remove the two non-slotted canopy mounting screws

with lock washers (BB) from the canopy (C), and

loosen the slotted canopy mounting screws with lock

washers (BB) on the canopy (C).

□Remove the canopy (C) from the mounting bracket (A)

by turning the canopy (C) counterclockwise.

3Assembling the fan

HH HH

□Remove the cotter pin (EE) and clevis pin (DD), and

loosen the two collar setscrews (HH) from the motor

collar.

□Take out the setscrew (GG) located in the hanger ball

(PP), lower the hanger ball and remove the cross pin

(FF). Remove the hanger ball (PP) from the hanger

ball/downrod assembly (D).

□Remove the ground lead (QQ) from the downrod

assembly (D).

□Carefully feed the motor wires up through the

downrod (RR). Thread the downrod (RR) into the

collar.

□Align the holes and replace the clevis pin (DD) and

cotter pin (EE). Tighten the two collar setscrews (HH).

□Slip coupling cover (E), canopy ring (B), and canopy

□Carefully reinstall the hanger ball (PP) onto the

downrod (RR) and reinstall the ground lead (QQ) onto

the downrod (RR), being sure that the cross pin (FF) is

in the correct position, the setscrew (GG) is tightened

and wires are not twisted.

WARNING: Failure to properly install the cotter pin (EE)

could result in the fan loosening and possibly falling.

NOTE: If a longer downrod (not included) is needed, take

out the screw located in the hanger ball (PP), lower the

hanger ball (PP) and remove the cross pin (FF). Remove all

three pieces from the downrod and assemble them onto the

new longer downrod before proceeding to the downrod

installation.

Assembly

4Installing the mounting bracket

to the electrical box

Hanging the fan to the mounting

bracket

□Carefully lift the fan motor assembly (F) up to the

mounting bracket (A) and seat the hanger

ball/downrod assembly (D) in the mounting bracket

(A) socket. Make sure the tab on the mounting

bracket (A) socket is properly seated in the groove in

the hanger ball/downrod assembly (D). This will help

to balance the ceiling fan.

Assembly — Hanging the Fan

WARNING: To reduce the risk of re, electric shock or

other personal injury, mount the fan only to an outlet box or

supporting system marked acceptable for fan support and

use the mounting screws provided with the outlet box.

WARNING: The tab in the ring must rest in the groove of

the hanger ball/downrod assembly (D). Failure to properly

seat the tab in the groove could cause damage to the wiring.

□Pass the 120-volt supply wires through the center

hole in the mounting bracket (A).

□Attach the mounting bracket (A) on the outlet box

(NN) by sliding the mounting bracket (A) over the

screws provided with the outlet box (NN). Note that

the at side of the mounting bracket (A) is toward the

outlet box (NN).

□Securely tighten the two mounting screws.

9HOMEDEPOT.COM/HOMEDECORATORS

Please contact 1-800-986-3460 for further assistance.

Assembly — Hanging the Fan (continued)

6Preparing the receiver and

remote control

NOTE: The frequencies on your receiver and remote control

have been preset at the factory. Before installing the receiver,

make sure the dip switches on the receiver and remote

control are set to the same frequency. The dip switches on

the remote control are located inside the battery

compartment.

NOTE: The battery will weaken with age and should be

replaced before leaking takes place as this will damage the

remote control. Dispose of the used battery properly and keep

the battery out of the reach of children.

Setting the Code on the Remote:

□Remove the battery cover on the back of the remote

control (L) by pressing rmly on the arrow and sliding

the cover off.

□Slide the code switches to your choice of either up or

down. The factory setting is up.

□The switch marked O/D controls the dimming

function of the lights. If using non-dimmable bulbs,

use a ballpoint pen or small screwdriver to set the

switch to O to disable the dimming function. If using

dimmable bulbs, set the switch to D to enable the

dimming function.

□Install two AAA batteries (KK) (included).

□Replace the battery cover on the remote control (L).

Setting the Code on the Receiver:

□Slide the code switches on the receiver (K) to the

same positions as set on the remote control (L).

□After checking the switches, insert the receiver (K)

into the mounting bracket (A) with the at side of the

receiver (K) facing the ceiling.

ON ECE.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Home Decorators Collection Lüfter Handbücher

Home Decorators Collection

Home Decorators Collection AJAX 51770 Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection SANDY COVE 52-GLH Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection TRUDEAU YG545-EB Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection BREEZEMORE 556-BRM Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection KENSGROVE Series Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection McFARLAND 51472 Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection FREYTON 51503 Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection STONEMILL LED Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection YG583-WH Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection ALTURA 68-ATR Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection PICCADILLY YG503-BN Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection GAMALI 56000 Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection WINDWARD 68-WWD Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection BROUGHTON YG671-BN Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection CANTERBURY SW17B2L BN Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection 56072 Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection YG612-EB Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection 60-SCHU Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection SARINA CF1004B Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection YG658-BN Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection TAHITI BREEZE Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection YG825C-BN Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection BRETTE III AM382D-BN Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection RIMGATE 56048 Bedienungsanleitung

Beliebte Lüfter Handbücher anderer Marken

ELTA FANS

ELTA FANS H03VV-F Bedienungsanleitung

Hunter

Hunter 20714 Gebrauchsanweisung

Emerson

Emerson CARRERA VERANDA CF542ORB00 Bedienungsanleitung

Hunter

Hunter Caraway Gebrauchsanweisung

Panasonic

Panasonic FV-15NLFS1 Bedienungsanleitung

Kompernass

Kompernass KH 1150 Bedienungsanleitung

VES

VES FALA100/12V/TR Bedienungsanleitung

Vertiv

Vertiv Liebert DCD Bedienungsanleitung

Westinghouse

Westinghouse GFP Series Bedienungsanleitung

Venmar

Venmar KUBIX HRV PLUS Series Bedienungsanleitung

Maico

Maico ECR 31 Bedienungsanleitung

Sonnenkonig

Sonnenkonig Dinky Bedienungsanleitung

S&P

S&P ECOWATT HXBR Bedienungsanleitung

Wider

Wider IMP03369BH Bedienungsanleitung

Panasonic

Panasonic F-60DHN Bedienungsanleitung

Hinkley

Hinkley HIGHLAND Bedienungsanleitung

Broan

Broan 766BN Bedienungsanleitung

Premium

Premium PFS16022 Montageanleitung
