USE AND CARE GUIDE

WALL

LANTERN

OUTDOOR

Questions, problems, missing parts? Before

returning to the store,

call Home Decorators Collection Customer Service

8 a.m.

7 p.m., EST,

Monday-Friday, 9 a.m.

–

6 p.m., EST,

Saturday

1-800-986-3460

WWW.HOMEDEPOT.COM/HOMEDECORATORS

THANK

YOU

We appreciate the trust and confidence you have placed in Home Decorators Collection through the purchase of this

LED light fixture. We

strive to

continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home

improvement needs. Thank you for choosing Home Decorators

Collection!

5163701#ledoM

Item # 1002 962 254

Table of Contents

Safety Information.........................................................2

Warranty......................................................................... 2

Pre-installation .............................................................3

Planning Installation ............................................................... 3

Tools

Required ........................................................................3

Safety Information

Hardware Included...................................................................3

Package Contents ....................................................................4

Installation

.....................................................................5

Care and Maintenance .................................................8

Troubleshooting

............................................................8

Please read and understand this entire manual before

attemp

ting

to operate or install the

product.

WARNING:

This light fixture is designed to

fit

standard

junction boxes as defined by the National Electrical Code.

WARNING:

Consult a qualified electrician

you are

certain about the installation process. Always install

wiring

connections

accordance with local code, ordinances

the National

tric

Code.

WARNING:

Changes or modifications to this unit

not

expressly approved by the party responsible for

mplianc

could void the user’s authority to operate the

equipment.

WARNING:

Before

installing this fixture, turn off all power

to the fixture location by turning off power at the m

circuit breaker or fuse

box.

Warranty

The manufacturer warrants this lighting fixture to be free from defects in materials and workmanship for a period of five (5) years (excluding

the bulb) from

date

of purchase. This warranty applies only to the original consumer purchaser and only to products used in normal use

and service.

If this

product is found to be defective, the manufacturer's only obligation, and your exclusive remedy, is the repair or replacement

of the p

roduct

at the manufacturer's discretion, provided that the product has not been damaged through misuse, abuse, accident,

modifications,

alterations, neglect or mishandling. This warranty shall not apply to any product that is found to have been improperly

installed, set-up,

used in any way not in accordance with the instructions supplied with the product. This warranty shall not apply to a

failure of the

product

as a result of an accident, misuse, abuse, negligence, alteration, faulty installation, or any other failure not relating to

faulty material

workmanship. This warranty shall not apply to the finish on any portion of the product, due to weathering, as this is

considered normal

wear

and tear. The manufacturer does not warrant and specifically disclaims any warranty, whether express or implied,

of fitness for a

particular

purpose, other than the warranty contained herein. The manufacturer specifically disclaims any liability and shall

not be liable for

any

consequential or incidental loss or damage, including but not limited to, any labor

expense costs involved in the

replacement or repair

said

product.

Contact the Customer Service Team at 1-800-986-3460 or visit WWW.HOMEDEPOT.COM/HOMEDECORATORS.

WWW.HOMEDEPOT.COM/HOMEDECORATORS

Please

contact 1-800-986-3460 for further assistance.

Pre-installation

PLANNING INSTALLATION

Before you begin to install this lighting fixture, ensure all parts are present. Compare parts with the Hardware Included and

ackage

Contents lists. If any part is missing or damaged, do not attempt to assemble the product.

TOOLS

REQUIRED

Phillips

screwdriver

HARDWARE

CLUD

Step

ladder

Silicone

sealant

Wire

strippers

(optional)

NOTE:

Hardware not shown to actual

size.

AA BB

Part

Description

Quant

ity

Screw

Wire

nut

Washer 2

Crossbar 1

Pre-installation (continued)

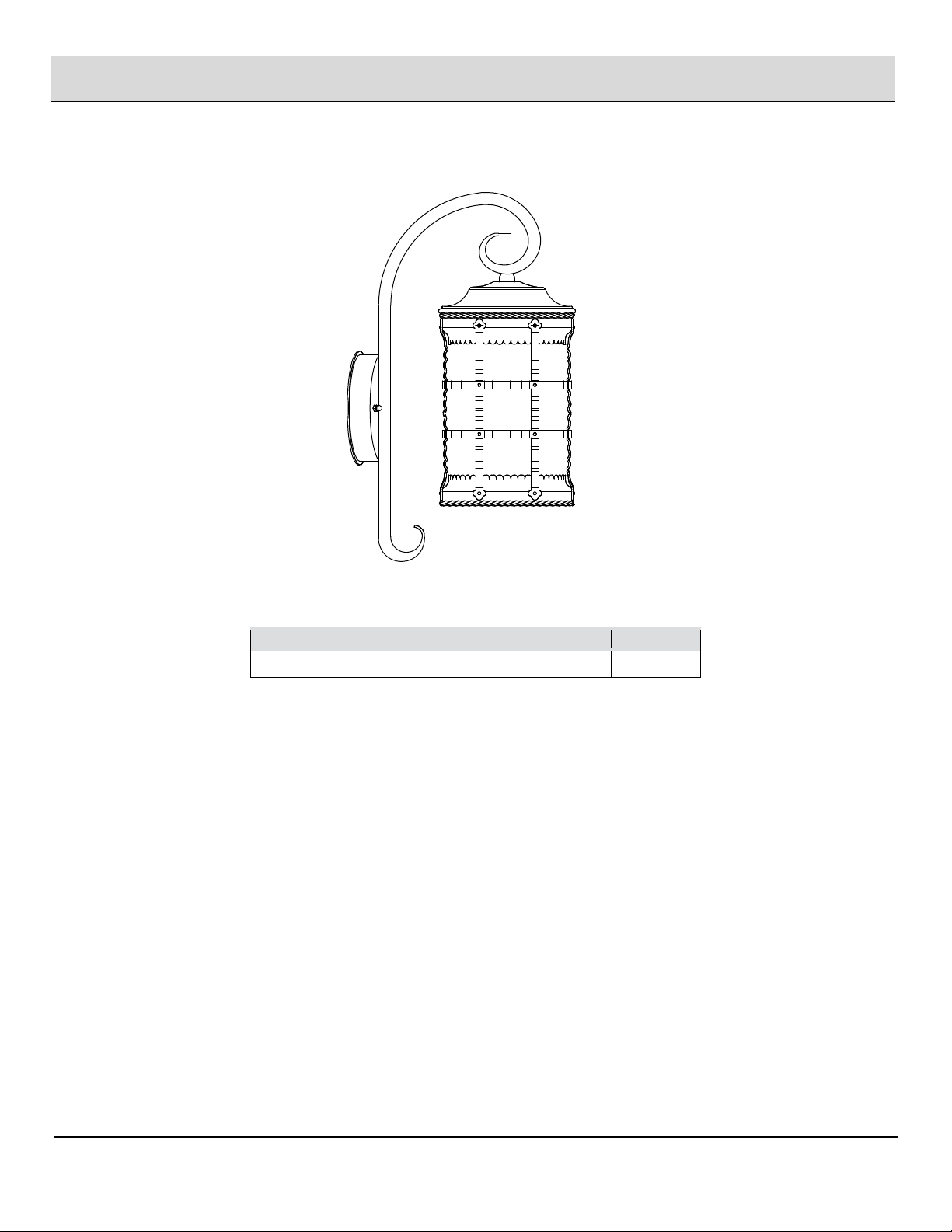

PACKAGE CONTENTS

—

Part

Description

Quant

ity

Light fixture

Pre-installation (continued)

WWW.HOMEDEPOT.COM/HOMEDECORATORS

Please

contact 1-800-986-3460 for further assistance.

Remove the nuts from the crossbar (DD). Then attach

the crossbar (DD) to the junction box using the

screws (AA) and the washers (CC).

CAUTION:

Turn the power off at the main circuit breaker or

fuse box. Never rely on the wall switch alone to turn off power.

Installing the crossbar

□

WWW.HOMEDEPOT.COM/HOMEDECORATORS

Please

contact 1-800-986-3460 for further assistance.

Installation

Connect the ground wire from the junction box to the

ground screw on the crossbar (DD). Then connect the

ground wire from the junction box to the ground wire

from the fixture (A). Connect the white wire from the

junction box to the white wire from the fixture (A) by

twisting a wire nut (BB) onto the bare ends of the wires.

Connect the black wire from the junction box to the

black wire from the fixture (A) by twisting a wire nut (BB)

onto the bare ends of the wires. Make sure wire

connections are secure.

Connecting the wires

□

NOTE:

The ground wire is green.

Installing the fixture

□Carefully place the wires into the junction box. Then

secure the fixture (A) to the crossbar by attaching the

previously-removed nuts onto the crossbar screws.

WWW.HOMEDEPOT.COM/HOMEDECORATORS

Please

contact 1-800-986-3460 for further assistance.

Installation (continued)

□Apply silicone caulking adhesive (not included)

completely around the perimeter of the fixture (A)

where the back meets the mounting surface to

prevent water from seeping into the junction box.

Sealing the

fixture

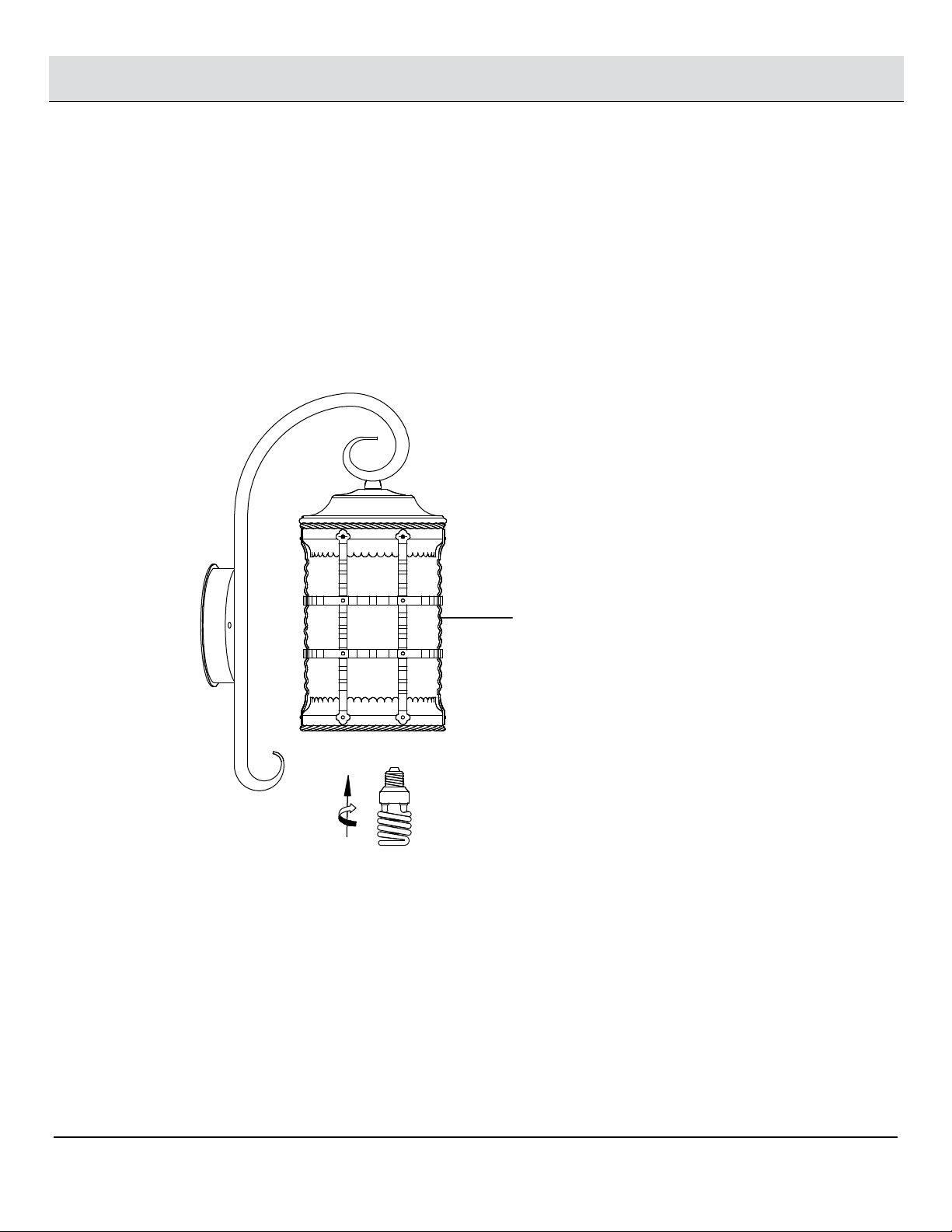

Installing the bulb

□Install an E26 bulb (not included) into the socket of the fixture (A).

Installation (continued)

WWW.HOMEDEPOT.COM/HOMEDECORATORS

Please

contact 1-800-986-3460 for further assistance.

WWW.HOMEDECORATORS.COM

Please

contact 1-800-986-3460 for further assistance.

Care and Maintenance

CAUTION:

Turn OFF

all power to the circuit at the main circuit breaker or fuse box. DO NOT rely on the wall

switch alone to turn off power.

□

This

lantern provides years of maintenance-free service

□

Do not touch the bulb

or open the fi ixture housing.

□

To clean, turn OFF

all power to the circuit and clean surfaces with a mild, non-abrasive cleaner.

Troubleshooting

Problem

Probable

use

The light does not illuminate.

There may be a

poor connection between

the light and the supply wires inside

the

junction

box.

Check the wire connections.

There is no power going to the

light.

Check that the switch is on and there

power to the light fixture.

Questions, problems, missing parts? Before

returning to the store,

call Home Decorators Collection Customer Service

8 a.m.

7 p.m., EST,

Monday-Friday, 9 a.m.

–

6 p.m., EST,

Saturday

1-800-986-3460

WWW.HOMEDEPOT.COM/HOMEDECORATORS

Retain this manual for future use.

Item # 000-000

Model #

92811

Artículo n.º 1002 962 254

Modelo n.º 5163701

GUÍA DE USO Y CUIDADO

FAROL PARA PARED EN EXTERIORES

¿Tiene preguntas o problemas, o le faltan piezas? Antes de devolver a la tienda,

llame a Servicio al Cliente de Home Decorators Collection

Lunes a viernes de 8:00 a.m. - 7:00 p.m., EST, y los sábados de 9:00 a.m. - 6:00 p.m., EST

1-800-986-3460

WWW.HOMEDEPOT.COM/HOMEDECORATORS

GRACIAS

Apreciamos la confianza que ha depositado en Home Decorators Collection al comprar esta lámpara a LED. Nos esforzamos

continuamente para crear productos de calidad diseñados para mejorar su hogar. Visítenos en línea para ver nuestra línea completa

de productos disponibles para sus necesidades de mejoramiento del hogar. ¡Gracias por elegir Home Decorators Collection!
