Home Decorators Collection 16985 Bedienungsanleitung

THANK YOU

We appreciate the trust and condence you have placed in Home Decorators Collection through the purchase of this light xture. We strive to

continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home

improvement needs. Thank you for choosing Home Decorators Collection!

Item #1000 000 000

Model #16985

USE AND CARE GUIDE

OUTDOOR POST LIGHT

Questions, problems, missing parts? Before returning to the store,

call Home Decorators Collection Customer Service

8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday

1-800-986-3460

HOMEDEPOT.COM/HOMEDECORATORS

Table of Contents

Table of Contents..........................................................2

Safety Information.........................................................2

Warranty.........................................................................2

Three (3) Year Warranty

...........................................................2

What is Covered.......................................................................2

What is Not Covered ................................................................2

Pre-Installation ..............................................................3

Planning Installation ................................................................3

Tools Required .........................................................................3

Hardware Included...................................................................3

Package Contents ....................................................................4

Installation ..................................................................... 5

Care and Cleaning ........................................................ 8

Troubleshooting............................................................ 8

Service Parts ................................................................. 9

Model .......................................................................................9

READ AND SAVE THESE INSTRUCTIONS.

For your protection and safety, carefully read and understand the

information provided in this manual completely before attempting

to assemble, install, or operate this product. Failure to do so

could lead to electrical shock, re, or other injuries that could be

hazardous or even fatal.

Before touching any wire, use a voltage tester to make sure it is

not live.

When replacing fuses, turn off the main power rst. Make sure

your hands and feet are dry, and place one hand behind your

back to prevent electricity from making a complete circuit

through your chest. Touch a plug fuse only by its insulated rim.

Remove cartridge fuses with a fuse puller.

Use tools with insulated handles and ladders made of wood or

berglass.

To protect children, place a safety cover over any unused outlets.

Warranty

THREE (3) YEAR WARRANTY

WHAT IS COVERED

The manufacturer warrants this xture to be free from defects in materials and workmanship for a period of three (3) years from date of

purchase. This warranty applies only to the original consumer purchaser and only to products used in normal use and service. If this product

is found to be defective, the manufacturer’s only obligation, and your exclusive remedy, is the repair or replacement of the product at the

manufacturer’s discretion, provided that the product has not been damaged through misuse, abuse, accident, modications, alteration,

neglect, or mishandling. This warranty shall not apply to any product that is found to have been improperly installed, set-up, or used in any

way not in accordance with the instructions supplied with the product. This warranty shall not apply to a failure of the product as a result of

an accident, misuse, abuse, negligence, alteration, faulty installation, or any other failure not relating to faulty material or workmanship.

This warranty shall not apply to the nish on any portion of the product, such as surface and/or weathering, as this is considered normal

wear and tear.

WHAT IS NOT COVERED

The manufacturer does not warrant and specically disclaims any warranty, whether expressed or implied, of tness for a particular

purpose, other than the warranty contained herein. The manufacturer specically disclaims any liability and shall not be liable for any

consequential or incidental loss or damage, including but not limited to any labor/expense costs involved in the replacement or repair of

said product.

Contact the Customer Service Team at 1-800-986-3460 or visit HOMEDEPOT.COM/HOMEDECORATORS.

Safety Information

DANGER: Before starting installation of this xture

or removal of a previous xture, disconnect the power

by turning off the circuit breaker, removing the fuse at

the fuse box, or tripping the breaker that controls that

circuit. Tape a sign to the panel warning others to

leave the circuit alone while you work.

CAUTION: CONSULT A QUALIFIED ELECTRICIAN IF

YOU HAVE ANY ELECTRICAL QUESTIONS. If you have

any non-electrical questions about this xture, please

call our Customer Service Team at 1-800-986-3460 or

visit HOMEDEPOT.COM/HOMEDECORATORS. Please

reference your SKU (1000 000 000) or UPC

(802513169850).

HOMEDEPOT.COM/HOMEDECORATORS3

Please contact 1-800-986-3460 for further assistance.

Pre-Installation

PLANNING INSTALLATION

Read all instructions before installing.

To avoid damaging this product, place it on a soft, non-abrasive surface, such as carpet or cardboard.

IMPORTANT: Inspect the wire insulation for any

cuts, abrasions, or exposed copper that may have

occurred during shipping. If there is a defect in the

wire, do not attempt installation. Please call the

Customer Service Team at 1-800-986-3460.

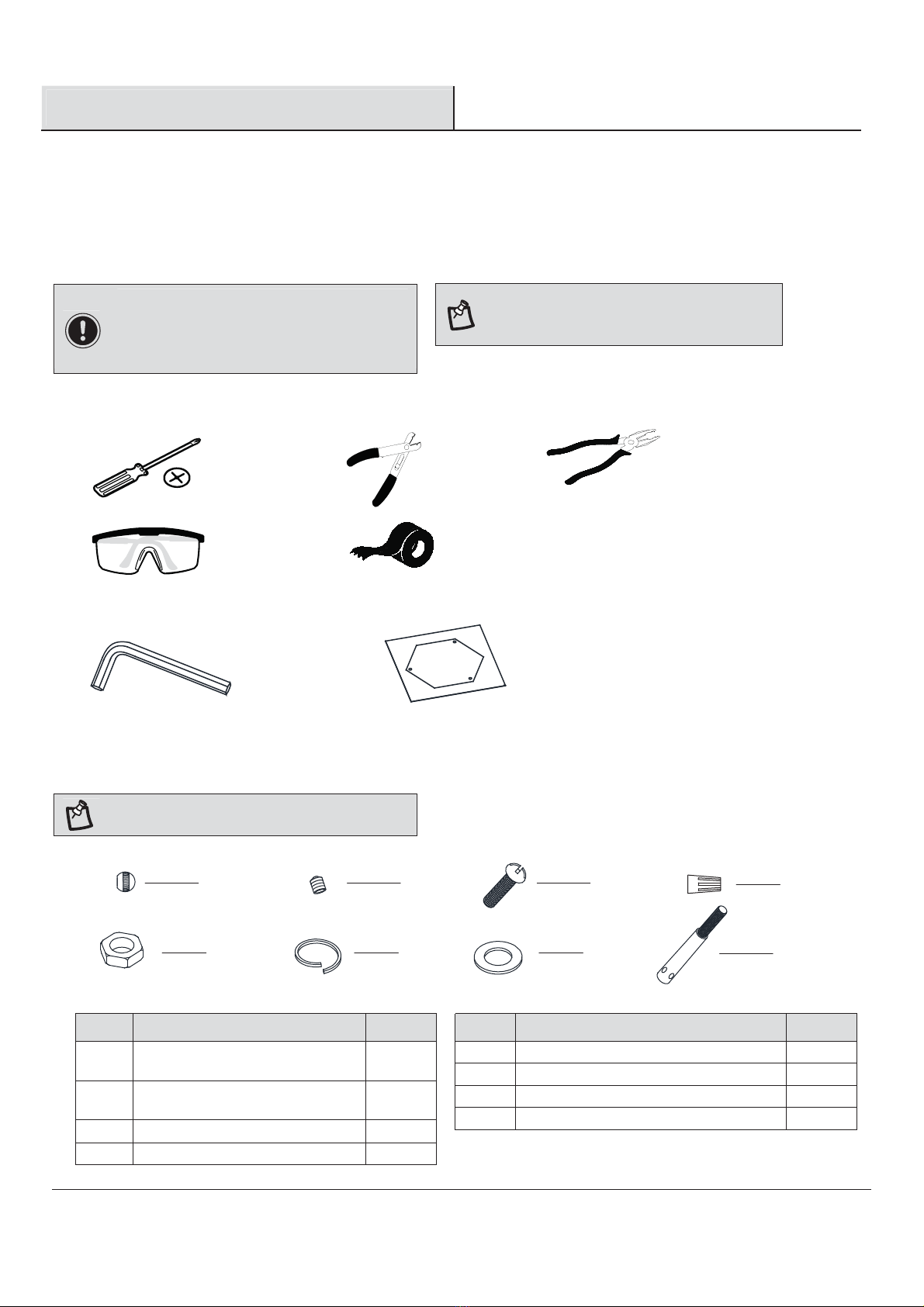

TOOLS REQUIRED (NOT INCLUDED)

Phillips Wire Pliers

Screwdriver Stripper

Safety Electrical

Goggles Tape

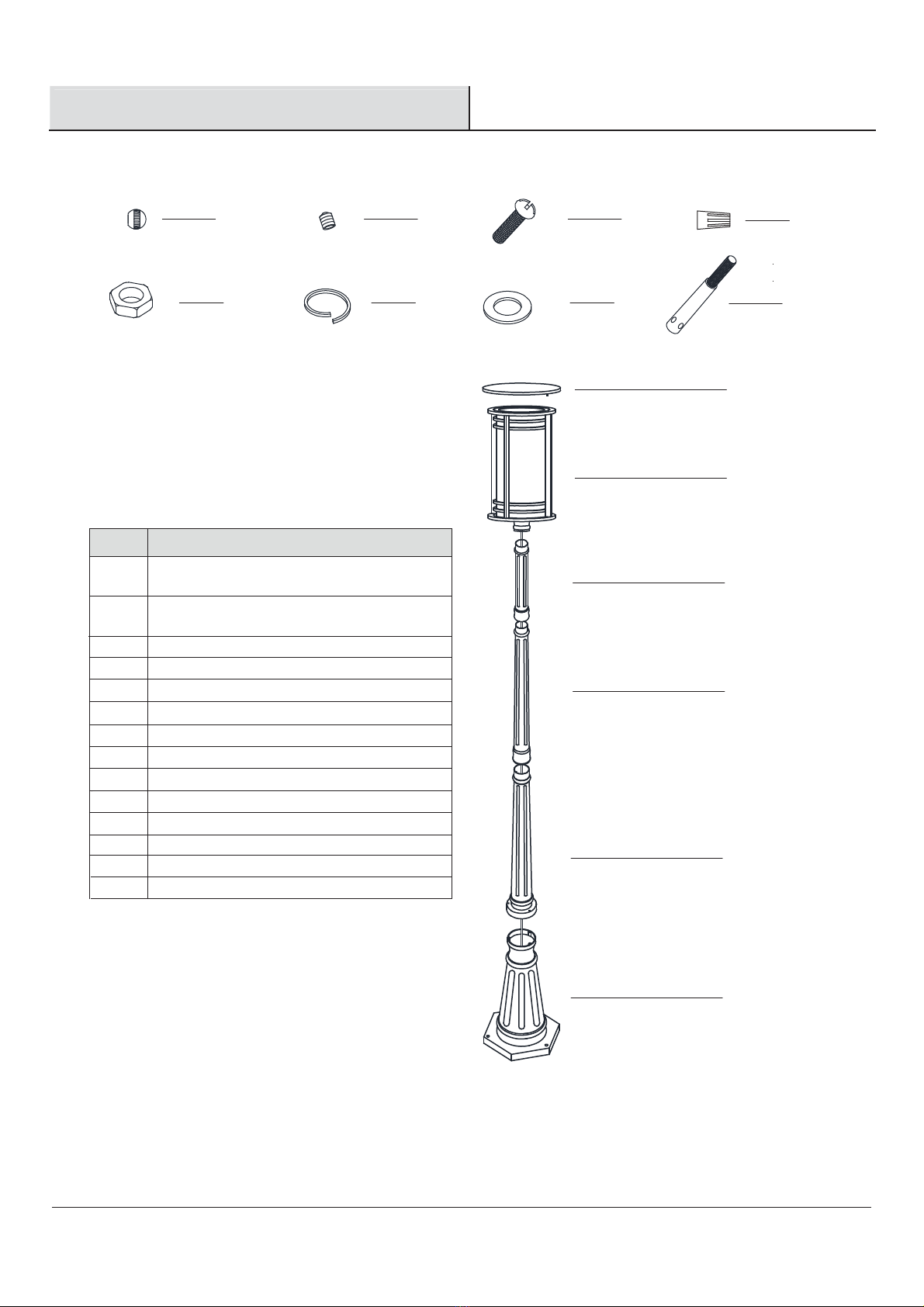

HARDWARE INCLUDED

NOTE: Hardware not shown to actual size.

Part Description Quantity Description Quantity

Cap nut (Pre-assembled to

metal cover (A))

3Lock washer (Pre-assembled to anchor (HH))

Allen screw (Pre-assembled to

lantern (B) and columns (C,D,))

BB 3

Flat washer (Pre-assembled to anchor (HH))

CC Screw (Pre-assembled to base (F)) 3 3AnchorHH

Wire connector

Hex nut (Pre-assembled to anchor(HH))

NOTE: This product requires one 100W maximum

medium base (E26) type A bulb or 23W maximum

medium base (E26) SBCFL (sold separately).

AA BB CC DD

EE FF GG

Part

TOOLS REQUIRED (INCLUDED)

Allen key

Select the desired installation. Run the supply wiring to the installation location and prepare the concrete surface. The supply wiring must

be adequately protected from water using a wire conduit. When preparing the concrete surface, be sure that the conduit extends 1/2” from

the surface to prevent any runoff from entering the opening.

Template

Pre-Installation (continued)

Part Description Quantity

1Metal cover (Pre-assembled to

lantern(B))

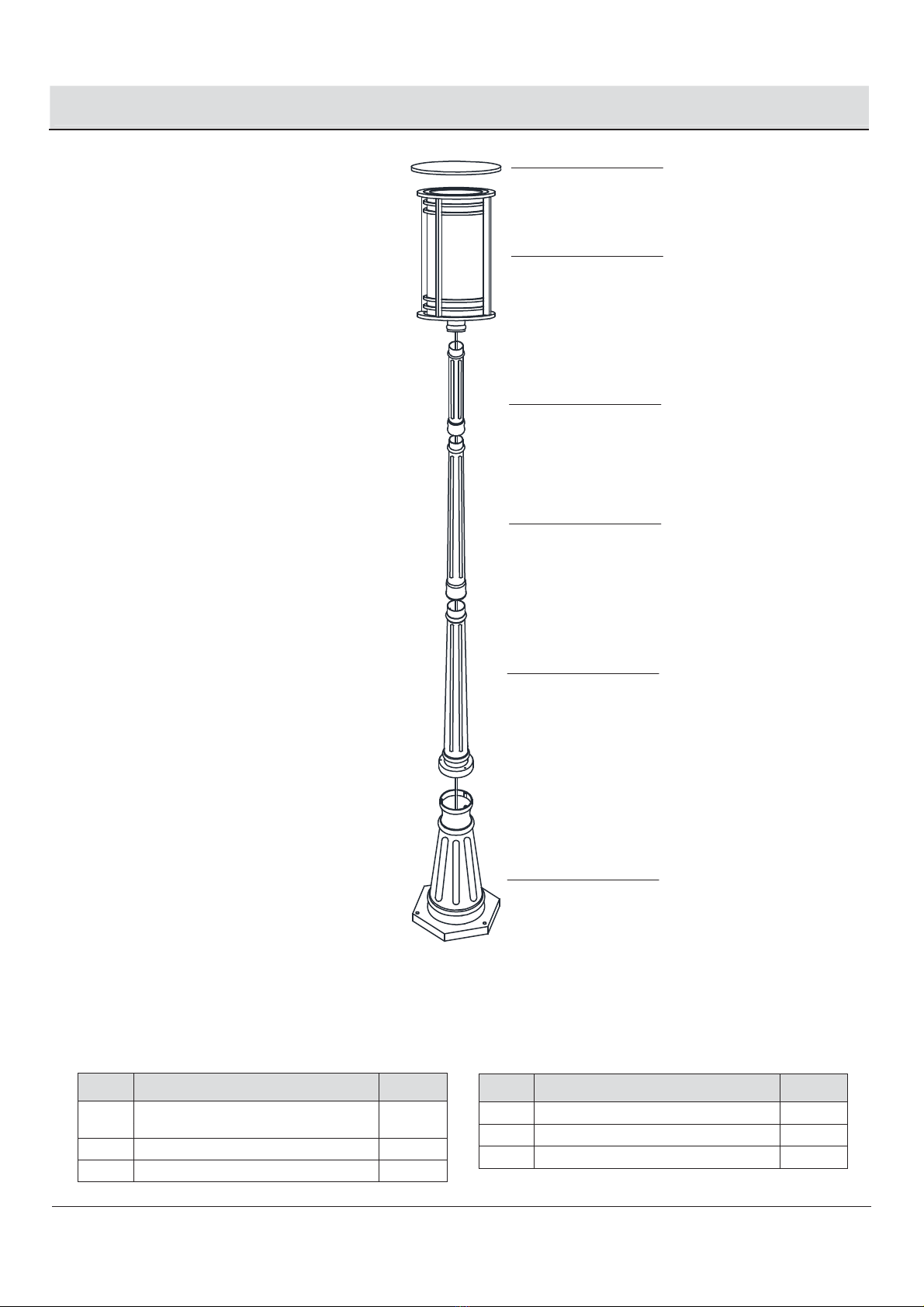

PACKAGE CONTENTS A

LanternB 1

Upper column

Middle column

Part Description Quantity

Lower column

Base

 



NOTE: the desired position must be concrete surface,

and the holes be sure not to exceed 4”.

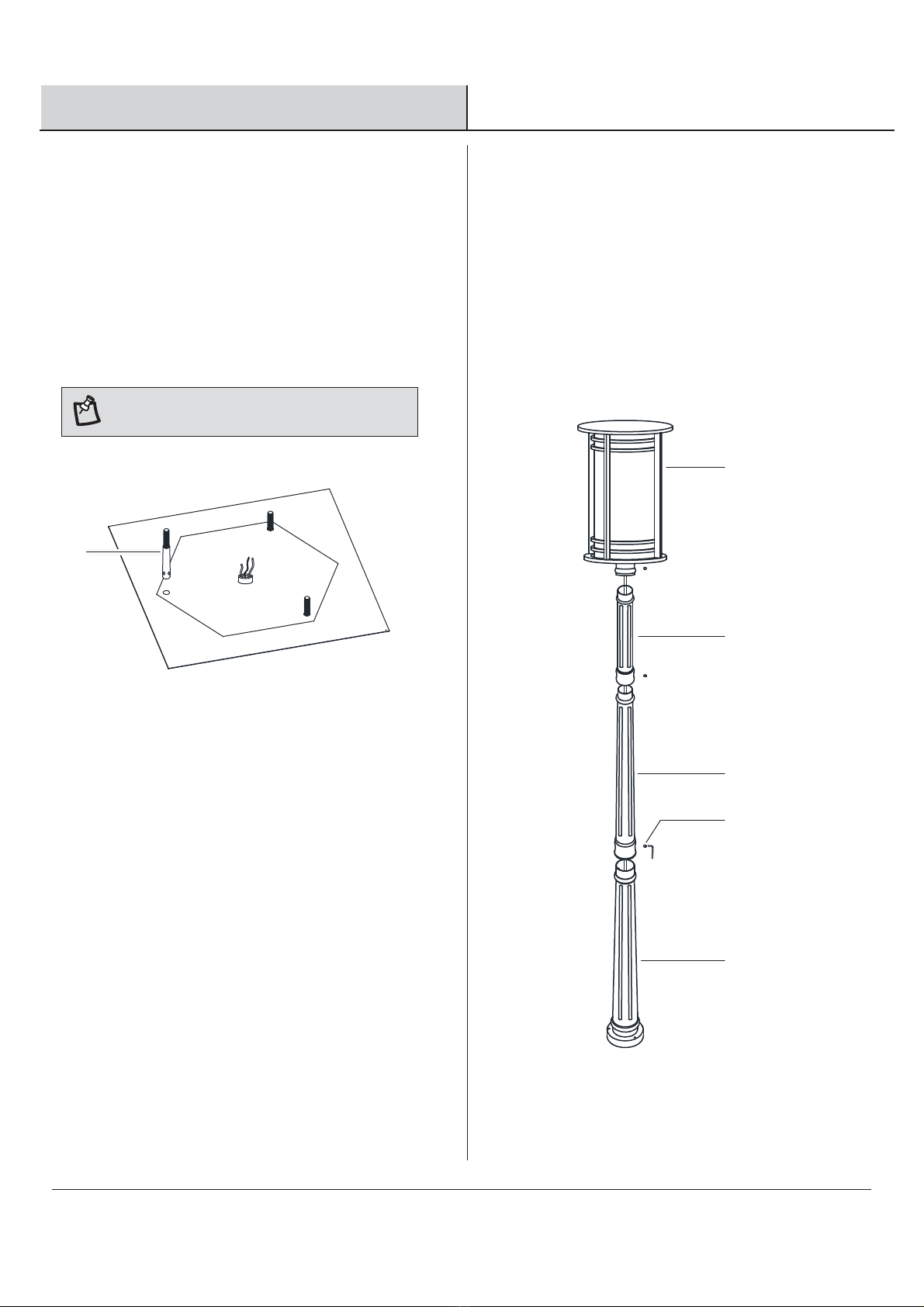

Guide the lantern (B) wire with bare copper ground wire

through the upper column (C), middle column (D) and lower

column (E).

ƶPlace the template on the desired position that best

ts, then use 1/2” drill bit to drill the holes as indicated

on the template.

Connecting the lantern to the

columns

Installing the anchor

Installation

HOMEDEPOT.COM/HOMEDECORATORS

Please contact 1-800-986-3460 for further assistance.

Tighten the lantern (B), the upper column (C), the middle

column (D) and the lower column (E) until secured respectively

as shown in diagram.

Secure each column with the Allen screws (BB) by Allen key

as shown.

ƶUnscrew the hex nuts (EE), and remove the lock

washers (FF) and the at washer (GG) from the

anchors (HH), use in a subsequent assembly.

ƶRemove the template, then insert the anchors (HH)

into the holes as shown.

 



ƶGuide the lantern (B) wire with bare copper ground wire

through the base (F).

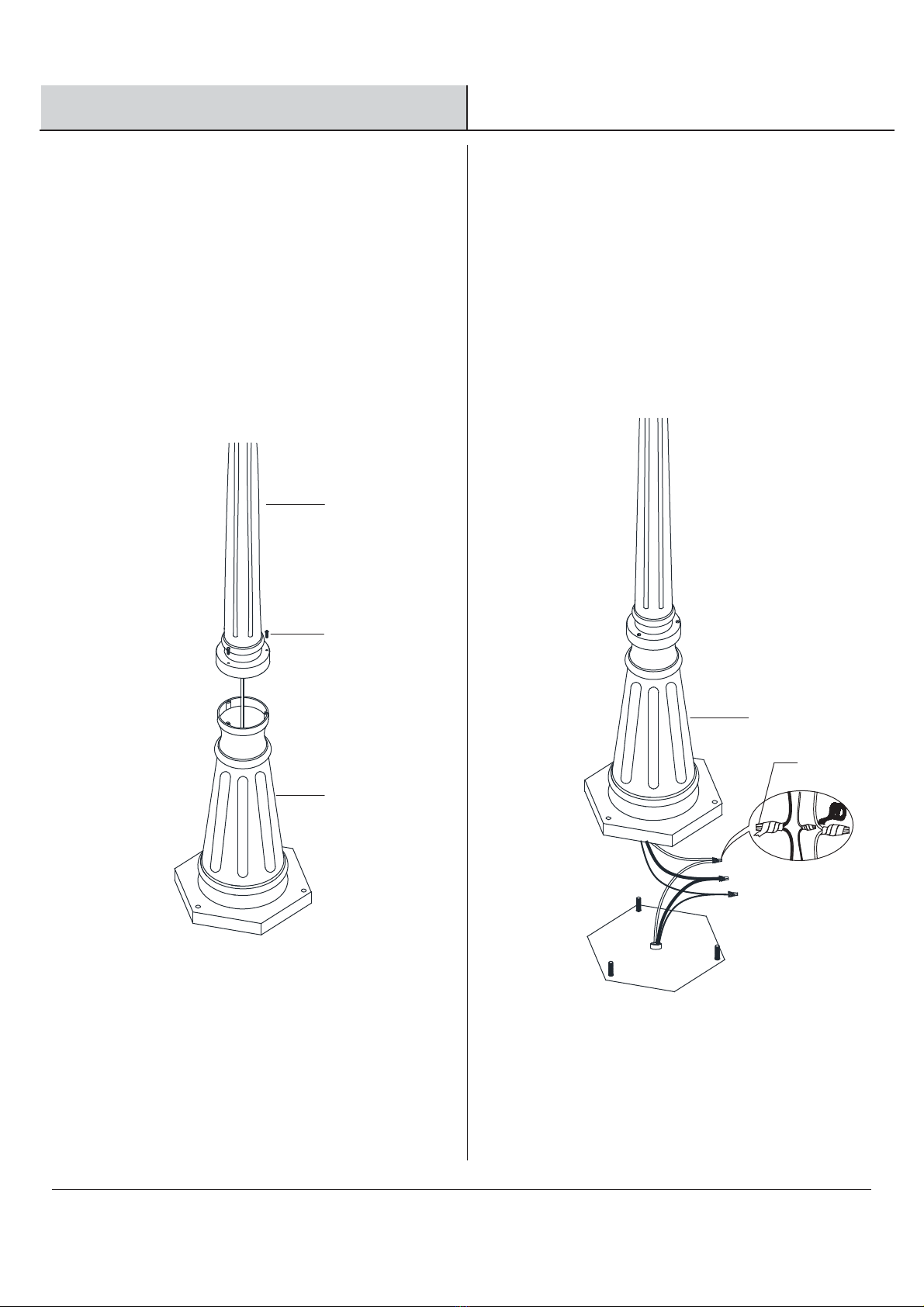

Making the electrical connections

Assembling the lantern assembly

to the base

Installation (continued)

ƶAttach the base (F) to the bottom of the lower column (E),

align the holes and secure with three screws (CC) by

the screwdriver.

ƶ



Strip 3/4 in. of insulation from the wire ends.

The bare copper ground wire from the xture to the ground wire

from the desired position.

Cover the wires with wire connectors (DD). Tape the wire

connectors (DD) and wires together, and carefully position all

wires inside the base (F).

Connect the black wire from the xture to the black wire from

the desired position, and the white wire from the xture to

the white wire from the desired position.

 



ƶPlace the base (F) of the xture body over the desired

positon, and ensure the heads of the anchor (HH) come

through the holes of the base (F).

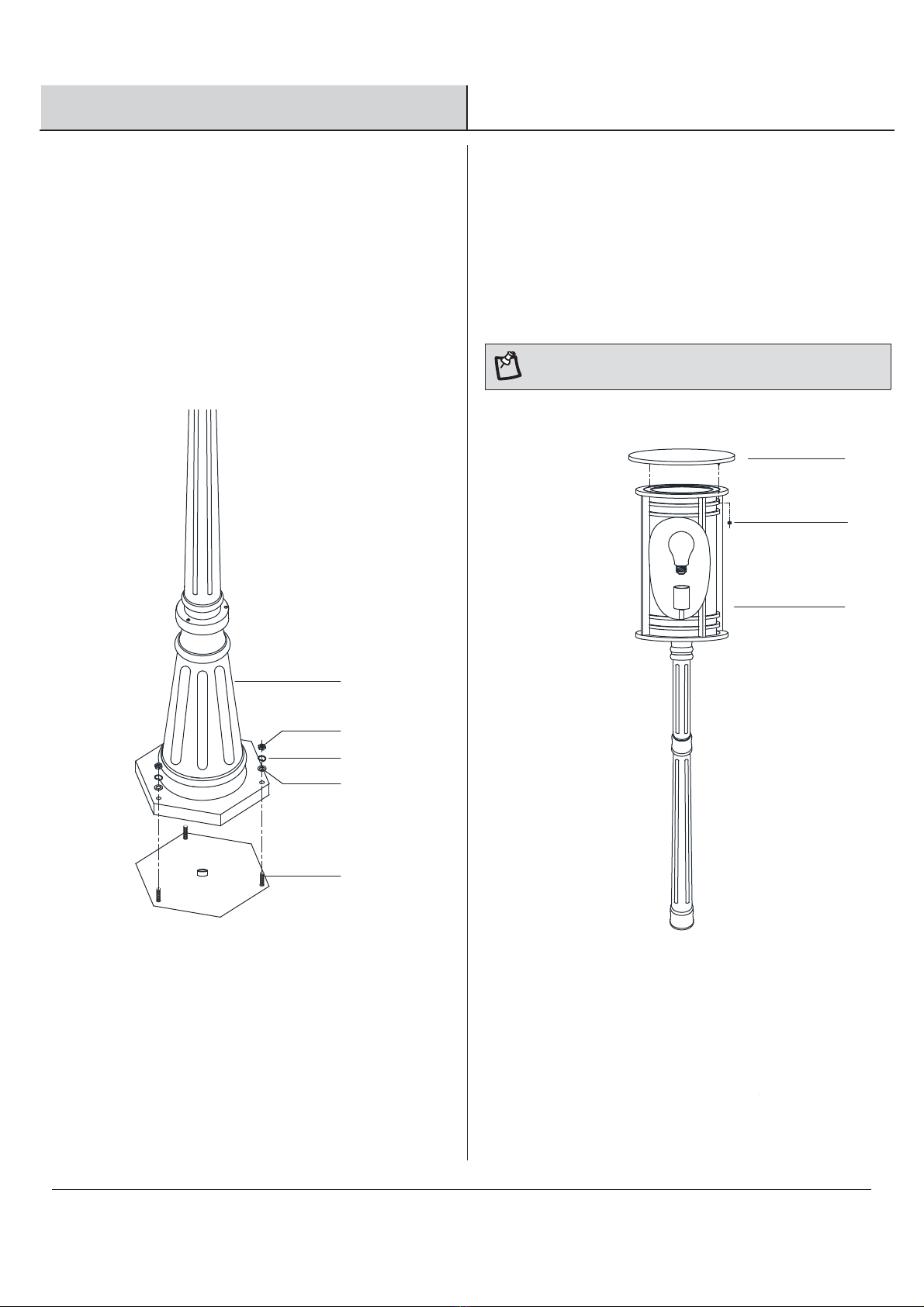

Installing the light bulb

Installing the xture body to the

desired position

Installation (continued)

ƶPlace the at washers (GG) and lock washers (FF) over

the anchors (HH), and tighten the nuts (EE) onto the

anchor(HH) until the base (F) is held rmly against the oor.

ƶ



Unscrew the cap nuts (AA) from the lantern (B), and remove

the metal cover (A).

ƶPlace the metal cover (A) over the lantern (B), and fasten the

metal cover (A) using two cap nuts (AA).

Install the light bulb (not included) into the lamp head (B)

socket. Use one 100-watt medium base bulb or less.

NOTE: You can also use one 23W maximum medium base (E26)

SBCFL (sold separately). Do not exceed the recommended wattage.

HOMEDEPOT.COM/HOMEDECORATORS

Please contact 1-800-986-3460 for further assistance.

Care and Cleaning

 Do not use any cleaners with chemicals, solvents, or harsh abrasives. Use only a dry, soft cloth to dust or wipe carefully.

 To clean the xture, disconnect power by turning off the circuit breaker or by removing the fuse at the fuse box, and use a dry or

slightly dampened, clean cloth to wipe the exterior surface of the xture.

Troubleshooting

Problem Possible Cause Solution

The bulb is burned out. Replace the light bulb.

The power is off. Ensure the power supply is turned on.

There is a faulty switch. Test or replace the switch.

The lights will not turn on.

There is a faulty wire connection. Check the wiring.

The fuse blows, or the circuit breaker

trips, when the light is turned on.

There are crossed wires, or the power

wire is grounding out.

Discontinue use of the lamp. Check the wire connections.

Contact a qualied electrician or call the Customer Care

Service Team at 1-800-986-3460.

Service Parts

MODEL: 16985

AA BB CC DD

EE FF GG

Part Description

Cap nut ((Pre-assembled to

metal cover (A))

Lock washer (Pre-assembled to the anchor (HH))

Allen screw (Pre-assembled to the

lantern (B) and columns (C,D))

Flat washer (Pre-assembled to the anchor (HH))

CC Screw (Pre-assembled to base (F))

AnchorHH

Wire connector

Hex nut (Pre-assembled to the anchor (HH))

Metal cover (Pre-assembled to lantern (B))A

LanternB

Upper column

Middle column

Lower columnE

Base

HOMEDEPOT.COM/HOMEDECORATORS

Please contact 1-800-986-3460 for further assistance.



Questions, problems, missing parts? Before returning to the store,

call Home Decorators Collection Customer Service

8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday

1-800-986-3460

HOMEDEPOT.COM/HOMEDECORATORS

Retain this manual for future use.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Sprachen:

Andere Home Decorators Collection Außenleuchte Handbücher

Home Decorators Collection

Home Decorators Collection HB1080-34 Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection HD-1513 Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection PALERMO GROVE 7973HDCANDI Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection C2374 Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection L-19905BKBRASS Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection IZC5401LX-01/BK Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection BELL RIDGE HDP99215 Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection HD-1200-LED Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection BLAKELEY PT-19905 Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection LVB0642-S Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection 17546 Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection HB7083-35 Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection IZC1501LX-01/BK Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection HB1078-35 Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection 16986 Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection HB1078-313D Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection HATTERAS Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection KSZ1501LL-01/BR Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection BRIMFIELD Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection HB1079-310D Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection HD-1709-I Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection 1002099636 Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection HD19565FL Bedienungsanleitung

Home Decorators Collection

Home Decorators Collection IZC5101LX-01/BK Bedienungsanleitung

Beliebte Außenleuchte Handbücher anderer Marken

Sealey

Sealey LED37 Bedienungsanleitung

nordlux

nordlux VEJERS Benutzerhandbuch

SImx

SImx ELITE LED LHTC637 Bedienungsanleitung

GEV

GEV CAROLINE 10833 Bedienungsanleitung

NEBO

NEBO NEB-LSP-0020 Bedienungsanleitung

WE-EF

WE-EF PFL540 LED Bedienungsanleitung

Lindby

Lindby 9949029 Bedienungsanleitung

HEPER

HEPER DOGO Side LW6048.585-US Montage- und Bedienungsanleitung

HEPER

HEPER LW8034.003-US Montage- und Bedienungsanleitung

Maretti

Maretti VIBE S 14.6080.04.A Bedienungsanleitung

BEGA

BEGA 84 253 Handbuch

HEPER

HEPER MINIMO Montage- und Bedienungsanleitung

LIGMAN

LIGMAN BAMBOO 3 Bedienungsanleitung

Maretti

Maretti TUBE CUBE WALL 14.4998.04 Bedienungsanleitung

Maxim Lighting

Maxim Lighting Carriage House VX 40428WGOB Bedienungsanleitung

urban ambiance

urban ambiance UQL1273 Bedienungsanleitung

TotalPond

TotalPond 52238 Bedienungsanleitung

Donner & Blitzen

Donner & Blitzen 0-02661479-2 Bedienungsanleitung
