Linkable 5000LM

Triple Head

LED Security Light

the bright way to do home security.

ES00942G

INSTALLATION INSTRUCTIONS

1. Turn off electrical power at fuse or circuit breaker box before wiring

ﬁxture to the power supply.

2. Make sure all electrical and grounded connections are in accordance with

the National Electrical Code and applicable local code requirements.

3. All wiring connections should be compliant with UL standard.

1. Wear gloves and safety glasses all the time when moving luminaire from

carton, installing, servicing or performing maintenance.

2. Avoid direct eye exposure to the light source while it is on. Or this may

cause irreparable damage to the eyes.

3. Account for small parts and destroy packing material, as these may be

hazardous to children.

1. Allow ﬁxture to cool before touch.

2. Do not exceed maximum wattage marked on luminaire label."

Attention: lights must to be installed by the experienced household wire

installer or a qualiﬁed electrician, Electrical system and

the electrical connection method of light ﬁxture must conform to the

national electrical standards and speciﬁcation

requirements of the local architecture."

PLEASE READ CAREFULLY AND SAVE THESE INSTRUCTIONS, AS YOU

MAY NEED THEM AT A LATER DATE.

Warning

1. Please read all warning and instruction labels which are included in the

box and ﬁxture to avoid personal injury, property damage caused by ﬁre,

cuts, bruises, death and other dangers.

2. Please follow these general precautions before installing, maintaining, or

ﬁxing.

IMPORTANT SAFETY OPERATING INSTRUCTIONS

WARNING

WARNING:This product can expose you to chemicals including lead

and lead compounds, Di(2-ethylhexyl)phthalate (DEHP), which are

known to the State of California to cause cancer and birth defects or

other reproductive harm. For more information go to

www.P65Warnings.ca.gov.

Risk of Electrical Shock

Risk of Injury

Risk of Burn

1. Turn off electrical power at fuse or circuit breaker box before wiring

ﬁxture to the power supply.

2. Make sure all electrical and grounded connections are in accordance with

the National Electrical Code and applicable local code requirements.

3. All wiring connections should be compliant with UL standard.

1. Wear gloves and safety glasses all the time when moving luminaire from

carton, installing, servicing or performing maintenance.

2. Avoid direct eye exposure to the light source while it is on. Or this may

cause irreparable damage to the eyes.

3. Account for small parts and destroy packing material, as these may be

hazardous to children.

1. Allow ﬁxture to cool before touch.

2. Do not exceed maximum wattage marked on luminaire label."

Attention: lights must to be installed by the experienced household wire

installer or a qualiﬁed electrician, Electrical system and

the electrical connection method of light ﬁxture must conform to the

national electrical standards and speciﬁcation

requirements of the local architecture."

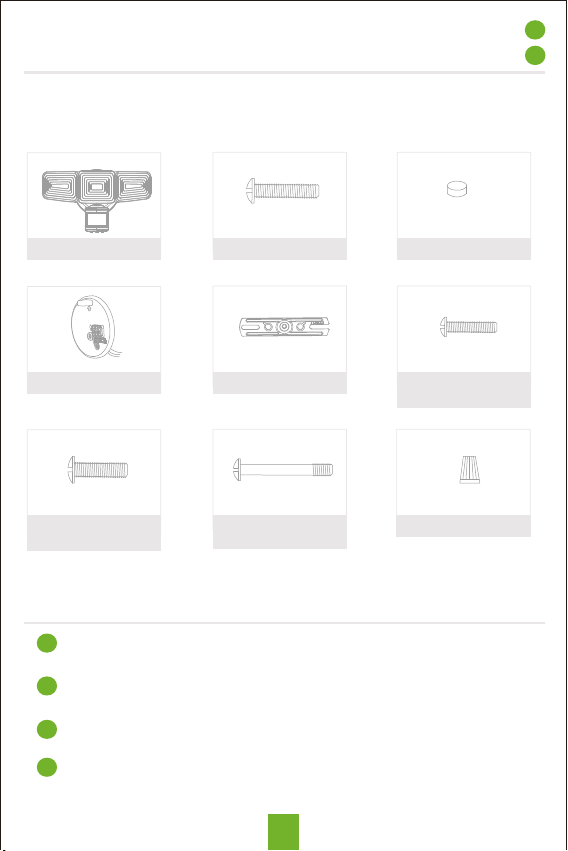

Ref. Parts

Parameter

1Illumination output: approx. 5000 lumens / 5000K

Wattage: 47W

Power source: AC120V/60Hz

Detection range: up to 70feet (21.3m), 240 degree

PREPARATION

Tools required for assembly (not included): phillips screwdriver, safety

goggles, power drill and ladder.

1. Please read all warning and instruction labels which are included in the

box and ﬁxture to avoid personal injury, property damage caused by ﬁre,

cuts, bruises, death and other dangers.

2. Please follow these general precautions before installing, maintaining, or

ﬁxing.

Small Mounting BoltLight ﬁxture Decorative Cover

A B C

Mounting BracketMounting Plate #6-32 X 1/2”

Junction Box Screw

D E F x 2

Large Mounting Bolt

(pre-installed)

#8-32 X 1/2”

Junction Box Screw

G x 2 H

Wire Nut

I x 3

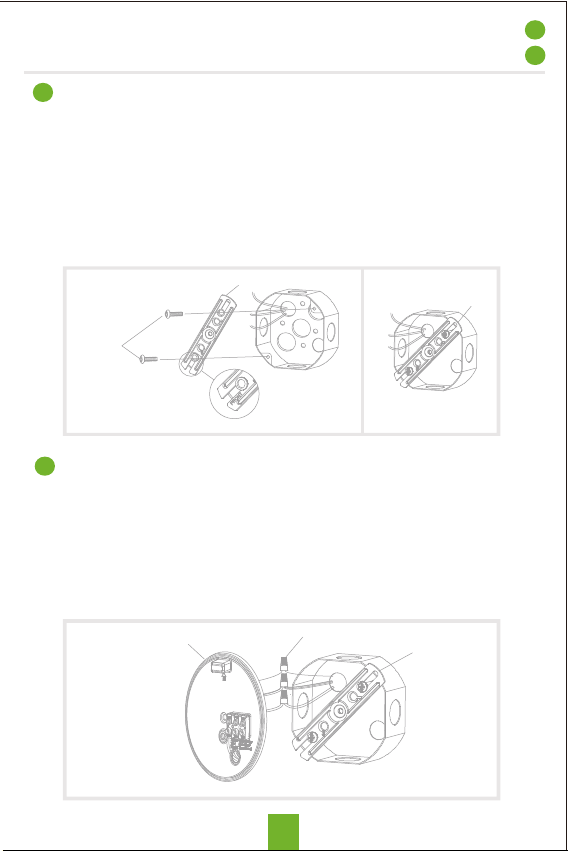

2Connecting the Wires

CAUTION: Do not cut any wires and remove the wire connectors.

*Connect the wires on the mounting plate (D) and the wires on the

junction box with wire nut (I).

- White to white

- Black to black

- Green ground wire to house ground

Note: Make sure the polarity is correct.

Installing the Mounting Bracket

* Align the holes on the mounting bracket (E) with the holes on

your junction box.

* Lock the two mounting screws (F or G) to the junction box.

Note:

*Make sure the mounting bracket with the stamped word "FRONT"

facing away from the junction box.

* For the best performance, install the light ﬁxture at 5.9 feet ~11.5

feet (1.8~3.5m) above the ground.

F or G

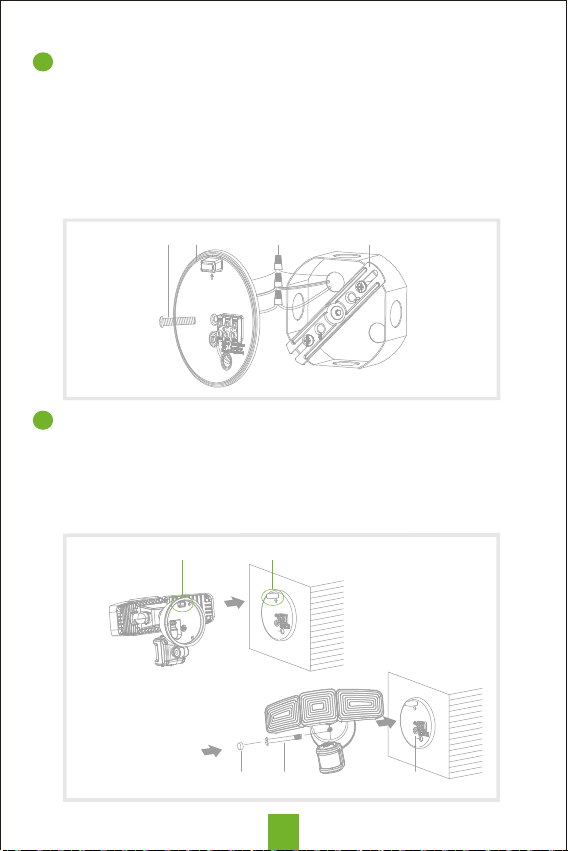

Installation

Installing the Mounting Plate

• Place the mounting plate (D) against the junction box.

When installing the mounting plate to a wall, the “arrow” must be

upward.

When installing the mounting plate to an eave, the “arrow” must be

toward the house.

• Insert the small mounting bolt (B) through the mounting plate (D)

hole and mounting bracket (E) hole. Tighten the bolt (B) securely.

• Pull on the mounting plate (D) to verify if it is tightly attached to

the mounting bracket (E).

B D I E

arrow

C H D

4Mounting the Light Fixture

Connecting the positioning hole of the light ﬁxture (A) and position-

ing pillar of the mounting plate (D).

• Tighten the large mounting bolt (H) securely through the center of

the mounting plate (D). DO not overtighten.

• Push the decorative rubber cover (C) ﬁrmly into the large mounting

bolt hole on the light ﬁxture (A).

Positioning Hole Positioning Pillar

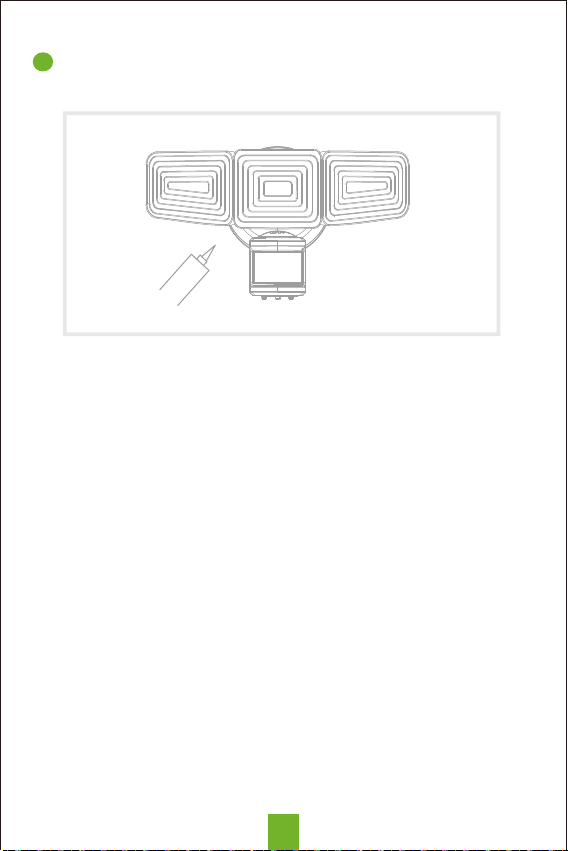

5Use silicone caulk to seal completely around the gap between the

mounting bracket and the wall.

Note: If you install this light ﬁxture on the covered wall or eave

without junction box, you must consult a qualiﬁed, licensed

electrician and use the appropriate screws (not included) to

install this light ﬁxture on the wall or eave directly depending on

the surface.

Product Function Description

1. SENS Setting

Adjust the SENS setting to adjust range of Passive Infrared

Motion Sensor

SENS

Slide toward the “ ” (low) position for short detection range (3-30 ft).

Slide toward the “ ” (Middle) position for middle detection range ( 3-49 ft).

Slide toward the “ ” (high) position for long detection range ( 3-70 ft).

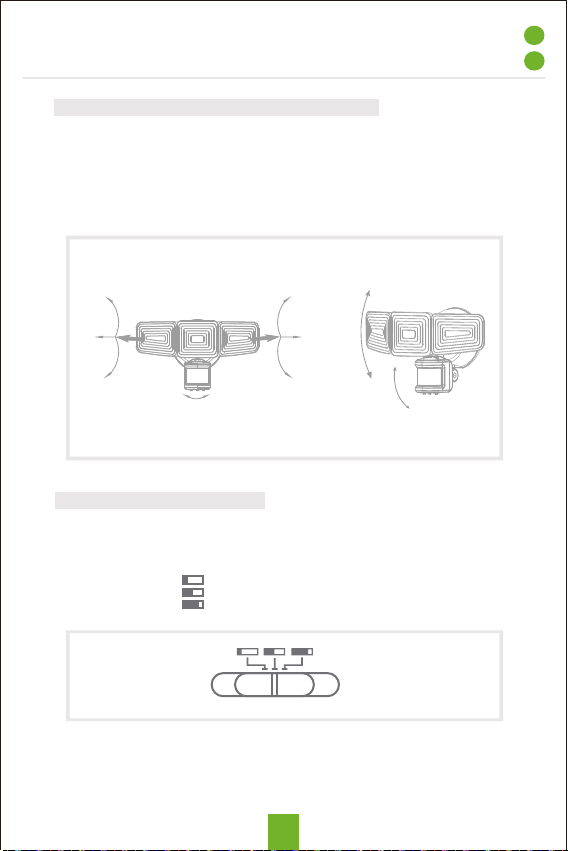

How it Works

• Swing the lamp heads to adjust the lamp head left and right or up

and down to get the desired lamp direction.

• Gently grasp the motion sensor and adjust the sensor left and

right or up and down to get the desired lamp direction.

Adjusting the lamp heads and motion sensor

35º

80º

100º

90º 90º

70º

45º

35º

100º

70º

2. 4 Working Modes

• Test mode: check the light’s sensory function in order to test

the sensory range. The time duration for the light will be 5s.

• Auto: when motion is detected, the light will turn on automatically

for the time set (can choose 1, 3 or 7mins) at night.

• On: The light will stay on when it is switched on and turn off

when it is switched off by light switch, whether it is day or at

Night.

• D2D: The light automatically lights up at night time and turns

off during daylight.

3. TIME Setting

This setting is used to control the time span of how long the light

remains on when motion is deteced.Set the switch to the 1, 3, 7

minutes position. The security light will stay on as long as motion is

detected and will go off after the time span you set after no motion

is detected.

4. Linkable Channels Setting

This setting has 4 channels. As long as you choose “linkable”

security light or sensors from Home Zone Security, selecting a

speciﬁc channel to connect all linkable security lights and sensors.

They will be grouped as an invisible system and working together.

One linkable light triggered, all linkable lights on.

CHANNELS

MODE

TEST

1min 3min 7min

AUTO D2DON

CH1 CH2 CH3 CH4

FCC

Cleaning and Maintenance

1. Clean periodically with soft cloth.

2. Do not use any cleaners with chemicals, solvents or harsh

abrasives on this light. Do not use scouring pads, powders, steel

wool or brasive paper. They could cause deterioration of the ﬁnish.

This device complies with Part 15 of the FCC Rules.

Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including

interference that may cause undesired operation.

This device complies with FCC Part 15 of FCC Rules.

Warning

: Changes or modiﬁcations to this unit not expressly

approved by the party responsible for compliance could void the

user’s authority to operate the equipment.

NOTE

: This equipment has been tested and found to comply

with the limits for a Class B digital device, pursuant to Part 15 of

the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency

energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio

communications.

However, there is no guarantee that interference will not occur in

a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be

determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more of the

following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from

that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

This equipment should be installed and operated with a minumum distance of 20 cm

between the radiator and your body.

Get exclusive offers and deals

when you subscribe!

Thank you for choosing Home Zone Security!

We are here to support you every step of the way.

Please be sure to contact our customer support for troubleshooting

and register your product for additional beneﬁts. Products must be

sold by an authorized reseller or distributor to be valid.

• Receive your extended warranty

• Get professional warranty support

•Be the ﬁrst to hear the latest product news.

• Get exclusive deals delivered to you email.

Scan below for link:

homezonesecurity.com

support@homezone-usa.com

US: +1 888-782-5618

Why Register?

Distributed by

4198 Industry Way

Flowery Branch, GA 30542 USA

Made In Cambodia

Horizon Marketing Group, LLC

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Home Zone Security Außenleuchte Handbücher

Home Zone Security

Home Zone Security ELJ6842V Bedienungsanleitung

Home Zone Security

Home Zone Security ELI0764V Bedienungsanleitung

Home Zone Security

Home Zone Security ELI1301G Bedienungsanleitung

Home Zone Security

Home Zone Security ELI0990V Bedienungsanleitung

Home Zone Security

Home Zone Security ELI0765V Bedienungsanleitung

Home Zone Security

Home Zone Security ELI0989V Bedienungsanleitung

Home Zone Security

Home Zone Security ELJ6692V Bedienungsanleitung

Home Zone Security

Home Zone Security ELJ9542V Bedienungsanleitung

Home Zone Security

Home Zone Security ELJ7012V Bedienungsanleitung

Home Zone Security

Home Zone Security ELJ8205V Bedienungsanleitung

Home Zone Security

Home Zone Security ELJ8123V Bedienungsanleitung

Home Zone Security

Home Zone Security ELI0961V Bedienungsanleitung

Home Zone Security

Home Zone Security ES06470V Bedienungsanleitung

Beliebte Außenleuchte Handbücher anderer Marken

Sealey

Sealey LED37 Bedienungsanleitung

nordlux

nordlux VEJERS Benutzerhandbuch

SImx

SImx ELITE LED LHTC637 Bedienungsanleitung

GEV

GEV CAROLINE 10833 Bedienungsanleitung

NEBO

NEBO NEB-LSP-0020 Bedienungsanleitung

WE-EF

WE-EF PFL540 LED Bedienungsanleitung

Lindby

Lindby 9949029 Bedienungsanleitung

HEPER

HEPER DOGO Side LW6048.585-US Montage- und Bedienungsanleitung

HEPER

HEPER LW8034.003-US Montage- und Bedienungsanleitung

Maretti

Maretti VIBE S 14.6080.04.A Bedienungsanleitung

BEGA

BEGA 84 253 Handbuch

HEPER

HEPER MINIMO Montage- und Bedienungsanleitung

LIGMAN

LIGMAN BAMBOO 3 Bedienungsanleitung

Maretti

Maretti TUBE CUBE WALL 14.4998.04 Bedienungsanleitung

Maxim Lighting

Maxim Lighting Carriage House VX 40428WGOB Bedienungsanleitung

urban ambiance

urban ambiance UQL1273 Bedienungsanleitung

TotalPond

TotalPond 52238 Bedienungsanleitung

Donner & Blitzen

Donner & Blitzen 0-02661479-2 Bedienungsanleitung
