OWNER’S GUIDE

® U.S. Registered Trademark

Honeywell CT3611

PROGRAMMABLE THERMOSTAT

Seven Day

Programmable Heat Pump

Low Voltage (20 to 30 Vac) Thermostat and Wallplate

Model CT3611

Para pedir estas instrucciones en español, llame al 1-800-468-1502.

Pour obtenir ce ode demploi en français, composer le 1-800-468-1502.

Table of Contents

Step 1. Prepare for Installation .................................................................................................................................. 5

Step 2. Remove Old Thermostat ............................................................................................................................... 5

Step 3. Mount thermostat Wallplate ........................................................................................................................... 6

Step 4. Wire Wallplate Terminals ............................................................................................................................... 7

Step 5. Mount the Thermostat ................................................................................................................................... 9

Step 6. Customize Your Thermostat .......................................................................................................................... 9

Step 7. Set the Clock ................................................................................................................................................. 11

Step 8. Programming ................................................................................................................................................. 12

Step 9. Operating Your Thermostat ........................................................................................................................... 15

Step 10. Set the Fan and System Switches .............................................................................................................. 17

If You Have a Problem ............................................................................................................................................... 18

Smart Response™ Technology ................................................................................................................................. 20

Wiring Diagrams ........................................................................................................................................................ 21

69-1081.fm Page 1 Wednesday, May 18, 2005 9:03 AM

69-1081—3 2

TOTAL COMFORT TEMPERATURE MANAGEMENT WITH SMART

RESPONSE™ TECHNOLOGY.

Congratulations! You made a smart choice by purchasing your new Honeywell thermostat; the smart thermostat that;

•Keeps you comfortable by automatically calculating exactly when the heat pump should go on to have the house at

the desired comfort temperature by the time you wake up or return home.

•Saves the maximum amount of energy and money by automatically remembering to adjust the temperature when

you leave home or go to sleep.

•Provides the ultimate in comfort and convenience. It comes preprogrammed. You can use the preprogrammed

schedule, or set your own.

This manual answers many of the questions that can arise as you become familiar and comfortable with your

Honeywell thermostat — the state of the art in home comfort controls.

Read these instructions carefully. Failure to follow these instructions can damage the product or cause a hazardous

condition.

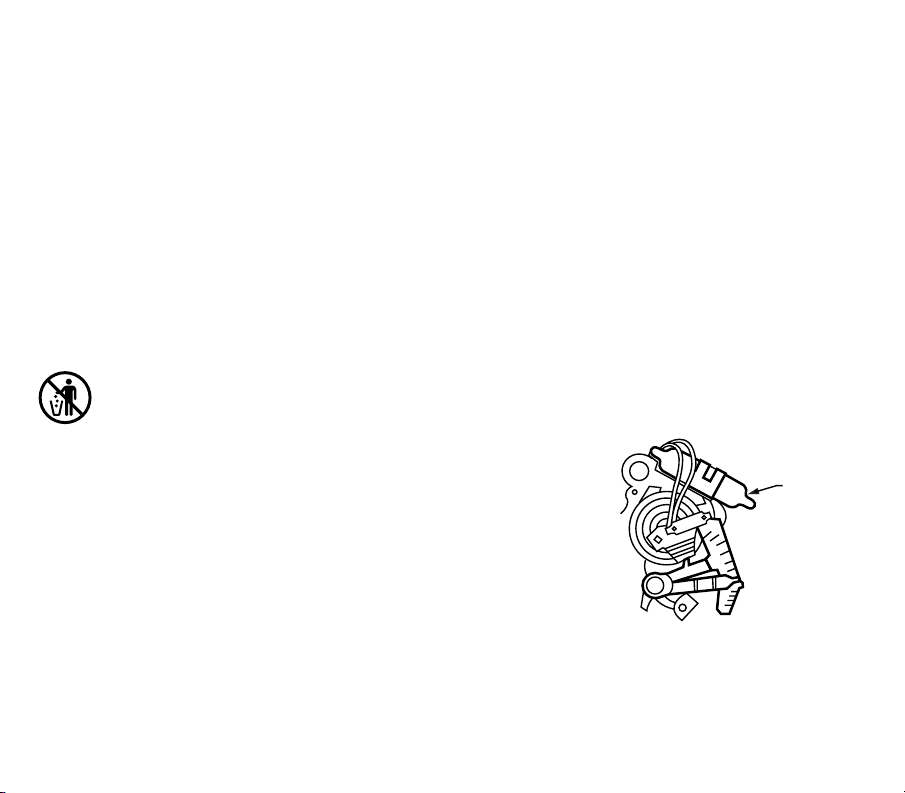

MERCURY NOTICE

If this thermostat is replacing a control that contains mercury

in a sealed tube, do not place your old control in the trash.

Contact your local waste management authority for

instructions regarding recycling and the proper disposal of this

control, or of an old control containing mercury in a sealed

tube.

If you have questions, call Honeywell Inc. at 1-800-468-1502.

M10614

MERCUR

SWITCH

YPICAL LOCATION OF A MERCURY

WITCH IN A THERMOSTAT

69-1081.fm Page 2 Wednesday, May 18, 2005 9:03 AM

3 69-1081—3

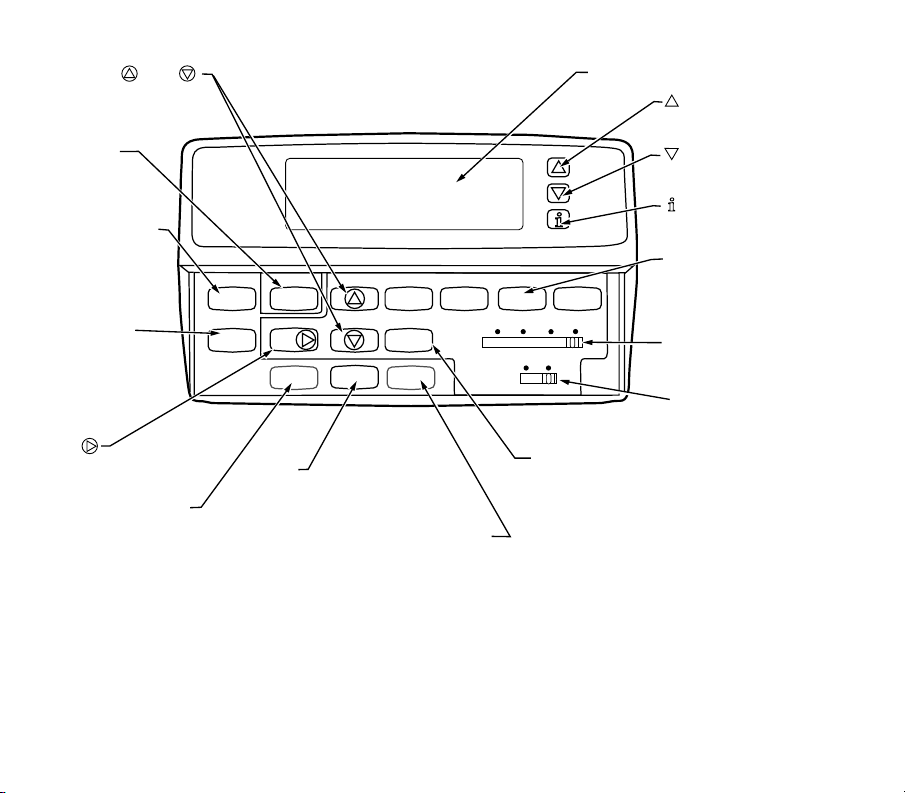

Time Set Program

Run

Program

Hold Temp

Set Current

Day/Time

Day Heat/Cool

Settings

Daylight

Time Copy Usage

System

Fan

Wake Leave Return Sleep

Em Heat Heat Off Cool

On Auto

M18745

RAISES

TEMPERATURE SETTING

LOWERS

TEMPERATURE SETTING

DISPLAYS

CURRENT HEAT/COOL

TEMPERATURE SETTING

PROGRAM PERIODS

WAKE/LEAVE/RETURN/SLEEP:

ENTERS PROGRAMMING MOD

SYSTEM SWITCH

SELECTS EMERGENCY HEAT/

HEAT/OFF/COOL

DIGITAL DISPLAY

ET CURRENT

AY/TIME

ETS CURRENT

IME AND DAY

UN PROGRAM

ETURNS

HERMOSTAT

O NORMAL

PERATING MODE

HEAT/COOL SETTING

SWITCHES BETWEEN

HEAT SETPOINTS AND

COOL SETPOINTS

WHILE PROGRAMMING

TIME /TIME

SETS TIME

FORWARD OR BACK

ETS DAY OF

HE WEEK

OLD TEMP

ETS A HOLD

EMPERATURE

ETTING AND

CTIVATES

ACATION HOLD

EATURE

DAYLIGHT TIME

SELECTS STANDARD

TIME OR DAYLIGHT

SAVINGS TIME

COPY

COPY SETTINGS FROM

ONE DAY TO ANOTHER DAY

FOR QUICK PROGRAMMING

USAGE

TRACKS EQUIPMENT RUNTIME

FAN SWITCH

SELECTS AUTO/ON

69-1081.fm Page 3 Wednesday, May 18, 2005 9:03 AM

69-1081—3 4

M18756A

Aux Ht

System Off Auto

WakeLeaveReturnSleep

Mon

Wait

Room

Humid

Outdoor

Hold for

Recovery

Cool

TueWedThuFriSatSun Days

Set Program

Set Day/Time

Temporary Setting

Em Heat

Em Ht

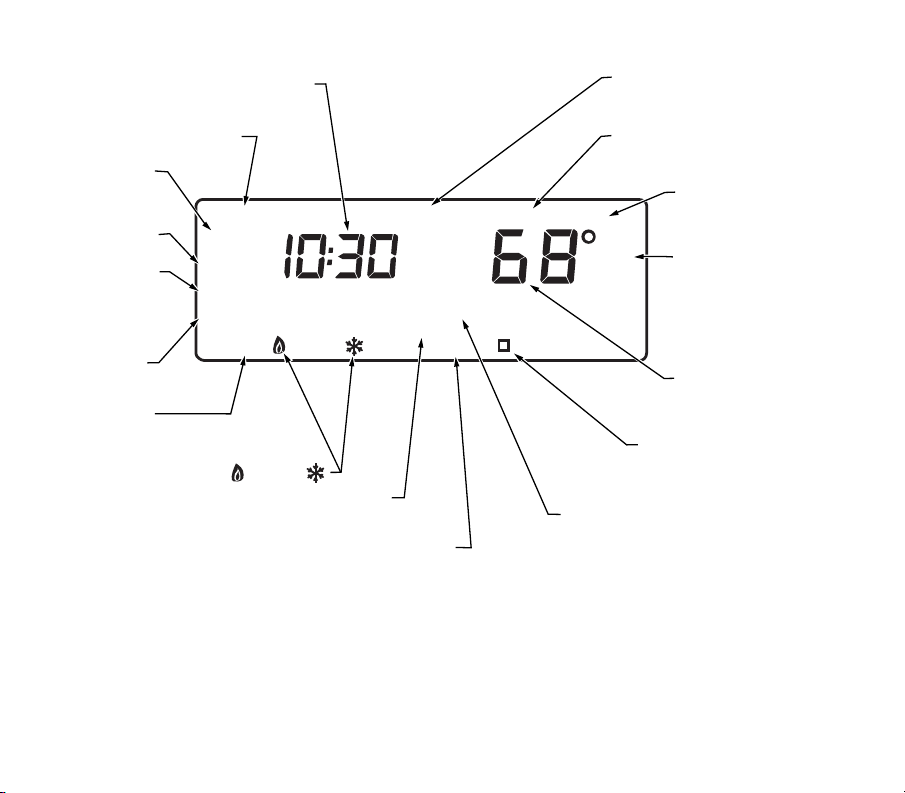

DISPLAYS EITHER CURRENT

TIME OF DAY OR PROGRAM TIMES SHOWS THERMOSTAT IS IN

THE SET DAY/TIME MODE

SHOWS TEMPERATURE SETTING

CHANGED FOR THIS PROGRAM PERIO

SHOWS THE TEMPERATURE

DISPLAYED IS THE CURREN

SET TEMPERATURE

SHOWS THE TEMPERATURE

DISPLAYED IS THE CURREN

ROOM TEMPERATURE

DISPLAYS EITHER ROOM

OR SET TEMPERATURES

SHOWS SMART RESPONSE IS OFF

CONVENTIONAL RECOVERY IS ON

SHOWS THERMOSTAT IS PROCESSING

INFORMATION AND WAITING TO CALL FOR HEAT OR COOL

SHOWS SMART RESPONSE IS CHANGING

THE TEMPERATURE TO MEET THE

CURRENT PROGRAMS

SHOWS THAT THERMOSTAT IS

"CALLING" FOR HEAT OR COOL

SHOWS CURRENT

SYSTEM KEY POSITION

EM HEAT/HEAT/

OFF/COOL

SHOWS CURRENT

PROGRAM PERIOD

OR PERIOD BEING

PROGRAMMED

HOWS CURRENT

AY OR DAYS BEING

ROGRAMMED

SHOWS VACATION

HOLD DURATION

SHOWS WHEN

THERMOSTAT IS IN THE

PROGRAMMING MODE

DST

SHOWS SYSTEM ON DAYLIGHT SAVINGS TIME

Em Ht

Aux Ht

SHOWS THERMOSTAT

IS "CALLING" FOR

EMERGENCY OR

AUXILIARY HEAT

69-1081.fm Page 4 Wednesday, May 18, 2005 9:03 AM

5 69-1081—3

STEP 1. PREPARE FOR INSTALLATION

qThis thermostat is designed to work with multistage heat pumps (heat pumps with Auxiliary and/or Emergency

Heat). Check Table 1 in Step 4 to make sure the CT3611 is compatible with your system. If you have

compatibility questions, contact Honeywell at www.honeywell.com/yourhome or call the Customer Relations

Center at 1-800-468-1502.

Package Contents

• Thermostat • Wiring labels

• Screws and anchors • Owners manual

• Wallplate

Tools Required

• Screwdriver

• Drill

STEP 2. REMOVE OLD THERMOSTAT

qTest your heating and cooling systems to make sure they work properly. If either system does not work, contact

your local heating/air-conditioning dealer. To avoid compressor damage, do not operate the cooling system when

outdoor temperature is below 50°F (10°C).

qTurn off power to the system at the furnace or the fuse/circuit breaker panel.

qCarefully unpack your new thermostat and wallplate. Save package of screws, instructions, and receipt.

qRemove the cover from the old thermostat. If the cover does not snap off when pulled firmly from the bottom, check

for a screw or screws used to lock on the cover.

qLoosen the screw or screws holding the thermostat to the wallplate and lift the thermostat away.

qDisconnect the wires from the old thermostat. As you disconnect each wire, attach

the enclosed labels with the old terminal designation. Wrap the wires around a

pencil as shown to keep them from falling back into the wall.

WIRES THROUG

WALL OPENING

M5136

69-1081.fm Page 5 Wednesday, May 18, 2005 9:03 AM

69-1081—3 6

STEP 3. MOUNT THERMOSTAT WALLPLATE

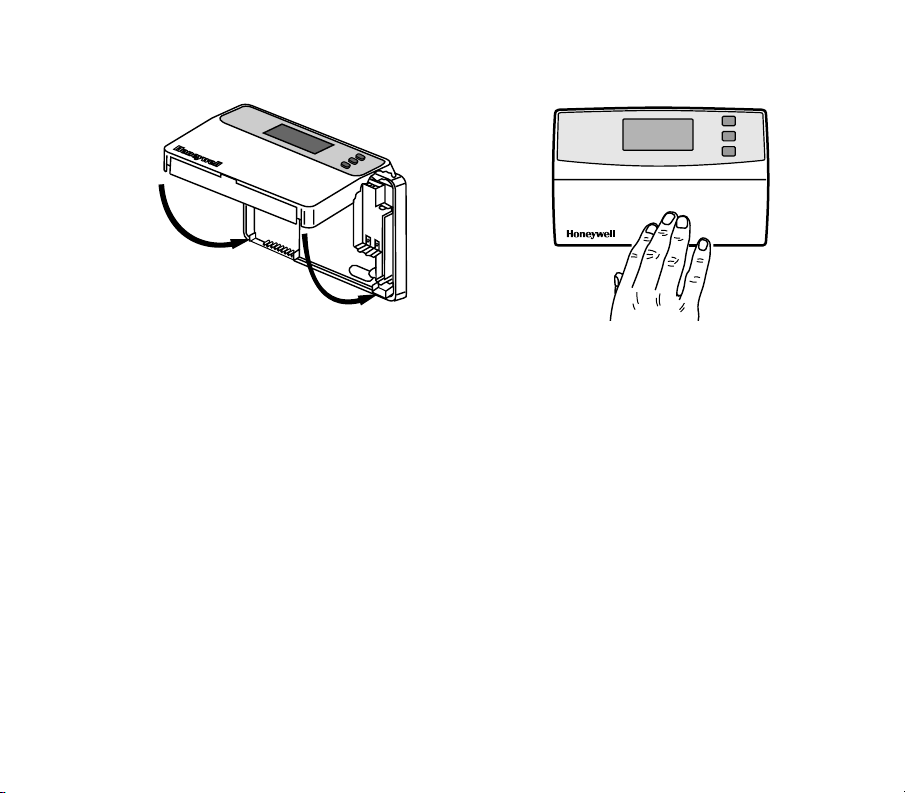

qSeparate the wallplate from the thermostat by placing your thumb or fingers

between the bottom of the wallplate and the thermostat, and pulling the

wallplate up and away from the thermostat. See illustration at right.

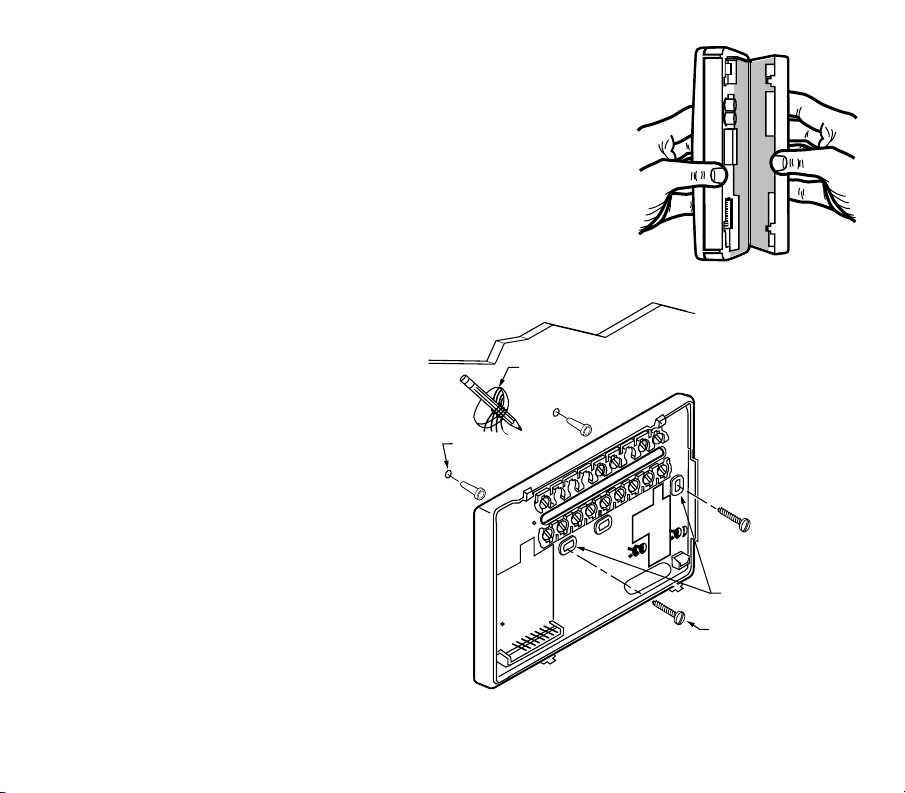

qPosition the wallplate on the wall. Level the wallplate for appearance if desired.

Use a pencil to mark the two mounting holes that best fit the application.

qRemove the wallplate from the wall. Drill two 3/16 in. holes in wall (if drywall) as

shown. For materials such as plaster or wood, drill 7/32 in. holes where marked.

Gently, tap the (provided) anchors into the drilled holes until they are flush with

the wall.

qReposition the wallplate over the holes. Pull the wires through the wiring

opening. Loosely insert mounting screws into each of the holes.

qLevel the wallplate if desired. Thermostat functions properly when not level.

qTighten mounting screws.

M18701

WIRES

THROUGH WALL

WALL

MOUNTING

HOLES

M18700

MOUNTING

SCREWS

WALL

ANCHORS

(2)

69-1081.fm Page 6 Wednesday, May 18, 2005 9:03 AM

7 69-1081—3

STEP 4. WIRE WALLPLATE TERMINALS

IMPORTANT

All wiring must comply with local codes and ordinances. If

unsure about household wiring procedures, call your local heat-

ing/air-conditioning contractor.

Refer to the labels you placed on the wires when you removed the old

thermostat (see illustration).

qMatch the letter of your old thermostat wire with the corresponding

terminal letter on your new thermostat. Refer to Table 1.

qFor wiring diagrams, if needed, see page 21.

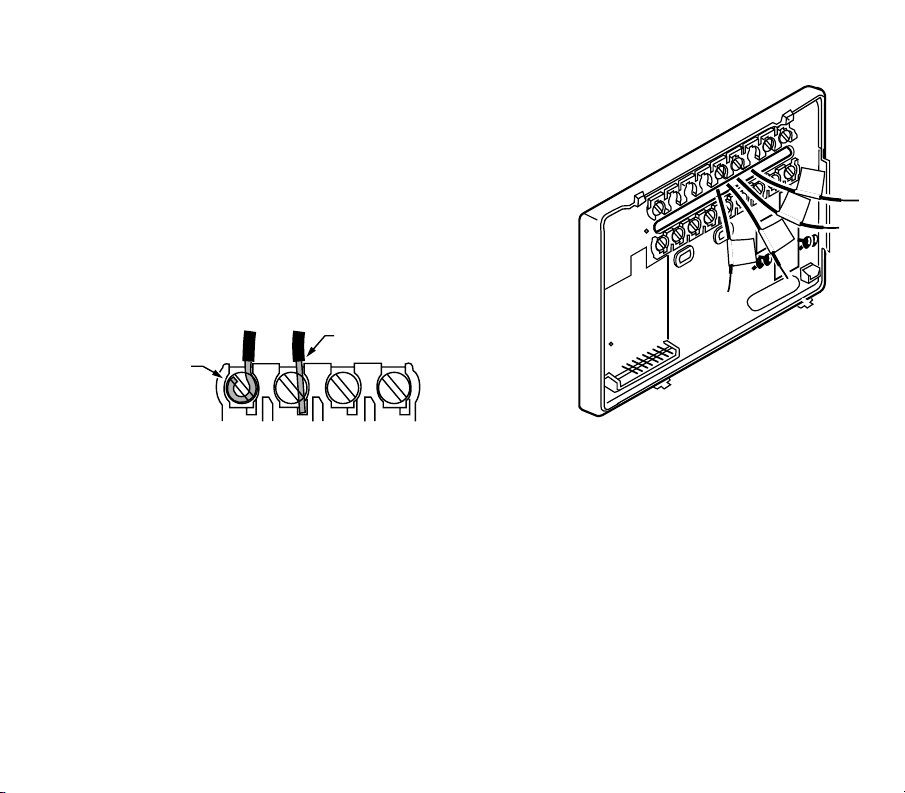

qLoosen the terminal screws. Slip each wire beneath its matching

terminal. Wraparound and straight connections are both acceptable,

(see illustration). Tighten the terminals.

qPlug the hole in the wall with insulation to help prevent drafts from adversely affecting thermostat operation.

qMatch the terminals from your old thermostat to the terminals on the CT3611. Find the column from Table 1 that

matches your existing thermostat wire terminals to help you match the terminals correctly.

M1870

M482

OR WRAPAROUND

NSERTION STRIP

/16 IN. (11 MM).

FOR STRAIGHT INSERTION

STRIP 5/16 IN. (8 MM).

69-1081.fm Page 7 Wednesday, May 18, 2005 9:03 AM

69-1081—3 8

IMPORTANT

If you have any wiring questions, contact Honeywell at www.honeywell.com/yourhome or call Honeywell

Customer Relations Center, toll-free, 1-800-468-1502.

aNever attach wires to both the O and B terminals on the CT3611. If the old thermostat had wires on both the O and B

terminals, be sure to attach the B wire to the CT3611 C terminal. If another wire is already matched to the C terminal,

contact Honeywell.

bIf the old thermostat had separate wires on both the V and VR terminals, some system modification is required. Call

your local heating and cooling contractor for assistance.

cIf the old thermostat had wires on W1, Y1 and W2 terminals, then remove the CT3611 factory-installed jumper

between Y and W1 terminals and match the old W1 to W1, Y1 to Y and W2 to W2.

dUse electrical tape to tape off the end of the wire and push the taped end back into the wall wiring hole.

Table 1. Terminal Designations on Old and New Thermostats.

CT3611a

Typical Terminal

Designations from the

Existing Thermostat

Alternative Terminal Designations

Function Description

Trane

American

Standard Lennox

York

Borg

Warner

General

Electric

Rheem

Ruud

C CCorXC B X BCorBX Common

R RRR R V or VRbR R R Power

Y Y or Y1 Y or Y1 Y or Y1 Y M Y Y Y or Y1 Compressor

W1c— — — — — — — — Stage 1 heating relay

W2 W or

W, W1

or W2

W or

W or W1

jumped to U

W1 or Y W or W2 W or W1 W2 Auxiliary heat relay

G GGG G ForGG G G Fanrelay

OaOaOaOaOaR or OaOaOaOaCooling changeover relay

BaBaBaBa— — H — — Heating changeover relay

L L L or X L F or L L F F or L L System monitor

E E E E or X X2 or E E X or E E or X2 E Emergency heat relay

— ——— Tdor AdAdTdTd— Tape off, not needed for CT3611

69-1081.fm Page 8 Wednesday, May 18, 2005 9:03 AM

9 69-1081—3

STEP 5. MOUNT THE THERMOSTAT

STEP 6. CUSTOMIZE YOUR THERMOSTAT

Your Honeywell CT3611 thermostat comes preset to the most commonly used settings. The settings are:

— Auxiliary and/or Emergency Heat type.

— Smart Response™ technology on.

— Temperature °F.

— 12-hour clock format.

You can change any or all of these settings.

IMPORTANT

Always press the keys with your fingertip or a similar blunt tool. Sharp instruments like pens and pencil

points can damage the keyboard.

69-1081.fm Page 9 Wednesday, May 18, 2005 9:03 AM

69-1081—3 10

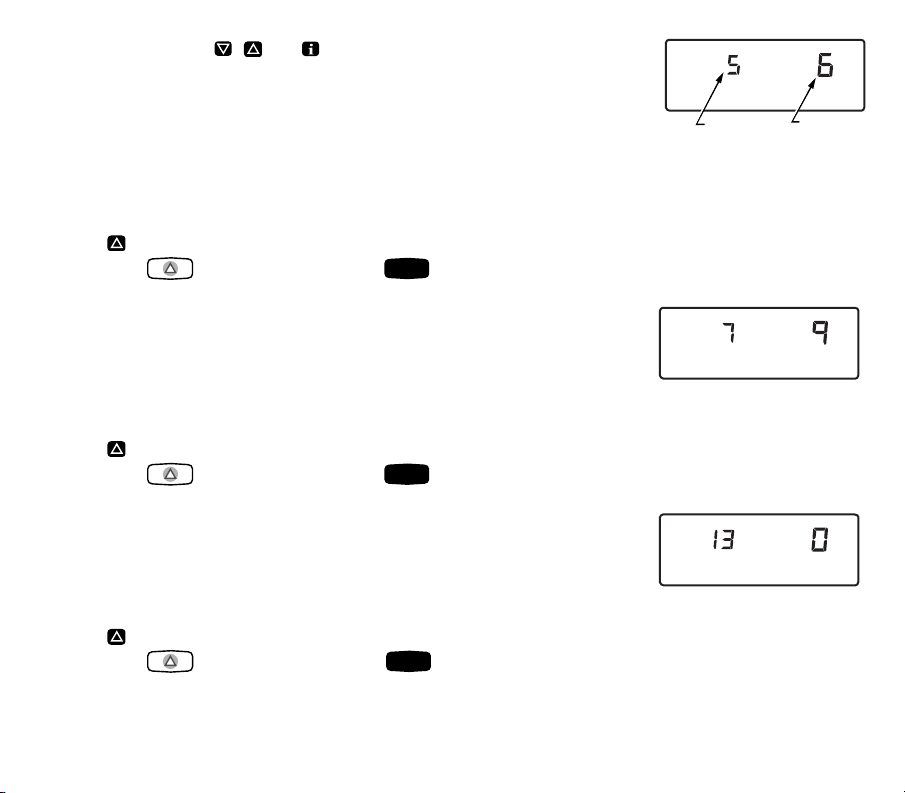

qPress and hold down , , and , simultaneously until the screen shows.

You now can change any of these settings.

Auxiliary Heat Type (Feature Number 5)

Auxiliary Heat options are:

— 3 = Hot water, high efficiency furnace (90% or better).

— 6 = Gas or oil forced air furnace (preset).

— 9 = Electric heat system.

To change your Auxiliary Heat type:

qPress until display shows your Auxiliary Heat type.

qPress Time to move to next feature or to return to main display.

Emergency Heat Type (Feature Number 7)

Emergency Heat options are:

— 3 = Hot water, high efficiency furnace (90% or better).

— 6 = Gas or oil forced air furnace.

— 9 = Electric heat system (preset).

To change your Emergency Heat type:

qPress until display shows your Emergency Heat type.

qPress Time to move to next feature or to return to main display.

Smart Response™ Technology (Feature Number 13)

Smart Response technology options are:

— 0 = Smart Response technology on (preset).

— 1 = Smart Response technology off.

To turn Smart Response technology on or off:

qPress once.

qPress Time to move to next feature or to return to main display.

NOTE: See Smart Response™ technology (page 20) for information about this feature.

M1870

FEATURE

NUMBER OPTION

Run

Program

M1870

Run

Program

M1334

Run

Program

69-1081.fm Page 10 Wednesday, May 18, 2005 9:03 AM

Andere Handbücher für CT3611

Inhaltsverzeichnis

Andere Honeywell Thermostat Handbücher

Honeywell

Honeywell D Bedienungsanleitung

Honeywell

Honeywell PRO TH1000 Series Bedienungsanleitung

Honeywell

Honeywell ultrastat CT1700A Bedienungsanleitung

Honeywell

Honeywell CT2095 Bedienungsanleitung

Honeywell

Honeywell RTH2410 Series Bedienungsanleitung

Honeywell

Honeywell FocusPRO TH5000 Series Bedienungsanleitung

Honeywell

Honeywell 08161 Bedienungsanleitung

Honeywell

Honeywell Digital Round T8775A Bedienungsanleitung

Honeywell

Honeywell TH401 Bedienungsanleitung

Honeywell

Honeywell Super Tradeline T874G Bedienungsanleitung

Honeywell

Honeywell FocusPRO TH6220D Bedienungsanleitung

Honeywell

Honeywell Round Bedienungsanleitung

Honeywell

Honeywell XE99 series Bedienungsanleitung

Honeywell

Honeywell Lyric Round TH8732WFH-5002/U Bedienungsanleitung

Honeywell

Honeywell TL7235A Bedienungsanleitung

Honeywell

Honeywell Q539A Bedienungsanleitung

Honeywell

Honeywell RTH1120 Bedienungsanleitung

Honeywell

Honeywell Programmable Thermostat Bedienungsanleitung

Honeywell

Honeywell FocusPRO 5000 Series Bedienungsanleitung

Honeywell

Honeywell CT3200 series Technische Daten

Honeywell

Honeywell CM507A Bedienungsanleitung

Honeywell

Honeywell T8601D Bedienungsanleitung

Honeywell

Honeywell AQ1000TP2 - Programmable Hydronic Communicating... Bedienungsanleitung

Honeywell

Honeywell ST9100C Bedienungsanleitung

Beliebte Thermostat Handbücher anderer Marken

EWELLY

EWELLY EW-181 Bedienungsanleitung

Prolon

Prolon T1100 Montageanleitung

Computherm

Computherm Q20 Bedienungsanleitung

Heatmiser

Heatmiser neoStat Bedienungsanleitung

Aube Technologies

Aube Technologies TH111GFCI-NP 240 VCA Bedienungsanleitung

Mars

Mars HEAT CONTROLLER IR Wireless Thermostat Bedienungsanleitung

Saswell

Saswell SAS920XWHB-7-S-RF Leitfaden

Aircalo

Aircalo TFP1-ET85P2 Bedienungsanleitung

Carrier

Carrier DEBONAIR 33CS Bedienungsanleitung

Lennox

Lennox iHarmony Zone Thermostat Montageanleitung

Gemtech

Gemtech GT7000 Bedienungsanleitung

Rollei

Rollei Smartes 45000 Bedienungsanleitung

Sinope

Sinope TH1300RF Bedienungsanleitung

NuTone

NuTone NTBZ48 Original Betriebsanleitung

Stelpro

Stelpro MAESTRO ASMT402AD Bedienungsanleitung

Aube Technologies

Aube Technologies TH305 Bedienungsanleitung

Powtier Controls

Powtier Controls 505MST Bedienungsanleitung

Kanmor

Kanmor Zone Control 369e Bedienungsanleitung
