ZonePRO™ Modulating Thermostats

The Attractive, Cost-Effective

Alternative To Expensive

Networked Zoning Systems

FLOATING AND ANALOG THERMOSTATS

FOR PRESSURE-DEPENDENT VAV

The Energy Savings Of Digital Control.

The Sleek Look Of Modern Design.

Honeywell ZonePRO™ ﬂoating and analog thermostats are designed for control of valve or damper actuators, offering a cost-effective

substitute to expensive networked zoning systems. This type of thermostat is typically used in pressure-dependent variable air volume

(VAV) applications, such as airport terminals or large ofﬁce buildings with many zones, but can be used in any application that

requires ﬂoating or analog control of an actuator.

ZonePRO thermostats have a sleek, modern design — ideal for those customers looking to upgrade the appearance and functionality

of their older zoning systems. In a variety of applications, ZonePRO provides the easy installation, energy savings and control that you

have come to expect from Honeywell.

Conﬁguration and

status display

Cooling mode

Temperature

adjustment button

Override button

Heating mode

Temperature display

Output position display

Four Models To Meet All Your Zoning Needs

There are four ZonePRO models, two for ﬂoating control and two for analog control. Each offers similar core functionality; however,

the “B” models have an additional modulating output and triac output (a triac is a digital on/off output similar to a relay, but there’s no

noise when it opens or closes).

OS # Description

TB6980A1007 Floating output

TB6980B1006 Floating output plus an additional analog output and triac output1

TB7980A1006 Analog output2

TB7980B1005 Analog output plus an additional analog output and triac output1,2

OS # Accessories

R841 Family of electromechanical relays

50014156-002 Remote room sensor

50014157-001 Duct temperature sensor

209651A Cover wall plate

1Additional anolog output can be conﬁgured as a triac digital output, 2All analog outputs are conﬁgurable for 0-10Vdc or 2-10Vdc

Energy Savings

As a cost-effective alternative to DDC systems, the

ZonePRO provides digital accuracy with energy-saving

features, helping to reduce costs even more.

• Night Setback Input — Though this thermostat is non-

programmable, there is an input on the thermostat that

will set the thermostat to an energy-saving setpoint

when an external time clock or occupancy sensor is

activated.

• Range Stop Temperature Limits — The user can set a

maximum heating and minimum cooling setpoint.

• Timed Occupancy Override —

When the user enters the building

after hours and wants to adjust

the room temperature, he simply

hits Timed Occupancy Override

and that will bring the space to a comfortable tempera-

ture. The thermostat will automatically return to its

energy-saving setpoint after two hours.

• Output Position Graph — Helps

the installer know that the actuator

is working properly.

Easy Installation

For zoning control in retrofit applications, ZonePRO

thermostats are the perfect choice. ZonePRO thermostats

are easy to install and feature a configuration code that’s a

snap to program.

Numerous Applications

ZonePRO thermostats are a cost-effective solution for a

variety of applications. The ZonePRO has additional analog

and triac outputs which allow you to control several types of

applications.

Zone Applications

• Pressure-dependent VAV systems

• Cooling-only VVT zone with reheat

• Hydronic hot/cold water valve

Reheat Applications

• Radiant panel heaters

• Cabinet heaters

• Fin-Tube radiators

Air Handler

• Automatic changeover

• Discharge air

• Limited cooling

- Fresh air control

Supply Air Temperature Sensor

Hot Water

Coil

Modulating Damper

Actuator

Electric Baseboard Heat

R841

Relay

Output Position Graph

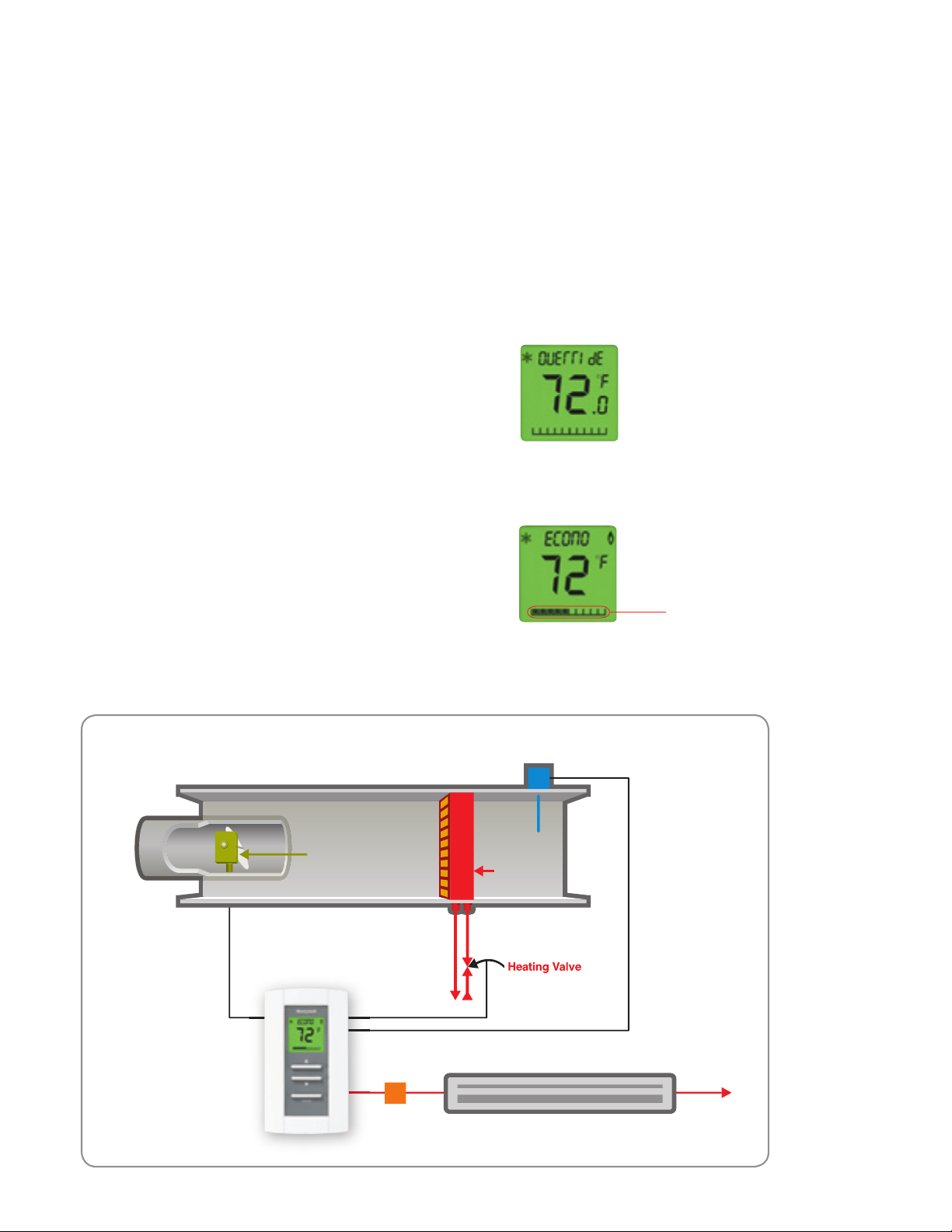

TB7980B1005: Pressure Dependent VAV Cooling With Zone Reheat and Electric Baseboard Heat

Learn More

For more information on Honeywell ZonePRO

Thermostats, contact your local Honeywell

Authorized Distributor, call 763-954-6464

or visit customer.honeywell.com/buildings.

Automation and Control Solutions

In the U.S.:

Honeywell

1985 Douglas Drive North

Golden Valley, MN 55422-3992

In Canada:

Honeywell Limited

35 Dynamic Drive

Toronto, Ontario M1V 4Z9

In Latin America:

Honeywell

9315 N.W. 112th Avenue

Miami, FL 33178

www.honeywell.com

63-9555

August 2006

Specifications

Temperature Control — Microprocessor-optimized PIA

Temperature Setting — Manual — ˚C or ˚F selectable

Dimensions (HxWxD) — 2.7 x 4.6 x 1.0 inches / 69 x 118 x 27 mm

Setpoint Range — 50˚ F to 95˚ F (10˚ C to 35˚ C)

Temperature Display — 32˚ F to 140˚ F (0˚ C to 60˚ C)

Auto Changeover Deadband — 9˚ F (5˚ C)

Mode Hysteresis — 4˚ F (2˚ C)

ZonePRO Modulating Thermostat Cross-Reference Chart

OS # Dimensions Compatible Valves Compatible Actuators Sensors and Accessories Replaces

TB6980A1007

2.7 x 4.6 x 1.0 in.

(69 x 118 x 27 mm)

VC6930, VC6934,

VC6936, M6410, M6435

ML6984A1006, ML6420,

ML6161B2024, MN6105A1011

R841 Series of electromechanical

relays, 50014157-001 air duct sen-

sor, 50014156-002 space sensor,

ST6008A1003 and ST7009A1003

time clocks, 209651A wall plate,

D640 and D690 dampers

T6984A1059

TB6980B1006 T6984D1046, T6984E1043

TB7980A1006 VC7930, VC7934,

VC7936, M7410, M7435

ML7984A4009, ML7420,

ML7161A2008, MN7505A2001

T7984A1057, T7984A1065

TB7980B1005 T7984B1055, T7984C1053
