Hongda USA M2021 Bedienungsanleitung

M2021 Instruction manual

M2021

Examples of parts rule:

A01: The parts are directly in the packaging box; B01: The parts are in the B bag; C01: The parts are in the C bag, and so on. (Note:

The printing paper is displayed in the step A16-01: The printing paper is directly placed in the packaging (The part number is A16-01

in the box)

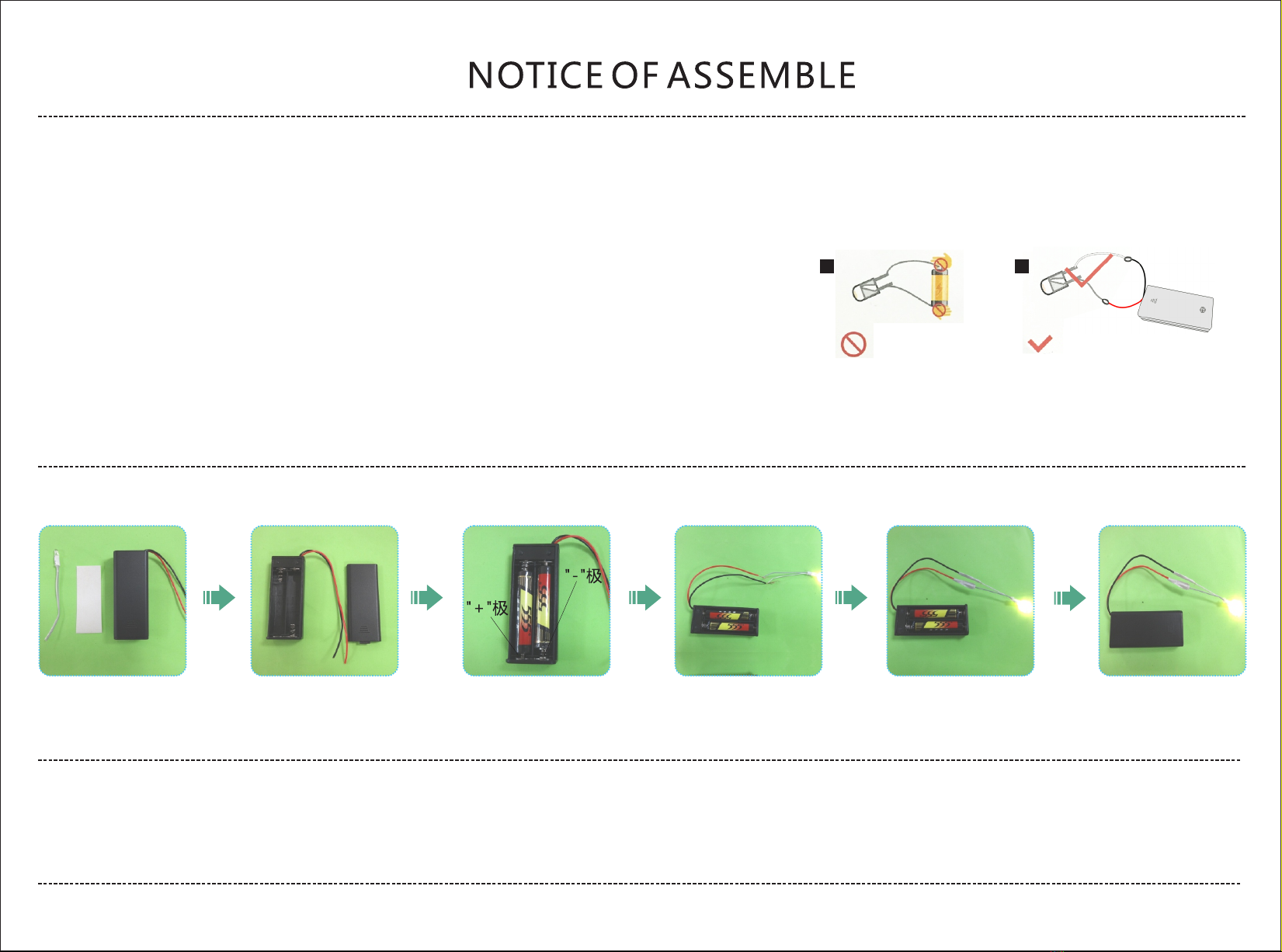

How to assemble the battery holder

1.Material and tools needed:

- Battery holder, LED bulb,

tape, screw driver and 2 piece

AAA size battery(not provided)

2. Use screw driver and

take the lid off from the

battery holder.

3. Insert the battery take

notes on the polarity.

4. Connect the red wire

to grey wire. Connect

the black wire to white

wire.

5.Wrap the exposed wire

with the tapes.

6. Place the box lid and

fastness with screw driver.

1.Picures shown on the package may be slightly different from the actual product.

2.All the materials are taken in the operation step, put the remaining materials back into

the original pocket until the installation is completed.(Avoid material loss during installation)

3.The dimensions indicated in the step diagram are“cm”.

4.If there have template paper material, please cut the material according to the template

to avoid mistakes..

5.According to the part rule example at the bottom of this page, refer to the part on the part

number drawing, find the material object and compare with the material list, confirm and

install.(Wooden parts only)

6.Glue should not be applied too much, so as not to dry longer, overflow will affect the effect

of the finished product.

7..Part shapes may differ from the photographs depending on he production batch

Be sure to test the LED lights before making the lighting,

note that the LED white wire to the negative, gray wire

to the positive reference to the following figure

operation test.

1 2

Tips for assembling

Testing on LED function

DO NOT contact the

LED wire end direct

to the battery cell.

Use the provide battery

holder. Make sue the

correct polarity.

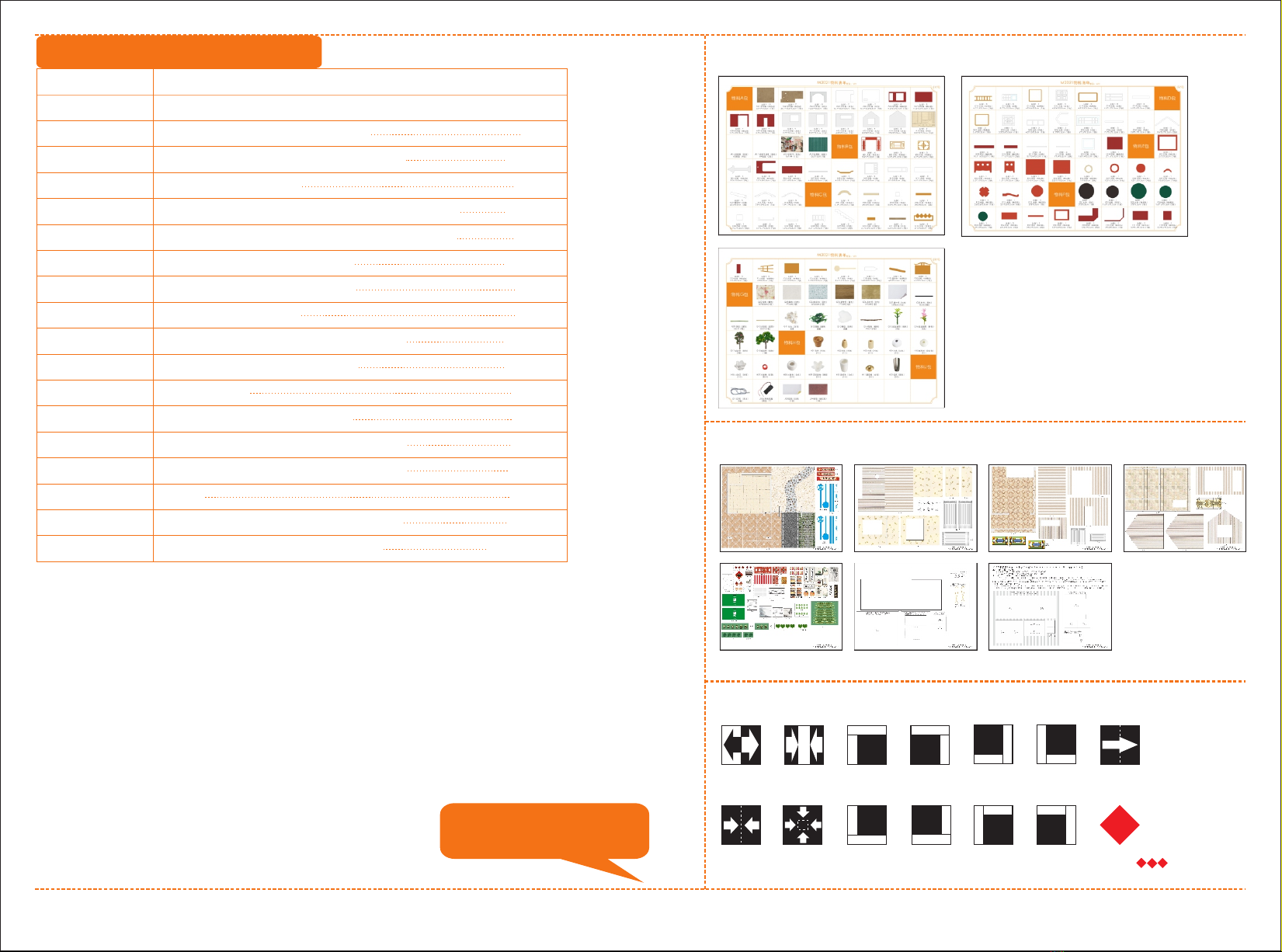

Thumbnail of material list (reference only)

Thumbnail of printing paper & template paper (reference only)

Details of minature

Welcome to the DIY world,

Let's follow me to do it now!

Name Material package

Printing paper A package of A16 all printed paper is concentrated on A16 paper

accessories ( )7 sheets of A4 single side

Small dining car

E bag + H bag + printing paper

Beef offal car

Postbox

counter

easel

Street sign

bed

Potted plants

light

Hanging Board

Roman column

window of first floor

memorial arch

outer frame

Table & Chair

Sugar-coated haws

E bag + G bag + H bag+ printing paper

F bag + printing paper

A bag+ F bag + G bag + H bag + printing paper

F bag + G bag + printing paper

F bag + G bag+ H bag

H bag + J bag

H bag+ G bag+ printing paper

B bag + G bag + H bag+ printing paper

C bag

A bag + B bag + J bag+ printing paper

A bag+ B bag + C bag+ D bag + G bag

+ J bag + printing paper

A bag + F bag + G bag+ printing paper

G bag + H bag + printing paper

A bag + B bag+ C bag+ printing paper

Stairs of first floor Page 9

Page 10

Page10-14

Symbol description used

Install parts

in the opposite

direction

Install the same

parts on both

sides

Pay attention to the direction of installation material B stick to

material A

Pay attention to the direction of installation material A stick to

material B

Fold in half

according

to dotted lin

fold double

edge to center

dotted line

Fold four sides

to the middle 123

combination part

according so on.

Page 9

Page7-8

Page6-7

Page 6

Page5-6

Page 5

Page4-5

Page 4

Page3-4

Page 3

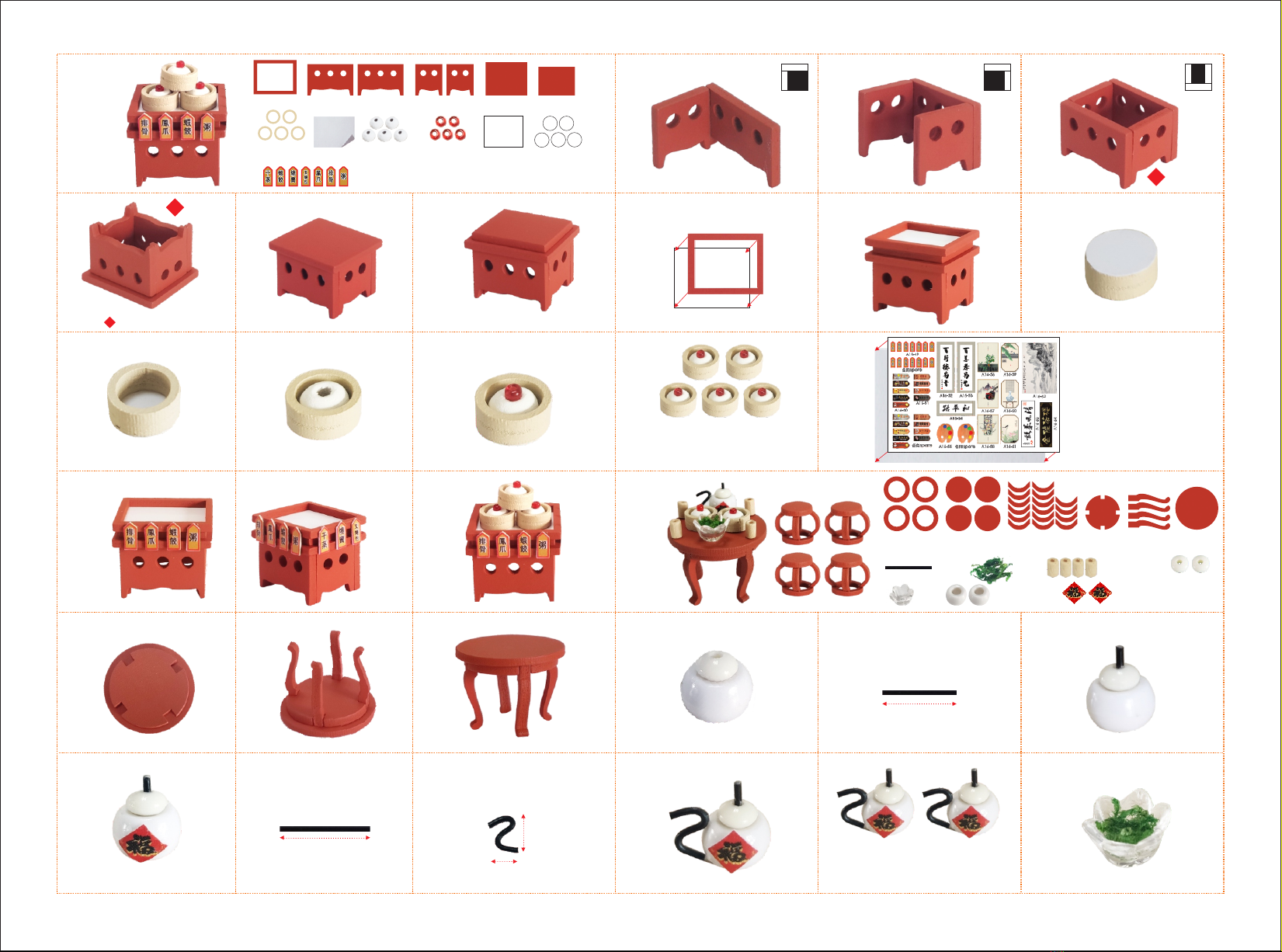

Small dining car

E02（2 pieces）

E04

E05

E01

A16-31

A16-49

A16-30

G06

1 2 3

E02

E03

E02 1

4 5 6 7 8

E04

Paster in the middle of E04

E04

E05

Paste E05 in the middle of E04 A16-30

E01

E01 9

E06

10 11 12 13 14

E06

H04

E06

H07

G06

Cut A16-49 to A16-64

printing paper and paste it

on G06

Just use A16-49 here,please

keep the remaining printing

paper for lat er st eps

Make 5 pieces by referring to the above

steps, here you need to use 3 pieces,

and the other 2 pieces are reserved

for later steps

St eaming cage

15 16 17

A16-49

t able & Chair

E10

E12

G07

G11

H06 A16-32

12 3 456

E10

E12

E11

When making a tea kettle ,you can

refer to the G07 wire tea kettle

template for bending

G07

1cm

H08

H05

G07

A16-32

78 9 10 11 12

G07

1.5cm

0.7cm

0.5cm

G07

H06

G11

teapot

Make 2 pieces by referring to the

above steps, one is needed here,

and the other one is reserved for

later steps

G07

E02

A16-31

E06

H08

E03（2 pieces）

E06

（5 pieces） H04

（5 pieces）

H07

（5 pieces）

Steaming cage

E07

（4 pieces）

E08

（4 pieces）

E09

（16 pieces）

E11

（4 pieces）

H03

（4 pieces） H05

（2 pieces）

H08

（2 pieces）

345

4 5 6 7 8 9

10 11 12 13 14

steaming cage

(had ready made)

teapot

H03

H06

H03

14 15 16 17 18

E07

E09

E07

E08

refer to the above steps and

make 4 sets

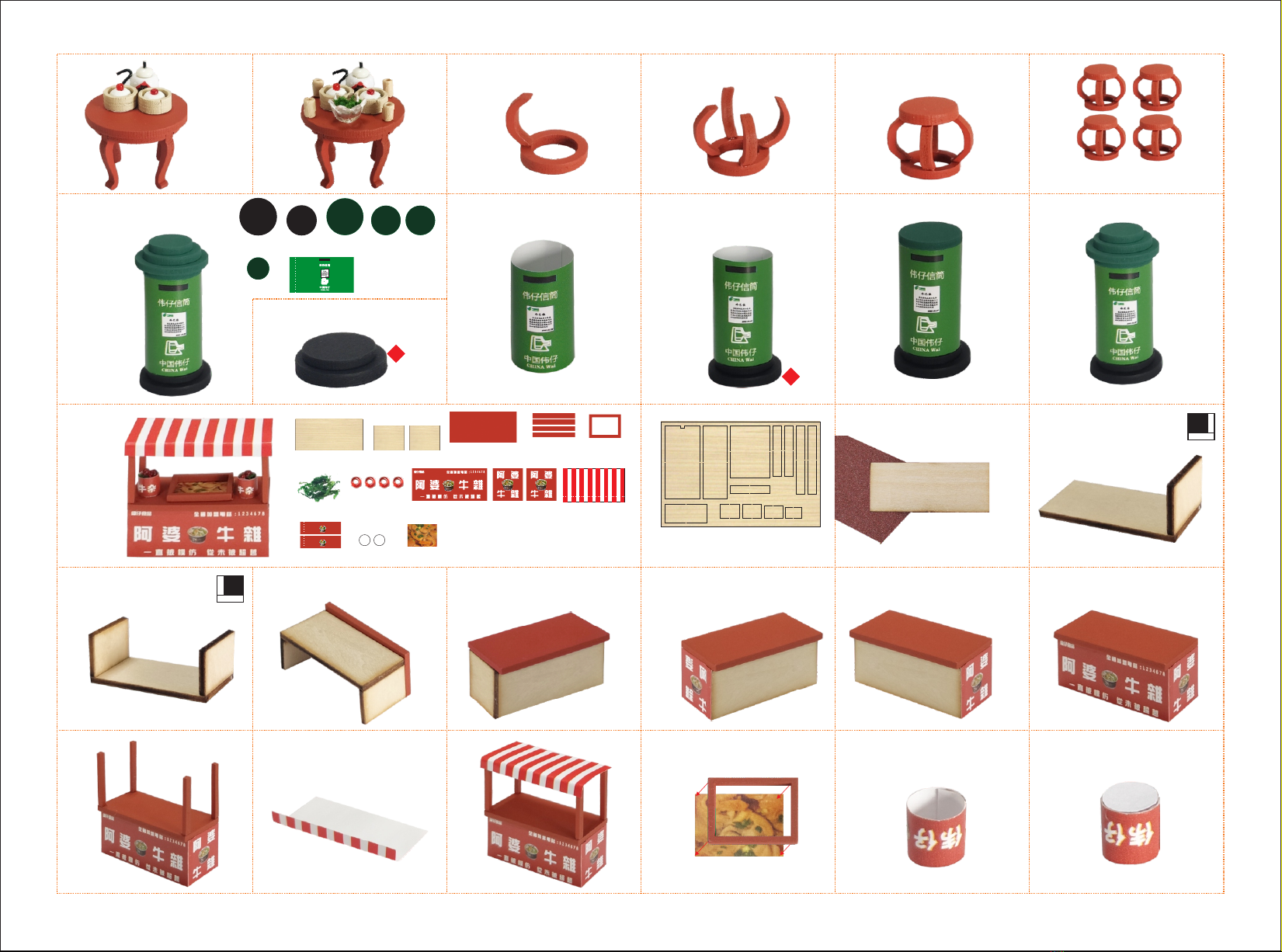

postbox

F03 F04

（2 pieces）

F05

F02

F01

A16-65

F01

F02

A16-65

roll A16-65 into a drum shape

A16-65

F03

F04

F05

2 31

G11

beef offal car

A15-07

F06

F08

伟仔牛杂

A16-39 A16-40 A16-41

A16-42 A16-43 A16-44

A15-08

A15-01 A15-02

A15-03 A15-04

A15-06

A15-05

A15-07

A15-08 A15-09 A15-10

A15

ﬁnd 1 piece A15-07 and 2 pieces

A15-08 from A15

J04

use J04 to rub off the protrusions

at both ends of A15-07

A15-07

all wooden blocks on

A15 need to be

A15-08

A15-07

A15-08

A15-07

F06

A16-40 A16-40 A16-39

F07

A16-41

fold the white dotted line

A16-41

A16-44

F08 A16-42

place A16-42 upside down A16-42

A16-43

H07

（4 pieces）

F07

（4 pieces）

10 11 12 13 14

17 18 20

G11

H07

F08

A16-42 A16-42

refer to the above steps and

make 2 pieces

A16-42 A16-42 A16-42

counter

F10

F11

F12

H02

H03

(2 pieces）

G15 A16-33 A16-34A16-32

A15-10

A15-09

ﬂoor plan

F10

F09

F11

F12

F13

2 31

F10

F09

F11

4 5 6 7 8 9

F13

F12

F13 F09

A16-33

H02

A16-32

crop off the area below the red line

G15

A15-10

A16-34

teapot

(had ready made)

H03

A15-09

H02

A15-09

A15-10

F14

F16

（2 pieces）

F15

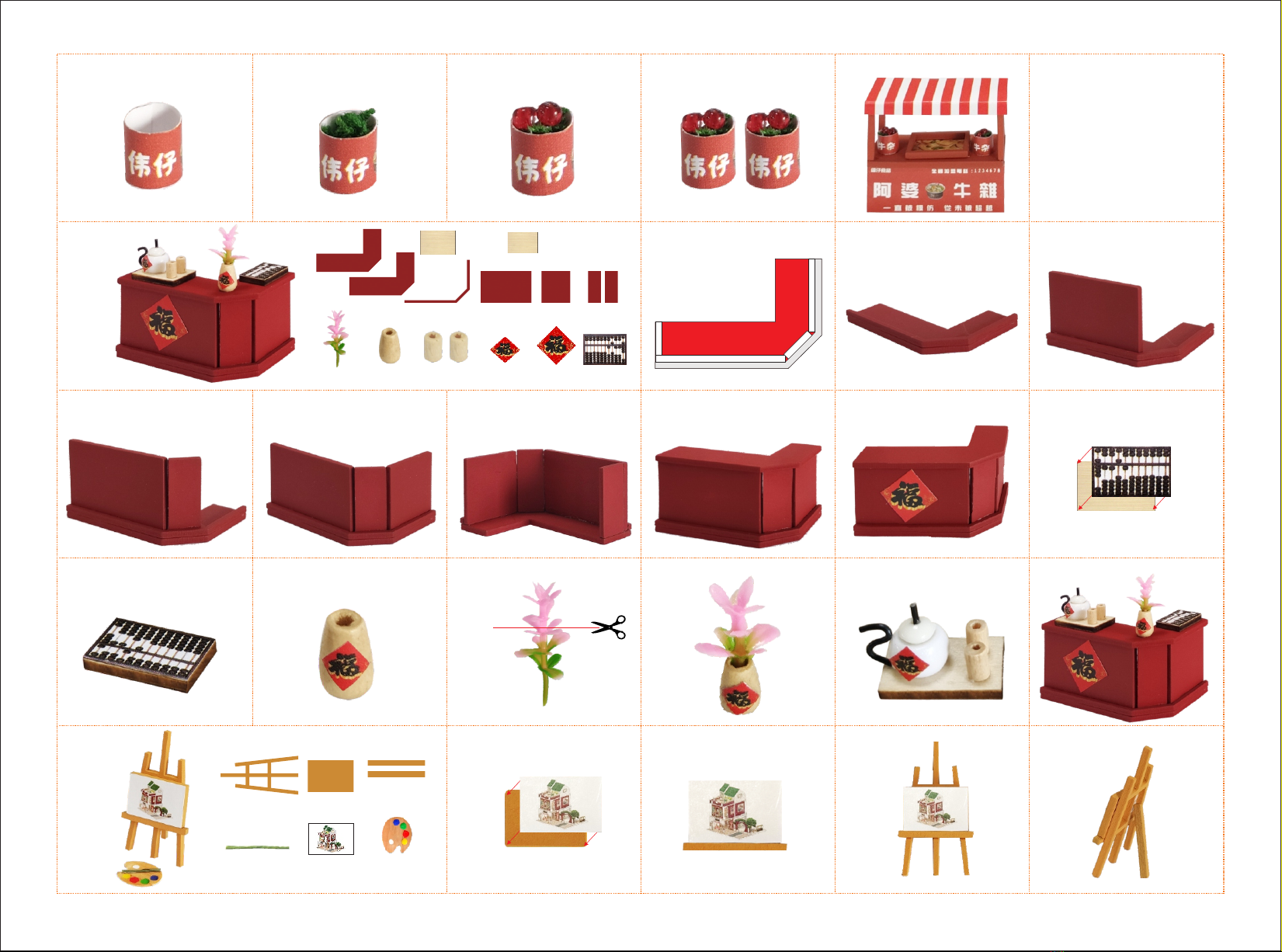

easel

3 421

G08 A16-36 A16-55

A16-36

F15

F16

F14

F15

F16

F13

(2 pieces）

F09

(2 pieces）

G08

A16-55

G08

1.3cm

A16-55

F17

F18（3 pieces）

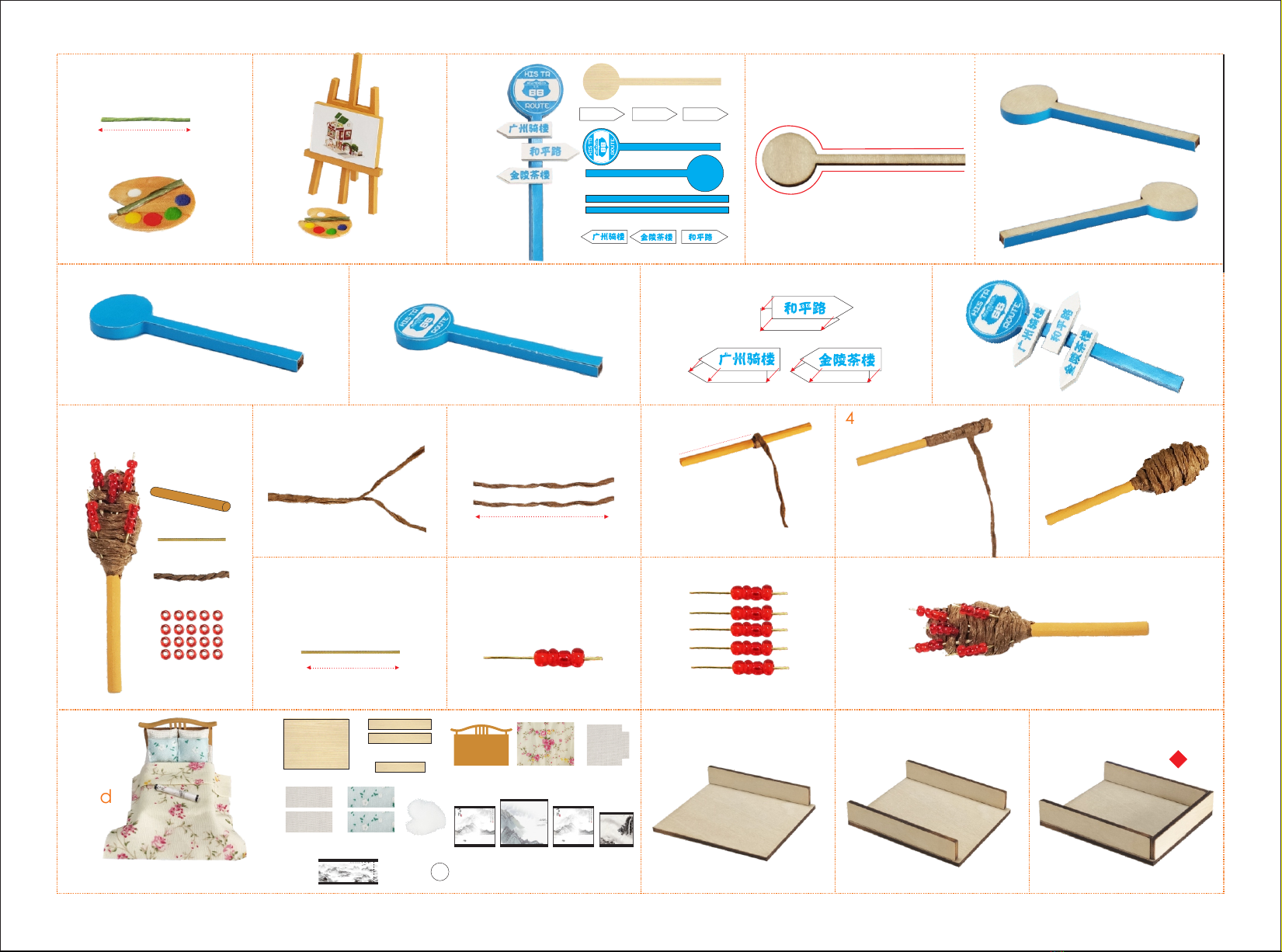

street sign

A16-05

A16-06

A16-07

A16-08 A16-09 A16-10

use A16-07 to paste the circled part

of F17 red circle

F17

A16-07

F17

A16-06 A16-05

ﬂip to the other side and paste A16-05

F18

A16-08 A16-09

A16-10

F18

3 4 5 6

F18

F19

G09

G13

H07 ( 20 pieces）

sugar-coated haws 1 2 3 4 5

6 7 8 9

1.4cm

G09

H07

refer to the above steps and

make 5 sets

gently insert the rock sugar gourd into G13

F19

G13

F19

G13

F19

wrap around F19 with 2 pieces

of G13 the last lap is gently wrapped

G13

90cm

split G13 in two

G13

bed

F20

A15-03

A15-04(2 pieces)

A15-05

G01

(bed sheet)

G02

(pillow1)

G03

(pillow2)

G12

G02

(mattress)

cut out the G01, G02, G03 according to

the template paper before this step

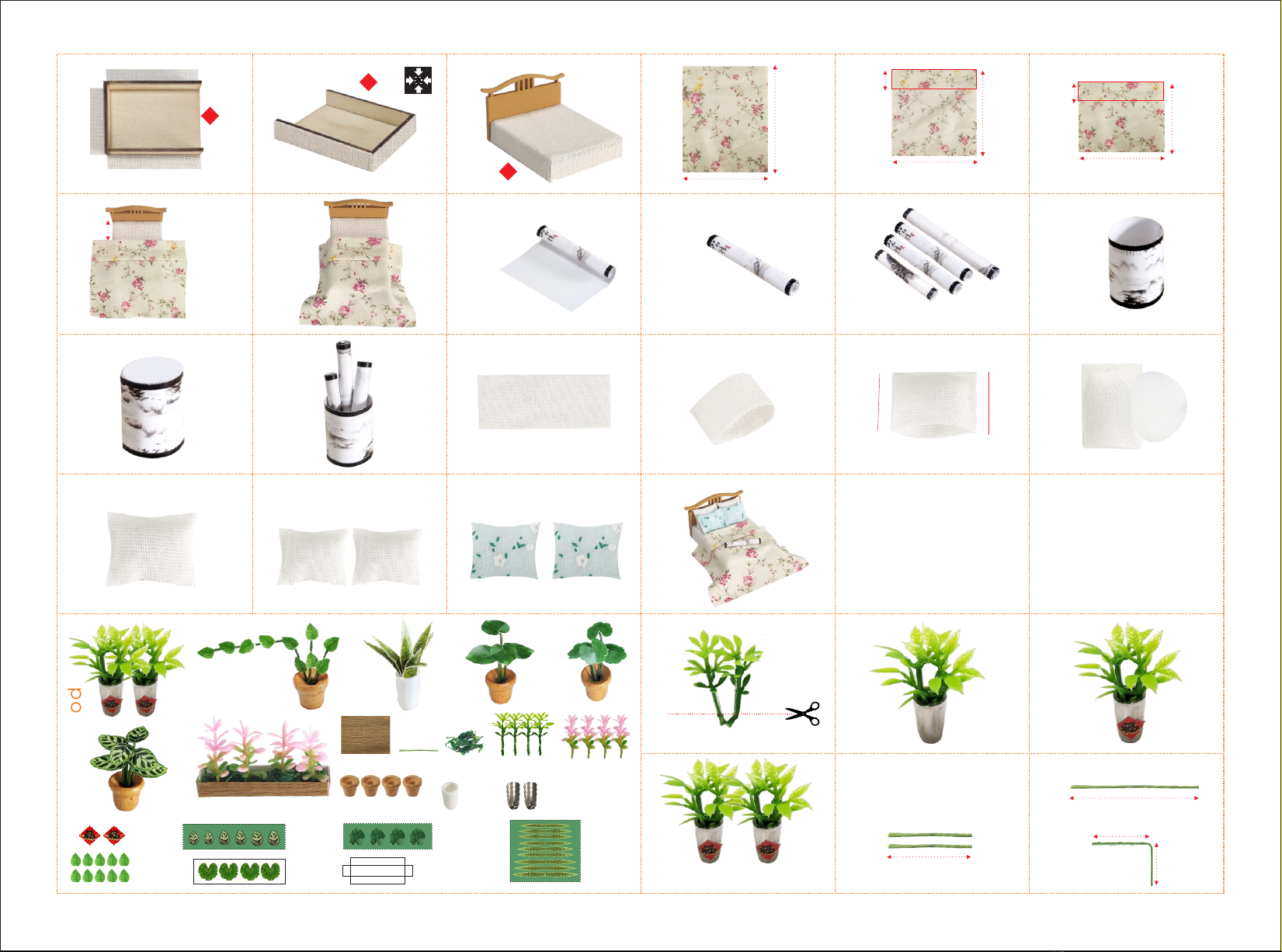

A16-66 A16-67 A16-68 A16-69

A15-03

A15-04

A15-03

A15-05

1 2 3

A16-47 A16-48

2.5cm

G13

seal it

pillow1

made 2 pieces

All of the pillows are

making in same methods

G02 (mattress)

45 6 78 9

14 15

fold to the middle

F20 9cm

7cm

G01

( bed sheet )

7cm

7.4cm

7cm

5.8cm

1.6cm

ﬂip G01 to the back and fold back1.6cm ﬂip G01 back to the front and

fold back 1.6cm

1.6cm

tidy up

the sheets

A16-66

A16-67

A16-69 A16-68

follow the steps above to

roll these up

A16-47

roll A16-47 into a barrel shape

A16-48

A16-69

A16-47

A16-67

A16-68

G02 (pillow1)

16 17 18 19 20 21

10 11 12 13

对折 seal the openings on both sides

of the red line with glue stuff in the right amount of cotton

G12

G03 pillow2

follow the previous steps to

complete pillow2

22 23 24 25

pillow2

A16-66

potted plants

H12 ( 2 pieces）

G08

G04

G14

(4 pieces）

G11

H10

A16-35

A16-70

A16-71

A16-72

A16-73

ﬂower pot

（template paper）

A16-74

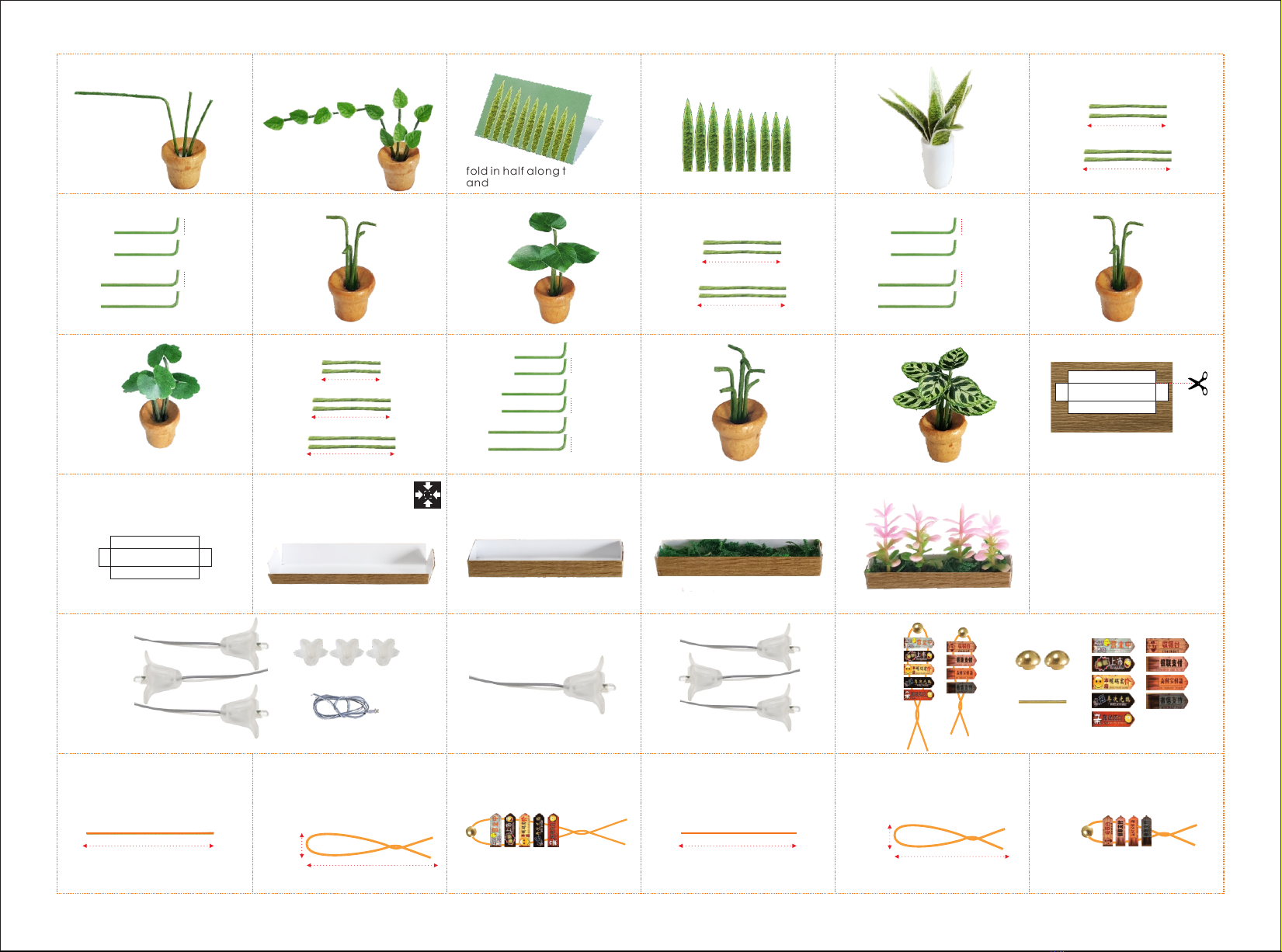

123

45 6

crop off the area below the red line

G14

A16-35

G14

H12

refer to the above steps to

and make 2 sets

2.2cm

G08

4.2cm

2.2cm

G08

2cm

paper tube

G01

( bed sheet )

G01

( bed sheet )

G02 (pillow1)

pillow1

pillow1 G03 pillow2

pillow1

G15

(4 pieces）

H01

(4 pieces）

potted

plants3

potted

plants2

potted

plants1

potted

plants4

potted

plants5

potted

plants6 potted plants7

potted

plants1

G01

( bed sheet )

G08 A16-70

H01

910 11

fold in half along the middle

and paste

A16-74

H10

2cm

G08

2.5cm

13 14 15 16 17 18

G08

0.2cm

H01

G08

A16-73

A16-72

according to the previous steps,

complete the potted plants5

2cm

G08

2.5cm

1.6cm

G08

0.2cm

H01

G08

19 20 21 22 23 24

A16-71

G04

ﬂower pot

(template paper)

paste the ﬂower pot(template paper)

on G04 and trim it along the edges

fold the four sides to the middle

G11

G15

25 26 27 28 29

2cm

G08

2.5cm

G08

0.2cm

H01

G08

light

light 1need 3 pieces

H09 ( 3 pieces)

J01( 3 pieces) A16-50

A16-51

hang tag

H11 ( 2 pieces）

G09

8.5cm

4cm

G09

0.7cm

1 2

3 41 2 5 6

H11 A16-50

G09

7.5cm 3.5cm

G09

0.7cm

A16-51

H11

G09

H09

J01

potted

plants2 potted

plants3

potted

plants4

potted

plants5 potted

plants6

G04 ﬂower pot

(template paper)

G04 ﬂower pot

(template paper)

G04 ﬂower pot

(template paper)

G04 ﬂower pot

(template paper) potted plants7

hanging board 2

When making a hanging board 1 ,

you can refer to the G09 wire

hanging board 1 template for

bending

When making a hanging board 2 ,

you can refer to the G09 wire

hanging board 2 template for

bending

hanging board 1

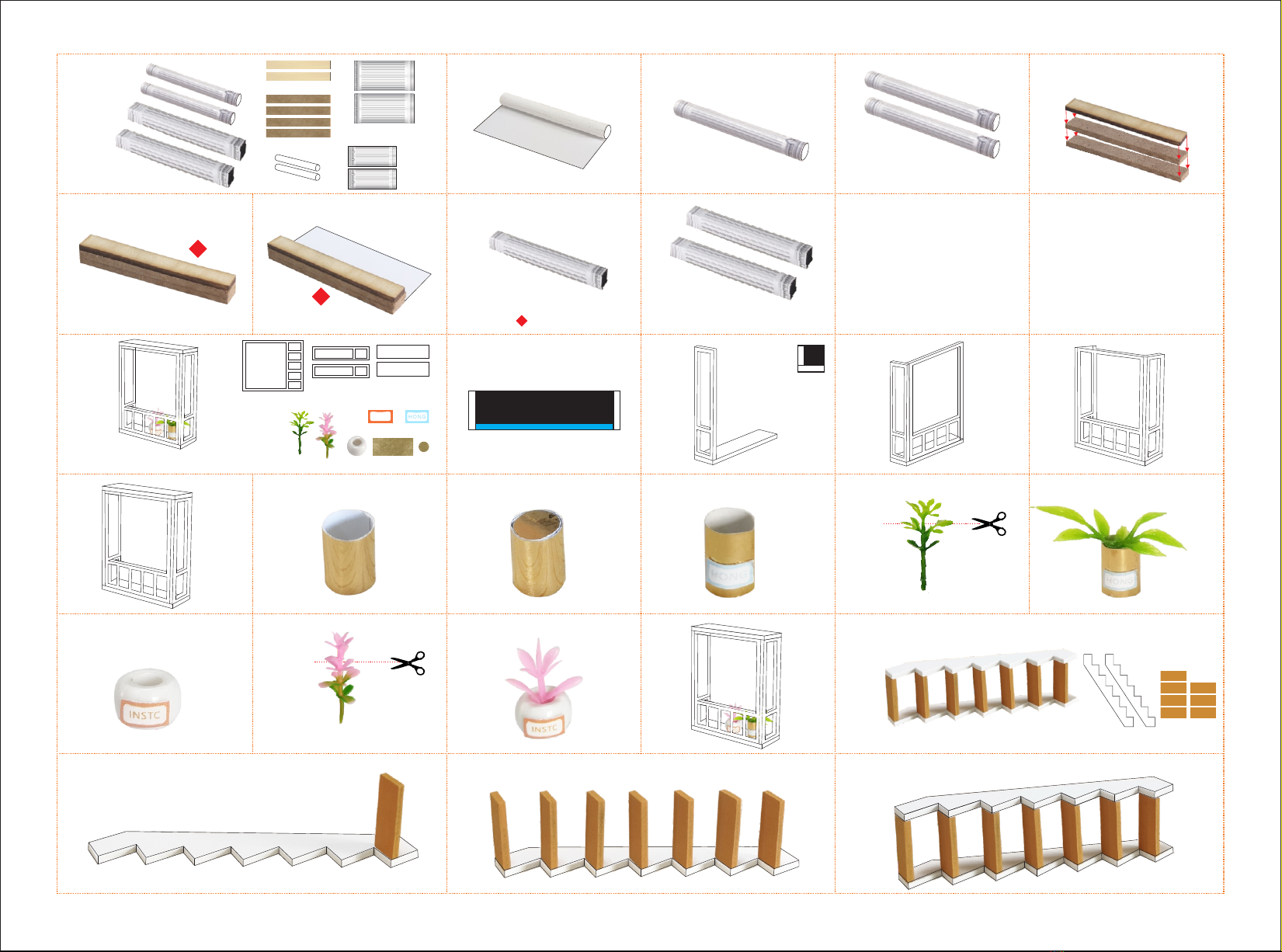

roman column

A15-06(2 pieces）

C11 (4 pieces）

B12 (2 pieces）

A16-17

A16-24

B12

A16-24

23 41

wrap B12 with A16-24

B12

refer to the above steps

and make 2 sets

C11

A15-06

A16-17

5678

roman column1

wrap with A16-17

B09

B10

(2 pieces）

window of first floor

IN S TC

A16-37 A16-38

G05(plants1)

cut out the G05 according to the

template paper before making this step

H08

G14

G15

ﬂoor plan

B09

B10

B11

B10

crop off the area below the red line

G14

crop off the area below the red line

G15

A16-37

G15

plants2

plants1

G14

A16-38

G05(plants1)

23 41

5678

11 12 13 14

9 10

H08

stairs of first floor

C09

（2 pieces）

C10

（ 7 pieces）

C10

C10 C09

C09

B11

B09

B10

B11

G05(plants1)

H08

C10

1 2 3

Paste B09 and B10 on B11

roman column2

refer to the above steps

and make 2 sets

B11

(2 pieces）

G05(plants1) G05(plants1)

plants2

plants1

Inhaltsverzeichnis

Andere Hongda USA Spielzeug Handbücher

Hongda USA

Hongda USA Rainbow Cafe M906 Bedienungsanleitung

Hongda USA

Hongda USA The Ancient Capital Under Moonlight Bedienungsanleitung

Hongda USA

Hongda USA Cheryl's Room M020 Bedienungsanleitung

Hongda USA

Hongda USA Coloured Glaze Time Bedienungsanleitung

Hongda USA

Hongda USA L2121 Bedienungsanleitung

Hongda USA

Hongda USA Romantic Aegean Sea Bedienungsanleitung

Hongda USA

Hongda USA S2006 Bedienungsanleitung

Hongda USA

Hongda USA S2003 Bedienungsanleitung

Hongda USA

Hongda USA The Sound of the Sea M040 Bedienungsanleitung

Hongda USA

Hongda USA S2007 Bedienungsanleitung

Hongda USA

Hongda USA BELL'S CAKE SHOP Bedienungsanleitung

Hongda USA

Hongda USA Christmas Eve S2001 Bedienungsanleitung

Hongda USA

Hongda USA S2131 Bedienungsanleitung

Hongda USA

Hongda USA PC902 Bedienungsanleitung

Hongda USA

Hongda USA Star Takoyaki Bedienungsanleitung

Hongda USA

Hongda USA Mermaid tribe Bedienungsanleitung

Hongda USA

Hongda USA S2010 Bedienungsanleitung

Hongda USA

Hongda USA Memories of Autumn Grocery Store M914 Bedienungsanleitung

Hongda USA

Hongda USA Gibbon Sushi M2011 Bedienungsanleitung

Beliebte Spielzeug Handbücher anderer Marken

marklin

marklin 37321 Bedienungsanleitung

Canon

Canon PAPER CRAFT Bedienungsanleitung

GREAT PLANES

GREAT PLANES Pitts M-12S Bedienungsanleitung

NOCH

NOCH 14261 Bedienungsanleitung

Hausler

Hausler 450 SE V2 Bedienungsanleitung

Dynaflite

Dynaflite Daydream Bedienungsanleitung

MiniacRC

MiniacRC MIGHTY MINI P40 WARHAWK Handbuch

Kenner

Kenner Batman 63651 Bedienungsanleitung

LEGO

LEGO 8527 Bedienungsanleitung

iKarus

iKarus ECO 8 Bedienungsanleitung

Multiplex

Multiplex EasyStar II Bedienungsanleitung

Walkera

Walkera 38 Bedienungsanleitung

Hasbro

Hasbro TRANSFORMERS BUMBLEBEE Bedienungsanleitung

MD MXION SWD Bedienungsanleitung

Mattel

Mattel Disney Pixar Cars Cozy Cone Spiral Rampway Bedienungsanleitung

marklin

marklin 39671 Bedienungsanleitung

Meccano

Meccano 15103 Bedienungsanleitung

LEGO

LEGO TECHNIC 8735 Bedienungsanleitung
