Hope Education E.a.R.L Bedienungsanleitung

An interactive coding and programming robot

designed specially for the EYFS and KS1

user guide

Features:

• 5 colour LEDs

• Built-in MP3 Player

• Digitally controlled motor

• Up to 250 step program memory

• Programmable lights and sounds

• Custom sounds can be uploaded by USB

• Compatible with Scratch 2.0 on PC

Introduction:

E.a.R.L is a brand-new oor robot, packed with new features that make learning fun.

With lights and sounds (including the option to record your own voice or sounds),

pupils will love creating and debugging simple programs. Plus, his transparent body

lets pupils see exactly how he works.

Getting started:

Before using E.a.R.L for the rst time, please fully charge by connecting E.a.R.L to a

USB port or USB charger, using the cable provided (see charging section below:)

Keypad

Sound on/o

Power on/o

USB Port Speaker

Charging:

Using the USB lead provided, connect E.a.R.L to any USB port or USB charger.

E.a.R.L’s eye will light red to show it is charging. When E.a.R.L is fully charged, the

eye will light green. E.a.R.L will be completely charged in less than 3 hours.

Please note, always fully charge E.a.R.L before storing for long periods.

Changing the battery:

In the unlikely event that the battery becomes defective, the battery may be

accessed by removing the battery hatch using a screwdriver. The battery can then be

unplugged from E.a.R.L and an exact replacement tted. Ret the battery hatch and

secure using the screw.

Switching on:

There are two slide switches located next to the battery hatch. The

rst switch is for sound and the second for power. Normally both

switches will be in the “on” position when in use, but if a number of

E.a.R.L’s are being used at the same time, the sound can be turned

off by moving the sound switch to the “speaker off” position.

When E.a.R.L is switched on, the LEDs will light for 3 seconds to indicate the

remaining battery charge and E.a.R.L will play a sound.

60 – 100% Green

30 – 60% Amber

10 – 30% Red

If E.a.R.L’s battery charge is less than 10%, the eye will change to red to indicate that

recharging is required.

Sleep mode:

If no buttons are pressed for 5 minutes, E.a.R.L will go into a very low power sleep

mode in order to conserve the battery. Pressing any button will wake E.a.R.L. Any

programmed steps are retained when E.a.R.L wakes from sleep mode.

Programming E.a.R.L:

When E.a.R.L is switched on for the rst time, the program memory will be empty.

When E.a.R.L is switched on thereafter, E.a.R.L will remember the last sequence that

was entered. We recommend that the “X” clear button is pressed whenever E.a.R.L

is switched on to clear program memory.

Insert a light

eect program Turn right 90°

Turn left 90°

Move forward 15cm

Move backwards 15cm

Insert a sound

eect program

Clear the

entire program

Insert a pause

program step

Run the

program

E.a.R.L can remember up to 250 commands, allowing your pupils to explore

increasingly complex sequences and programs as their learning progresses.

Each forward and backward command will make E.a.R.L move a 15cm step. The turn

left and turn right buttons will make E.a.R.L turn 90° on the spot. The pause button

inserts a short pause into the program. When the “GO” button is pressed E.a.R.L will

execute each command of the sequence in order. There is a short pause and sound at

the end of each step. To stop the program at any time, just press the clear “X” button.

Pressing the clear “X” button again will clear the memory. The light and sound effect

keys can be used to extend the learning opportunities and give pupils cues as to the

progress of E.a.R.L through a sequence.

Uploading sounds:

When you connect E.a.R.L to a PC or Mac, E.a.R.L will appear as a Mass Storage

Device (just like a memory stick). In the “ZH” folder you will nd an MP3 sound for

each of the default system sounds. If E.a.R.L does not appear as a Mass Storage

Device, press and hold the “GO” button until E.a.R.L’s LEDs ash green. E.a.R.L is

now in MSD mode.

You can customise these sounds by replacing the existing les with your own MP3

sounds; just rename your les to match the existing ones. Please note, make sure

to make a backup so you can revert to the original sounds should you wish. You can

also add a sound for each of the buttons on the key pad. The sound will be played

each time the button is pressed when programming and when that program step is

reached when the “GO” button is pressed. Just rename your MP3 le to match the

following format:

You could record some of the children speaking the commands and upload the les

to E.a.R.L so they can hear their own commands when E.a.R.L is in action!

Programming E.a.R.L using Scratch

Scratch is a project of the Lifelong Kindergarten Group at the MIT Media Lab. It is

provided free of charge. To begin using Scratch, just follow these simple steps:

1. Download the free Scratch 2.0 ofine editor from

https://scratch.mit.edu/download/scratch2 to the PC or Network you will be using

E.a.R.L with.

2. Follow the instructions and install Scratch 2.0.

3. Choose the relevant E.a.R.L Scratch Helper and save it to the PC or Network you

will be using E.a.R.L with.

UK: www.hope-education.co.uk/earl-has-landed

International: www.ndel-international.com/earl-has-landed

4. Switch E.a.R.L on, then using the USB lead provided, connect E.a.R.L to a USB

port on your PC. Press and hold the “GO” button for 5 seconds. The LEDs will ash

blue, E.a.R.L will be detected by your computer, and the necessary driver will be

loaded automatically. Please note, it may be necessary to restart your PC.

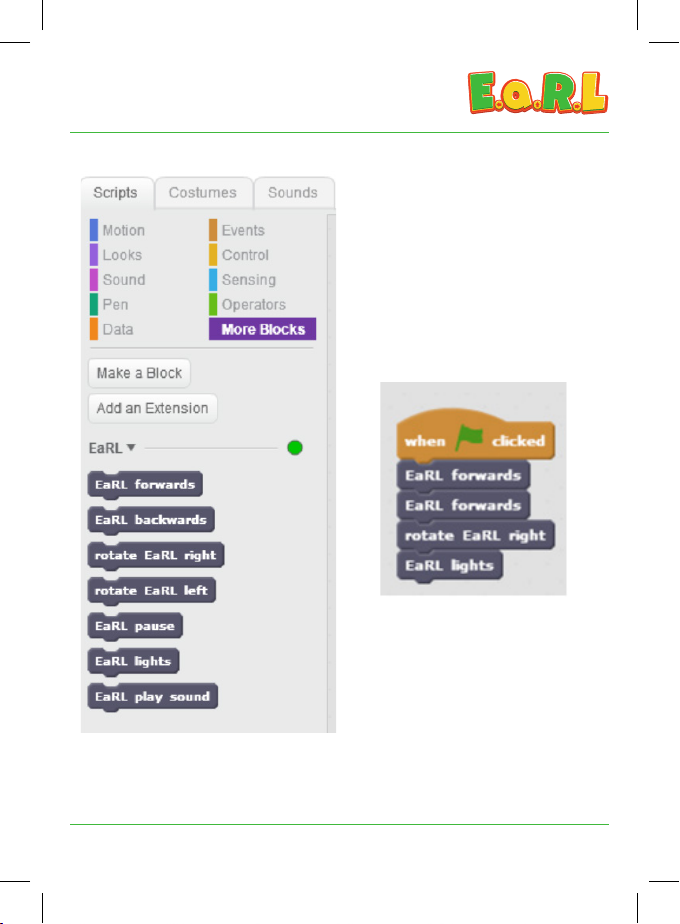

Click on “Start Scratch” and the E.a.R.L Scratch Helper will launch Scratch for you.

Just click on “More Blocks” and you will nd the custom blocks needed to control

E.a.R.L. You can use these blocks to build your program.

All the necessary software is now installed on

your computer. Switch your E.a.R.L on and

connect to a USB port on your computer.

Press and hold the “GO” button for 5 seconds

until E.a.R.L’s LEDs ash blue, signalling E.a.R.L

is now in Scratch mode. Double click the

E.a.R.L Scratch Helper icon to launch it. Check

there is a tick under the image of E.a.R.L to

show that it is connected. If the tick isn’t pres-

ent, check the USB connection.

You must use an “Event” to start your

program. When you have nished

creating your program, simply trigger

the event you have chosen. In this

example, click on the green ag to send

the code to E.a.R.L. E.a.R.L will make

a sound to conrm the program has

transferred. You can now unplug E.a.R.L

from your PC and press “GO” to run

the program.

Please note that the motors are

disabled when E.a.R.L is connected to

a computer.

For more ideas, download the free learning resources and getting started guides at:

UK: www.hope-education.co.uk/earl-has-landed

International: www.ndel-international.com/earl-has-landed

Important information:

WARNING choking hazard - small parts not suitable for children under 3 years.

WARNING strangulation hazard - USB lead should only be used by an adult.

Please retain these instructions for future reference.

Non-rechargeable batteries are not to be recharged.

Rechargeable batteries are only to be charged under adult supervision.

The supply terminals are not to be short-circuited.

Regularly examine for damage to the cord, plug, enclosure and other parts. In the event of

any damage, the toy and charger must not be used until the damage has been repaired.

Batteries should only be replaced by an adult.

Do not allow E.a.R.L to come into contact with water or other liquids.

In the event of a static discharge, your E.a.R.L may malfunction. In this case, please

switch it off and then back on again to reset it.

Care and maintenance:

If necessary, wipe E.a.R.L gently with a clean damp cloth. Do not use solvents or abrasives.

Specication:

Battery type Rechargeable 3.7v

lithium battery

Battery capacity 1.2AH

Charging time 3 hours (typical)

Battery life 8 hours in normal use

Turn accuracy 90° ± 1°

Forward/backward 15cm ± 0.5mm

Program memory 250 steps

Sound memory 300 s

Sound format MP3

Lights RGB LEDs

Made in the U.K for

Findel Education, Gregory Street, Hyde, Cheshire, SK14 4RH, UK

Disposal of Waste Electrical and Electronic Equipment (WEEE)

Do not dispose of this product with household waste. For the proper treatment, recovery

and recycling please take this product to an appropriate collection point. If you are

unsure where this is, contact your Local Authority. By disposing of this product correctly

you will be providing positive help to the environment.

Not suitable for children

under 3 years.

Small parts - choking hazard

Warranty information

E.a.R.L is guaranteed for a period of one

year from the date of delivery to the

customer. This warranty does not apply

to defects resulting from the action of a

user such as misuse, improper wiring, any

operations outside of its specication,

improper maintenance or repair, or

unauthorised modication.

Our liability is limited to repair or

replacement of the product. Any failure

during the warranty period should be

referred to our customer services team.
