CONGRATULATIONS on choosing your treadmill! You’ve taken an important step in developing and

sustaining an exercise program! Your treadmill is a tremendously effective tool for achieving your personal

fitness goals. Regular use of your treadmill can improve the quality of your life in so many ways.

Whether your goal is to win races or simply enjoy a fuller, healthier lifestyle, a Horizon Fitness treadmill

can help you attain it – adding quality performance to your at-home workouts, with the ergonomics

and innovative features you need to get stronger and healthier, faster. Because we're committed to

designing fitness equipment from the inside out, we use only quality components.

You want exercise equipment that offers the most comfort, the best reliability and quality in its class.

Horizon Fitness delivers.

INTRODUCTION

Important Precautions

About Your Treadmill

Before You Begin

Treadmill Operation

Conditioning Guidelines

Troubleshooting & Maintenance

Limited Warranty

CONTACT INFORMATION

Back Panel

TABLE OF CONTENTS

INTRODUCTION IMPORTANT

PRECAUTIONS ABOUT YOUR

TREADMILL BEFORE

YOU BEGIN TREADMILL

OPERATION LIMITED

WARRANTY

TROUBLESHOOTING

& MAINTENANCE

CONDITIONING

GUIDELINES

SAVE THESE INSTRUCTIONS

Read all instructions before using this treadmill. When using an electrical product, basic precautions

should always be followed, including the following: Read all instructions before using this treadmill. It is the

responsibility of the owner to ensure that all users of this treadmill are adequately informed of all warnings

and precautions. If you have any questions after reading this manual, contact Customer Tech Support at the

number listed on the back panel of this manual.

Connect this exercise product to a properly grounded outlet only. See grounding

instructions.

GROUNDING INSTRUCTIONS

This product must be grounded. If a treadmill should malfunction or breakdown, grounding provides a path

of least resistance for electrical current to reduce the risk of electrical shock. This product is equipped with

a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an

appropriate outlet that is properly installed and grounded in accordance with local codes and ordinances.

Improper connection of the equipment-grounding conductor can result in a risk of

electric shock. Check with a qualified electrician or serviceman if you are in doubt

as to whether the product is properly grounded. Do not modify the plug provided

with the product. If it will not fit the outlet, have a proper outlet installed by a

qualified electrician.

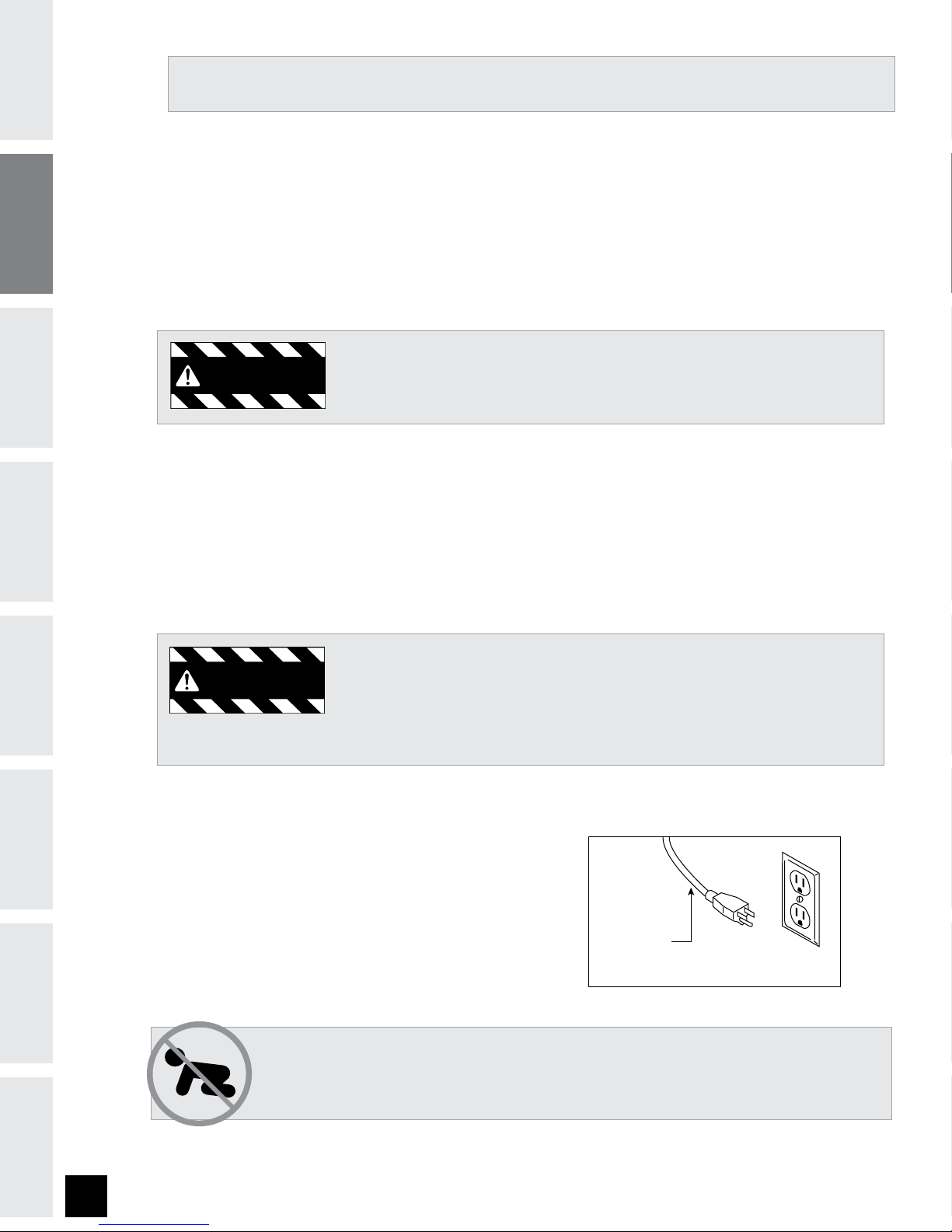

This product is for use on a nominal 110-volt circuit and

has a grounding plug that looks like the illustration.

This product must be used on a dedicated circuit. To

determine if you are on a dedicated circuit, shut off the

power to that circuit and observe if any other devices

lose power. If so, move devices to a different circuit.

NOTE: There are usually multiple outlets on one circuit.

It is recommended that the treadmill be used with a 15

amp circuit for optimal performance.

IMPORTANT PRECAUTIONS

WARNING

3-Pole Grounded Outlet

GROUNDED

TREADMILL

POWER CORD

At NO time should pets or children under the age of 12 be closer to the treadmill than 10 feet.

At NO time should children under the age of 12 use the treadmill.

Children over the age of 12 should not use the treadmill without adult supervision.

INTRODUCTION

IMPORTANT

PRECAUTIONS

ABOUT YOUR

TREADMILL

BEFORE

YOU BEGIN

TREADMILL

OPERATION

CONDITIONING

GUIDELINES

TROUBLESHOOTING

& MAINTENANCE

LIMITED

WARRANTY

To reduce the risk of burns, fire, electrical shock or injury to persons:

• Never use the treadmill before securing the safety tether clip to your clothing.

• If you experience any kind of pain, including but not limited to chest pains, nausea, dizziness, or shortness

of breath, stop exercising immediately and consult your physician before continuing.

• Do not wear clothes that might catch on any part of the treadmill.

• Always wear athletic shoes while using this equipment.

• Do not jump on the treadmill.

• Keep power cord away from heated surfaces.

• Do not insert or drop any object into any opening.

• Unplug treadmill before moving or cleaning it. To clean, wipe surfaces down with soap and slightly damp

cloth only; never use solvents. (See MAINTENANCE)

• At no time should more than one person be on treadmill while in operation.

• The treadmill should not be used by persons weighing more than 114 kg (250 lbs). Failure to comply will

void the warranty.

• The treadmill is intended for in-home use only. Do not use this treadmill in any commercial, rental, school

or institutional setting. Failure to comply will void the warranty.

• Do not use treadmill in any location that is not temperature controlled such as but not limited to garages,

porches, pool rooms, bathrooms, car ports or outdoors. Failure to comply may void the warranty.

• Use the treadmill only as described in this manual.

OTHER SAFETY TIPS FOR YOUR TREADMILL

OPERATION

To reduce the risk of damaging important components on your treadmill, it is strongly

recommended that your treadmill is plugged into a dedicated 15 amp circuit, without

the use of an additional extension cord and/or power strip. Failure to comply may void

the warranty.

IMPORTANT: The treadmill is not compatible with GFCI-equipped outlets.

It is essential that your treadmill is used only indoors, in a climate-controlled room. If your treadmill has been

exposed to colder temperatures or high moisture climates, it is strongly recommended that the treadmill is

warmed up to room temperature before first time use. Failure to do so may cause premature electronic failure.

WARNING

CAUTION

Do not apply ANY lubricant to the folding mechanism.

This could damage it. Failure to comply may void the warranty.

Do not use ANY lubricant

INTRODUCTION IMPORTANT

PRECAUTIONS ABOUT YOUR

TREADMILL BEFORE

YOU BEGIN TREADMILL

OPERATION LIMITED

WARRANTY

TROUBLESHOOTING

& MAINTENANCE

CONDITIONING

GUIDELINES

ABOUT YOUR TREADMILL

THERE IS NO ASSEMBLY REQUIRED FOR THIS TREADMILL!

UNPACKING

Place the treadmill carton on a level flat surface. It is recommended that you place a protective

covering on your floor. Take CAUTION when handling and transporting this unit. Never open box when

it is on its side. Unpack the unit where it will be used. FAILURE TO FOLLOW THESE INSTRUCTIONS

COULD RESULT IN INJURY!

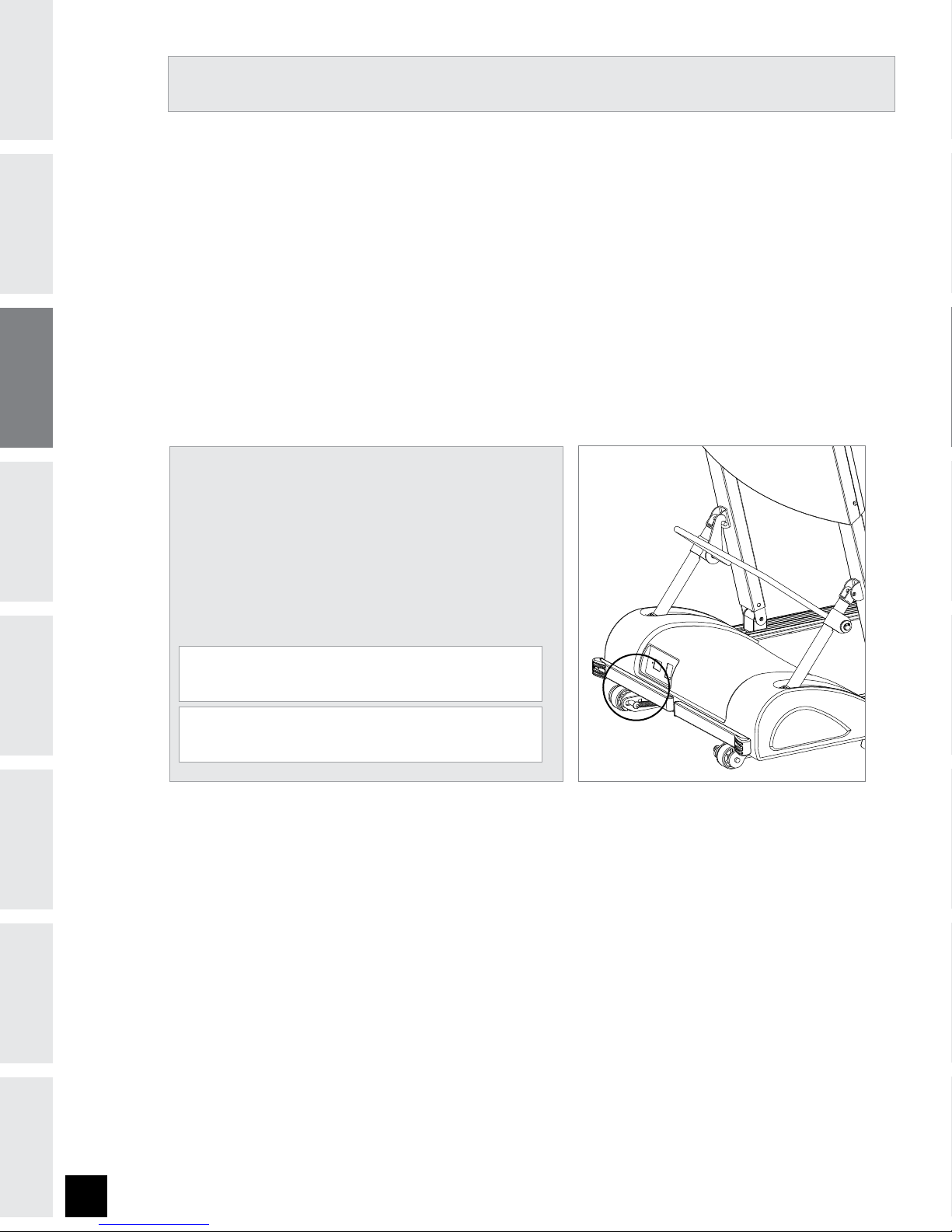

Before proceeding, find your treadmill’s serial number

and model name located on the stabilizer leg and enter

it in the space provided below.

ENTER YOUR SERIAL NUMBER AND

MODEL NAME IN THE BOxES BELOW:

SERIAL NUMBER :

MODEL NAME:

* Refer to the SERIAL NUMBER and MODEL NAME when calling for service.

* Also enter this serial number on your Warranty Card.

INTRODUCTION

IMPORTANT

PRECAUTIONS

ABOUT YOUR

TREADMILL

BEFORE

YOU BEGIN

TREADMILL

OPERATION

CONDITIONING

GUIDELINES

TROUBLESHOOTING

& MAINTENANCE

LIMITED

WARRANTY

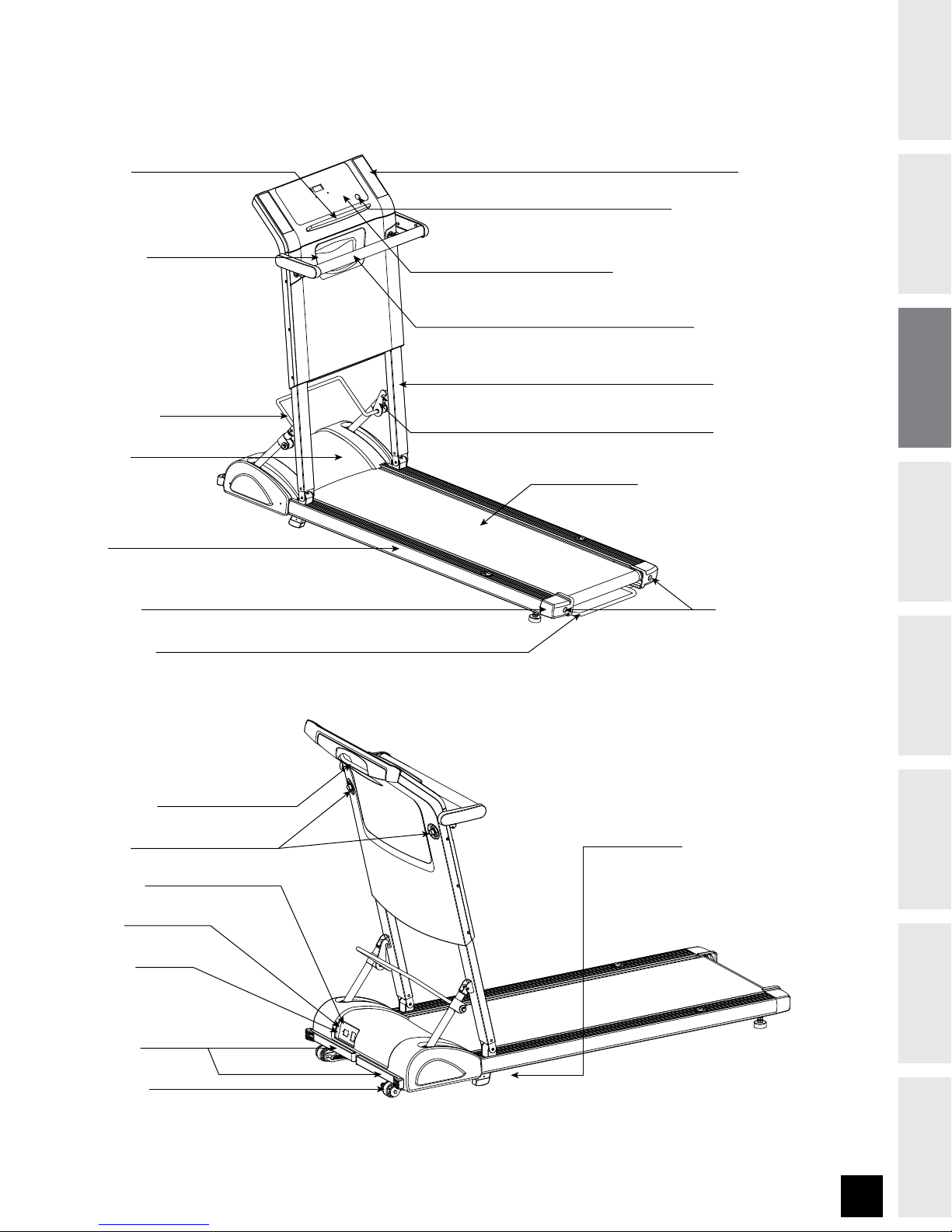

STORAGE POCKET

READING RACK

SAFETY KEY PLACEMENT

TOUCH PAD PANEL WITH LCD DISPLAY

FRONT HANDLEBAR

CONSOLE

LOCKING HANDLEBAR

RUNNING BELT / RUNNING DECK

CONSOLE MAST

LOCKING LATCH

REAR ROLLER

ADJUSTMENT BOLTS

TRANSPORT HANDLE

MOTOR COVER

SIDE RAIL

ROLLER END CAP

ON/OFF SWITCH

CIRCUIT BREAKER

POWER CORD

FOLDING HANDLEBAR

LOCK BUTTONS

STABILIZER LEGS

TRANSPORT WHEEL

STABILIZER BRACKET

(LOCATED ON UNDERSIDE OF TREADMILL)

INTRODUCTION IMPORTANT

PRECAUTIONS ABOUT YOUR

TREADMILL BEFORE

YOU BEGIN TREADMILL

OPERATION LIMITED

WARRANTY

TROUBLESHOOTING

& MAINTENANCE

CONDITIONING

GUIDELINES

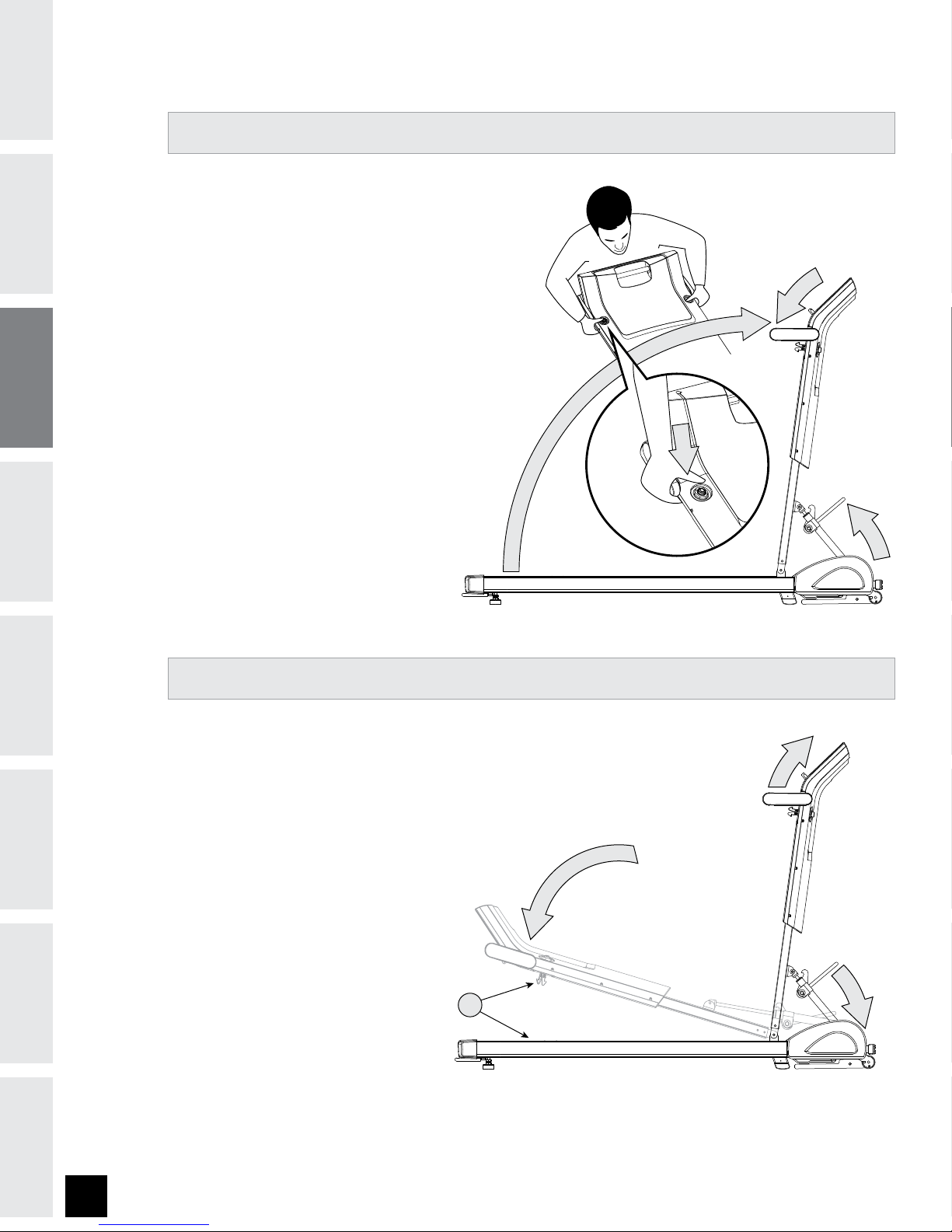

The treadmill was folded in the carton

when purchased. Follow these steps to

unfold the treadmill.

1. Press and hold both LOCK BUTTONS

with your thumbs.

2. Carefully lift the CONSOLE MODULE

upward until it is in the upright

position.

3. Pull the LOCKING BAR upward until

it is tight.

4. Gently pull the FRONT HANDLEBAR

downward.

CAUTION:

Do not use the treadmill if the

LOCKING BAR is not tight.

UNFOLDING

FOLDING

Follow these steps to fold the treadmill.

1. Gently pull the FRONT HANDLEBAR

upward.

2. Pull the LOCKING BAR downward to

release the lock.

3. Carefully pull the CONSOLE MODULE

downward until it rests flat on the

treadmill deck.

4. Press down on the CONSOLE

MODULE until both locks engage.

INTRODUCTION

IMPORTANT

PRECAUTIONS

ABOUT YOUR

TREADMILL

BEFORE

YOU BEGIN

TREADMILL

OPERATION

CONDITIONING

GUIDELINES

TROUBLESHOOTING

& MAINTENANCE

LIMITED

WARRANTY

MOVING / STORAGE

This treadmill has a pair of transport

wheels built under the base frame. To

move, make sure the treadmill is folded

down and securely latched. Then, firmly

grasp the lifting handlebar, lift the

treadmill up and roll. This treadmill can

be stored horizontally (under a bed) or

vertically (against a wall).

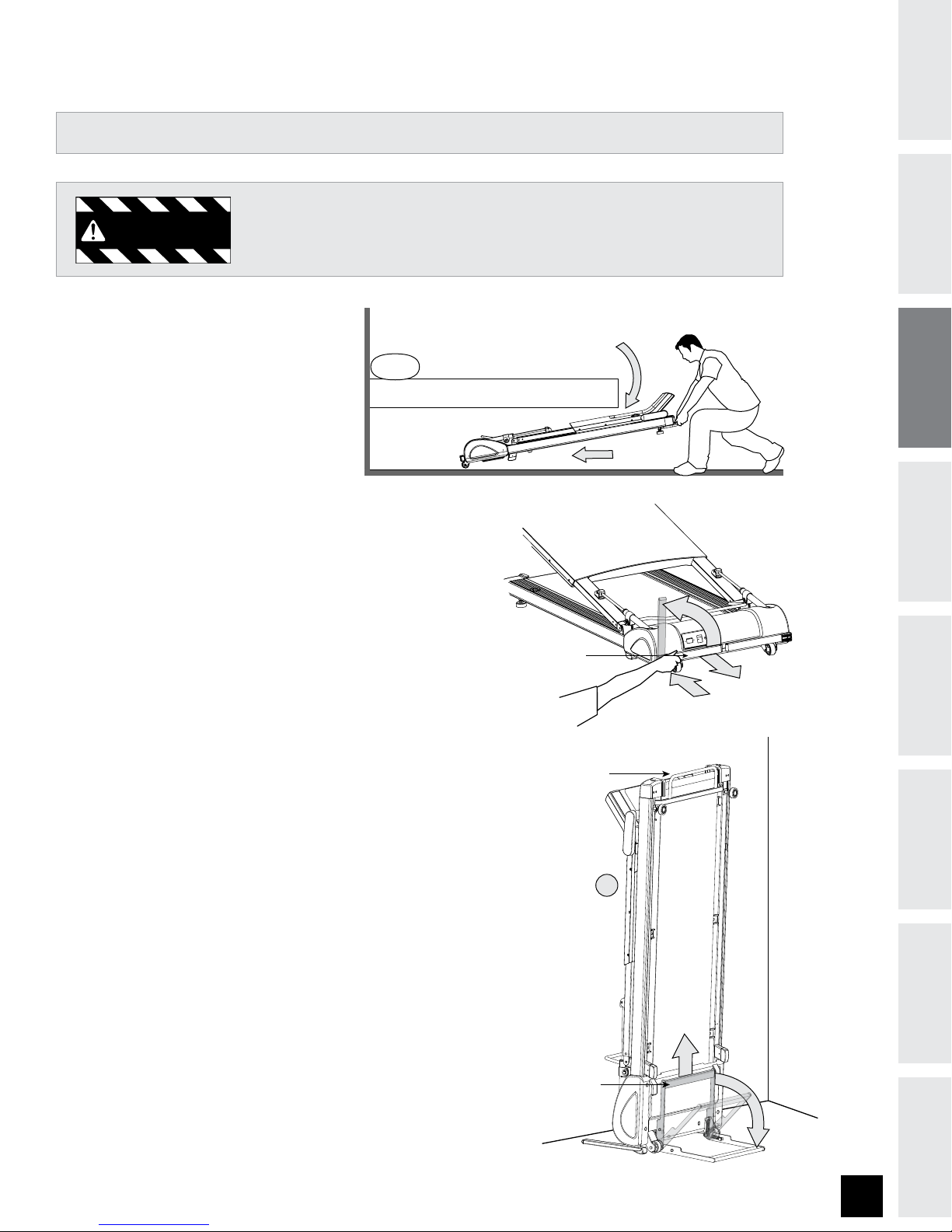

To store underneath a bed, firmly grasp the lifting bar and

move the treadmill. Gently lower and push the treadmill

under the bed. (See illustration above)

CAUTION:

To prevent damage to the treadmill, make sure the area has

enough space to store the treadmill.

This treadmill is equipped with two STABILIZER LEGS on the front

side. To store the treadmill vertically, follow these steps:

1. To stand the treadmill up, pull the STABILIZER LEGS outward.

2. Turn the STABILIZER LEGS so they face upward.

3. Push the STABILIZER LEGS back in to lock them in place.

4. Place the treadmill close to wall with the STABILIZER LEGS

facing the wall. Carefully lift the treadmill up using the

LIFTING BAR.

5. Pull the STABILIZER BRACKET upward.

6. Rotate the STABILIZER BRACKET down all the way to the floor.

The STABILIZER BRACKET will automatically lock in place.

7. To put the treadmill back down, pull the STABILIZER BRACKET

towards you and rotate it upward until it locks.

8. Follow the steps above in reverse order to completely put the

treadmill back down.

MOVING AND STORAGE

Our treadmills can be heavy. Use care and additional help if necessary when

moving. Do not attempt to move or transport treadmill unless both the lock

latches are secured. Failure to follow these instructions could result in injury.

WARNING

STABILZER LEG

STABILZER

BRACKET

LIFTING BAR

INTRODUCTION IMPORTANT

PRECAUTIONS ABOUT YOUR

TREADMILL BEFORE

YOU BEGIN TREADMILL

OPERATION LIMITED

WARRANTY

TROUBLESHOOTING

& MAINTENANCE

CONDITIONING

GUIDELINES

DO NOT STAND ON THE BELT

While you are preparing to use the treadmill, do not stand on the belt. Place

your feet on the side rails before starting the treadmill. Start walking on the

belt only after the belt has begun to move. Never start the treadmill at a fast

running speed and attempt to jump on!

BEFORE YOU BEGIN

Your treadmill can be a tremendously effective tool for achieving your personal fitness goals. Regular use

of your treadmill can improve the quality of your life in so many ways.

HERE ARE JUST A FEW OF THE HEALTH BENEFITS OF EXERCISE:

• Weight Loss

• A Healthier Heart

• Improved Muscle Tone

• Increased Daily Energy Levels

The key to reaping these benefits is to develop an exercise habit. Your new treadmill will help you eliminate

obstacles that prevent you from exercising. Inclement weather and darkness won't interfere with your

workout when you use your treadmill in the comfort of your home. This guide provides you with basic

information for using and enjoying your new machine.

LOCATION OF THE TREADMILL

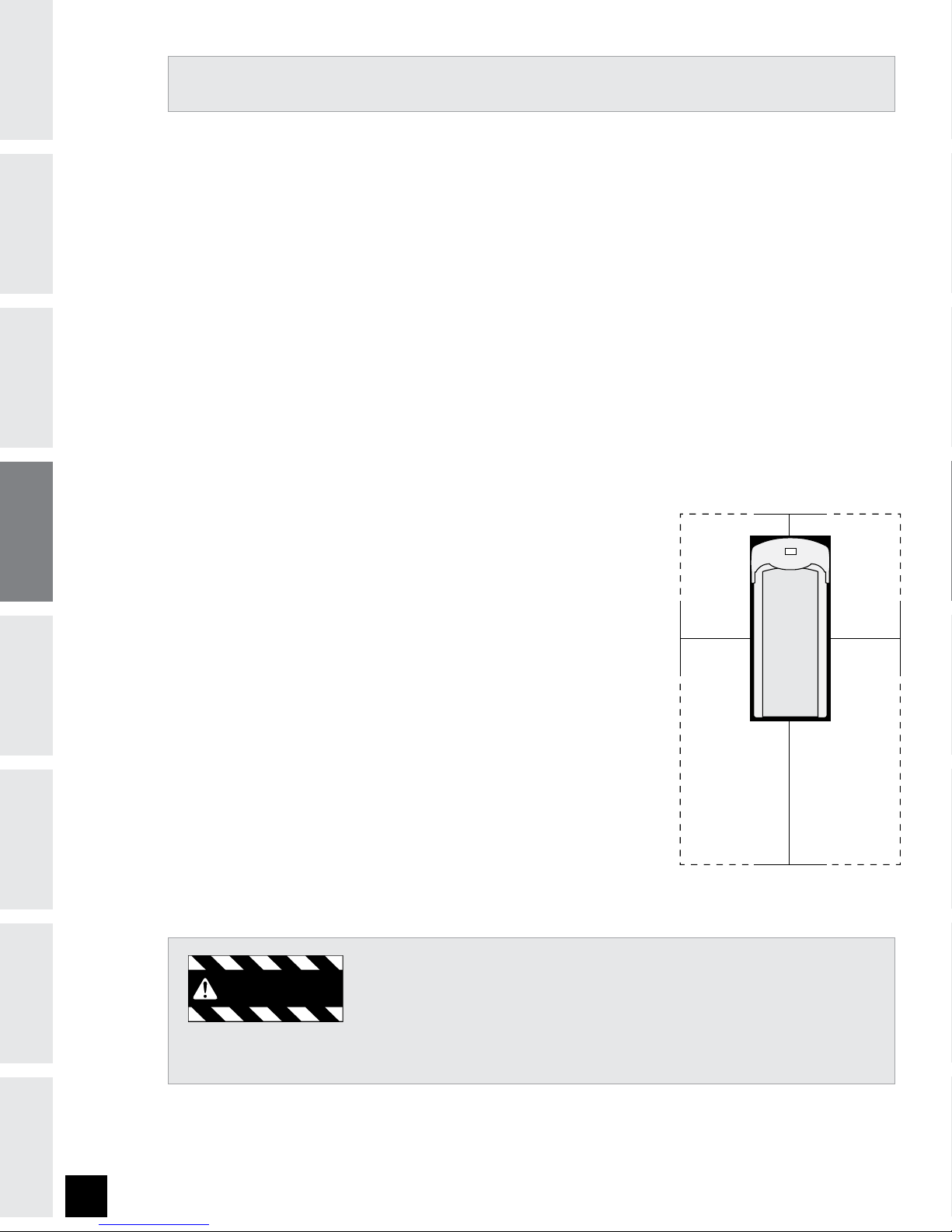

Place the treadmill on a level surface. There should be 6 feet of clearance

behind the treadmill, 3 feet on each side and one foot in front for folding

and the power cord. Do not place the treadmill in any area that will block

any vent or air openings. The treadmill should not be located in a garage,

covered patio, near water or outdoors.

3 ft

7 ft

3 ft

92 cm 92 cm

1 ft

214 cm

31 cm

WARNING

Andere Handbücher für EVOLVE

Inhaltsverzeichnis

Andere Horizon Fitness Tretmühle Handbücher

Horizon Fitness

Horizon Fitness T101 Bedienungsanleitung

Horizon Fitness

Horizon Fitness T303 Bedienungsanleitung

Horizon Fitness

Horizon Fitness CT5.1 Bedienungsanleitung

Horizon Fitness

Horizon Fitness TR5.0 Bedienungsanleitung

Horizon Fitness

Horizon Fitness CT9.1 Bedienungsanleitung

Horizon Fitness

Horizon Fitness Treadmill Bedienungsanleitung

Horizon Fitness

Horizon Fitness HTM6000 Bedienungsanleitung

Horizon Fitness

Horizon Fitness Adventure 1 Plus Bedienungsanleitung

Horizon Fitness

Horizon Fitness T61 Bedienungsanleitung

Horizon Fitness

Horizon Fitness CLUB SERIES CST3.5 Bedienungsanleitung

Horizon Fitness

Horizon Fitness ELITE T7 Bedienungsanleitung

Horizon Fitness

Horizon Fitness Elite T5 Bedienungsanleitung

Horizon Fitness

Horizon Fitness T202 Bedienungsanleitung

Horizon Fitness

Horizon Fitness 832T Bedienungsanleitung

Horizon Fitness

Horizon Fitness T51 Bedienungsanleitung

Horizon Fitness

Horizon Fitness HTM 2000 Bedienungsanleitung

Horizon Fitness

Horizon Fitness Treadmill Bedienungsanleitung

Horizon Fitness

Horizon Fitness Adventure 4 Plus Bedienungsanleitung

Horizon Fitness

Horizon Fitness T93 Bedienungsanleitung

Horizon Fitness

Horizon Fitness TREADMILL T401 Bedienungsanleitung

Horizon Fitness

Horizon Fitness Paragon Bedienungsanleitung

Horizon Fitness

Horizon Fitness T84 Bedienungsanleitung

Horizon Fitness

Horizon Fitness HZ SERIES T72 Bedienungsanleitung

Horizon Fitness

Horizon Fitness T101 Bedienungsanleitung

Beliebte Tretmühle Handbücher anderer Marken

Treadly

Treadly TREADLY 2 Bedienungsanleitung

HEALTH ONE

HEALTH ONE Walk Ro Bedienungsanleitung

NordicTrack

NordicTrack NTL12941 Bedienungsanleitung

NordicTrack

NordicTrack T7.5 S Bedienungsanleitung

Gold's Gym

Gold's Gym ADVANTAGE GGTL12920 Bedienungsanleitung

Merax

Merax MS282992 Bedienungsanleitung

FYTTER

FYTTER RU-2SX Bedienungsanleitung

Precor

Precor 903 Bedienungsanleitung

FitLogic

FitLogic freewill d225 Bedienungsanleitung

HOP-SPORT

HOP-SPORT ESTIMA HS-3200LB Bedienungsanleitung

Stamia

Stamia InMotion II Bedienungsanleitung

Smooth Fitness

Smooth Fitness EVO 3i Bedienungsanleitung

NordicTrack

NordicTrack NETL81810.0 Bedienungsanleitung

Schwinn

Schwinn 830/Journey 8.0 Bedienungsanleitung

Keys Fitness

Keys Fitness HealthTrainer HT-740T Bedienungsanleitung

Spirit

Spirit XT8 Bedienungsanleitung

NordicTrack

NordicTrack T 14.0 Treadmill Bedienungsanleitung

Master

Master F22 Bedienungsanleitung
