Hoshizaki KM-800MAE Bedienungsanleitung

NO.

ISSUED:

MODEL

HOSHIZAKI

MODULAR CRESCENT CUBER

(FINAL) PARTS LIST

KM-800MAE

KM-800MWE

KM-800MRE

APRIL12,1993

MAY 16, 2000

71081

REVISED:

KM-800MAE

C-0 Feb., 1993

C-1 March, 1993

C-2 Aug., 1993

D-0 Dec., 1993

E-0 Dec., 1994

E-1 April, 1995

F-0 Jan., 1996

F-1 June, 1996

-0 Jan., 1997

-1 June, 1997

H-0 Dec., 1997

H-1 June, 1998

H-2 July, 1998

H-3 Oct., 1998

H-4 Nov., 1998

J-0 Dec., 1998

KM-800MWE

C-0 Feb., 1993

C-1 March, 1993

C-2 Oct., 1993

D-0 Feb., 1994

E-0 Feb., 1995

E-1 April, 1995

F-0 Jan., 1996

F-1 June, 1996

-0 Jan., 1997

-1 June, 1997

H-0 Jan., 1998

H-1 June, 1998

H-2 July, 1998

J-0 Dec., 1998

KM-800MRE

C-0 Jan., 1993

C-1 March, 1993

C-2 July, 1993

D-0 Jan., 1994

E-0 Dec., 1994

E-1 April, 1995

F-0 Dec., 1995

F-1 June, 1996

-0 Dec., 1996

-1 June, 1997

H-0 Dec., 1997

H-1 June, 1998

H-2 Oct., 1998

J-0 Dec., 1998

MATERIAL ABBREVIATIONS

ALUMINUM

AL = Aluminum

COPPER

CU = Copper

PLASTIC

ABS = Acrylonitrile -butadiene - styrene

AC = Polyacetal

EVA = Ethylene vinyl acetate

PA = Polyamide = Nylon

PC = Polycarbonate

PE = Polyethylene

PES = Polyester

PE P = Polyethylene terephthalate = etlon

PP = Polypropylene

PS = Polystyrene

P FE = Polytetrafluoroethylene = eflon

PUR = Polyurethane

PVC = Polyvinyl chloride

RUBBER

VN = Vinyl Nitrile

EPDM = EP rubber

NBR = Nitrile butadiene rubber

NR = Natural rubber

NP = Neoprene

SI.R = Silicone rubber

SY.R = Synthetic rubber

EPH = Epichlorohydrin

STEEL

GS = Galvanized steel

SS = Stainless steel

PS = Plated steel

PAS = Primed steel

AUXILIARY CODE

Ex.1 K-0

Parts are the same as in the preceding (Note) - = Part deleted.

year.

x = Part deleted and replaced

"K" is the tenth in alphabetical order with "I" by "o" part.

skipped. So, "K" indicates "1990" or "2000".

o = New part for "x"

Ex.2 A-1 in the same auxiliary code.

"A" is the first in alphabetical

order. So, "A" indicates "1991".

Ex.3 A-2

Each time a part is changed non-interchangeably

in a year, this number advances.

FASTENER ABBREVIATION LIST

S Phillips russ Machine Screw

SP Phillips Pan Head Machine Screw

SF Phillips Flat Head Machine Screw

SS Phillips Pan Head Machine Screw with Split Lock Washer

SW Phillips Pan Head Machine Screw with Split Lock Washer

and Flat Washer

1 Phillips russ Head apping Screw (Correspond to ype A)

2 Phillips russ Head apping Screw (Correspond to ype B)

3 Phillips russ Head apping Screw (Correspond to ype C)

F Phillips russ Head apping Screw (Special)

BH Hexagon Head Bolt

BC Socket Head Cap Screw

BS Hexagon Bolt with Split Washer

BW Hexagon Bolt with Split Washer and Flat Washer

BF Hexagon Flange Bolt

BR Cross-Recessed Hexagon Head Bolt

BRW Cross-Recessed Hexagon Head Bolt with Split Lock Washer

and Flat Washer

WL Split Lock Washer

W External ooth Washer

WF Flat Washer

WS Spring Washer

NH Hexagon Nut

NF Hexagon Flange Nut

NC Hexagon Cap Nut

NS Square Nut

NW Wing Nut

Ex. S 0308S (Phillips russ Head Machine Screw

3x8, made of stainless steel)

Material None: Plated Steel

Length (mm) S: Stainless Steel

Nominal Diameter (mm) B: Brass

Form of Head P: Plastic

Description

(Note) Second character is numerical except toe list.

Ex. S1, S2, B3 etc.

And abbreviations and names are shown under the illustration.

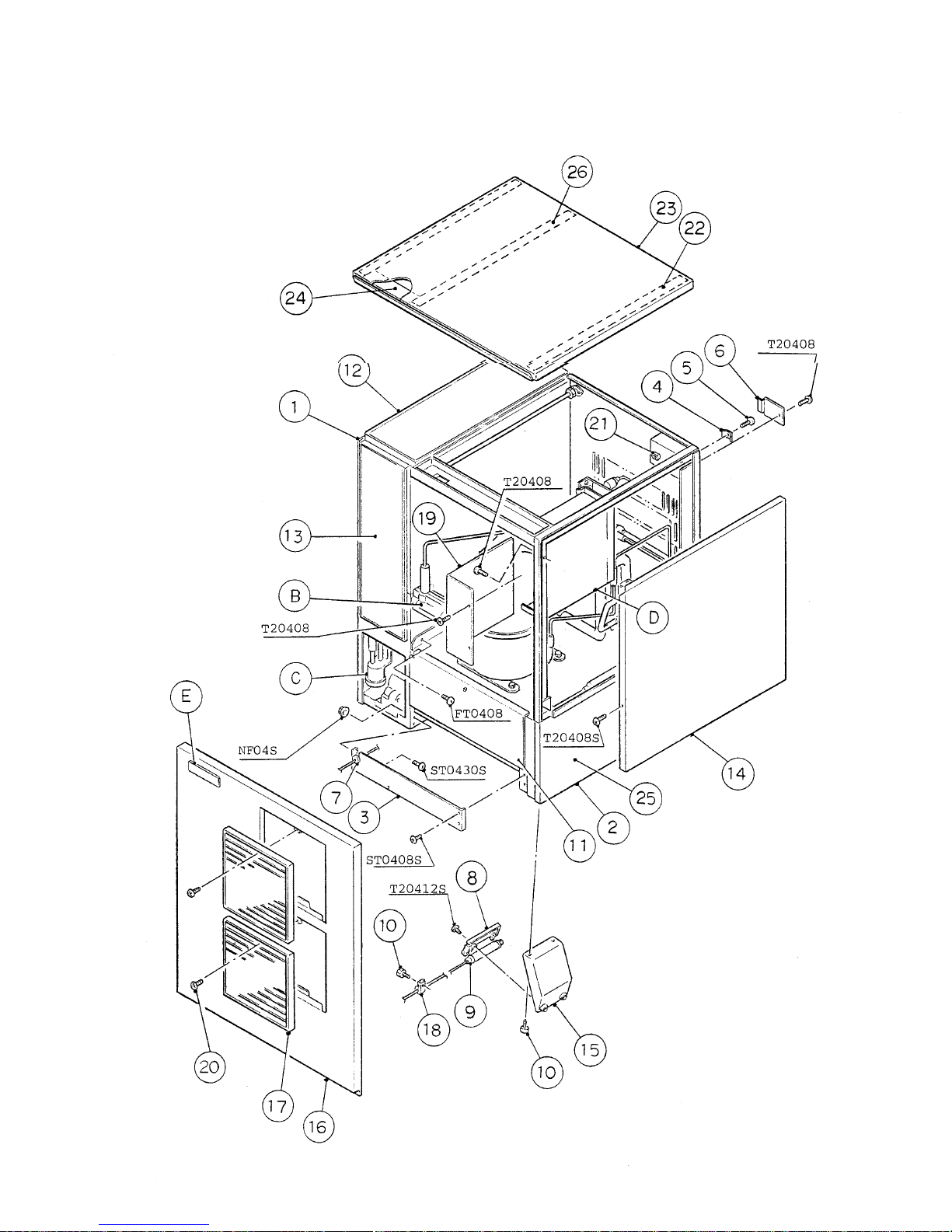

KM-800MAE A. ICE CUBER ASSEMBLY C-0, C-1, C-2, D-0, E-0, E-1, F-0

KM-800MAE A. ICE CUBER ASSEMBLY F-1

KM-800MAE A. ICE CUBER ASSEMBLY G-0, G-1, H-0, H-1, H-2, H-3, H-4, J-0

MODEL: KM-800MAE TITLE:A. ICE CUBER ASSEMBLY

INDEX

NO. DESCRIPTION MATERIAL

OR MODEL PART

NUMBER REQUIRED NUMBER

NUMBER C-0 C-1 C-2 D-0

E-0

E-1

F-0

F-1 G-0

G-1

H-0

H-1

H-2 H-3 H-4

J-0

B REFRIGERATION CIRCUIT - 106081A01 1 -

- 106081A02 1 1 1 -

- 106081A03 111111

C WATER CIRCUIT - 105126A03 1 -

- 105126A06 1 -

- 1A0058A03 1 1 -

- 1A0058A05 111111

D CONTROL BOX ASSEMBLY - 217130A06 1111111-

- 217130A11 1 -

- 217130A06 1 -

- 217130A11 1

E LABEL LOCATION - 329724A01 1111111-

- 329724A02 1 -

- 329724A01 1 -

- 329724A02 1

1 EVAP. CASE - 104404G06 1 -

- 2A0143G02 1111111x1

- 1A0276G02 o1 1

2 BASE - 104415G04 1 -

- 104415G05 1 1 x1

- 104415G08 o111111x1

- 1A0411G01 o1

3FRONTFRAME SS 322617-011111111111

4SQUAREWASHER BRASS 433537-021111111111

5SCREW-GROUNDING BRASS 433304-021111111111

6JUNCTIONBOXCOVER GS 433410-011111111111

7 CAPILLARY RING EP RUBBER 425307-01 1111111111

MODEL: KM-800MAE TITLE:A. ICE CUBER ASSEMBLY

INDEX

NO. DESCRIPTION MATERIAL

OR MODEL PART

NUMBER REQUIRED NUMBER

NUMBER C-0 C-1 C-2 D-0

E-0

E-1

F-0

F-1 G-0

G-1

H-0

H-1

H-2 H-3 H-4

J-0

8BULBHOLDER ABS 328919-011111111111

9SPACER PE 443545-012211111111

10THUMBSCREW ABS,SS 415949G013111111111

11 BASE COVER SS 322618G01 1 1 1 1 1 1 1 1 1 1

12TOPINSULATION PP,PUR 215730G011111111111

13FRONTINSULATION PP,PUR 215731G021111111111

14 SIDE PANEL (R) SS 211811G02 1 1 1 1 1 x1

SS 2A0612G01 o1 x1

SS 211811G02 o1 1 1 1

15 BULB HOLDER (C) ABS 322634G01 1 x1

ABS 3A0218G01 o111111111

16 FRONT PANEL SS 212629G01 1 1 1 1 x1

SS 212629G02 o1 1 1 1 1 1

17 LOUVER (B) - 103121-01 2 -

- 103121-03 222222222

18 AIR FILTER (B) - 208283G01 2 -

- 208283G03 222222222

19 STRAP NBR, NW372 435487-01 1 1 1 1 1 1 1 1 1 1

20 TAPPING SCREW ( BLACK) STEEL,4x8 433954-01 2 2 2 2 2 2 2 2 2 2

21BUSHING SR-34-2 420472-051111111111

22 CONTROL BOX COVER GS 3A0174-01 1 1 1 1 1 1 1 1 1 1

23 GASKET (324859A02) 427014-04 2 2 2 2 2 2 2 2 2 2

24TOPPANEL SS 213543-011111111111

25INSULATION PEFOAM 438012-011111111111

26 SIDE PANEL (R) BASE SS 212620-01 1 1 1 -

SS 2A0317-01 1 1 1 1 1 1 1

27 GASKET (A) L=696 324859-03 1 1 1 1 1 1 1 1 1 1

28 BARRIER - INSULATION GS 4A1167-01 1 1 1 1

KM-800MWE A. ICE CUBER ASSEMBLY C-0, C-1, C-2, D-0, E-0, E-1, F-0
