HP Compaq Presario Handbuch

3-4 Volume One

Presario 500

System Boards Assembly Spare Part System

System Board w/o Processor,

4 MB 003831-101 177067-001 CDS520,

CDTV520

System Board w/o Processor,

4 MB (Outside NA) 004126-101

004205-101 177066-001

DISCONTINUED CDS520,

CDTV520

System Board w/o Processor,

4 MB 004663-102 210262-001 CDS522, 524,

526, CDTV528

System Board w/o Modem &

Processor, 4 MB (INT’L) 004664-102

004205-102 210263-001

DISCONTINUED CDS522, 524,

526, CDTV528

Jumper Settings (Assembly 003831, 004126, 004205, 004663, 004664)

Jumper Function Pins Function

P1 Speed Select 1,2 Select processor speed (25 or 50 MHz)

2,3 Select processor speed (33 or 66 MHz)

P2 SX Processor Select 1,2 486 SX Installed

2,3 Other than 486SX installed

P5 CMOS Erase Remove and replace jumper P5 to clear

CMOS and Password

J11 Replacement

Battery Connector Use only 4.5v Alkaline computer

battery.

Memory SIMMs Spare Part System

4 MB Memory Module 160033-001 All

8 MB Memory Module 160034-001 All

16 MB Memory Module 177122-001

DISCONTINUED All

32 MB Memory Module 177123-001

DISCONTINUED All

Microprocessors Spare Part System

486DX2/50 Processor 194394-001 Option

486SX2/66 Processor 189388-001

DISCONTINUED CDS520, CDTV

520, 522

486DX2/66 Processor 171752-001

DISCONTINUED CDS524, 526,

CDTV528

486SX/331164563-001 CDS510

1Outside U.S.

Miscellaneous Assembly Spare Part System

Monitor Assembly, NA (P)

Monitor Assembly, NA (S) 171866-001

171866-001 177018-001

177018-101* All

All

Monitor Assembly, NH (P)

Monitor Assembly, NH (S) 171866-002

171866-002 177018-002

177018-102* All

All

Monitor Assembly, SH (P)

Monitor Assembly, SH (S) 171866-003

171866-003 177018-003

177018-103* All

All

Speaker 171851-001 177070-001

DISCONTINUED All

Backplane 004215-001 177014-001

DISCONTINUED All

TV Tuner Controller Board

(U.S.) 171095-001 171090-001 All

TV Tuner Controller Board

(Europe) 004846-002 214765-001

DISCONTINUED All

* Outside U.S.

Volume One 3-5

Presario 500

Hard Drive Type Cable

Select* Spare Part System

270 MB 65/66 171011-001 CDS520,

CDTV520

270 MB Yes 172778-001 CDS522, 524,

526, CDTV528

420 MB 65 172193-001 CDS520,

CDTV520

420 MB Yes 172780-001 CDS522, 524,

526, CDTV528

540 MB 188666-001 CDS522, 524,

526, CDTV528

* “Hard Drive Select”cable required.

CD-ROM Drives Assembly Spare Part System

CD-ROM, IDE 172159-001

DISCONTINUED CDS520,

524*,

CDTV520

CD-ROM, IDE, 4 Speed 172854-

001 172864-001

DISCONTINUED CDS522,

524**, 526,

CDTV528

* Configuration Code HQQ2. ** Configuration Code HQS2.

Diskette Drives Spare Part System

1.44 MB (Three-mode) 160788-201 All

2400/9600-Baud

Modem, D/F/TAM Assembly Spare Part Cable

Spare Part System

Australia 165231-011 165220-011 165224-011 All

Austria 165232-041 165220-341 165224-341 All

Belgium 165232-181 165220-181 165224-181 All

Denmark 165232-081 165220-081 165224-081 All

France 165232-051 165220-051 135716-001 All

Germany 165232-041 165220-041 165224-041 All

Italy 165232-061 165220-061 165224-061 All

Japan, Korea,

Singapore,

Thailand

165231-192 165220-192 165224-001 All

Netherlands 165232-331 165220-331 165224-331 All

New Zealand 165231-361 165220-361 165221-001 All

Sweden 165232-101 165220-101 165224-101 All

Switzerland 165232-111 165220-111 165224-111 All

United Kingdom 165231-031 165220-031 165221-001 All

14.4K bps Modem, D/F/TAM Assembly Spare Part System

U.S. 003993-001 176501-001 486 Models

U.S. 003993-002 176501-002 586 Models

Cables Spare Part System

TV Audio Cable 177131-001 All

TV VGA Cable 177132-001

DISCONTINUED All

TV Cable Adapter 171615-001 All

Diskette Data/Power Cables 177071-001 All

CD ROM Power, Data, Audio Cables 177073-001

DISCONTINUED All

Hard Drive Select/CD ROM Cables 177073-001

DISCONTINUED All

3-6 Volume One

Presario 500

System/Video ROM

Revision Number on ROM Location Spare Part System

177032-001 XU23 177185-001

DISCONTINUED All

101394 177032-011 XU23 177185-001

DISCONTINUED All

122894 177032-012 XU23 177185-001

DISCONTINUED All

System Modem ROM

Number on ROM Location Spare Part System

177033-005 XU24 176508-001 All

Power Supply/Battery Spare Part System

Real-Time Clock Battery 4.5 Volts, 600 mA 160274-001 All

Volume One 3-7

Presario 500

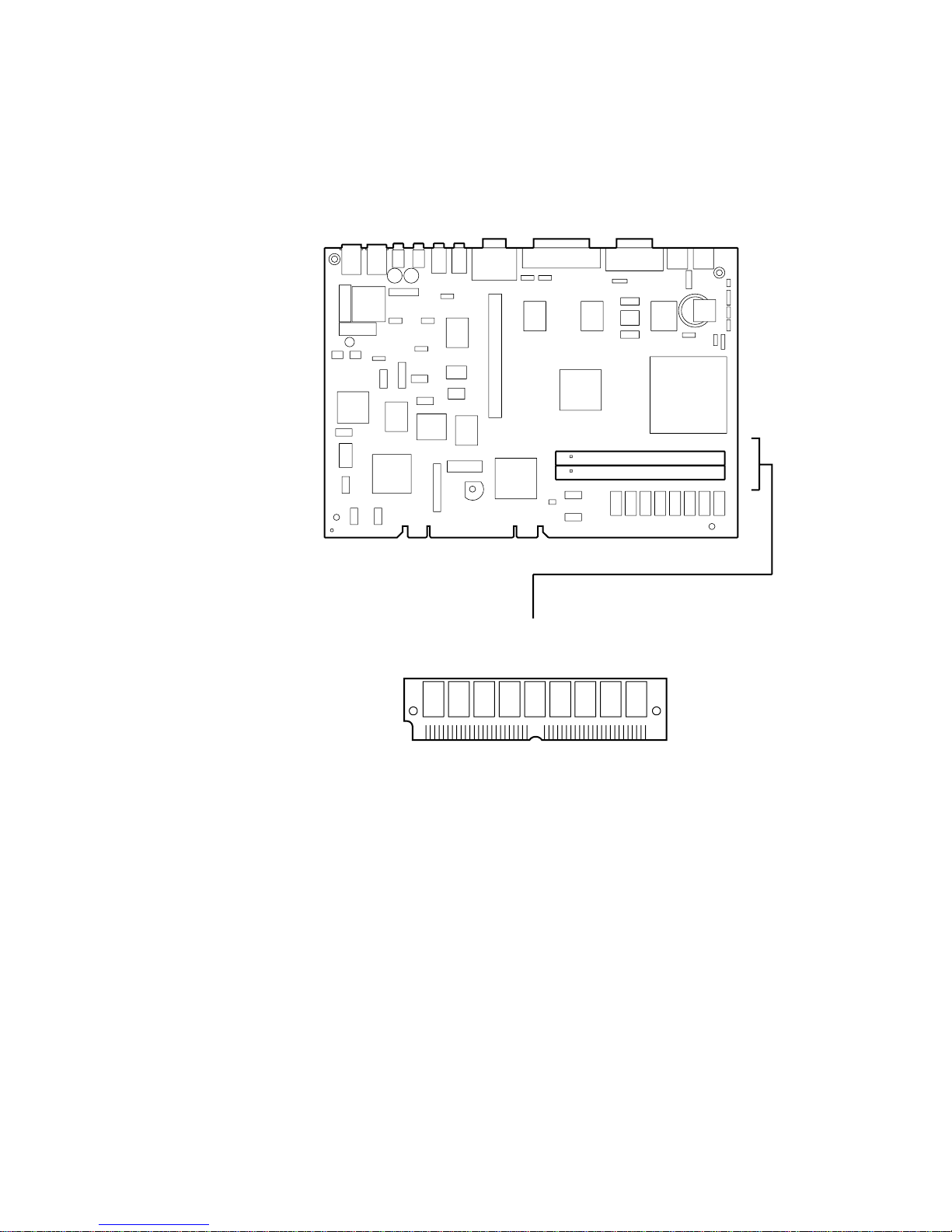

Memory Upgrade Chart

PROCESSOR BOARD

4 MB MEMORY

(003831, 004126, 004205, 004663, 004664)

4-MB MEMORY MODULE (70ns) OPTION PN 147522-001

8-MB MEMORY MODULE (70ns) OPTION PN 147523-001

16-MB MEMORY MODULE (70ns) OPTION PN 147524-001

32-MB MEMORY MODULE (70ns) OPTION PN 147525-001

ADD ANY OF THE FOLLOWING

UP TO 64-MB TOTAL SYSTEM MEMORY
