Preface

Thank you for purchasing the HP CD-ROM Server!

The HP CD-ROM Server provides a simple and cost-effective

way to allow information stored on CD-ROMs to be shared by all

users on an Ethernet network.

The HP CD-ROM Server provides multi-protocol support for

most network operating systems. As additional support and new

features become available, it provides the ability to upgrade

firmware for future investment protection.

The HP CD-ROM Server for Ethernet networks is available as a

stand-alone or tower module.

About this Manual This manual applies to both the HP CD-ROM Server

Stand-Alone and Tower modules with firmware version 4.11 or

later.

The manual consists of six chapters followed by appendices:

1. Introduction – Provides a brief description of the HP

CD-ROM Server: how it works, where to use it and key

benefits.

2. Basic Installation – Provides the steps to connect your

HP CD-ROM Server to the network and to your CD-ROM

drives.

3. Network Configuration – Provides the procedures to

integrate your HP CD-ROM Server into your network

environment.

4. Mounting or Mapping Network Drives – Provides the

steps to set up your system to access CD-ROMs.

5. CD-ROM Server Configuration – Describes how to

configure operation of the HP CD-ROM Server.

6. Security Management – Provides information on how to

manage and control user access to CD-ROMs.

The appendices provide supplemental information, such as

troubleshooting procedures, configuration parameters, firmware

upgrade procedures and technical specifications.

hp.book Page 7 Thursday, April 2, 1998 4:33 PM

HP Customer Support Numbers

If you need assistance, call one of the following numbers.

Electronic Support Services

Hewlett-Packard provides software utilities, firmware upgrades

and support information for the HP CD-ROM Server through

the World Wide Web and various bulletin board services.

In the USA and Canada, call 208-323-2551

In Europe, call the following number for your country:

Austria 06.60.63.86 Netherlands 020.606.87.51

Belgium (Dutch) 02.626.88.06 Norway 22.11.62.99

Belgium (French) 02.626.88.07 Portugal 01.44.17.199

Denmark 39.29.40.99 Spain 90.23.21.123

Finland 02.03.47.288 Sweden 08.61.92.170

France 04.50.43.98.53 Switzerland 084.880.11.11

Germany 0180.52.58.143 United Kingdom 0171.512.5202

Italy 02.2.641.0350 Europe (English

outside the UK) +44.0171.512.5202

Ireland 01.662.55.25

For all other countries, contact your reseller.

World Wide Web HP's Electronic Support Center:

http://www.hp.com/go/CDROM_Server

America Online Download from the HP Forum.

CompuServe Download from the HP Forum on CompuServe. To sign up for

CompuServe call (800) 848-8199 and ask for Representative

#51 (USA only).

HP BBS

Use 208 344-1691 for 24-hour access to the HP BulletinBoard

Service. The first time you use this service, you will be asked

to type your name and address to establish an account and

password for future use.

hp.book Page 8 Thursday, April 2, 1998 4:33 PM

Table of Contents

Preface

HP Customer Support Numbers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Electronic Support Services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Table of Contents

1. Introduction

HP CD-ROM Servers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1

How They Work. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2

Where to Use Them . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3

Features and Benefits. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3

2. Basic Installation

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1

Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2

Accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3

Connecting the Hardware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4

3. Network Configuration

Novell NetWare Networks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1

Microsoft and IBM Networks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3

TCP/IP Networks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3

Time Synchronization. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-9

4. Mounting or Mapping Network Drives

The HP CD-ROM Server File System . . . . . . . . . . . . . . . . . . . . . . . . . 4-2

Access Points . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5

Novell NetWare (NCP) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-6

Microsoft and IBM Networks (SMB) . . . . . . . . . . . . . . . . . . . . . . . . . 4-12

UNIX (NFS). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-21

Web Browsers (HTTP) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-22

5. CD-ROM Server Configuration

Configuration Using a Web Browser . . . . . . . . . . . . . . . . . . . . . . . . . . 5-2

Configuration Using a Text Editor . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-4

hp.book Page 5 Thursday, April 2, 1998 4:33 PM

6. Security Management

How to Setup Access Restrictions . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1

HP CD-ROM Server Access Rights . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-2

Security Management using a Web Browser . . . . . . . . . . . . . . . . . . . 6-3

Security Management using a Text Editor . . . . . . . . . . . . . . . . . . . . . 6-6

Security Management in Specific Network Environments . . . . . . . . 6-9

A. Troubleshooting

Diagnostic Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-2

The Front Panel Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-3

Errors When Accessing the CD-ROM Server . . . . . . . . . . . . . . . . . . . A-5

Difficulty Locating the CD-ROM Server in NetWare . . . . . . . . . . . . . A-6

NetWare NDS Installation Errors . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-6

Problems When Accessing Disc Changers. . . . . . . . . . . . . . . . . . . . . . A-8

Restoring Factory Default Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . A-9

B. The Config.ini File

C. Updating the Firmware

Firmware Updates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-1

D. Technical Specifications

General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . D-1

Network and Drive Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . D-2

Electrical and Environmental . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . D-2

Supported Network Systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . D-3

Supported Network Protocols. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . D-4

Security Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . D-4

E. Warranty

F. Regulatory Statements

Index

hp.book Page 6 Thursday, April 2, 1998 4:33 PM

Introduction 1-1

Introduction

HP CD-ROM Servers

HP CD-ROM Servers connect CD-ROM drives to Ethernet

networks. All users on the network can share the information on

any CD-ROM inserted into a connected CD-ROM drive.

Stand-Alone Module The stand-alone module provides RJ-45 and BNC network

connectors. The RJ-45 connector connects to a 10Base-T

(twisted-pair cable) network. The BNC connects to a 10Base2

(thin coaxial cable) network. The 50-pin high-density SCSI-2

connector supports up to 7 CD-ROM drives. If CD-ROM disc

changers are used, up to 56 discs can be accessed.

Tower Module The tower module provides RJ-45 and AUI (Attachment Unit

Interface) network connectors. The RJ-45 connector connects to

a 10Base-T (twisted-pair cable) network. If you use an

appropriate external transceiver module, the AUI connector

allows you to connect to a 10Base2 (thin coax), 10Base5 (thick

coax) or fiber-optic network.

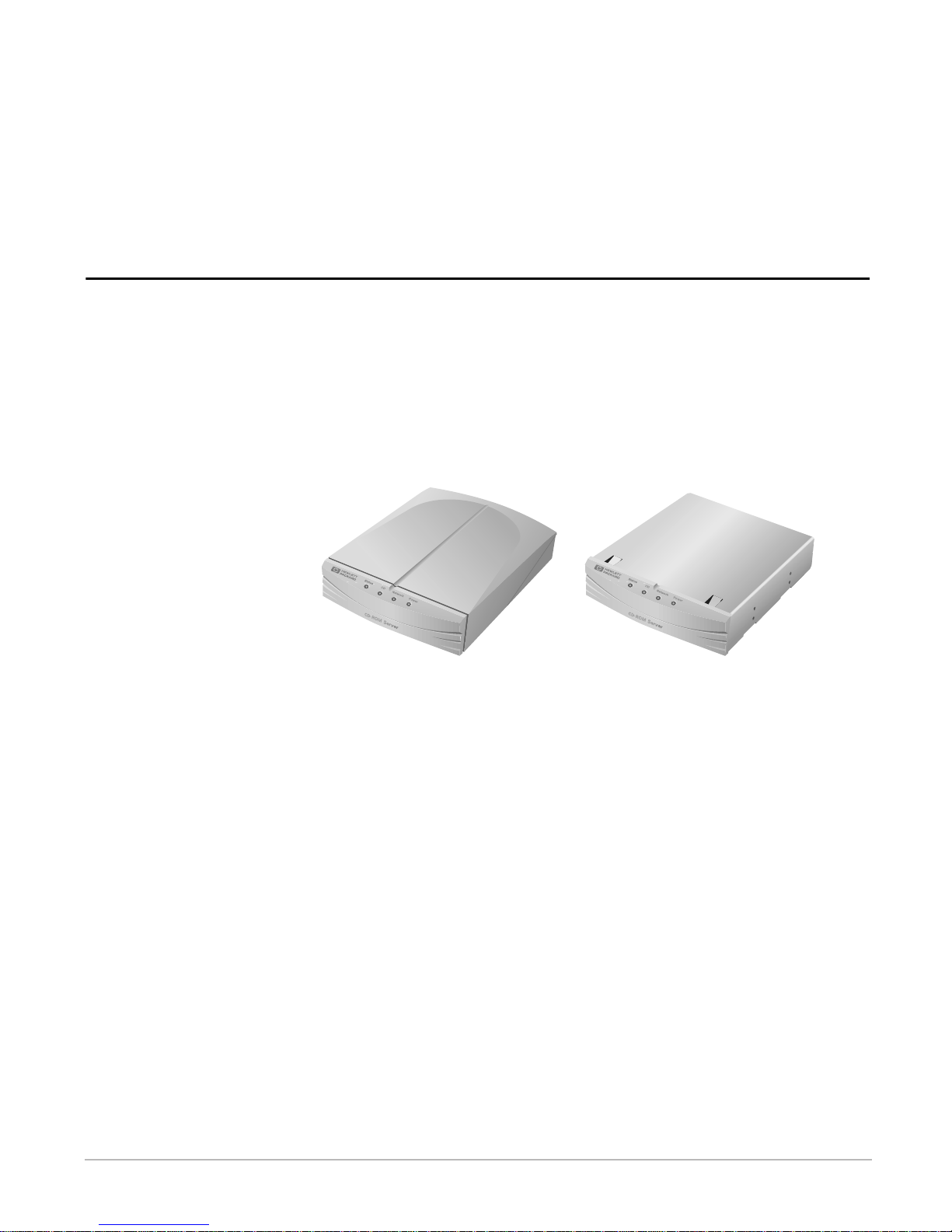

HP CD-ROM Server

Stand-Alone Module Tower Module

hp.book Page 1 Thursday, April 2, 1998 4:33 PM

1-2 Introduction

The 50-pin SCSI-2 header (typically for SCSI ribbon cable)

supports up to 7 CD-ROM drives, or up to 56 discs if disc

changers are used. The CD-ROM tower module is designed for

installation into a CD-ROM tower.

How They Work

HP CD-ROM Servers connect as nodes on an Ethernet network.

An HP CD-ROM Server acts as a network file server. This

means that it is independent of other file servers—a network

client communicates directly with the CD-ROM server. This

results in high performance and reliability.

Installation and configuration is easy. In most environments,

the network connection is the only installation required prior to

using the HP CD-ROM Server. There is no software that must

be installed on clients or file servers. Your computer will see the

HP CD-ROM Server simply as another network file server, and

you access it through standard network operating system

commands.

The HP CD-ROM Server also supports the HTTP protocol.

Therefore, you can access and manage the CD-ROM server

through a standard Web browser, such as Netscape Navigator or

Microsoft Internet Explorer.

For Windows 95 or NT 4.0 systems, a software utility is

available for use in place of a Web browser. This utility (the HP

CD-ROM Server Utility) provides an easy-to-use graphical

interface to manage your HP CD-ROM Servers. You can

download this software from the HP Web site (see the Electronic

Support section in the front of this manual for the HP Web

address).

Note ❏At the HP Web site, you can also download technical support

information, and the latest versions of the CD-ROM server

firmware and software utilities. Check with your HP-authorized

dealer for additional assistance.

hp.book Page 2 Thursday, April 2, 1998 4:33 PM

Andere Handbücher für J3278B - SureStore CD-ROM Server/Tower 7 NAS...

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere HP Netzwerkspeicherserver Handbücher

HP AK373A - StorageWorks All-in-One Storage System 1200r 5.4TB SAS Model NAS... Anleitung zur Verwendung

HP ProLiant ML110 G5 Bedienungsanleitung

HP MediaSmart EX495 Anleitung zur Verwendung

HP StorageWorks NAS 500s Service-Handbuch

HP AK373A - StorageWorks All-in-One Storage System 1200r 5.4TB SAS Model NAS... Bedienungsanleitung

HP 3PAR StoreServ 7000 Bedienungsanleitung

HP EX495 - 1.5TB Mediasmart Home Server Montageanleitung

HP ProLiant 300 Series Bedienungsanleitung

HP 345646-001 - StorageWorks NAS 2000s External Storage... Bedienungsanleitung

HP ProLiant DL100 G2 DPSS Bedienungsanleitung

HP NetStorage 6000 Gebrauchs- und Pflegehandbuch

HP ProLiant DL180 G Gebrauchsanweisung

HP ML370 - ProLiant - G3 Bedienungsanleitung

HP 3PAR StoreServ 7000 Bedienungsanleitung

HP DL320s - ProLiant 9TB SATA Storage Server... Anleitung zur Verwendung

HP ProLiant DL100 G2 DPSS Bedienungsanleitung

HP ProLiant ML310 G3 1TB Bedienungsanleitung

HP ProLiant DL380 G4 DPSS Bedienungsanleitung

HP StorageWorks XP10000 - Disk Array Bedienungsanleitung

HP NetStorage 6000 Bedienungsanleitung

HP J3278B - SureStore CD-ROM Server/Tower 7 NAS... Bedienungsanleitung

HP 201723-B21 - HP StorageWorks Modular SAN Array 1000 Hard... Bedienungsanleitung

HP ML110 - ProLiant G5 2TB Storage Server NAS Bedienungsanleitung

Beliebte Netzwerkspeicherserver Handbücher anderer Marken

Seagate

Seagate U10 ST320423A Bedienungsanleitung

Synology

Synology RackStation RS816 Handbuch

D-Link

D-Link ShareCenter Pro DNS-1200-05 Bedienungsanleitung

Avid Technology

Avid Technology VideoRAID ST Sicherheitsleitfaden

Western Digital

Western Digital My Cloud Home Duo Bedienungsanleitung

PrimeArray

PrimeArray 4xxx Bedienungsanleitung

Buffalo

Buffalo TeraStation WSS WSH5010N6 Bedienungsanleitung

Planex

Planex MZK-NAS01SG Bedienungsanleitung

Intel

Intel SS4000-E - Entry Storage System NAS Server Bedienungsanleitung

Synology

Synology RS2212+ Bedienungsanleitung

Allnet

Allnet ALL69000 Bedienungsanleitung

Adaptec

Adaptec 5325301580 Bedienungsanleitung

Motorola

Motorola EXORdisk II Bedienungsanleitung

Sony

Sony XDAAI1PK Bedienungsanleitung

Cisco

Cisco Linksys NAS200 Original Betriebsanleitung

Sans Digital

Sans Digital MR4UT6G Bedienungsanleitung

AIC

AIC FB128-LX Bedienungsanleitung

Dell

Dell PowerVault NX3500 Gebrauchsanweisung
