HPC LASER LIMITED –NEVER LEAVE YOUR MACHINE UNATTENDED WHEN OPERATING.
HPC LASER LTD
LS1390
IPG FIBER LASER
USER MANUAL
2
HPC LASER LIMITED –NEVER LEAVE YOUR MACHINE UNATTENDED WHEN OPERATING.
HPC LASER LTD
Saddleworth Road
Castle Mills
Elland
Halifax
HX5 0RY
Tel: 01422 310800
Email: sales@hpclaser.co.uk
HPC LASER cannot be held responsible for any direct or indirect damages,
which result from using or working with the products electric circuits or
software described herein. The apparatus must be used only by trained and
skilled personnel. Before use the manual must be properly read and followed
carefully.
3
HPC LASER LIMITED –NEVER LEAVE YOUR MACHINE UNATTENDED WHEN OPERATING.
TABLE OF CONTENTS
1. GENERAL……………………………………………………………………………………
•Machine Spec…………………………………………………………………………….
•Cutting notes……………………………………………………………………………..
•Warning notes……………………………………………………………………………
2. SAFETY………………………………………………………………………………………………
•General Safety information…………………………………………………………
•Laser safety information……………………………………………………………..
•Safety Precautions when Operating…………………………………………….
•Warning and Information Labels…………………………………………………
3. BEFORE OPERATION………………………………………………………………………….
•Contents of Delivery……………………………………………………………………
•Location………………………………………………………………………………………
•Computer –Requirements ………………………………………………………….
4. OPERATIONS……………………………………………………………………………………..
•Machine view front……………………………………………………………………..
•Machine view right side……………………………………………………………….
•Machine view back………………………………………………………………………
•On/Off Switch………………………………………………………………………………
•Keypad…………………………………………………………………………………………
•Cutting Table………………………………………………………………………………..
5. MAINTENANCE…………………………………………………………………………………...
•Cleaning the system………………………………………………………………………
4
HPC LASER LIMITED –NEVER LEAVE YOUR MACHINE UNATTENDED WHEN OPERATING.
1 GENERAL
Operation Manual Use –General Information
Caution:
Please read the manual properly, before installation and operation. Damage to
persons and/or materials can result from not following individual points of the
Operation Manual!
The symbols below are used for easier understanding of the Operation
Manual:
If the Operation manual is not read properly, this area
represents a particular danger for the operator or the person responsible for
maintenance.
Caution: This component is under voltage. In these areas
strictly observe the safety instructions regarding electricity. Repair work and
maintenance will need to be done with care.
Caution: NEVER stare directly at the laser beam. Strictly
observe possible dangers of the laser beam.
The HPC Laser laser cutter LS1390, is used for engraving and cutting of signs,
metal panels and suchlike.
5
HPC LASER LIMITED –NEVER LEAVE YOUR MACHINE UNATTENDED WHEN OPERATING.
The working process must only be performed with a perfectly
adjusted machine.
Use of the system in other areas is against the designated use.
The manufacturer does not admit liability for damage to personal and/or
equipment resulting from such use.
That system must only be operated, maintained and repaired, by
a user who has had the training and is experienced with the dangers of the
machine.
DO NOT DISPOSE OF THE MACHINE WITH DOMESTIC WASTE!
Electronic devices have to be disposed according to reginal directives on
electronic and electric waste disposal. In case of further queries please contact
HPC. We could take care of the disposal.
6
HPC LASER LIMITED –NEVER LEAVE YOUR MACHINE UNATTENDED WHEN OPERATING.

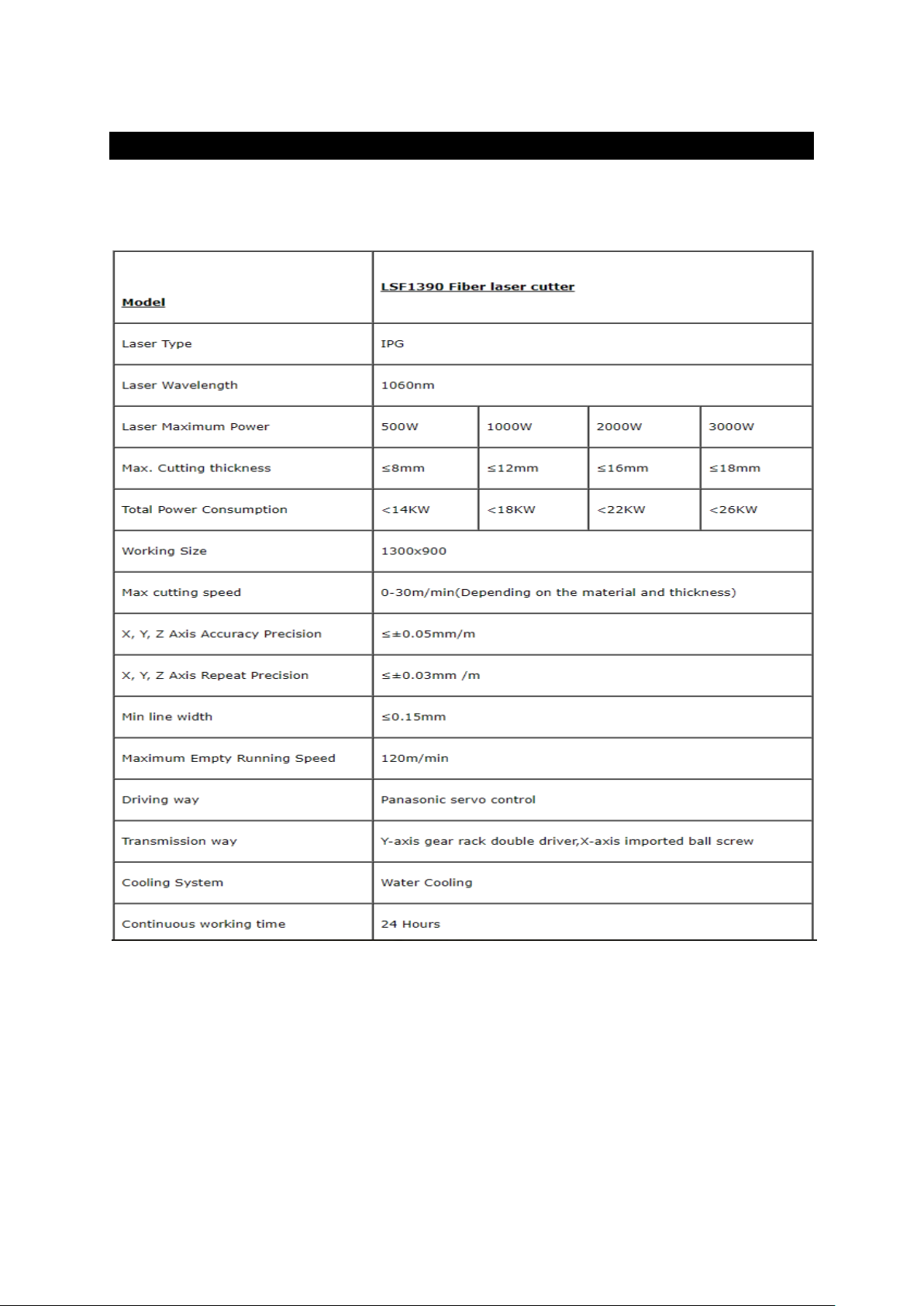

MACHINE SPECIFICATION;
7
HPC LASER LIMITED –NEVER LEAVE YOUR MACHINE UNATTENDED WHEN OPERATING.
Please note this machine cannot cut substrates such as wood and plastics.
•Small compact design
•Chiller Unit, fan system and exhaust pipe included in the price.
•Automatic height control
•Professional on-board computer control system
•Fully enclosed cabinet for safety
•Bed size 1300x900
8
HPC LASER LIMITED –NEVER LEAVE YOUR MACHINE UNATTENDED WHEN OPERATING.
GENERAL SAFETY INFORMATION:
All people involved in the installation, set-up and training (if asked for) must of
read and totally understood the Operation Manual and in particular the
“Safety” section. The user is recommended to generate company-internal
instructions considering the professional qualifications of the personnel
employed in each case, and the receipt of the instruction/Operation Manual or
the participation at introduction/training should be acknowledged in writing in
each case.
Safety-conscious Working
The machine must ONLY be operated by trained and authorised persons. For
all activities concerning installation, set-up, start-up, operation, modifications
of conditions and methods of operation, maintenance, inspection and repair,
the switch-off procedures that may be provided in the Operation Manual must
be observed.
Laser safety goggles are available to purchase from HPC Laser. Please contact
for any information and for purchasing.
Please contact HPC Laser for any retooling, changing of workplace for advice
on what is needed and in-case of an engineer being needed to visibly see the
machine and the issue and/or change.
9
HPC LASER LIMITED –NEVER LEAVE YOUR MACHINE UNATTENDED WHEN OPERATING.
Laser safety information
This laser cutter system contains a 750w IPG Fiber laser of
class 4 that emits intensive and invisible laser radiation.
Without safety precautions the direct radiation or even
diffuse reflected radiation is dangerous!
Without safety precautions, the following risks exist with
exposure to laser radiation:
Eyes: Burns to the cornea for fiber laser.
Skin: Burns
Clothes: Danger of fire.
NEVER try to modify or disassemble the laser and do not try
to start up a system that had been modified or dissembled!
Dangerous radiation exposure can result from the use of
operation or adjustment equipment other than that
described here, and if different operational methods are
performed.
10
HPC LASER LIMITED –NEVER LEAVE YOUR MACHINE UNATTENDED WHEN OPERATING.
WARNING AND INFORMATION LABELS
The warning and information labels are attached in such positions of the
machine that could represent a source of danger during set-up and operation.
Therefore, follow the information on the labels. If labels are lost or damaged,
they must be replaced immediately.

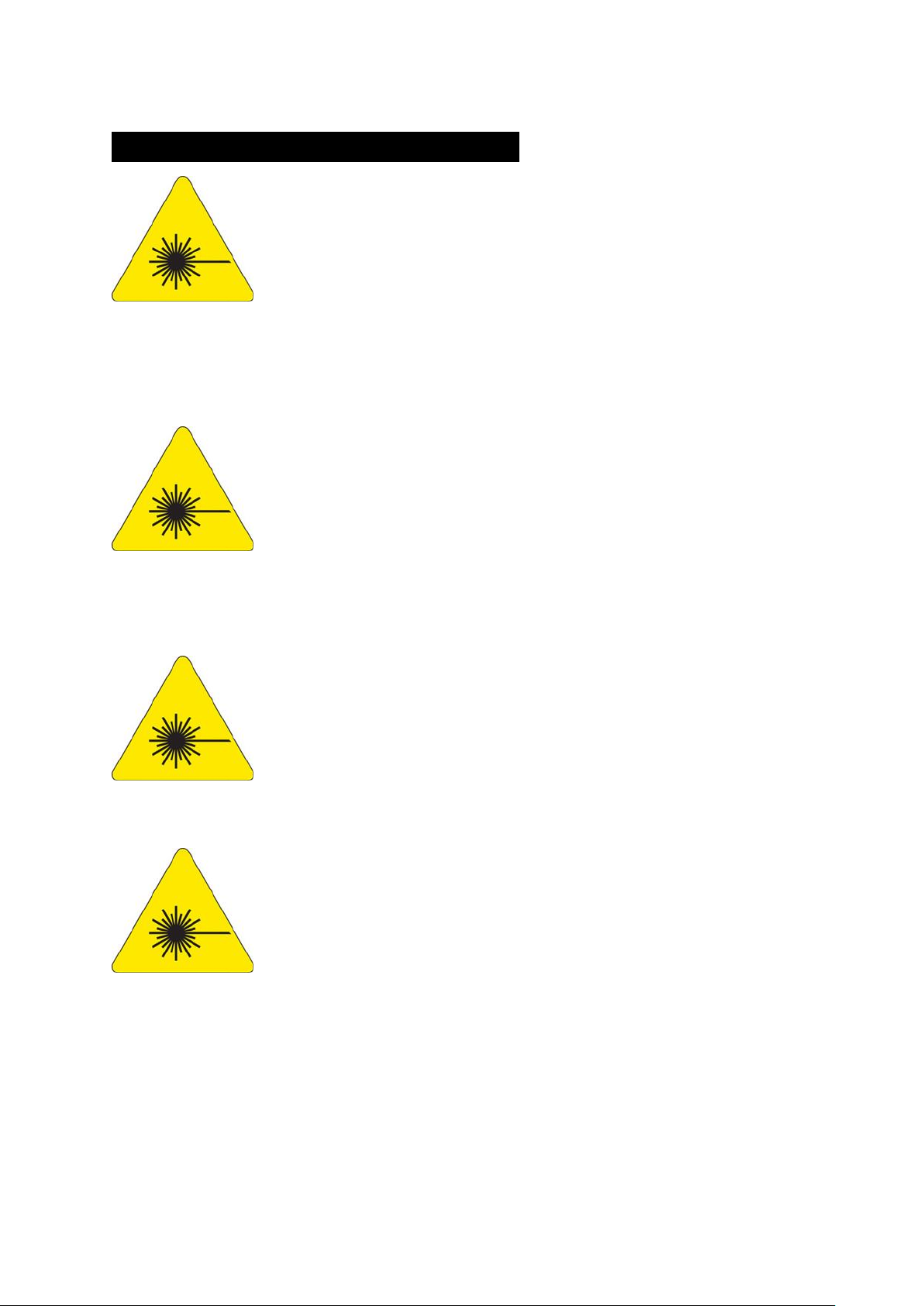

Find below pictures of designated safety stickers.
This notifies the operator that the
machine WILL NOT start without
any water in the Chiller and if so the
water should be left to raise or
lower to 20⁰.
Stickers found at the very back of
the cutting machine indicate the
potential risk of laser beam hazards
and fire risks.
