HUANUO HNDS8 Bedienungsanleitung

HNDS8

Installation Instructions V1.0

Thank you for choosing our product! We strive to provide the best quality

and services for our customers. Would you kindly share your experience

on Amazon if you are satisﬁed? Should you have any issues, please don't

hesitate to contact us.

Telephone：1-800-556-0533 Mon-Fri 10am - 5pm (PST) (USA) (CAN)

Email：[email protected] (US/CA/DE/UK/FR/IT/ES/AU)

DO NOT exceed the maximum weight indicated. This

mounting system is intended for use only with the

maximum weights indicated. Use with products heavier

than the maximum weights indicated may result in failure

of the mount and its accessories, causing possible injury.

WARNING:

Weight Restrictions

If your monitor weighs more, this mount is NOT compatible.

Check the VESA Pattern of Monitor Before the Installation

MAX: 100mm/4in.

100 mm ≈ 4 in.

75 mm ≈ 2 7/8 in.

4.4-19.8 lbs

(2-9 kg)

Your monitor (including

accessories) CANNOT

EXCEED 4.4-19.8lbs

(2-9 kg)

IMPORTANT SAFETY INFORMATION

組み立てる前に、すべての部品が揃っており、破損してないことを確認してください。足りない部品又は破損して

いる部品のある場合は、当社に連絡して下さい。お問い合わせ先：[email protected]

モニターアームを取り付けるデスクは、モニターとモニターの総重量の3 倍の重量を、保持する強度が必要です。

当製品をパーチクルボードに使用しないでください。

当製品内部が高圧ガススプリングが含まれているため、火気•暖房器具•熱具に近づけないでください。

本製品を叩いたり、踏んだり、蹴ったりしないでください。

本製品を分解、改造しないでください。

不用品回収をプロに依頼してください。

Do not install or assemble if the product or hardware is damaged or missing, if you require replacement

parts, please contact customer service at [email protected].

For safe installation, the desk you are mounting to must support minimum 3 times the weight of the total

load (the mount, the monitor and all accessories weight). Don't use the product on particle board

This product contains a high pressure gas spring, ﬁre and percussion prohibited. Also it is strictly

prohibited to dismantle without professionals. Please return to the manufacturer or hand over to

professional agencies if the product is abandoned.

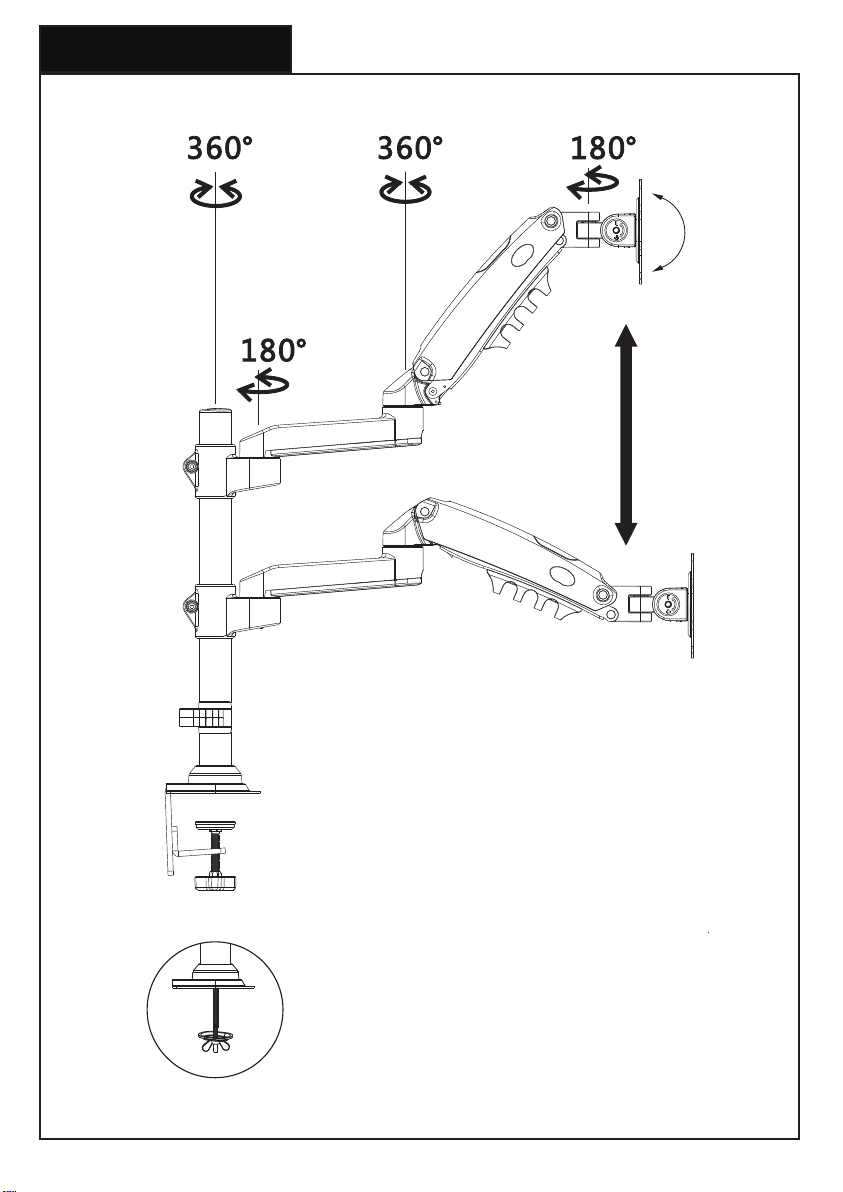

Product Features

C-Clamp Mounting

Grommet Mounting

1. Install the Base

Warning:

Ensure screws are

secured ﬁrmly.

A. For Clamp Mounting A-1 Install the C-Clamp

(4mm)

Connect part [X] to pole

assembly [03]

Detach the c-clamp entirely

Connect part [Y] to part [X] according to the thickness of the desktop

Parts and Hardware Included

01 Arm X2 02 C-Clamp X1 03 Pole Assembly X1 04 Cable Clip Cover X2

Butterﬂy Nut Grommet Bolt

4mm 5mm

Wrench

M4x12mm (8pcs)

Screw

M5x12mm (8pcs)

Screw

M6x12mm (3pcs)

Screw

Locking Plate M4x6mm (4pcs)

Screw

05 Cable Clip X1

B. For Grommet Mounting

1Install the grommet bolt

Secure the base to the desktop

Warning:

Ensure screws are

secured ﬁrmly.

2. Install the Arms

Ensure screws are

secured ﬁrmly.

Warning:

Ensure screws are

secured ﬁrmly.

Secure the base to desktop using locking plate and butterﬂy nut2

Slide arm [01] to the pole assembly

[03] and secure using wrench [F]

1Slide the cable clip [05]

to the pole assembly [03]

4. Adjust Gas Spring Tension

Be sure to keep the arm in

horizontal position during

adjustment. Or else, it would

be diﬃcult to adjust the

mount or damage the mount.

1. If the monitor can stay at the desired height

by itself, no adjustment needed.

2. If the monitor rises up, press the arm to keep

it in horizontal position and then use the 5mm

Alley key (F) to turn the screw clockwise(“-”

direction) to reduce tension of the arm only until

the monitor can stay at the desired height by

itself.

3. If the monitor falls down, lift the arm to keep

it in horizontal position and then use the 5mm

Alley key (F) to turn the screw counter-clock-

wise(“+” direction) to increase tension of the

arm only until the monitor can stay at the

desired height by itself.

3. Attach Monitors to the Arms

75 mm ≈ 2 7/8 in.

100 mm ≈ 4 in.

3-1 Choose Proper Screws 3-2 Install Monitors to the Arms

13-5mm(0.1-0.2in.) spacing left

The tension is preset at

4-5kg. After hanging the

monitor to the mount,

please release the

monitor slowly to prevent

it from falling suddenly

100x100mm

75x75mm

A/B

5. Rotation Restriction

Non-proper usage directions

Proper usage directions

(1 rotation ≈ 1 lb)

6. Tilt Adjustment

7. Rotation Adjustment

“+” Clockwise: Tighten

“-” Counter-clockwise: Loosen

Situation 1: If the monitor can stay at the desired tilt angle by itself,

no adjustment needed.

Situation 2: If the monitor can not stay at the desired tilt angle by

itself, turn the screws clockwise or counter-clockwise as shown until

the monitor can stay at the desired tilt angle by itself.

Rotation

Only suitable for the monitors

with the center of gravity in

the center position

8. Route Cables along the Arms
