HUANUO HNDSK4 Bedienungsanleitung

HNDSK4

(US/CA) 1-800-556-0533

(UK) 44-808-196-3874 [email protected]

www.huanuo.com

WWW.

INSTRUCTION

MANUAL

MANUEL D'UTILISATION

Rev00(B)

Desk Monitor Arm

EN Bras de Moniteur de Bureau

English -------------------------------------- 02-15

Français -------------------------------------- 16-29

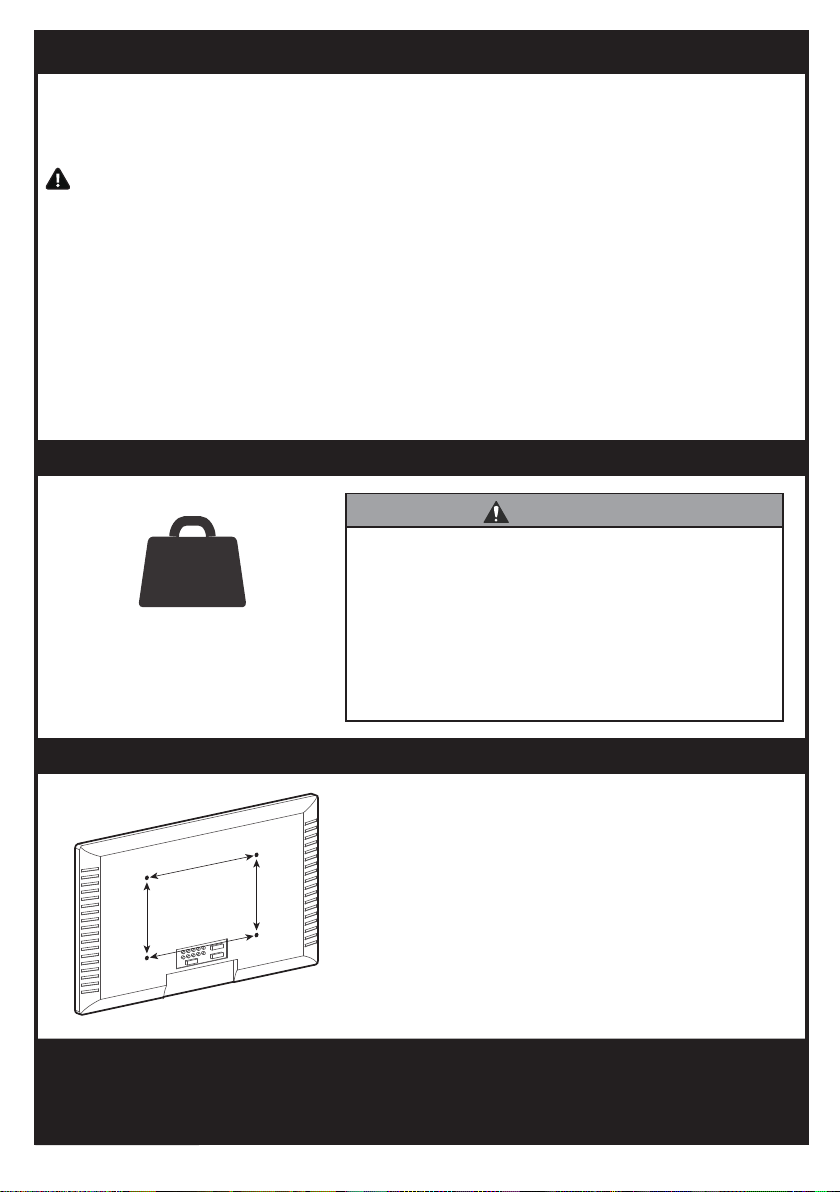

IMPORTANT SAFETY INFORMATION

Weight Restrictions

Check the VESA Pattern of Your Monitor Before Installation

• Please carefully read all instructions before attempting installation. If you do not

understand the instructions or have any questions or concerns, please contact our

Technical Support at 1-800-556-0533 (US/CA), 44-808-196-3874 (UK) or Customer

Service at [email protected].

CAUTION: Avoid potential injuries and property damage!

• Do not use this product for any purpose that is not explicitly speciﬁed in this manual.

Do not exceed weight capacity. We are not liable for damage or injury caused by

improper mounting, incorrect assembly or inappropriate use.

• This product contains gas spring arms which are under high pressure. Do not puncture

these arms or expose the arms to ﬁre or ﬂame. If product is defective, please contact

our Technical Support at 1-800-556-0533 (US/CA), 44-808-196-3874 (UK) or

Customer Service at [email protected].

• Do not use this product on desks made of particle board or other soft woods.

• The information contained in this manual does not cover all possible conditions or

variables in relation to the installation of this product.

If your monitor's VESA pattern is smaller than 75mm x 75mm / 3″ x 3″ or greater than

100mm x 100mm / 3.9″ x 3.9″, this mount is NOT COMPATIBLE. Please contact our

Customer Service at [email protected] to ﬁnd a compatible product.

Minimum: 75mm x 75mm / 3″ x 3″ (W x H)

Maximum: 100mm x 100mm / 3.9″ x 3.9″ (W x H)

Measure Your Monitor's VESA Pattern:

MAX: 100mm/3.9″

If your monitor weighs more than

the weight above, the mount is

NOT compatible. Monitor should

not exceed weight capacity.

WARNING

DO NOT exceed the maximum weight indicated.

This mounting system is intended for use only

within the weight range listed. Exceeding the

maximum weight limit may result in failure of the

mount, causing potential damage and/or injury.

It is the responsibility of the installer to verify the

total weight of the monitor and any accessories

attached.

2-10kg

(4.4-22 lbs)

02 03 04 05 06 07 08 09 10 11 12 13 14 15

Product Features

270°270°

360°360°

180°180°360°360°

180°180°

+90°/-45°

360°

Grommet Mounting for grommet bolt

0.39-2.56″ (10-65mm)

C-Clamp Mounting for table edge

0.39-3.15″ (10-80mm)

02 03 04 05 06 07 08 09 10 11 12 13 14 15

DO NOT adjust tension without monitor attached.

1. Verify the weight of your monitor (including accessories) is within

2-10kg (4.4-22 lbs).

2. Monitor weight can be found in manual or on manufacturer's website.

3. Ensure monitor has been securely attached to the mount.

TENSION ADJUSTMENT SHOULD ONLY BE

PERFORMED AFTER MONITOR INSTALLATION

Attention

WARNING:

• Gas Spring Arm is under pressure and should be handled with care.

• Failure to follow the instructions may result in damage to the mount

and/or personal injury.

Warning!

02 03 04 05 06 07 08 09 10 11 12 13 14 15

Supplied Parts and Hardware List

5/32'' (4mm)

Allen Key

[D] × 1

M4 × 12mm

Bolt

[M-A] × 8

Washer

[M-C] × 8

M4 × 30mm

Bolt

[M-B] × 8

L13mm

Spacer

[M-D] × 8

1/4'' (6mm)

Allen Key

[E] × 1

M6 x 10mm

Bolt

[A] × 2 Butterﬂy Nut

[B] × 1

Grommet Bolt

[C] × 1

01 × 2

Compression Arm 02 × 2

Extension Arm 03 × 1

Base

04 × 2

Monitor Plate

05 × 1

Connecting Plate 06 × 1

Desk Clamp 07 × 2

Cable Management Cover

Supplied Parts and Hardware

Tools Needed (Not lncluded)

WARNING: This product contains small parts that may pose a choking hazard.

Before starting assembly, verify all parts are included and undamaged. Do not use

damaged or defective parts. lf you require replacement parts, please contact our

Technical Support at 1-800-556-0533 (US/CA), 44-808-196-3874 (UK) or Customer

Service at [email protected].

• NOTE: Not all hardware included in this package will be used.

Tape Measure Drill (Optional) 7/16''-7/8'' (11-22mm)

Drill Bit (Optional)

02 03 04 05 06 07 08 09 10 11 12 13 14 15

Option A: For Clamp Mounting

Step 1 Install the Base

Compatible desk thickness:

0.39''-3.15'' (10-80mm)

Desk

A-1

A-2

02 03 04 05 06 07 08 09 10 11 12 13 14 15

Option B: For Grommet Mounting

B-2 Remove the lock plate [06a] and keep it for use in Step B-3.

Desk

Compatible desk thickness:

0.39-2.56″ (10-65mm)

Desk

06a

B-1

A-3

02 03 04 05 06 07 08 09 10 11 12 13 14 15

0.39-2″ (10-50mm)

06a

WARNING：

Ensure the bolt and nut

are securely tightened.

0.39-2.56″ (10-65mm)

NOTE: If a hole is needed for grommet installation, be

sure to leave at least 2″ (50mm) from the edge of

desktop and mark where the hole will be drilled. Use

either a 7/16-7/8″ (11-22mm) drill bit for this step.

7/16-7/8″ (11-22mm)

2″ (50mm)

B-3

Drill

(Not Included)

7/16-7/8″

(11-22mm)

Drill Bit

(Not Included)

02 03 04 05 06 07 08 09 10 11 12 13 14 15

Step 2 Secure the Arms to the Base

2-1 Push the extension arms [02] into the base, and then tighten the set screws on the

arm joints.

2-2 Slide the compression arms [01] onto the extension arms [02], and then tighten the

set screws.

Desk

NOTE: The cable management

cover face down.

02 03 04 05 06 07 08 09 10 11 12 13 14 15

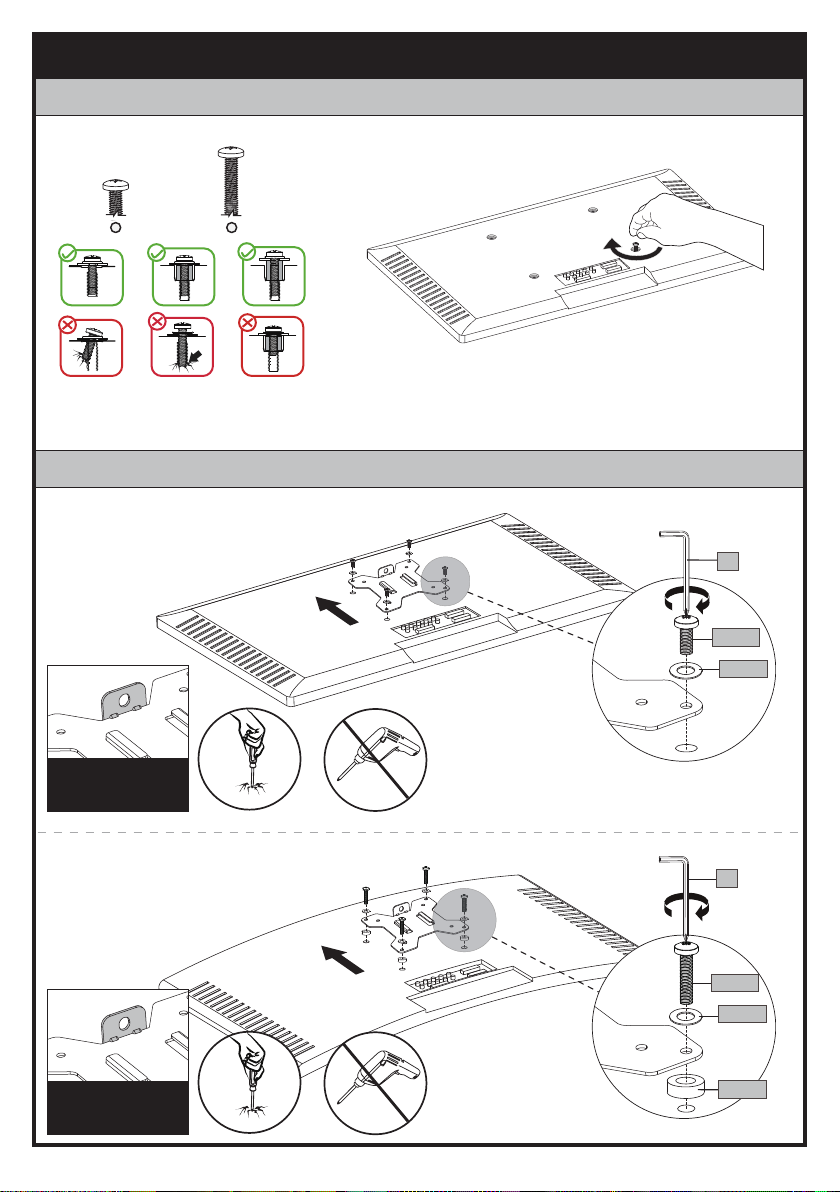

3-2 Attach the Monitor Plates to Your Monitors

Step 3 Attach the Monitor Plates to the Monitors

Option B：For Curved Monitor

Hand thread bolts into the threaded inserts on the back of your monitor to determine which bolt

(M4 x 12mm or M4 x 30mm ) to use. A minimum of 4-5 turns into the threading is required. Do not

turn past the bottom of the hole.

M4 x 12mm

M4 x 30mm

3-1 Select Monitor Bolts

Option A：For Flat Back Monitor

M-B

M-C

M-D

M-A

M-C

The hanging tab is

directed toward the

top of monitor.

The hanging tab is

directed toward the

top of monitor.

02 03 04 05 06 07 08 09 10 11 12 13 14 15
