Huawei E397 4G LTE Mobile Internet Key Bedienungsanleitung

Thank you for choosing the Huawei E397 4G LTE

Mobile Internet Key. With your Mobile Internet Key,

you can enjoy a full high speed mobile Internet

experience on the go.

This guide shows you how to set-up and connect to the internet with your Huawei

mobile internet key. For detailed information visit www.telusmobility.com/support

or see the help menu of the Connection Manager on your computer.

Getting to Know Your Mobile Internet Key

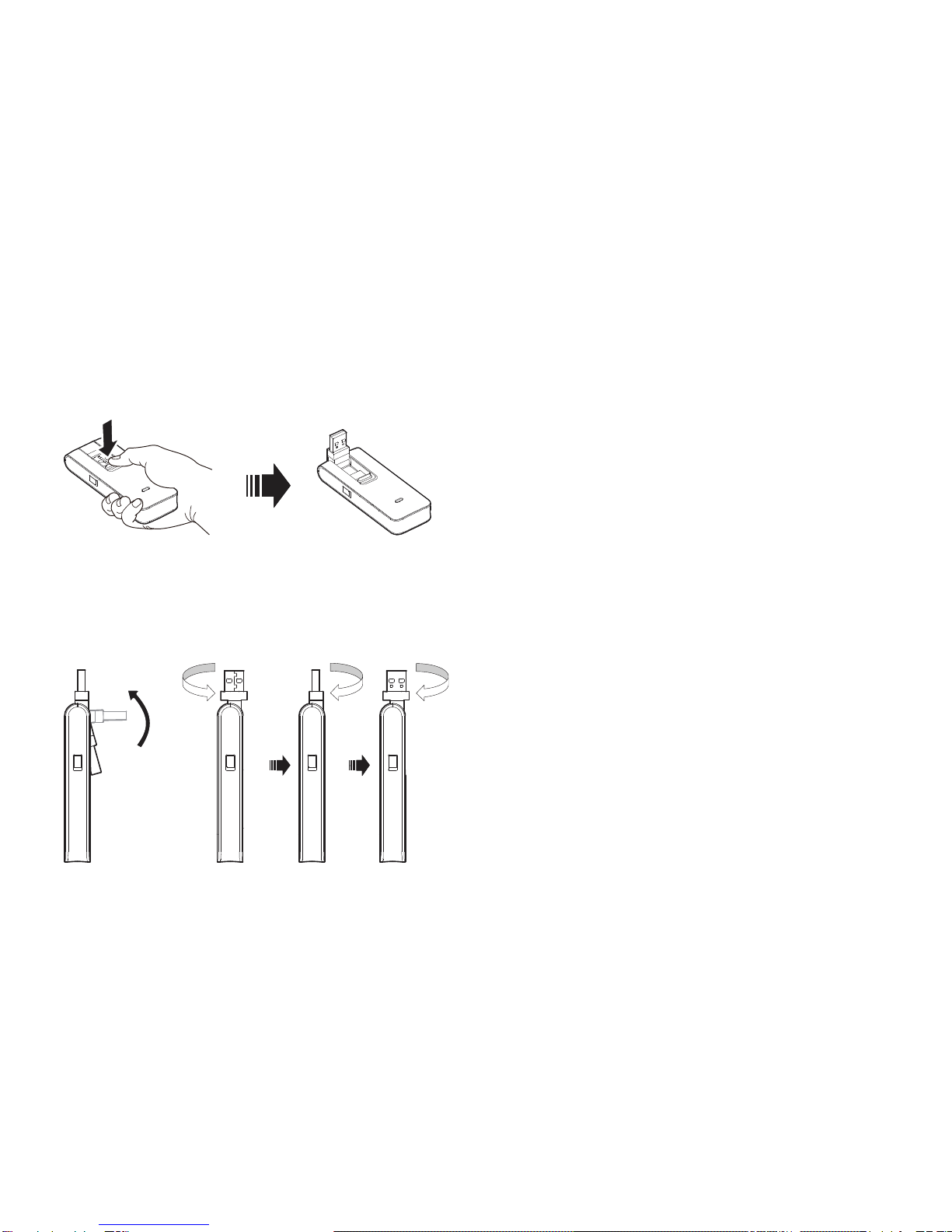

1USB Connector Release Button



2USB Connector

It connects the Internet Key to a PC,

folds for safe transport, and rotates

to help you get the best signal.

3The LED light indicates if the internet

key has found a network and if you have

successfully connected to a mobile high

speed internet network.

Blue, blinking: 4G network available.

Cyan, blinking: 4G LTE available.

Blue, solid: Connected to a 4G network.

Cyan, solid: Connected to a 4G LTE network.

4SIM card slot



5External Antenna Port



6microSD Card Slot

Getting Your Internet Key Ready

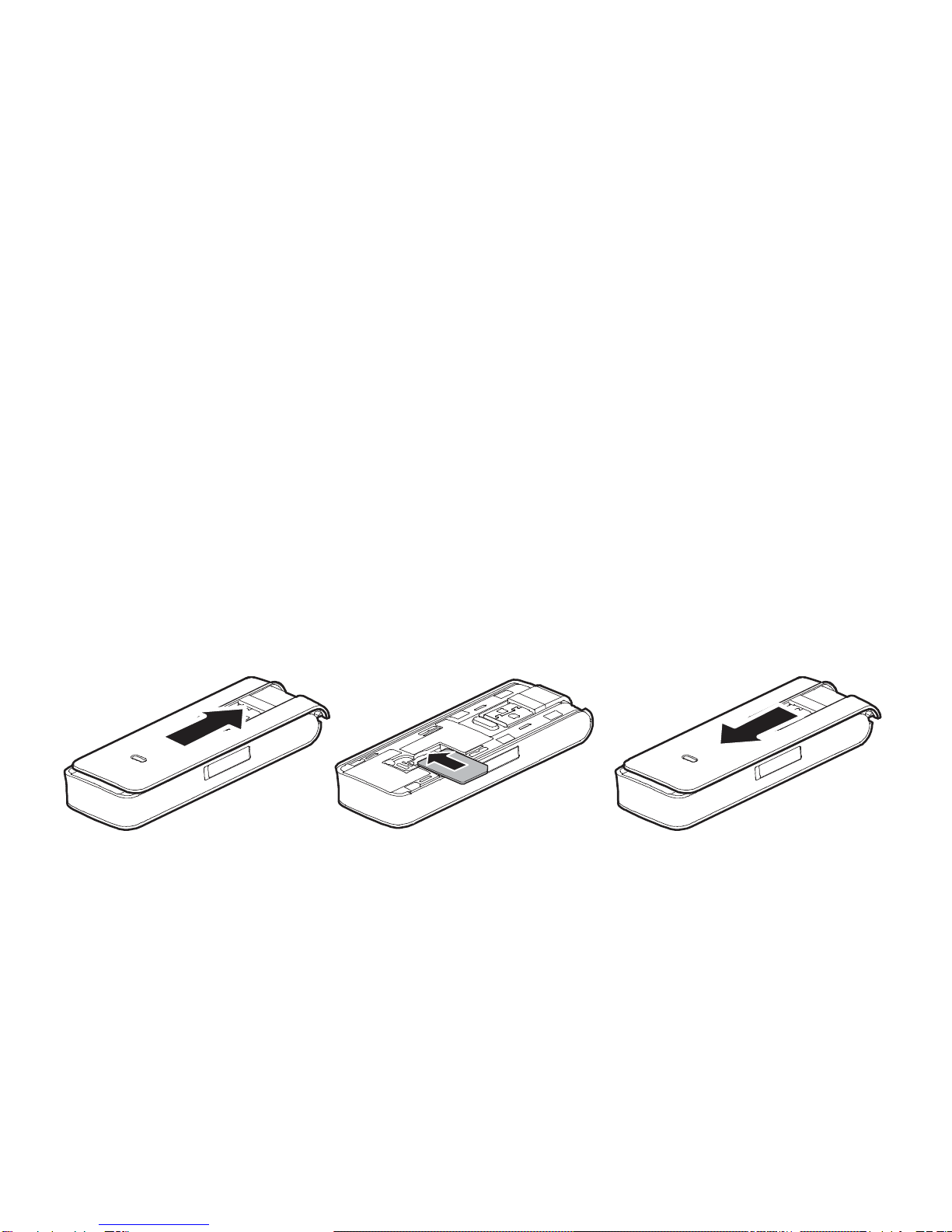

Install your TELUS SIM Card

1. Slide the front cover off by sliding it towards the usb connector.

2. Insert the TELUS SIM card into the SIM card slot.

Note:

Ensure the beveled edge of the SIM card is aligned with the SIM card slot as seen

in the diagram.

3. Slide the front cover back onto the USB Stick until it clicks into place.

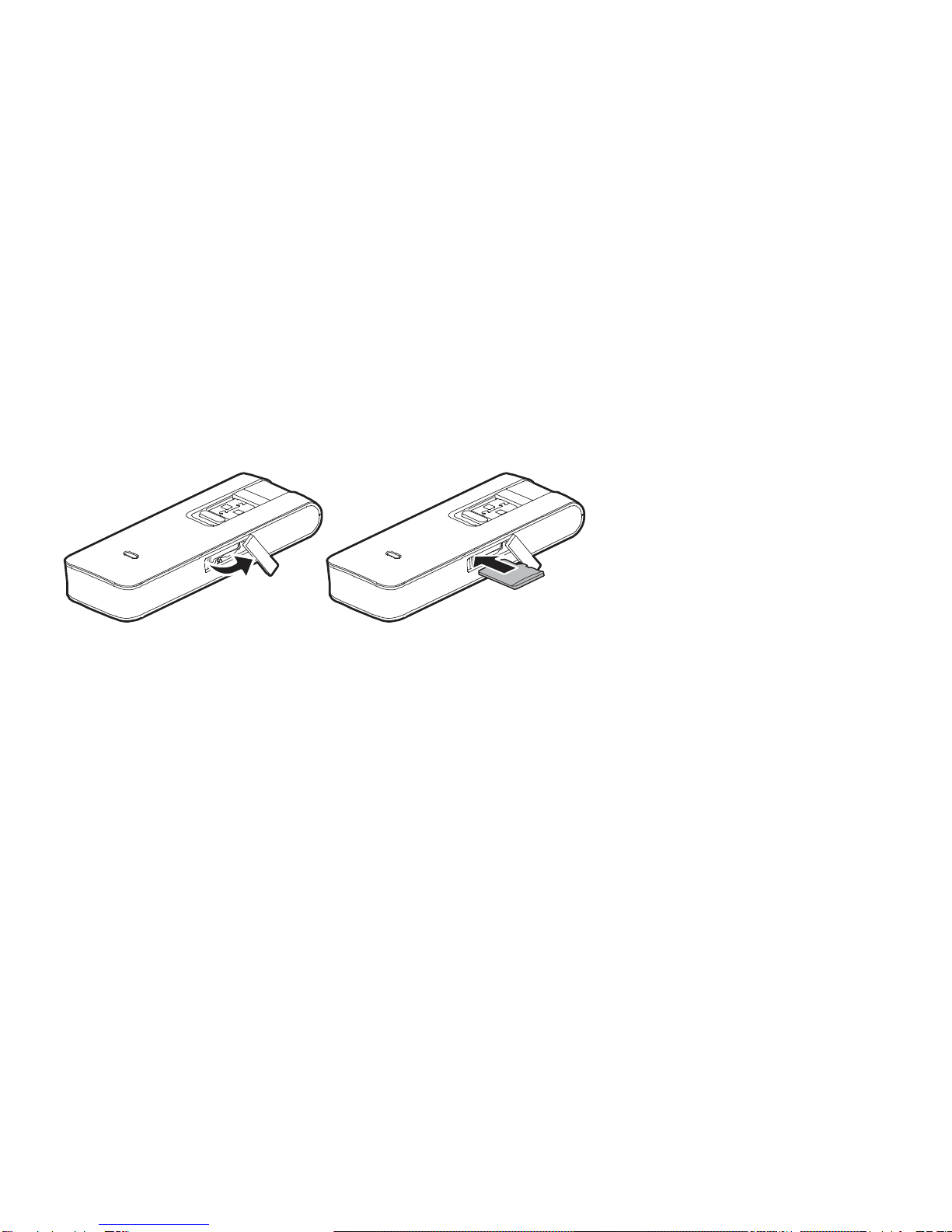

Inserting the microSD Card

Insert the microSD card into the USB Stick, as shown in the following figure.

Note:

The microSD card is an optional accessory that can be purchased from

TELUS.

Do not remove the microSD or SIM card while the internet key is connected to

your computer. Otherwise, the cards or internet key may be damaged.

Getting your Computer Ready

The steps to install the Connection manager depend on your computer’s operating

system (OS). Follow the instructions below for your computer type. It is

recommended you uninstall any existing programs used with a mobile internet key

prior to completing the next steps.

Step 1: Connect the Mobile Internet Key to your computer.

Plug the connector of the internet key directly into a USB port of your computer.

Do not use a USB hub.

Step 2: Installing the Mobile Internet Key Connection Manager

Windows PC

1. The computer will automatically detect the new hardware and open the

installation wizard.

2. Follow the on-screen instructions of the installation wizard.

3. Installation may take several minutes. A progress bar will be displayed.

4. After the program is installed, a shortcut icon for Connection Manager appears

on the desktop.

Note:

If the installation wizard does not automatically open, it can be launched manually.

Navigate to Mobile Internet > Mobile Internet Key under "My Computer" and

look for the Setup file. Double-click Setup.exe to open the setup wizard.

MAC

1. The OS will automatically detect the new hardware and place the HUAWEI

icon on the screen. Double click Connection Manager icon to launch the

installation.

2. Follow the on-screen instructions of the installation wizard. If presented with

Authenticate dialog box, enter the Name/Password used to log your MAC then

click OK.

3. Installation may take several minutes. A progress bar will be displayed.

4. After the program is installed, a shortcut icon for Connection Manager

appears on the desktop.

Step 3: Connecting to the Internet

Congratulations, your mobile internet key and computer are now ready for high

speed internet access! Follow the steps below to connect to the internet.

1. Double-click the on the desktop to launch the Connection Manager.

The first time you connect you will be prompted to setup data volume limits. If you

do not know what your data plan allows, please contact your service provider.

2. Wait until you see TELUS beside the signal strength bars.

3. Click Connect.

Note:

It is recommended you disconnect when you are not using the computer.

Disconnecting the Internet Key from your computer (Windows PC)

1. Click Disconnect in the Huawei Connection Manager.

2. Close the Huawei Connection Manager.

3. Double-click in the notification area. Then the Unplug or Eject

Hardware dialog box appears.

4. Select the corresponding hardware and then click Stop.

5. When the message "It is safe to remove the device" appears, remove the

Internet Key.

Uninstalling the Connection Manager (Windows PC)

1. Choose Start > Control Panel > Add or Remove Programs.

2. Find the Connection Manager and click Remove to uninstall the

Connection Manager.

Uninstalling the Connection Manager (MAC)

1. Choose Finder > Go > Application.

2. Choose the Connection Manager.

3. Press control and click the left mouse simultaneously.

4. Select Move to Trash to uninstall the management program.

Note:

Exit the management program before uninstalling it.

Version: V100R001_01 Part Number: 3101****
