Huawei EC1261 Bedienungsanleitung

Huawei EC 1261

Table of Contents

Introduction .............................................................................................................................................. 3

Product Features..................................................................................................................................... 3

Functional Features ............................................................................................................................... 3

Know Your Device ................................................................................................................................... 4

System Requirements............................................................................................................................ 5

Expanding Memory With Micro-SD Card........................................................................................ 5

Installation Procedure ........................................................................................................................... 5

Installation Procedure for Windows OS.................................................................................................................... 5

Installation Procedure for MAC OS............................................................................................................................10

Activating the Device.......................................................................................................................................................13

Using the Dialer .................................................................................................................................................................15

Software Upgrade Procedure ................................................................................................................... 18

OS Compatibility Matrix............................................................................................................................ 20

HUAWEI EC1261 USB Stick is a wireless network terminal based on the CDMA2000

1x and theCDMA2000 1xEV-DO Rev. A protocols.

The EC1261 provides high-rate packet data services, supporting wireless

downloading at a speed as high as 3.1 Mbps and uploading at speed as high as 1.8

Mbps. The EC1261 is connected to PC by a USB interface. In any place covered by the

CDMA2000 network, users can enjoy wireless access. The higher speed, more

reliable performance and easier operation help to improve the user’s experience

High-rate network access

Standard USB interface (Type A)

Micro Secure Digital Memory (Micro SD) Card

Network Driver Interface Specification (NDIS)/Modem driver

Strong compatibility

Auto installation

Supporting OS

oWindows –XP/Win 7/ XP/2000

oMAC OS - 10.4.11,10.5,10.6

Supporting 800 MHz frequency band

Supporting the CDMA2000 1x standard

Supporting the CDMA2000 1xEV-DO Rev. A standard

Supporting auto installing

Supporting high-rate packet data services

The EC1261 supports the Hybrid mode to enable seamless switching between the

EVDO and 1x networks.

Supporting Mobile IP, the EC1261 is able to provide users with seamless roaming

experiences of high-speed packet data services (network-dependent).

1. Cap

2. USB Port - It connects EC1260 to a USB port on a Desktop / Laptop)

3. LED Indicator –Indicates the status of the device

On: EC1260 is powered on.

Blinking once every 2s: EC1260 is searching for network or the network is not

found.

Blinking twice every 2s: The network as been found.

Blinking once every 0.2s: EC1260 is engaged in a call or data service.

4. Micro SD card slot -Holds the Micro SD card for expandable memory

5. Strap Hole

6. Back Cover

7. USB connecting cable

8. Headset port - Disabled as Voice functionality is not supported

The Photon+ Modem supports a complete Plug and Play feature for the automatic

installation of USB drivers and PC-Client tool (Access Manager) on

Supporting easy installation and uninstall of the driver on Windows 2000(SP4),

Windows XP, Windows Vista, Mac (10.6), Windows 7

O-

-S

1 2 3

1. Slide out and Remove Back Cover of the Device

2. Insert External Micro SD Card, make sure the card is properly placed as shown

above

3. Slide Back the Back Cover in Position

Points to Remember:

•Micro SD card is an optional accessory; users will have to buy it separately from the

market.

•Do not remove the Micro SD card when using Photon Plus

•Removing the card during an operation may damage the card as well as the device,

and data stored on the card may get corrupted.

Installation Procedure for Windows OS

Connecting Photon+ Device to your PC:

1. Power on your PC before connecting Photon+ with the PC.

2. Plug Photon+ to the USB interface of the PC. (as shown below for Laptops and

Desktops)

3. The USB drive and the Management Program of dashboard Software will launched

automatically when EC1261 is connected to PC first time;

4. Follow the prompts of the installation and configure the profile.

Installing the Program:

1. Before you start the installation process, ensure that your PC/ laptop is working on

a supported operating system (as mentioned on the packaging of the Device).

2. Plug in the Photon Plus device in the USB slot of your PC/ laptop; the installation

process of the device drivers and dialer will automatically get initiated\

3. Click on Next. The following pop-up appears

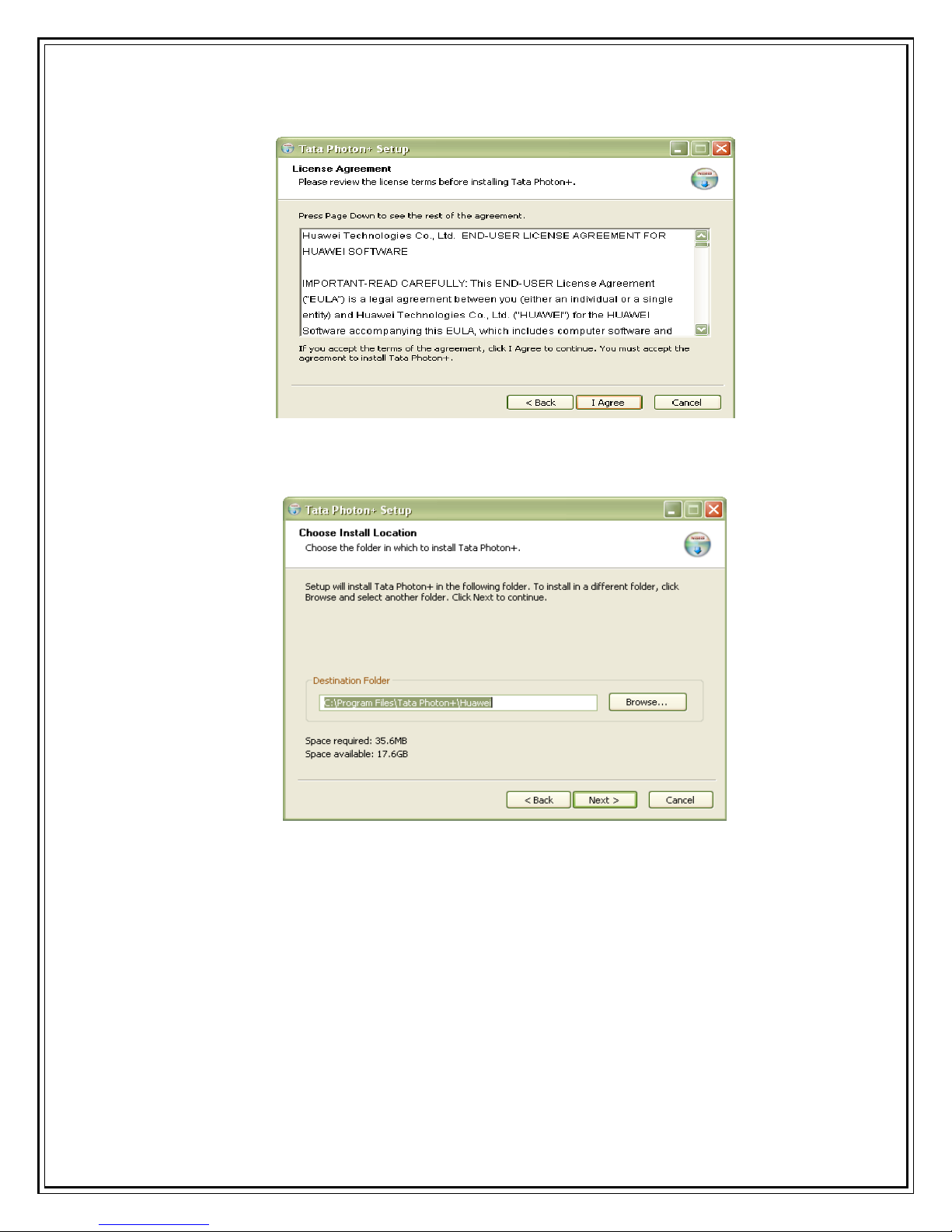

4. Click on “I agree”. Default Installation directory is ‘C:\Program

Files\TATA\Photon+\’. You can change it to the desired directory location by

Pressing the ‘Browse…’ button.

5. Please click on “Next” and proceed.

6. After the Program is installed an Access Manager (AM) short-cut icon will appear on

your desktop.

7. ”AM” is the application for using your device as an Internet device

8. Before starting the activation process, ensure that your desktop/laptop is connected

to speakers or headphones for listening to Activation Instruction IVR

9. When the installation is complete, the following dialer appears

Installation Procedure for MAC OS

1. Connect EC152 with PC

Connect EC152 with PC via USB.

2. Install EC152 Dialer & Driver

Insert the EC152 device into computer

Double click icon of “Mobile Partner” ,

Click “Continue” to start the installation.
