Huawei OptiX RTN 910A Bedienungsanleitung

HUAWEI TECHNOLOGIES CO., LTD.

OptiX RTN 910A Radio Transmission System

V100R010

IDU Quick Installation Guide for Outdoor

Cabinets

(OMB Cabinets)

Issue: 01

Date: 2017-05-30

Huawei Technologies Co., Ltd.

Address: Huawei Industrial Base

Bantian, Longgang

Shenzhen 518129

People's Republic of China

Website: http://www.huawei.com

Email: [email protected]

No part of this document may be reproduced or transmitted in any form or by any means without prior

written consent of Huawei Technologies Co., Ltd.

Trademarks and Permissions

and other Huawei trademarks are trademarks of Huawei Technologies Co., Ltd.

All other trademarks and trade names mentioned in this document are the property of their respective

holders.

Notice

The purchased products, services and features are stipulated by the contract made between Huawei and

the customer. All or part of the products, services and features described in this document may not be

within the purchase scope or the usage scope. Unless otherwise specified in the contract, all statements,

information, and recommendations in this document are provided "AS IS" without warranties, guarantees

or representations of any kind, either express or implied.

The information in this document is subject to change without notice. Every effort has been made in the

preparation of this document to ensure accuracy of the contents, but all statements, information, and

recommendations in this document do not constitute a warranty of any kind, express or implied.

Precautions

Following All Safety Precautions

Before any operation, read the instructions and precautions in this document carefully to minimize the possibility

of accidents.

The Danger, Caution, and Note items in the documents do not cover all the safety precautions that must be

followed. They only provide the generic safety precautions for operations.

When operating Huawei products and equipment, you must comply with safety precautions and special safety

instructions related to corresponding equipment provided by Huawei. The safety precautions in the document are

related to only Huawei products. Huawei is not liable for any consequence that results from the violation of

universal regulations for safety operations and safety codes on design, production, and equipment use.

Complying with the Local Safety Regulations

When operating the product or equipment, comply with local safety regulations.

Qualified Personnel Only

Installation and maintenance personnel must be trained to perform operations correctly and safely.

Personnel Safety

The high-voltage power supply provides power for running the system. Avoid direct contact with the high-voltage

power supply or contact through damp objects. Failure to do so causes serious injury or death.

Non-standard and incorrect operations on the high-voltage power supply may result in fire and electric shock.

Do not perform operations on high-voltage and AC power supply facilities or on a tower or mast in the case of

thunderstorm. Failure to do so causes serious injury or death.

Ground the device before powering it on. Failure to do so causes damage to the device or personal injury.

Power off the device before performing operations on the power supply facilities.

Personnel Safety

High power radio-frequency signals are harmful to the human body. Ensure that the transmitter antennas are

muted before installing or maintaining an antenna on a tower or mast that holds a large number of transmitter

antennas.

Do not stand close to, or look into the optical fiber outlet without eye protection when handling optical fibers.

Take preventive measures when drilling holes. Otherwise, dust may hurt your eyes or you may inhale the dust.

When working at heights, be cautious about falling objects.

Device Safety

Check the electrical connection of the device before operation and ensure that the device is securely grounded.

The static electricity discharged from the human body may damage the electrostatic sensitive components, such

as large-scale integrated circuits (LSIs), on the circuit board. Wear an ESD wrist strap or ESD gloves when

handling a circuit board.

Do not hold a board without hand protection. Wear an ESD wrist strip or ESD gloves before handling

a board.

Insert filler panels into vacant slots on an NE to prevent foreign matters from getting into the NE,

which may result in faults on the NE.

Boards are fragile and valuable. When handling or placing a board, exercise caution and put it

into a dedicated packing box.

Holding a board without hand

protection

Wearing ESD gloves Wearing an ESD strip

Hold the front panel of a board with hands.

Instructions and Precautions for Handling Boards

Tools for Installation

Network cable tester

Coax stripper

Long measuring tape Phillips screwdriver Flat-head screwdriver Adjustable Wrench

Level

COAX crimping tool

Socket wrench Torque wrench Hex key Wire clippers

Wire stripper RJ45 crimping tool Diagonal pliers Cold press pliers Needle-nose pliers

Combination pliersBayonet wrench

Utility knife Claw hammer

Hammer drill Marker

Ladder Electric iron

Antistatic gloves

Heat gun

Multimeter

ESD gloves

Binding strap Insulation tape

ESD wrist strap Impact tool

File

Vacuum cleaner

Introduction to the Equipment

1Introduction to the RTN 910A

E1 port

IF port

USB port

Input power port Ethernet service port (Electric)

NM/COM port

The external clock port, external time port, and outdoor cabinet monitoring port share one physical port.

Ethernet service port (Optical)

NOTE

ODU power switch

External clock port

External time port

Outdoor cabinet

monitoring port

2Introduction to the OMB Cabinet

Front View of the OMB Cabinet

Left View of the OMB Cabinet

bRight View of the OMB Cabinet

Technical Specifications

Dimensions (mm): 600 (H) x 240 (W) x 430 (D)

Ambient temperature (no sunshine radiation): -20°C to

+50°C

About the Internal Structure of the OMB Cabinet

Fan assembly (internal circulating)

Internal Structure of the OMB Cabinet (AC Power Supply)

Internal Structure of the OMB Cabinet (DC Power Supply)

HEUA

OMB cabinet (AC power supply)

Fan assembly (external circulating)

AC/DC power supply facility

PMU module

Fan assembly (internal circulating)

HEUA

OMB cabinet (DC power supply)

Fan assembly (external circulating)

DCDU-03B

Cable trough

AC surge protection box

Installation Scenarios of the Cabinets

1Installation Scenarios of the OMB Cabinet

Dimensions of the OMB Cabinet

Recommended Requirements of

the OMB Cabinet

bMinimum Requirements of the

OMB Cabinet

600 mm

390 mm

240 mm

≥200 mm

≥150 mm

≥600 mm

≥500 mm

≥200 mm

≥300 mm

≥800 mm

≥600 mm

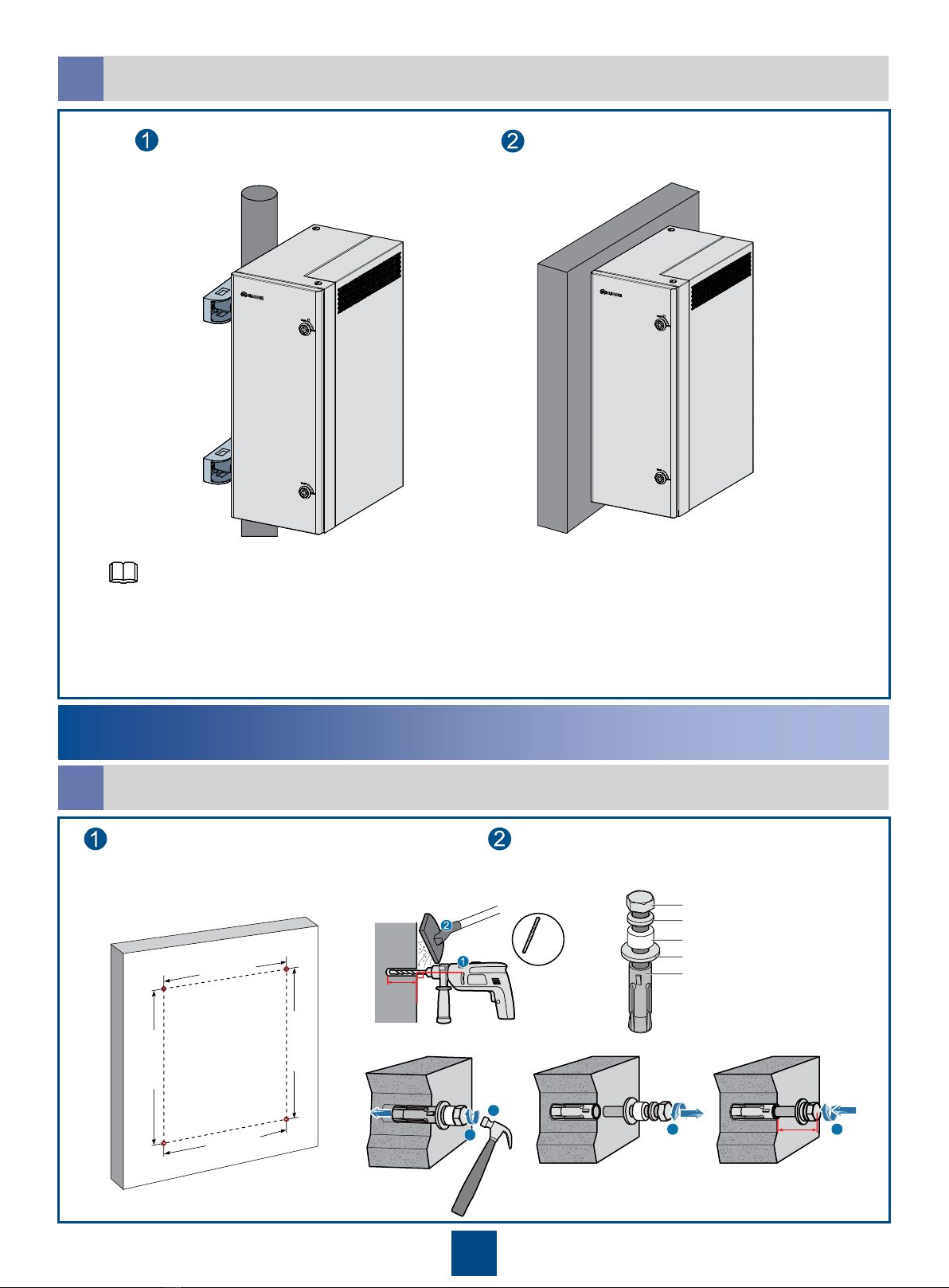

Installation Modes

Installing the OMB cabinet on a pole Installing the OMB cabinet on a wall

The OMB cabinet provides a small space. Therefore, it is not recommended that you use the OMB cabinet in

an area where the ambient temperature is lower than –20°C in winter. It is recommended that you use the

APM30H or TMC11H cabinet that is configured with a heater.

2Installing the OMB Cabinet

Installing the OMB Cabinet on a Wall

210mm

378mm

210mm

378mm

Determine the position of the backplane on the wall, and

mark the four anchor points by using a marker. Drill the holes and install the expansion bolt assembly.

55~60mm 90

φ14

45 6

20~30mm

。

Bolt M10x75

Spring washer 10

Plastic tube

Flat washer 10

Expansion bolt

NOTE
