Huawei SmartAX MT880a Bedienungsanleitung

SmartAX MT880a

ADSL CPE Quick Start

1 Connecting the Cables

POWER

LAN

RESET

####

#### ####

ADSL

1 Telephone jack on the wall 2 Splitter 3 Telephone 4 Computer 5 Power adapter

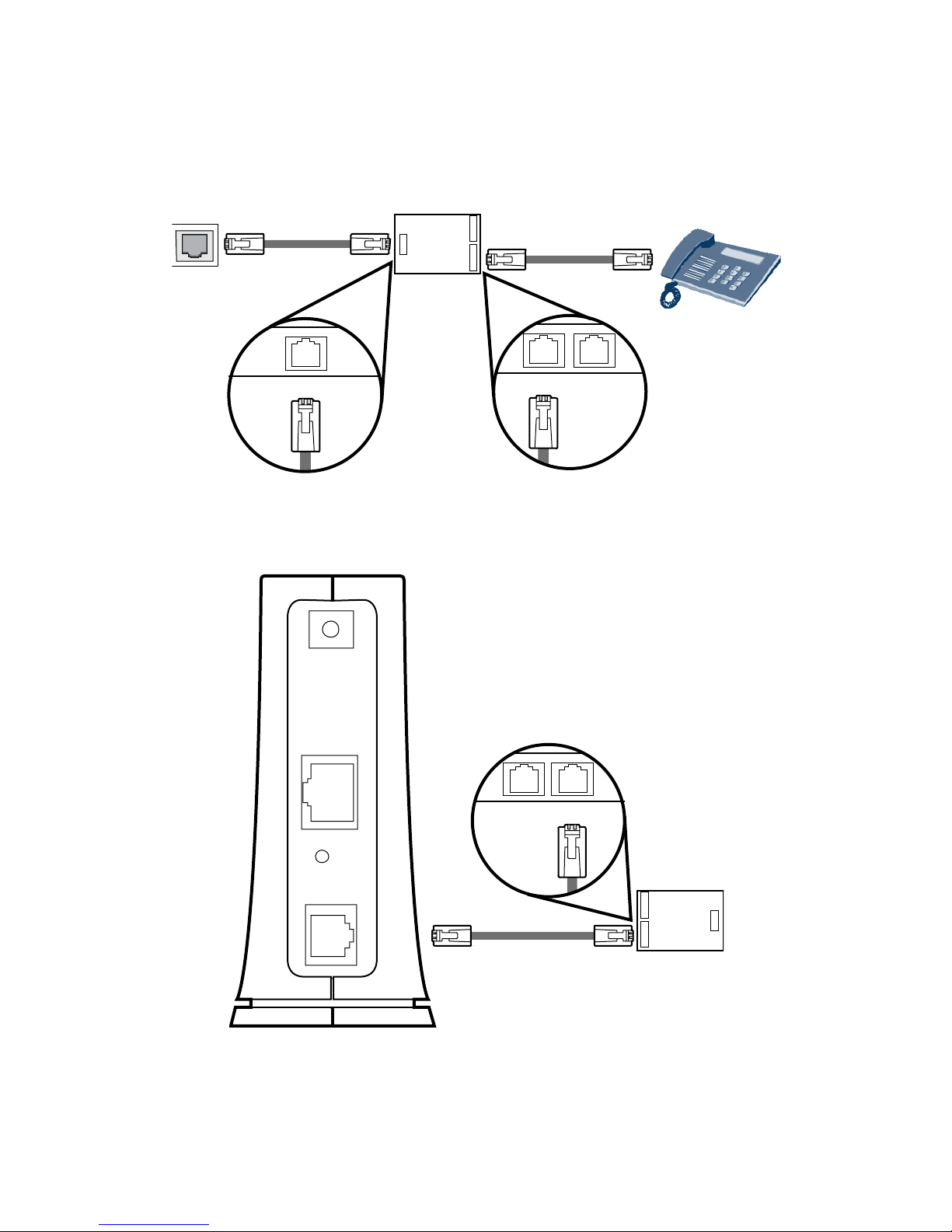

To connect the cables, do as follows:

Step 1 Connect the telephone jack on the wall to the LINE interface on the splitter

with a telephone line. Connect the telephone to the PHONE interface on the

splitter with a telephone line.

####

#### ####

LINE PHONE

Step 2 Connect the ADSL interface on the MT880a to the Modem interface on the

splitter with a telephone line.

####

#### ####

POWER

LAN

RESET

Modem

ADSL

Step 3 Connect the LAN interface on the MT880a to the Ethernet interface on the

computer with a network cable.

POWER

LAN

RESET

ADSL

Step 4 Connect the POWER interface on the MT880a to the power socket with the

power adapter.

POWER

LAN

RESET

ADSL

2 Getting Started

Press the power button on the top of the MT880a to power on the MT880a.

After you power on the MT880a, the ADSL indicator blinks (for less than three minutes),

which indicates that the MT880a is being activated. After the ADSL indicator stops

blinking, the POWER and ADSL indicators turn on, which indicates that the MT880a is

working properly.

3 Configuring the MT880a

After you enable the embedded dial-up function of the MT880a, when

the MT880a is not used for the network access, power off the MT880a.

Otherwise, even if you have shut down your computer, the network

operator may still charge you for the network access.

Step 1 Log in to the Web configuration page.

1. Launch the Internet Explorer on the computer. Enter http://192.168.1.1 in

the address bar and press Enter.

2. In the displayed dialog box, enter the user name and the password, and then

click OK.

By default, both the user name and the password are admin. After the password is

verified, you can access the Web configuration page.

Step 2 Enable the embedded dial-up function.

1. In the navigation tree on the left of the Web Configurator, choose Basic >

WAN Setting.

2. Select a PVC number, such as 1, from the PVC drop-down combo box.

3. Enter the VPI and VCI parameters that are provided by the network operator

in the VPI and VCI text boxes.

4. Select Yes from the Active drop-down combo box and select Routing from

the Mode drop-down combo box.

5. Enter the user name and password that are provided by the network

operator in the Username and Password text boxes , keep the default settings

of other parameters.

6. Click Submit to save the settings.

After you complete the preceding settings, you can surf the Internet.

You need to perform the preceding operations on a computer only once. The next time

when you power on the computer, you can surf the Internet without performing any

configuration.

4 Indicators

Indicator Status Description

On The MT880a is powered on.POWER

Off The MT880a is powered off.

Indicator Status Description

Blinking The MT880a is being activated.

On The MT880a is activated.

ADSL

Off The MT880a is powered off.

Blinking Data is being transmitted through the Ethernet

interface.

On The Ethernet connection is established.

LAN

Off The Ethernet connection is not established.

rights reserved.

No part of this document may be reproduced or transmitted in any form or by any means

without prior written consent of Huawei Technologies Co., Ltd.

Trademarks and Permissions

and other Huawei trademarks are trademarks of Huawei Technologies Co.,

Ltd.

All other trademarks and trade names mentioned in this document are the property of

their respective holders.

Notice

The information in this document is subject to change without notice. Every effort has

been made in the preparation of this document to ensure accuracy of the contents, but all

statements, information, and recommendations in this document do not constitute the

warranty of any kind, express or implied.

Issue: 02 (2009-01-04)

Part Number: 102090
