NE05E&NE08E Series Mid-End Router

Quick Installation Guide

(IMB Cabinet)

Issue: 05

Date: 2016-06-30

No part of this document may be reproduced or transmitted in any form or by any means without prior

written consent of Huawei Technologies Co., Ltd.

Trademarks and Permissions

and other Huawei trademarks are trademarks of Huawei Technologies Co., Ltd.

All other trademarks and trade names mentioned in this document are the property of their respective

holders.

Notice

The purchased products, services and features are stipulated by the contract made between Huawei and

the customer. All or part of the products, services and features described in this document may not be

within the purchase scope or the usage scope. Unless otherwise specified in the contract, all statements,

information, and recommendations in this document are provided "AS IS" without warranties, guarantees or

representations of any kind, either express or implied.

The information in this document is subject to change without notice. Every effort has been made in the

preparation of this document to ensure accuracy of the contents, but all statements, information, and

recommendations in this document do not constitute a warranty of any kind, express or implied.

Huawei Technologies Co., Ltd.

Address:

Huawei Industrial Base

Bantian, Longgang

Shenzhen 518129

People's Republic of China

Website:

http://www.huawei.com

Email:

[email protected]

Installation Flow

PrecautionsPage 1

Tools for Installation

Page 2

Introduction to the 1U-

height Chassis

Pages

3-4

Introduction to IMB

(Indoor Mini Box)

Pages

6-7

Installing Devices in the

IMB

Page 13

Connecting and Routing

Cables

End

Start

Powering On the

Equipment

Page 18

Installation ChecklistPage 17

Preparation

for

installation

Pages

14-16

Introduction to the 2U-

height Chassis

Page 5

Introduction to AC/DC

power system

Installing the IMB on the

Wall

Pages

8-10

Pages

11-12

Overview of IMB

Page 6

Installation Clearance

Requirements

Pages

6-7

Installing the Cover Plate

for the IMB

Page 19

AppendixesPage 20

Precautions

This document provides simple and distinctive guidelines for quick hardware installation of the

NE05E&NE08E(NE05E-S2/SE/SF/SG/SH/SI/SQ&NE08E-S6/S6E).

Based on the height of a device, the NE05E-S2/SE/SF/SG/SH/SI/SQ are considered 1 U devices, and the

NE08E-S6/S6E are considered 2 U devices. 1 U = 44.45 mm (1.75 in.)

As the installation methods are similar, the fixed NE05E-SI is used as an example for the 1 U device, and the

card-insertedNE08E-S6 is used as an example for the 2 U device. The installation differences are specially

described in this document.

This document does not describe pre-delivery assembly. This document only describes procedures for onsite

installation.

Wear ESD gloves or Antistatic WristStrap prior to contact

with the equipment or before handling the plug-boards,

boards, and IC chips to prevent damage to sensitive

components caused by electrostatic discharge from the

human body.

Binding intervals between cable ties or optical fiber binding straps inside the cabinet cannot exceed

250 mm.

Bundling cables

Electrostatic Discharge

Pre-Installation Check

Verify that the equipment room, power supply, ground cables and optical cables are ready for installation.

Start the installation according to the engineering design documents after confirming that conditions are

met. Refer to the Installation Guide for information about specific operational requirements and technical

specifications.

NOTE

CAUTION

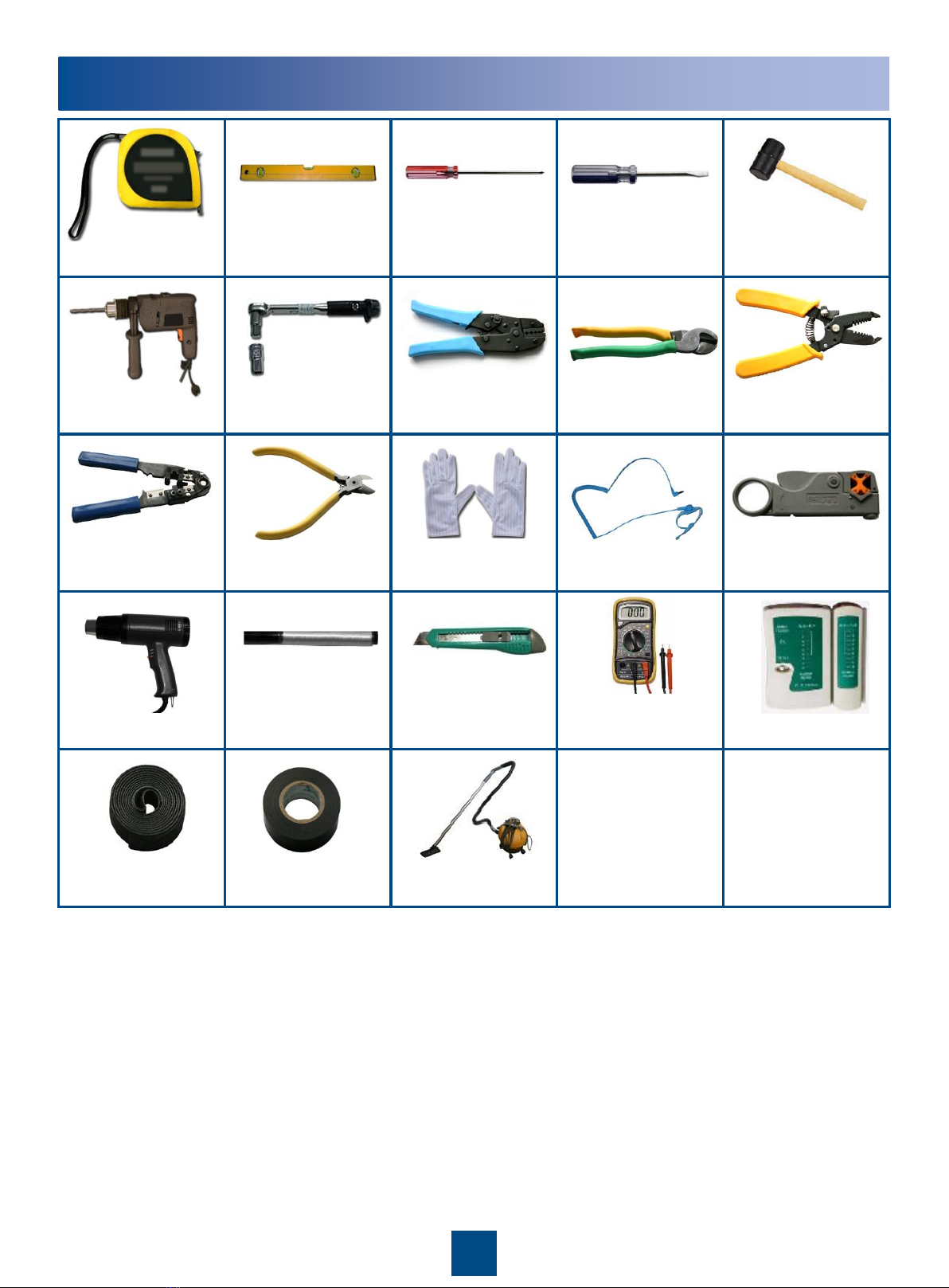

Tools for Installation

Cable Tester

Coax Stripper

Philips Screwdriver

（M2-M6) Flathead Screwdriver

（M2-M6)

Level

Ratchet Crimp Tool

Torque Wrench Cable Cutter Wire Stripper

Network Cable

Crimping Pliers Diagonal Pliers

Paper Knife

Rubber hammer

Percussion Drill

Marker Pen

Heat Gun Multimeter

ESD Gloves

Binding Strap Insulation Tape

Antistatic Wrist Strap

Cleaner

Tape Measure

NE05E-S2

Introduction to the 1U-height Chassis

Clock interface

Power supply interface

Time interface

NM interface

(Console interface)

Alarm interface

PGND point

FE/GE electrical interface

10GE optical interface

FE/GE optical interface

E1 interface

Alarm interface

PGND pointPower supply interface

GE optical interface

Clock and time interface

T1 interface

Antistatic jack interface

FE/GE electrical interface SHDSL interface

NE05E-SE/NE05E-SF

NM interface

(Console interface)

FE/GE optical

interface

NE05E-SG/NE05E-SH/NE05E-SI

Clock interface

Power supply interface

Time interface

NM interface

(Console interface)

PGND point

Electrical interface

GE optical interface

Alarm interface

E1 interface

FE/GE optical interface

FE/GE optical interface FE/GE electrical interface

Power supply interface Clock interface

10GE optical interface

Antistatic jack interface

Time interface

NM interface

(Console interface) Alarm interface

For running an AC NE05E-SQ, you must turn on the switches of both AC power modules operating

in 1+1 backup mode.

NOTE

NE08E-S6

Introduction to the 2U-height Chassis

Alarm interface PGND point

Power supply interface

GE optical interface

Clock interface

Time interface

Antistatic jack interface

E1 interface

NM interface

(Console interface)

Electrical interface

NE08E-S6E

Alarm interface PGND point

Power supply interface

GE optical interface

Clock interface

Time interface

Antistatic jack interface NM interface

(Console interface)

Electrical interface

10GE optical interface

Overview of IMB

Introduction to IMB (Indoor Mini Box)

Installation Clearance Requirements

1. NO STEPPING sign

2. Protection plate

3. Slot assignment label

4. Cover plate

1.Installation clearance requirements for the IMB right-side-mounted on the wall

Recommended installation clearance Minimum installation clearance

Installation Clearance Requirements for the IMB

3.Installation clearance requirements for the IMB back-mounted on the wall

2.Installation clearance requirements for the IMB left-side-mounted on the wall

Recommended installation clearance Minimum installation clearance
