Huawei SUN2000-4.95KTL-JPL0 Bedienungsanleitung

SUN2000L-(4.125KTL–4.95KTL)-JP and SUN2000-

4.95KTL-JPL0 Replacement

Quick Guide

Issue: 01

Part Number: 31500GLE

Date: 2021-12-25

HUAWEI DIGITAL POWER TECHNOLOGIES CO., LTD.

1. The information in this document is subject to change without notice. Every effort has been

made in the preparation of this document to ensure accuracy of the contents, but all

statements, information, and recommendations in this document do not constitute a

warranty of any kind, express or implied.

2. Before replacing the device, carefully read the SUN2000-4.95KTL-NHL2 User Manual to get

familiar with product information and precautions.

3. Before replacing the device, check whether the configurations of SUN2000L-(4.125KTL–

4.95KTL)-JP and SUN2000-4.95KTL-JPL0 can be viewed. If they can be viewed, record the

parameter settings for setting or checking parameters after the replacement.

4. Before replacing the device, check whether the cables are long enough. If not, prepare

appropriate cables.

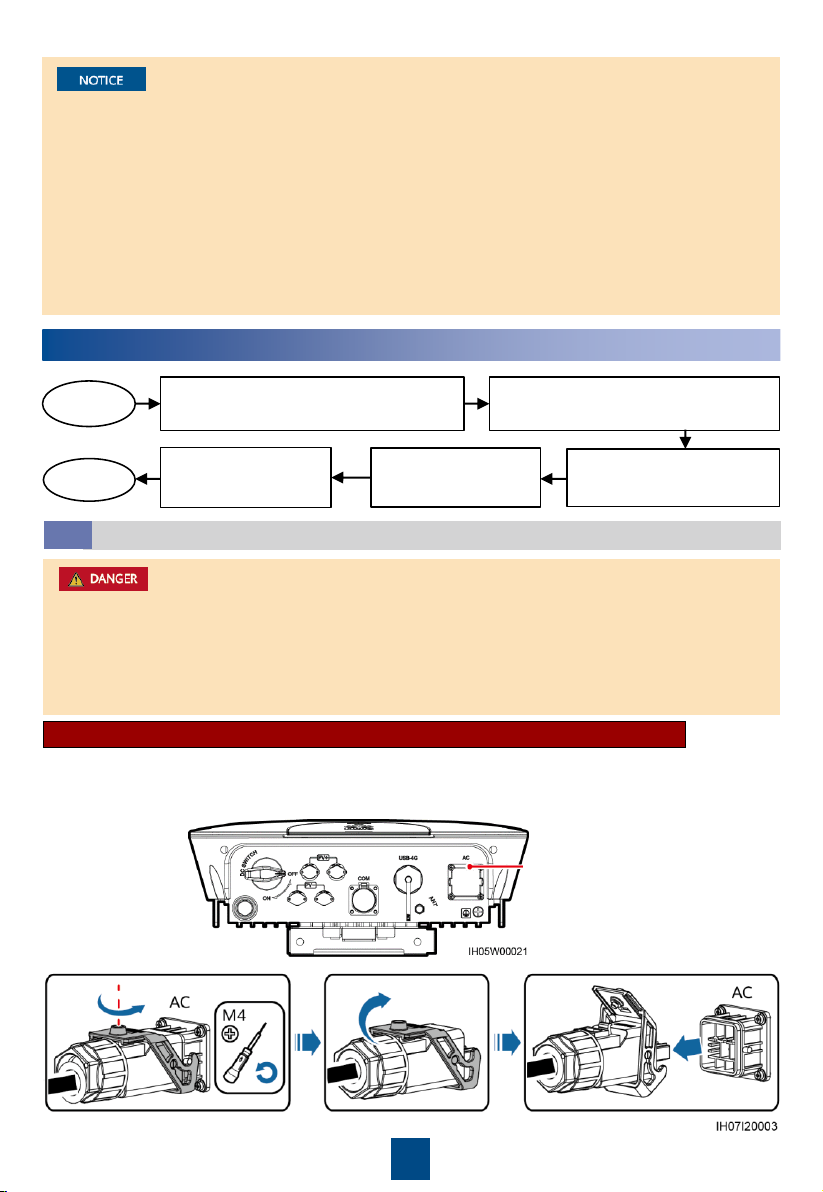

1SUN2000L-(4.125KTL–4.95KTL)-JP Replacement Scenarios

•Before removing the original SUN2000, ensure that the DC switch on the SUN2000 and all

the switches connected to the SUN2000 are set to OFF. Otherwise, the high voltage of the

SUN2000 may result in electric shocks.

•After the SUN2000 is powered off, the remaining electricity and heat may still cause electric

shocks and body burns. Therefore, put on protective gloves and dielectric boots and begin

operating the SUN2000 with specialized insulation tools five minutes after the power-off.

1. Power off the SUN2000 to be replaced.

2. Remove the AC connector and remove the AC output power cable

from the mating socket for future use.

Removing SUN2000L-(4.125KTL–4.95KTL)-JP

1.1

Removing Cables from SUN2000L-(4.125KTL–4.95KTL)-JP for Future Use

AC output port (AC)

Start Remove SUN2000L-(4.125KTL–

4.95KTL)-JP. Install SUN2000-4.95KTL-NHL2.

Complete electrical

connections of SUN2000-

4.95KTL-NHL2.

End

Check the installation

and power on the

SUN2000.

Commission

SUN2000-4.95KTL-

NHL2.

3. Remove the DC connectors and use a cable cutter to cut off the terminals of DC input power

cables. Set the cables aside for future use.

The DC terminals of SUN2000L-(4.125KTL–4.95KTL)-JP must be cut off. If the DC connectors of

SUN2000L-(4.125KTL–4.95KTL)-JP are directly connected to SUN2000-4.95KTL-NHL2, the

SUN2000 may be burnt.

Cable

cutter

DC input terminals

5. Disconnect the PE cable and remove the crimped OT terminal. Set the cable aside for future use.

4. Remove the signal cable connector from the COM port for future use.

COM port (COM)

1. (Optional) Open the anti-theft lock. 2. Remove the two hex screws.

3. Remove the SUN2000 from the rear panel.

Installing SUN2000-4.95KTL-NHL2

1.2

1. (Optional) Install the locking screw for the DC switch.

Removing SUN2000L-(4.125KTL–4.95KTL)-JP

2. Remove the native hanging kit from

SUN2000-4.95KTL-NHL2.

3. Install the hanging kit delivered with SUN2000-

4.95KTL-NHL2.

•The marking-off template, mounting bracket, and M6x60 expansion bolts delivered with

SUN2000-4.95KTL-NHL2 are not used during replacement.

•Prepare an anti-theft lock suitable for the lock hole diameter (Ф8 mm) and ensure that the

lock can be installed successfully. An outdoor waterproof lock is recommended.

4. Install the SUN2000 on the

mounting bracket. (Optional) Install an

anti-theft lock.

5. Tighten screw assemblies.

Not used

•It is recommended that silica gel or paint be used around the ground terminal after the PE

cable is connected.

•It is recommended that you connect the PE cable to the right ground point and reserve the

other ground point.

Completing Electrical Connections of SUN2000-4.95KTL-NHL2

1.3

Before connecting cables, ensure that the DC switch on the SUN2000 and all the switches

connected to the SUN2000 are set to OFF. Otherwise, the high voltage of the SUN2000 may

result in electric shocks.

Ground

point

AC output port (AC)

Ensure that the

WLAN antenna is

installed securely.

Antenna port (ANT)

1. Install the PE cable for SUN2000-4.95KTL-NHL2.

2. Install the WLAN antenna.

3. Install the AC output power cable for SUN2000-4.95KTL-NHL2.

Click

Positive metal

terminal

Negative metal

terminal

Ensure that the cables

cannot be pulled out

after being crimped.

Positive connector

Negative

connector

Use the wrench

shown in the figure

to tighten the locking

nut. When the

wrench slips during

the tightening, the

locking nut has been

tightened.

Ensure that cable

polarities are

correct.

PV-CZM-19100 (Staubli)

PV-MS-HZ

open-end

wrench (Staubli)

•Ensure that the PV module output is well insulated to ground.

•Use the positive and negative Staubli MC4 metal terminals and DC connectors supplied with

the SUN2000. Using incompatible positive and negative metal terminals and DC connectors

may result in serious consequences. The caused device damage is not covered under warranty.

•The DC input voltage of the SUN2000 cannot exceed the maximum input voltage under any

condition.

•Before installing DC input power cables, label the cable polarities to ensure correct cable

connections.

•If the polarities of the DC input power cables are reversed, do not operate the DC switch or

the positive/negative connector immediately. Failing to do so may cause device damage,

which is not covered under warranty. Wait until the night when solar irradiance declines and

the PV string current drops to below 0.5 A. Then set the DC switch to OFF, remove the

positive and negative connectors, and correct the polarities of the DC input power cables.

DC input terminals

If the original DC input power cables are not long enough, add DC input extension cables.

4. Install DC input power cables for SUN2000-4.95KTL-NHL2.

Assembling DC connectors

Installing DC Input Power Cables

Click

Pull the DC input power cables back to

ensure that they are connected securely.

Extension cables for DC terminals

5. Install signal cables for SUN2000-4.95KTL-NHL2.

COM port (COM)

Checking the Installation of SUN2000-4.95KTL-NHL2 and

Powering On the SUN2000

1.4

Post-Installation Check

No.

Acceptance Criteria

The SUN2000 is installed correctly and securely.

The

WLAN antenna is installed correctly and securely.

Cables are routed properly as required by the customer.

Cable ties are evenly distributed and no burr exists.

The PE cable is connected correctly and securely

The DC switch and all the switches connected to the inverter are set to OFF.

The AC output power cable, DC input power cables, and signal cables are connected

correctly and securely.

Unused terminals and ports are covered by watertight caps.

The installation space is proper, and the installation environment is clean and tidy.

Powering On the SUN2000

Before turning on the AC switch between the SUN2000 and the power grid, check that the AC

voltage is within the specified range using a multimeter.

1. Turn on the AC switch between the SUN2000 and the power grid.

2. (Optional) Remove the locking screw beside the DC switch.

3. Turn on the DC switch (if any) between the PV string and the SUN2000.

4. Turn on the DC switch at the bottom of the SUN2000.

Commissioning SUN2000-4.95KTL-NHL2

1.5

1. Download and install the latest installation package of the app.

Method 1: Search for FusionSolar in Huawei AppGallery.

Method 2: Visit https://solar.huawei.com using your mobile phone browser.

Method 3: Scan the QR code.

FusionSolar

3. Connect to the solar inverter WLAN and log in as installer to access the device

commissioning screen.

2. Access Device commissioning.

Scenario 1: Your phone is not

connected to the Internet.

Scenario 2: Your phone is

connected to the Internet.

When your phone is

connected to the

Internet, Device

commissioning is not

displayed after you tap

....

At the first login, the Quick

settings screen is displayed

by default. Exit the quick

settings.
