Huawei UPS5000-H-1200K-NT Bedienungsanleitung

Issue: 01

Part Number: 31500EKM

Date: 2020-07-15

UPS5000-H-1200 kVA Quick Guide

(100 kVA Power Modules)

1Overview

Model UPS5000-H-1200K-NT

Weight 1497 kg

Dimensions (H x W x D) 2200 mm x 1600 mm x 1000 mm

1. Before installation, read the user manual carefully to get familiar with product information

and safety precautions.

2. Use insulated tools during installation and operation.

3. Only engineers certified by Huawei or its agents are allowed to install, commission, and

maintain the UPS. Otherwise, personal injury or equipment damage may occur, and the UPS

faults caused are beyond the warranty scope of Huawei.

Surge protective

devices (SPDs)

and SPD switches

Power modules

Surge protection boxes

Control module

Intelligent detection

board

Bypass control module

Bypass modules

A: Mounting holes on the channel steel

B: Mounting holes on the floor

Dimensions of the Cabinet Holes

Determining the UPS Installation Position

2.1

1. The UPS can be installed on the channel steel or floor. Determine the mounting hole positions

using a marking-off template (unit: mm), drill holes, and install expansion sleeves based on site

requirements.

2Installing the UPS

Recommended Channel Steel Dimensions

(A) Mounting holes on the channel steel: M12x60 bolts

(B) Mounting holes on the floor: M12x60 expansion bolts

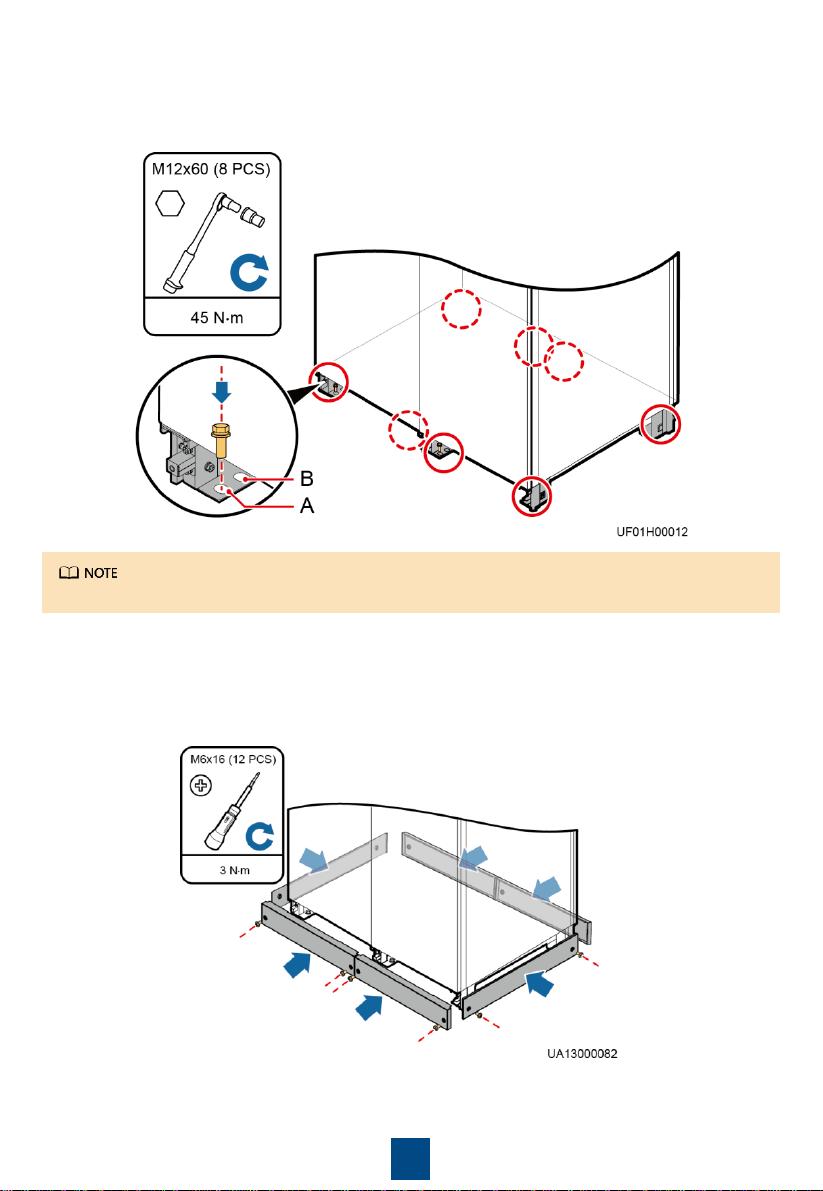

2. Secure the UPS.

Bolts are not included.

3. Install anchor baffle plates.

3Installing Cables

UPS Cable Connection Reference

3.1

•Prepare cables away from the cabinets to prevent scraps from falling inside. Cable scraps

may ignite and cause personal injury or device damage.

•After cables have been installed, clean the cabinets in a timely manner. Keep the cabinets

and surrounding environment clean and tidy.

•You need to prepare terminals onsite. The stripped length of the copper wire should be the

same as that of the part of the terminal that covers the conductor.

The cabling route is for reference only. Connect cables based on site requirements.

Installing Cables and Copper Bars

3.2

Prepare wiring copper bars based on the following figures and current requirements.

Item

Specifications (A)

Mains input current

2229

Bypass input current

1823

Output current

1823

Battery input

Nominal battery discharge current

2632

Maximum battery discharge current

3185

•Copper bars need to be prepared for the mains input, bypass input, and output, and cannot be

directly connected using cables. (Huawei does not provide copper bars or connector boxes.)

•The battery input can be connected only using cables.

•The currents listed in the table are measured at a rated voltage of 380 V (line voltage). For

details, see the user manual.

Installing UPS Cables

3.2

Top view of the distance between copper bars on the top (unit: mm)

The areas marked by the line boxes are the

recommended areas for installing connector boxes

The area marked by the line

box is reserved for the dense

busway

Front view of the distance between copper bars on the top (unit: mm)

Copper bar specifications (unit: mm)

Copper Bar Positions

UPS

Output

Bypass Input

Battery

Input Main

Input

1. Connect the equipotential ground point and the ground bar in the equipment room.

Ground bar in the

equipment room

2. (Optional) Remove the copper bars between the mains input and bypass input.

a) Remove the covers.

Perform this step only when the mains input and bypass input use different power sources.

The 16 mm2ground cable is recommended.

3. Install battery cables.

b) Remove the screws that secure the guide rail of the SPD.

c) Place the SPD on the horizontal plate (without removing the cables).

d) Remove the copper bars.

e) Reinstall the SPD.

Connect the ground cable of the

battery string or its BBB box to

the battery PE of the UPS or the

ground bar in the equipment

room based on the site survey.

6. Prepare and install a connector box based on site requirements. (For the hole size, see "Top

view of the distance between copper bars on the top.")

4. Install top supports and covers of the battery terminal protective covers.

5. Connect input and output busbars based on the top copper bar position diagram.

Port Description

Connection Method

Bolt Specifications

Bolt Length

Torque

Mains input/bypass

input/output/PE

Crimped DT terminals

M12

45 mm

N·m

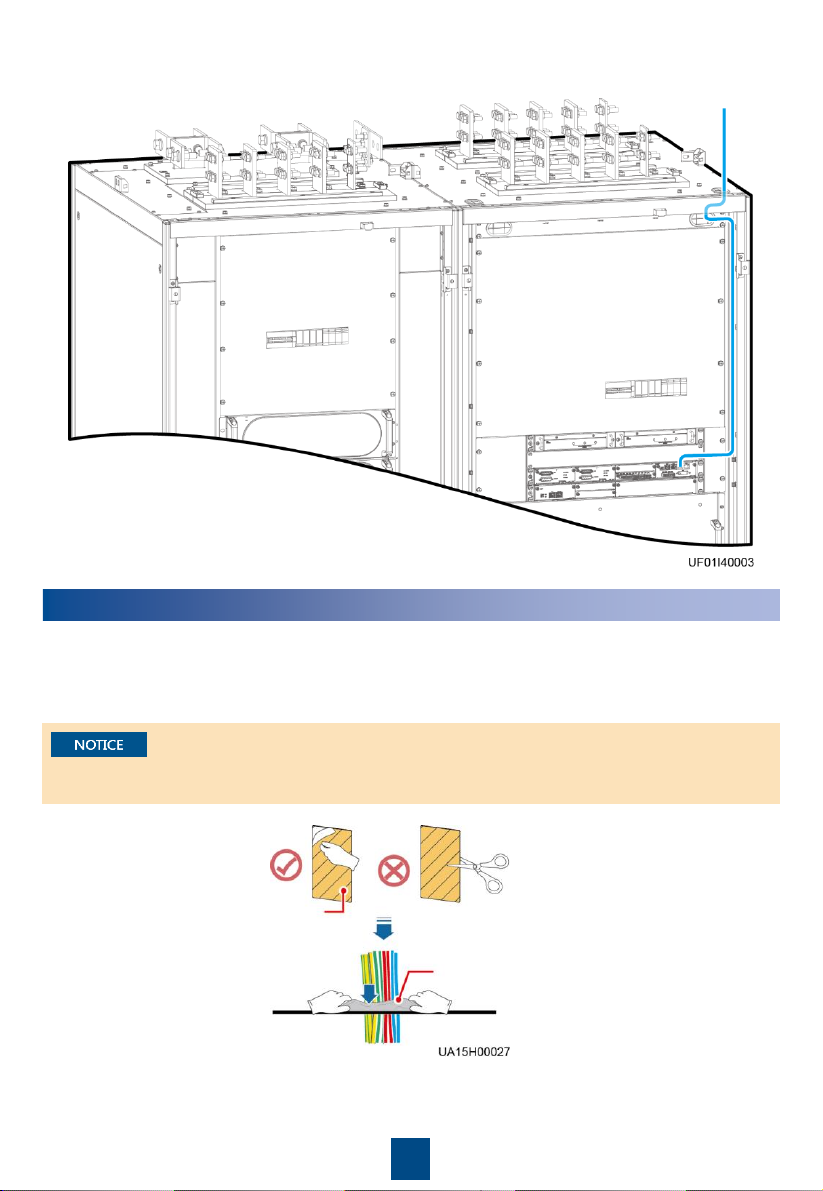

4Verifying the Installation

1. Check that there is no foreign matter in the cabinets.

2. (Remove the paper protective film from the sealing putty.) After routing cables and verifying

cable connections, seal the gap between cables and the cabinet using sealing putty.

Sealing putty must be used as a whole and the gap can be sealed only from the top.

Paper

protective

film Sealing putty

7. Install a signal cable.
