Huawei UPS5000-S-880K-SM Bedienungsanleitung

Model Weight Dimensions (H x W x D)

UPS5000-S-880K-SM 1550 kg 2000 mm x 2400 mm x 850 mm

(1) Power module

(2) Control

module

(3) Maintenance bypass

switch

(4) Power distribution

module cover

(5) Bypass module

1Product Overview

UPS5000-S-880K-SM

1. Before installation, read the user manual carefully to get familiar with product information and

safety precautions.

2. Use insulated tools when installing the equipment.

3. Only engineers certified by Huawei or its agent are allowed to install, commission, and maintain

the UPS. Otherwise, personal injury or equipment damage may occur, and the resulting UPS

faults are beyond the warranty scope of Huawei.

4. This document describes the installation procedure for a single UPS. For details about how to

install a parallel system, contact Huawei technical support.

Issue: 01

Date: 2019-04-09

UPS5000-S-880 kVA Quick Guide

(CMI)

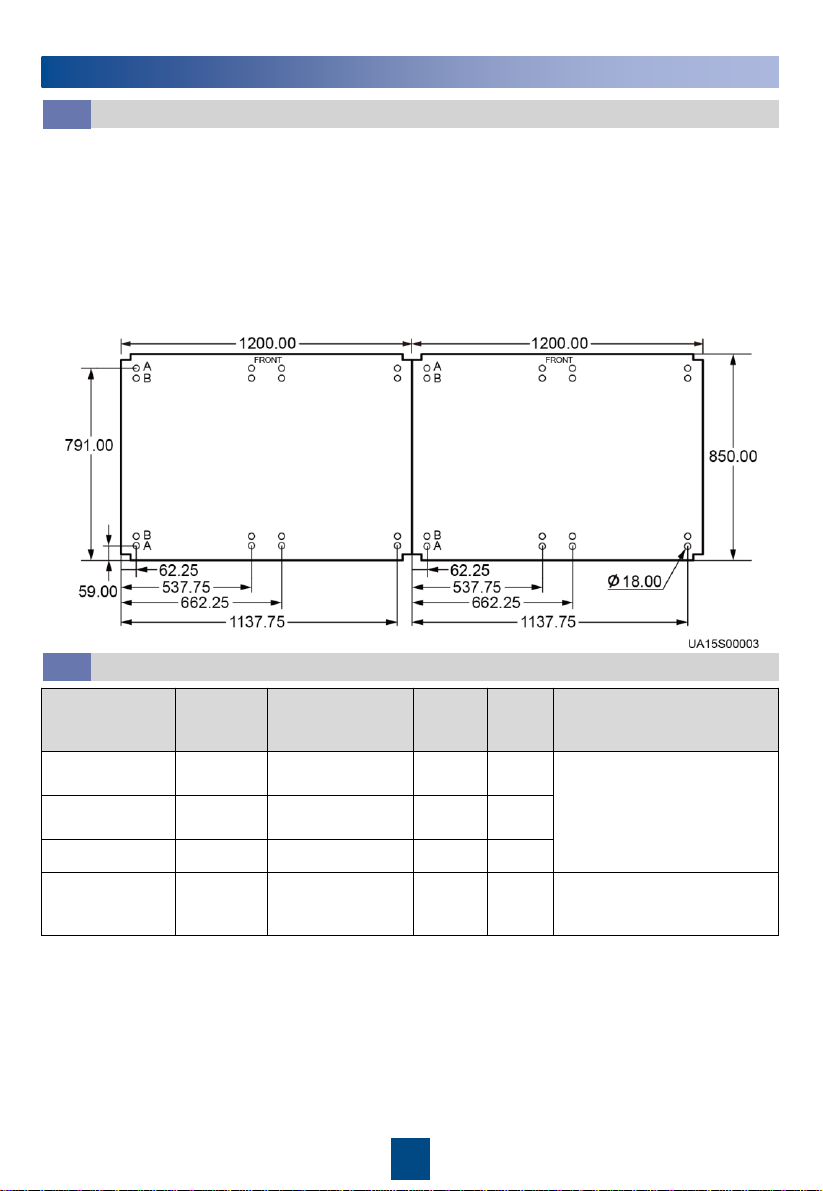

The UPS can be installed on channel steel or the floor. Install the UPS based on site requirements.

Floor installation: Determine the UPS mounting holes using the marking-off template, drill holes,

and install the expansion sleeves of the M12x60 expansion bolts in the mounting holes.

Channel steel installation: Ensure that the distance between the outer surfaces of two pieces of

channel steel is 800 mm and secure the channel steel to the floor using expansion bolts.

Huawei does not provide channel steel or expansion bolts used for securing channel steel. The

customer should purchase channel steel (recommended width: 50 mm or more) and expansion

bolts.

Unit: mm

A: mounting holes on the channel steel

B: mounting holes on the floor

2Installing the UPS

Installation

Fitting

Number

of Fittings

(PCS)

Specifications of

Bolt for Securing

Fittings

Number

of Bolts

(PCS)

Torque

Remarks

Bottom

connecting plate

M12x25

47 N·m

Fittings are delivered with

the UPS. You can see the

fittings after unpacking the

bypass cabinet.

The two soft copper bars

are numbered 52.

Top connecting

plate

x30

N·m

Soft copper bar

M12

x45

47 N·m

Middle

connecting plate

M6x30

N·m

Middle connecting plates

have been installed on the

UPS.

Determining the UPS Installation Position

2.1

Combining the Power Cabinet and Bypass Cabinet

2.2

1. Move the UPS to the installation position and open the front door of the power cabinet.

2. Install the connecting plates between the bypass cabinet and its adjacent power cabinet based

on the following sequence: bottom, top, and middle connecting plates.

Channel steel installation: M12x60 bolts

Floor installation: M12x100 expansion bolts

(1) Mounting hole

on the floor

(2) Mounting hole on the channel

steel

3. Secure the UPS.

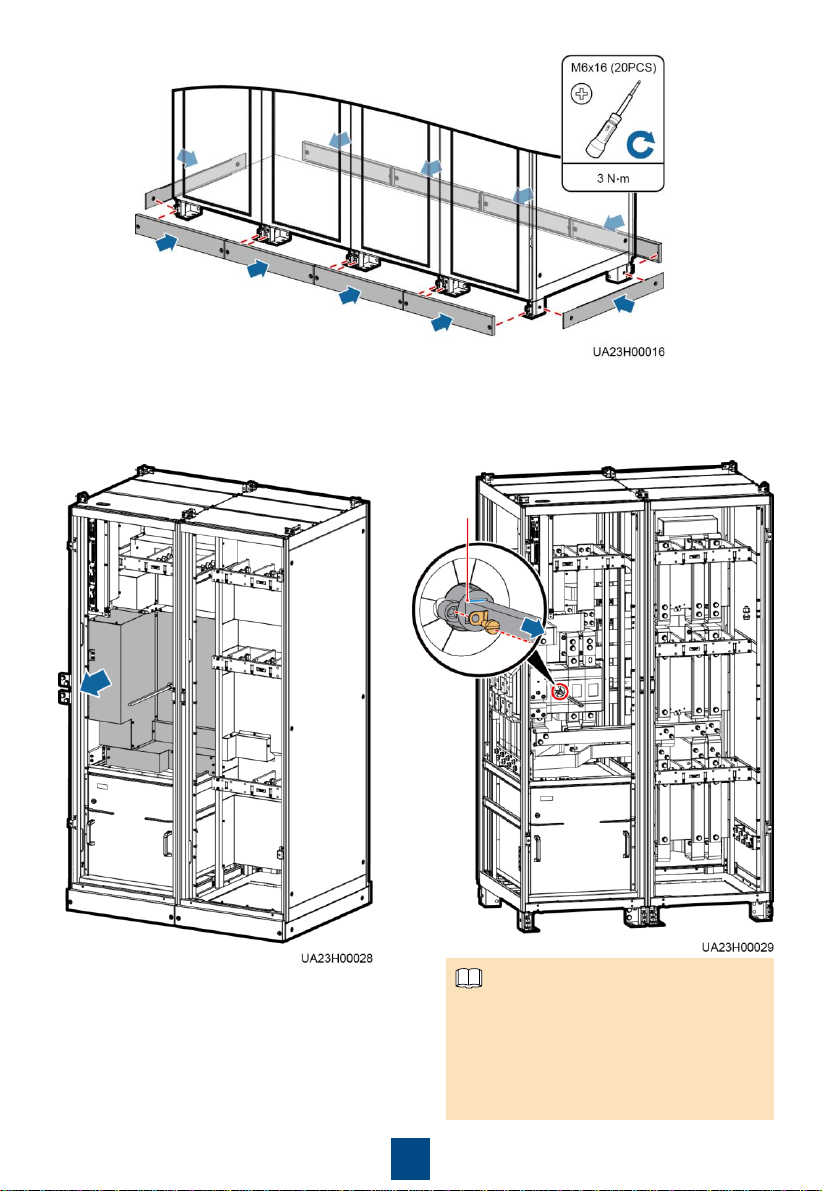

4. Install anchor baffle plates.

7. (Optional) Remove the extension rod of the

maintenance bypass switch from the bypass cabinet.

5. Remove the front cover of the power distribution subrack from the bypass cabinet, and remove

the rear covers from the bypass cabinet and its adjacent power cabinet.

When reinstalling the switch extension

rod, keep the dowel level, as shown in

the figure. Insert the switch extension rod

to the blue mark, put washers, and

tighten the dowel to reinstall the switch

extension rod.

Blue mark

6. Take off No.10 protective plate.

NOTE

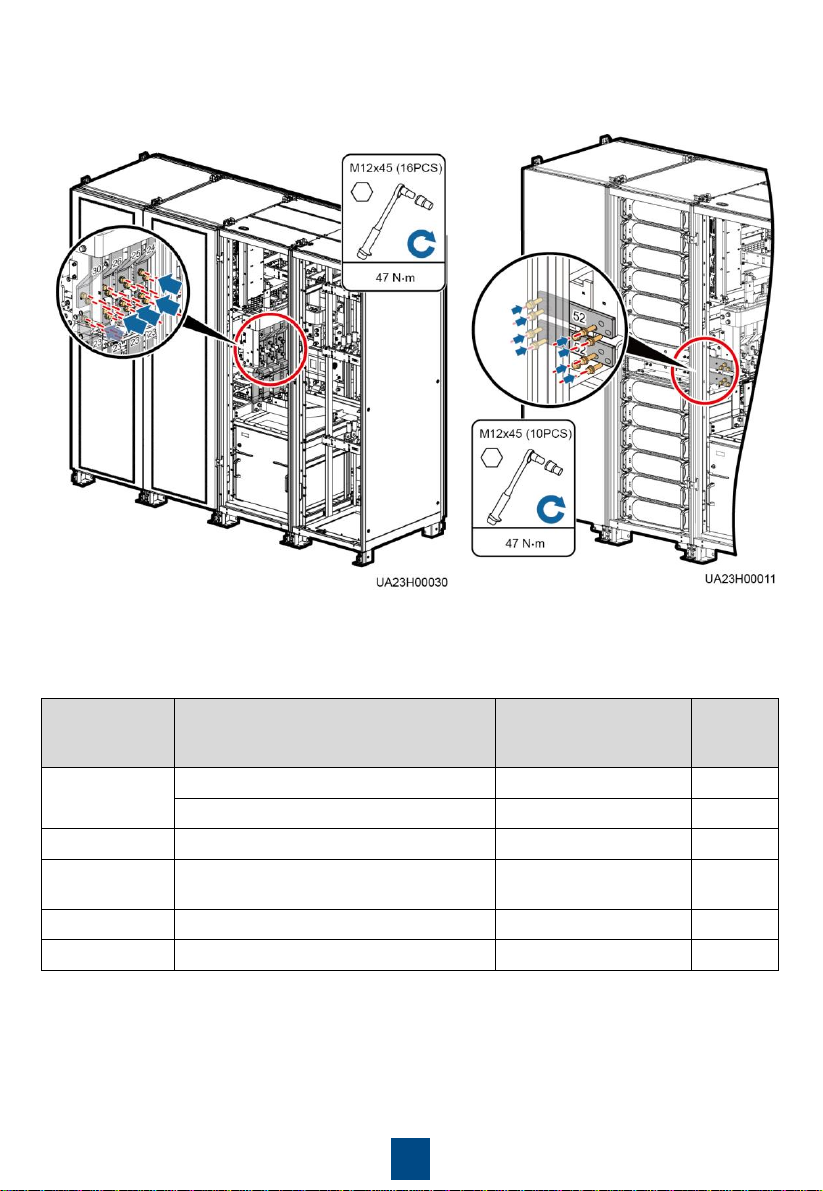

8. Cut off the cable ties binding holes of copper bars

numbered 23, 24, 25, 26, and 30. Install the soft

copper bars in the bypass cabinet and its adjacent

power cabinet from inside out.

9. Remove the filler panel from the

power cabinet, and install the soft

copper bar numbered 52.

10. Reinstall No. 10 protective plate removed in Step 6.

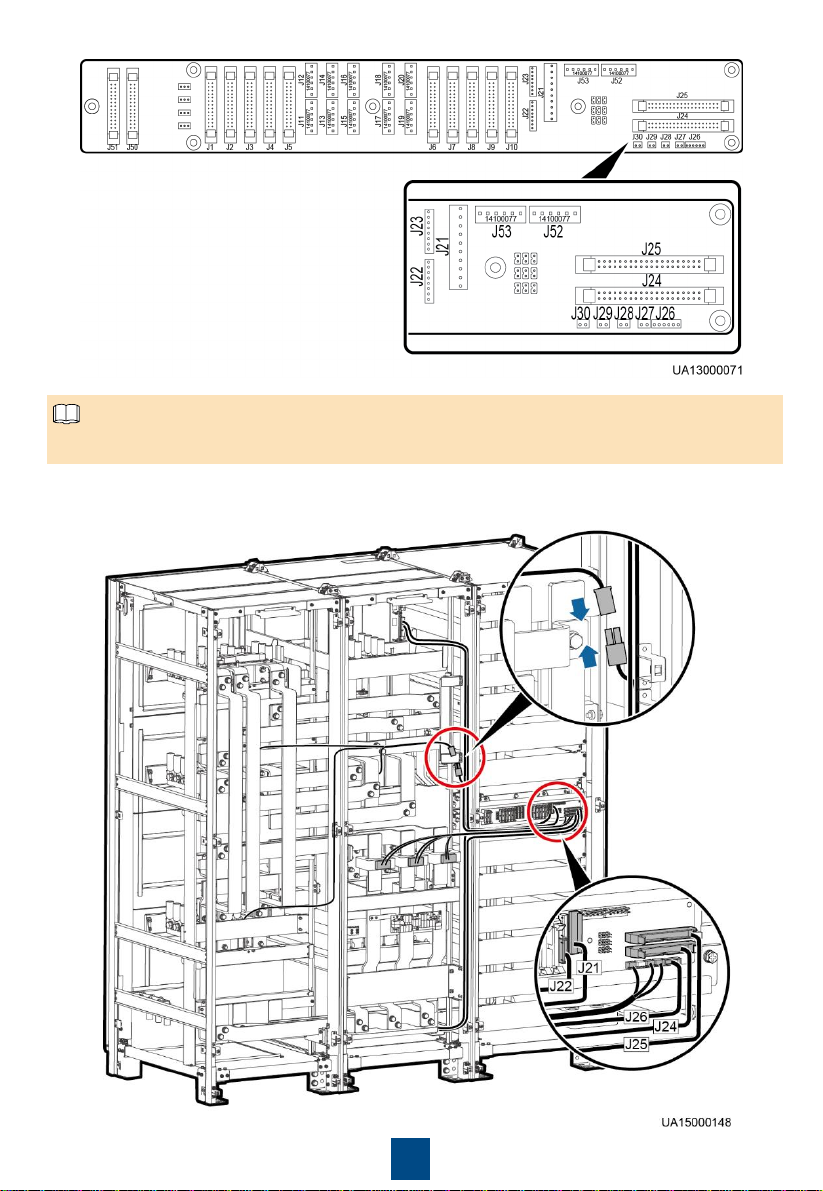

11. Insert the cable terminals of the bypass cabinet into the corresponding ports on the parallel

board of the power cabinet. The parallel board is located at the rear of the power cabinet

adjacent to the bypass cabinet and it can be seen after the rear cover is removed.

Bypass Cabinet

Cable Name Bypass Cabinet Cable Label or Number

Port Silk Screen on the

Power Cabinet Parallel

Board or Cable Number

Quantity

Bypass module

DL37 cable W301_J21 J21 1

W303_J24 J24 1

ECM 8

pin cable

W305_J22 J22 1

ECM system

monitoring bus W307_J25 J25 1

CT cable W309_J26 J26 1

Switch cable SW1310 04091626-23 1

A UPS in 880kVA configuration has only one switch cable (maintenance bypass switch).

NOTE

3Connecting Cables

1. This document describes cable routing by removing the top cover when there are two mains

inputs.

2. In the case of single mains, you do not need to connect bypass input power cables and remove

short-circuit copper bars.

UPS Cable Connection Reference

3.1

•Prepare cables away from the cabinets to prevent scraps from falling inside. Cable scraps may

ignite and cause personal injury or device damage.

•After cables have been installed, clean the cabinets in a timely manner. Keep the cabinets and

surrounding environment clean and tidy.

•You need to prepare terminals onsite. The stripped length of the copper wire should be the

same as that of the part of the terminal that covers the conductor.

The cabling route is for reference only. Connect cables based on site requirements.

NOTE

2. Remove the copper bar between the mains

and bypass inputs. (Skip this step if there

is only one mains input.)

4. Connect the mains input power cable.

(1) Cover for battery cables

(2) Cover for power cables

(3) Signal cable hole

3. Connect the ground cable.

1. Remove the covers from the top of the cabinet, drill holes into the covers for the power cables and

battery cables, attach grommet strips on the hole edges for protecting cables, and reinstall the

covers.

Installing Cables

3.2

Scenario 1: Routing Cables from the Top

5. Connect the output power cable. 6. Connect the bypass input power cable.

7. Connect the battery cable.

8. Connect the signal cable.

The figure shows the signal cable

routing and is for reference only.

Connect the cable based on the actual

situation.

9. Reinstall the extension rod of the

maintenance bypass switch.

NOTE

4Verifying the Installation

Scenario 2: Routing Cables from the Bottom

For the screw specifications and torque

used for connecting cables in a bottom

cable routing scenario, refer to the top

cable routing scenario. This section only

shows the cable routes in the bottom cable

routing scenario.

NOTE

1. Remove the cable covers from the bottom of

the cabinet, drill holes in the covers, attach

grommet strips to the hole edges for

protecting cables, and reinstall the cable

covers.

2. Connect power cables and signal cables.

1. Check that there is no foreign matter in the cabinet.

2. After verifying the installation, reinstall all

the covers.

3. (Remove the paper protective film from the

sealing putty.) After routing cables and

verifying cable connections, seal the gap

between cables and the cabinet using

sealing putty.

Sealing putty

Sealing putty must be used as a whole and

the gap can be sealed only from the top.

Paper

protective film
