Huawei UPS5000-A-400K-FTS Bedienungsanleitung

Issue: 04

Part Number: 31509968

Date: 2019-12-24

UPS5000-A-400 kVA Quick Guide

(PF=0.9)

1Overview

Model UPS5000-A-400K-FTS

Weight 676 kg

Dimensions (H x W x D) 2000 mm x 1200 mm x 850 mm

1. Before installation, read the user manual carefully to get familiar with product information and

safety precautions.

2. Use insulated tools during installation and operation.

3. Only engineers certified by Huawei or its agents are allowed to install, commission, and maintain

the UPS. Otherwise, personal injury or equipment damage may occur, and the UPS faults

caused are beyond the warranty scope of Huawei.

(1)

Power units

(2)

Control unit

(3) Mains input switch

(4) Output switch

(5) Power distribution

unit covers

(6) Maintenance bypass

switch

(7) Bypass input switch

(8) Bypass unit

A: Mounting holes on the channel steel B: Mounting holes on the floor

Determining the UPS Installation Position

2.1

The UPS can be installed on the channel steel or floor. Determine the mounting hole positions using a

marking-off template (unit: mm), drill holes, and install expansion sleeves based on site requirements.

Channel steel installation: Ensure that the distance between the outer surfaces of two pieces of

channel steel is 800 mm and secure the channel steel to the floor using expansion bolts. Huawei

does not provide channel steel or expansion bolts used for securing channel steel. The customer

should purchase channel steel (recommended width: 50 mm or more) and expansion bolts.

2Installing the UPS

Unit: mm

•Ground mounting: Secure the cabinet to the ground by using eight M12x60 expansion bolts.

•Steel channel mounting: Secure the cabinet to steel channels by using eight M12x60 common

bolts.

(1)

Cabinet mounting holes (ground installation mode)

(2)

Cabinet mounting holes (channel steel installation mode)

Securing the UPS

2.2

Installing the Front, Rear, Left, and Right Anchor Baffle Plates

2.3

3Installing Cables

UPS Cable Connection Reference

3.1

•Prepare cables away from the cabinets to prevent scraps from falling inside. Cable scraps may

ignite and cause personal injury or device damage.

•After cables have been installed, clean the cabinets in a timely manner. Keep the cabinets and

surrounding environment clean and tidy.

•You need to prepare terminals onsite. The stripped length of the copper wire should be the

same as that of the part of the terminal that covers the conductor.

The cabling route is for reference only. Connect cables based on site requirements.

1. Open the front door of the bypass cabinet,

and remove power distribution covers

3. Remove the copper bar between the mains

and bypass inputs. (Skip this step if there is

only one mains input)

Installing Cables

3.2

4. Connect the ground cable to the UPS.

2. Remove the top cover from the cabinet

based on cable routes and dimensions.

Scenario 1: Routing Cables from the Top

5. Connect the mains input power cable. 6. Connect the output power cable.

7. Connect the bypass input power cable. 8. Connect the battery cable.

9. Connect signal cables.

The figure shows the signal cable routing and

is for reference only. Connect the cable based

on the actual situation.

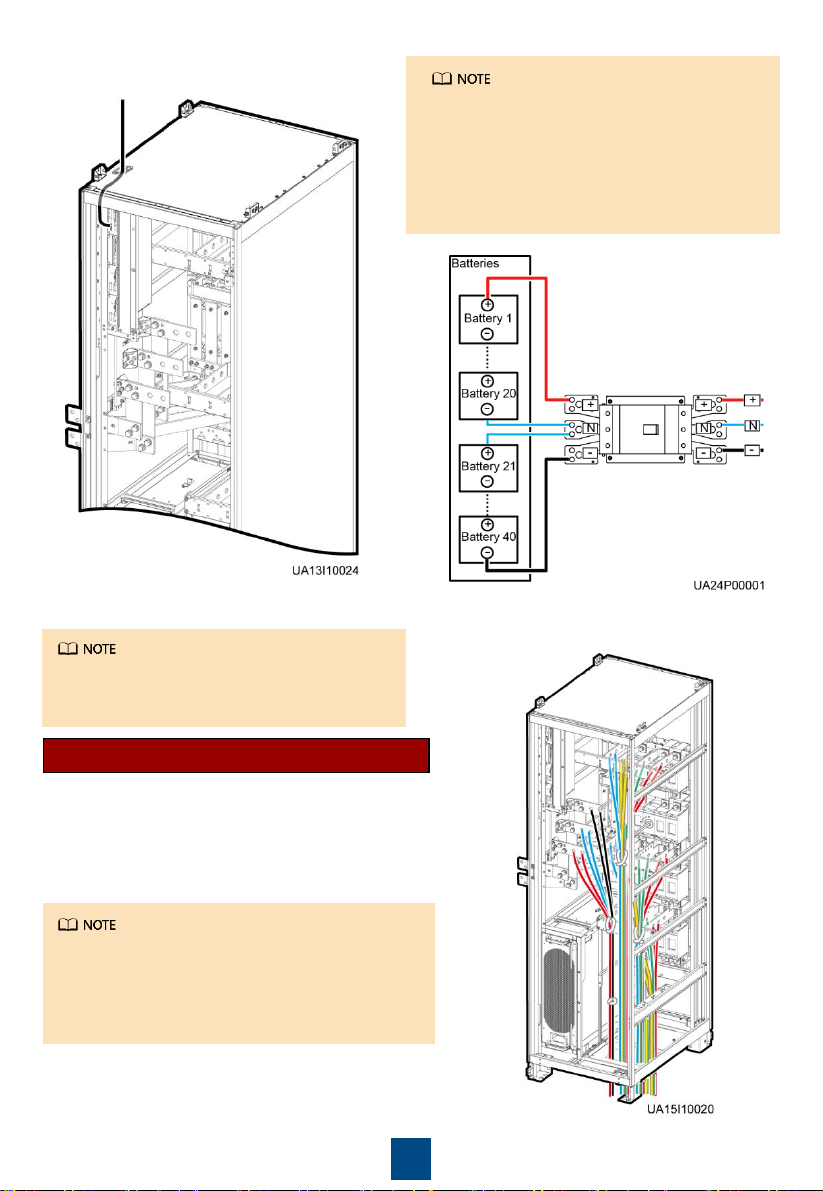

Route a neutral wire from the middle of the

positive and negative battery strings.

Take a battery string consisting of 40

batteries as an example. A neutral wire

is routed from the middle of positive and

negative battery strings, each consisting of

20 batteries.

Scenario 2: Routing Cables from the Bottom

For the screw specifications and torque used for

connecting cables in a bottom cable routing

scenario, refer to the top cable routing scenario.

This section only shows the cable routes in the

bottom cable routing scenario.

1. Remove the cable covers from the bottom of the

cabinet, drill holes in the covers, attach grommet

strips to the hole edges for protecting cables, and

reinstall the cable covers.

2. Connect power cables and signal cables.

4Verifying the Installation

1. Check that there is no foreign matter at the top and bottom of the cabinet, copper bars, and the

rear of modules.

Switches

Mains input wiring copper bars

Battery input wiring copper bars

Output wiring copper bars

Bypass input wiring copper bars

Dustproof

cover

3. After verifying the installation, reinstall all the

covers.

4. Do not remove the dustproof cover before

power-on to prevent dust from entering the

UPS.

2. After routing cables and verifying cable

connections, seal the gap between cables

and the cabinet using flake sealing putty.

(Remove the paper protective film from the

sealing putty and use the aluminum foil film

together with the sealing putty.)

Sealing putty

Paper

protective film

Sealing putty must be used as a whole and the

gap can be sealed only from the top.

5Powering On and Starting the UPS

Powering On the UPS

5.1

1. Before powering on the UPS, ensure that the UPS has passed all check items in the UPS5000

Commissioning and Acceptance Report and Chapter 4.

2. Measure the voltage and frequency of the mains and bypass inputs of the UPS, or the voltage

and frequency output from the external input power distribution cabinet (PDC) to the UPS.

Ensure that the line voltage is in the range of 138–485 V AC and the frequency is in the range

of 40–70 Hz.

Close the upstream bypass and mains input switches.

Close the UPS bypass input switch, output switch, and mains input switch.

After the UPS is powered on, initialization begins. The MDU displays the Huawei logo and an

initialization progress bar.

Starting the Inverter

5.2

Default User Preset Password

admin (administrator) LCD 000001

Web Changeme

operator (common user) LCD 000001

Web Changeme

browser (browsing user) Web -

InitialStartup

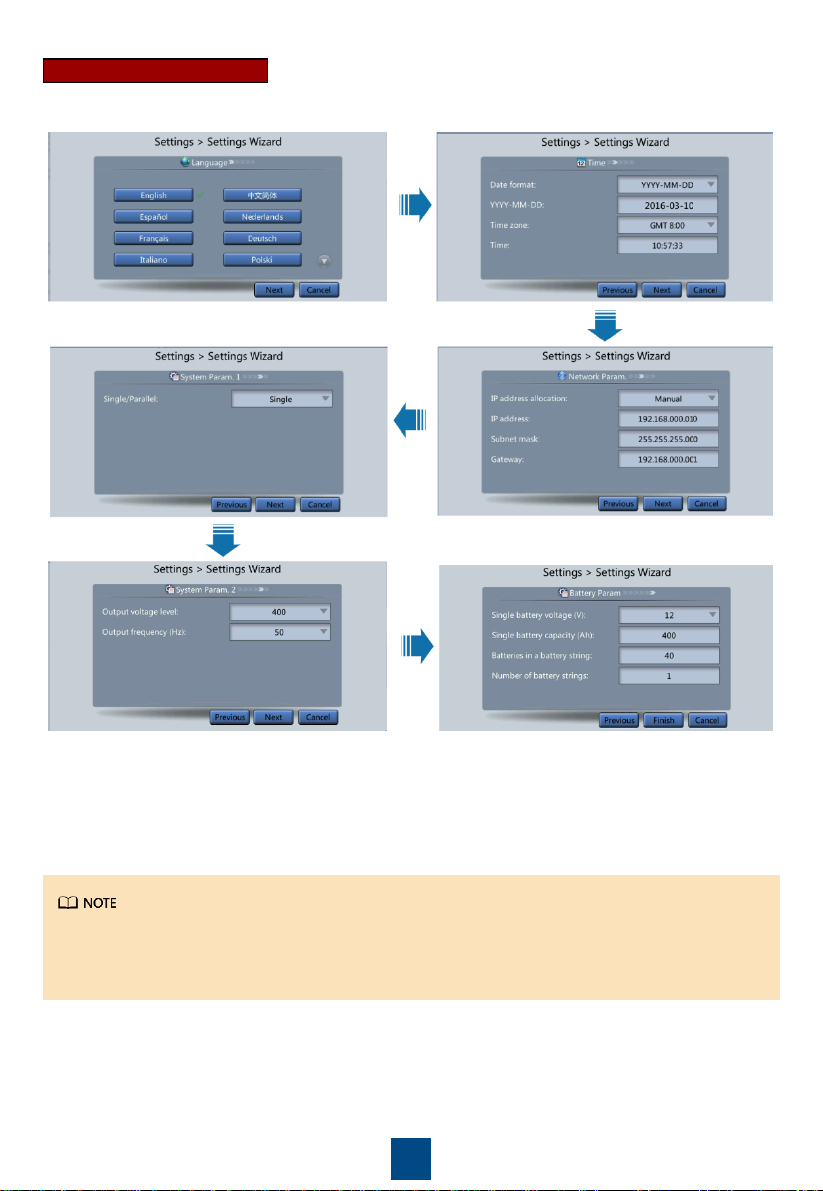

a. During the initial startup, set the language, time and date, network parameters, and system

parameters on the Settings Wizard screen.

b. After you set parameters on the Settings Wizard screen, the MDU displays the Bypass mode

and No battery alarms, which do not need to be handled. If there is any other alarm, you need to

rectify the fault.

c. View the system running diagram on the MDU to check that the UPS is working in bypass mode.

•The Service Expert app can be downloaded from Google Play and can run on Android.

•The port number is 443 by default and can be modified. If the UPS is managed using the app,

the port number must be set to 443.

Non-initial Startup

Download the mobile phone app

(Service Expert).

On the home screen of the app, tap Startup to

access the Set Startup screen. Select Site and

Device Type as required and connect to the

device. Enter UPS IP address and port

number (default value: 443), use the user

name and password of the WebUI account,

and tap Login.

Enable the mobile phone WLAN, search for the

UPS WiFi signal, and connect to the WiFi

signal. The default value of SSID is UPS_WiFi.

Insert the WiFi module into the USB port on the

MDU. Choose System Info > Settings >

Communication > WiFi Settings on the MDU.

After login, tap Power-on password activation

on the screen. A message is displayed,

indicating whether to start the UPS. Tap OK.

On the Offline Activation screen, enter the

Bar code and Verification obtained from

the MDU. Tap Generate PWD to generate

a startup password.

On the MDU, choose System Info >

Maintenance > Inv. ON and obtain the Bar

code and Verification.

Enter the generated password in the

password text box on the MDU to start the

inverter.

Use the app to

start the inverter

online?

Yes

No, start the

inverter offline

Open the Service Expert app.

On the home screen of the app, tap

Startup to access the Set Startup screen.

Select Site and Device Type as required,

and tap Offline Activation.

a. Choose Common Functions from the main menu and tap

Inv. ON.

b. In the displayed login window, enter the user name and

password, and tap .

c. In the displayed dialog box, tap OK to start the inverter.

Powering On Loads

5.3

1. After the inverter starts, the UPS works in normal mode. The Bypass mode alarm disappears.

2. After confirming that the battery strings are properly connected, turn on the battery string input

circuit breaker. If there are multiple battery strings, turn on the circuit breaker for each battery

string and then the general circuit breaker between battery strings and the UPS. The No battery

alarm disappears from the MDU.

3. Turn on the UPS downstream output switch to supply power to the loads.

To ensure system security,

change the LCD and WebUI

passwords after the first login.
