Huawei UPS2000-G-3K-V1-DR Bedienungsanleitung

UPS2000-G-3 kVA

Quick Guide (CTC)

Issue: 01

Date: 2019-03-15

1Overview

Product Model Weight Dimensions (H x W x D)

UPS UPS2000-G-3K-V1-DR 32 kg 130 mm x 430 mm x 757 mm

BoostLi Energy

Storage Module ESM-48100A1 70 kg 190 mm x 442 mm x 560 mm

(excluding mounting ears)

PDU - 9.7 kg 86 mm x 442 mm x 601.5 mm

(excluding rectifiers)

Rectifier R4850G2 ≤ 2 kg 40.8 mm x 105 mm x 281 mm

UPS Front View

No.

Name

Description

LCD

N/A

Mains indicator

•

On: The UPS is working in

normal mode.

•

Off:TheUPS is not working in

normal mode.

Battery indicator

•On: The UPS is in battery mode.

•

Off: The UPS is not in battery

mode.

•

Blinking: The remaining battery

capacity is less than 25%.

Bypass indicator

•On: The UPS is in bypass mode.

•

Off: The UPS is not in bypass

mode.

Fault

indicator/INFO

button

•

Steadyred: The UPS is faulty.

•Blinking red: The UPS generates

an alarm.

•

Green:The UPS is running

properly.

Enter/Startup

button

Confirmssettings,starts the UPS,

mutes the buzzer, or performs a

battery self

-check.

Down button

N/A

Up button

N/A

ESC/Shutdown

button

Returns to an upper

levermenu, or

shuts down the UPS.

The UPS is working in ECO mode

only when the mains indicator and

bypass indicator are both on.

NOTE

Front View of BoostLi Energy Storage Module

UPS Rear View

(1) AC input and AC

output terminal

cover

(2) Battery terminal

cover

(3) Optional card slot

cover

(4) Port for a battery

temperature sensor

(5) Universal Serial Bus

(USB) port

(security

protection

mechanism

supported)

(6) Control area

network (CAN)

communications

ports

(7) Parallel ports

(8) Maintenance

bypass port

(9) Emergency power

off (EPO) port

(1)

ESM dry contact

output (DO1, DO2)

(2)

Communications

port (COM_ IN)

(3)

Communications

port (COM_ OUT)

(4)

Protective ground

(GND)

(5) I

ndicators

(6)

Button for manual

power

on/off (MANUAL

ON/OFF)

(7)

ESMU port for

connecting

to an external power

source (PWR)

(8) Positive and

negative terminals

(+, –)

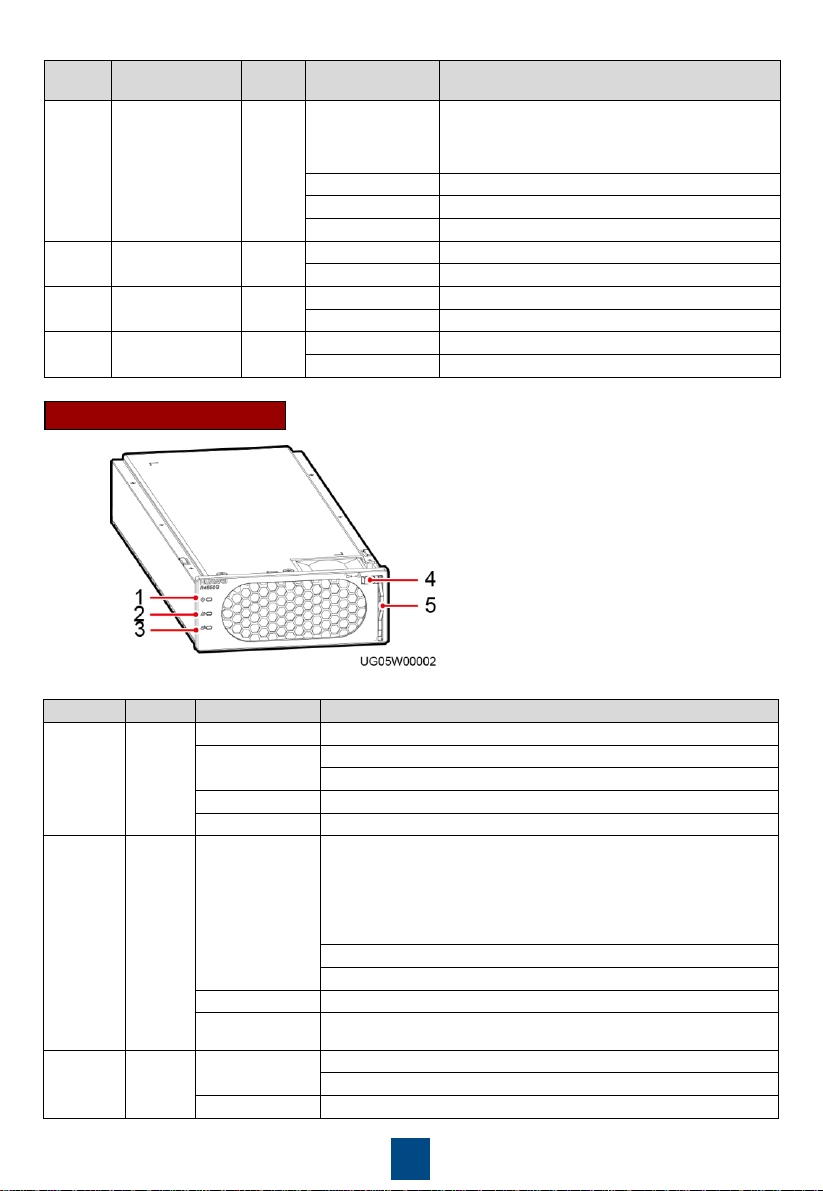

(1)

Power indicator

(2)

Alarm indicator

) Fault indicator

) Locking latch

) Handle

Indicator

Color

Status

Description

Power

indicator

Green

Steadyon

The rectifier has an AC powerinput.

Off

The rectifier has no AC powerinput.

The rectifier is faulty.

Blinking at 0.5 Hz

The rectifier is beingqueried.

Blinking at 4 Hz

The rectifier is loading an applicationprogram.

Alarm

indicator

Yellow

Steadyon

•

The rectifier generatesan alarm for powerlimiting due to

ambient overtemperature.

•

The rectifier generatesan alarm for shutdown due to ambient

overtemperatureor undertemperature.

•

The rectifier shuts down due to overcharge.

•

The rectifier shuts down due to system current limiting.

The rectifier protectsagainst AC input overvoltage or

undervoltage.

The rectifier is hibernating.

Off

No alarm is generated.

Blinking at 0.5 Hz

The communicationbetweenthe rectifier and the external

equipmentis interrupted.

Fault

indicator

Red

Steadyon

The rectifier locks out due to output overvoltage.

The rectifierhas no output due to an internal fault.

Off

The rectifier is running properly.

Rectifier in the PDU

Silk

Screen

Indicator

Color

Status

Description

RUN

Running indicator

Green

Steadyon

Communicationis normal (including board startup,

self

-check,software loading, and board power-

when not loaded;excluding sleep when the power

portor PWRport is energized).

Off

The ESM is in sleep mode.

Blinking at 0.5 Hz

The LCD user interface(LUI) is querying data.

Blinking at 4 Hz

Communicationis disconnected.

ALM

Fault indicator

Red

Steadyon

There is a fault or major alarm.

Off

There is no fault or major alarm.

CHG

Charge indicator

Green

Steadyon

The ESM is being charged.

Off

The ESM is open

-circuitedordischarging.

DCHG

Discharge

indicator

Green

Steadyon

The ESM is discharging.

Off

The ESM is open

-circuitedorbeing charged.

UPS (3 U)

BoostLi Energy Storage

Module (4.5 U)

PDU (2 U) Rectifier

2Installing Devices

1. Determine the installation space.

1. Install devices from

bottom to top, as shown

in the figures.

2. The UPS currently

supports two BoostLi

energy storage modules.

To install more BoostLi

energy storage modules,

contact Huawei

technical support.

NOTE

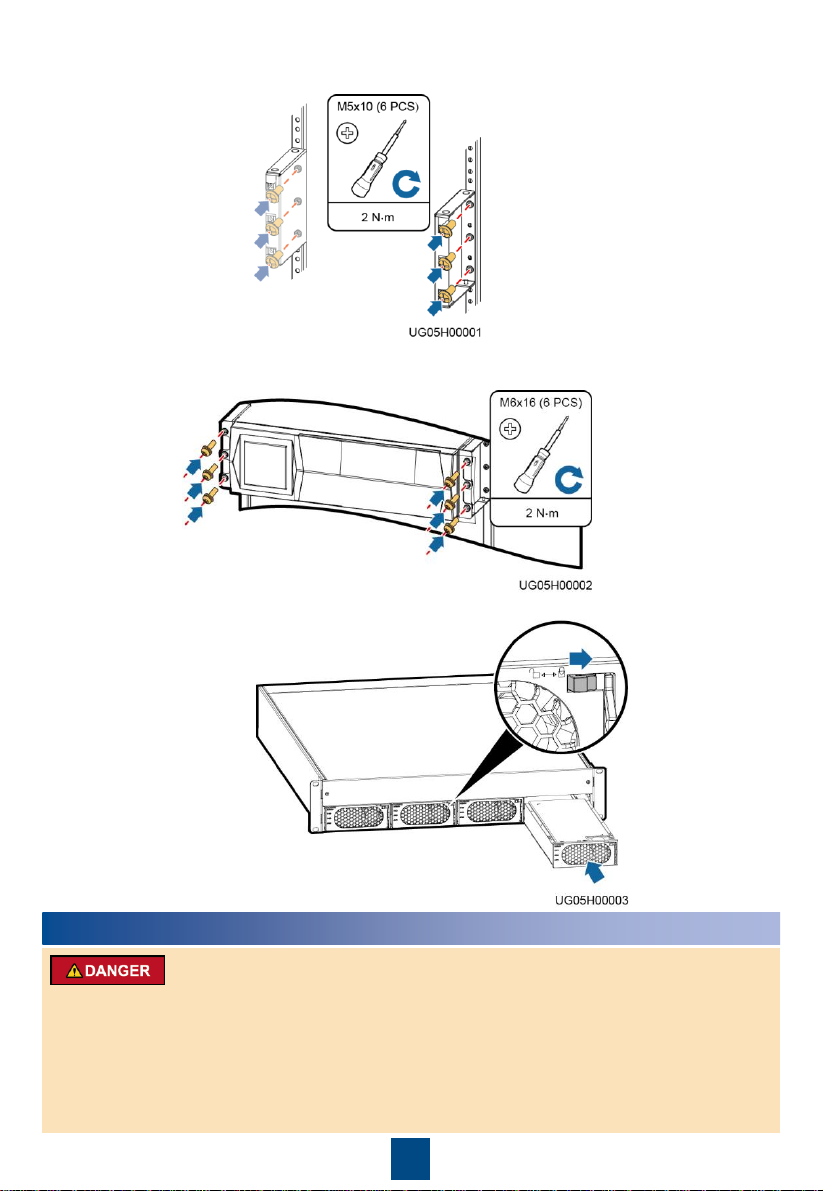

a) Install the mounting brackets for the UPS.

1. Before installation, read the user manual carefully to get familiar with product information and

safety precautions.

2. Use insulated tools during installation.

3. Only engineers certified by Huawei or its agents are allowed to install, commission, and

maintain the UPS. Otherwise, personal injury or equipment damage may occur, and the UPS

faults caused are beyond the warranty scope of Huawei.

2. Install the BoostLi energy storage modules on the rack in the bottom-up sequence.

3. Install the UPS on the rack.

≥ 1 U space

3Installing Cables

1. Connect UPS AC input and output power cables in the same phase sequence. Connect the

battery terminals correctly.

2. Before connecting cables, ensure that the input circuit breaker, output circuit breaker, and

battery circuit breaker are OFF. Perform all tasks with the power off.

3. When the AC input or AC output changed, for details about how to change the input or output

system, contact Huawei technical support. Do not power on the UPS directly.

4. Connect the UPS output power cable to the AC OUTPUT sL terminal.

4. Insert the rectifier into the PDU, lock the locking latch

of the rectifier, and install the PDU on the rack.

c) Install guide rails based on the actual situation.

d) Place the UPS into the rack.

b) Install the mounting ear extension mechanical part.

Wiring Diagram

Short-circuit

copper bar

UPS output busbar

1. Install the UPS output short-circuit copper bar.

2. Install cables.

AC output

power cable

AC input

power cable

PDU rear

UPS rear

Battery front

UPS

CAN

Battery

CAN

Battery

cable

UPS input

cable

UPS output

cable

Battery

cable Battery

cable

Battery

CAN

(1)

(2)

(3)

(4) (5)

(7)

(8)

(9)

(10)

(11)

(12)

(13)

(6)

No.

Type

Cross

sectional

Area

Terminal Type

Torque

Preparation

(1)

PDU AC input power

cable (L/N/PE)

25 mm

2M6 OT terminal

4.8 N

⋅m

Self

-provided

(2)

PDU AC outputpower

cable (L/N/PE)

6 mm

2M4 OT terminal

2.8 N

⋅m

Self

-provided

(3)

UPS outputpower

cable (sL/N/PE)

6 mm

-6mm2-M4 terminal/OT-6mm2-

terminal/OT-6mm2-M6 90°

terminal

2.8 N

⋅m

Providedby

Huawei

(4)

UPS inputpower

cable (L/N/PE)

6 mm

-6mm2-M4 terminal/6 mm2M6

OT terminal

2.8 N

⋅m

Providedby

Huawei

(5)

UPS batterycable (+,

N, N,

–, PE)

6 mm

-6mm2-M6 terminal /OT-6mm2-

M6 90

°terminal /OT-16mm2-M6

terminal

2.8 N

⋅m

Providedby

Huawei

(6)

Battery cable(+,

–)

6 mm

-6mm2-M6 terminal /OT-6mm2-

M4 terminal

2.8 N

⋅m

Self

-provided

(7)

Battery cable(+,

–)

(8)

UPS CAN

communicationscable

Ethernet

cable

RJ45 terminal

Providedby

Huawei

(9)

Battery CAN

communicationscable

Ethernet

cable

RJ45 terminal

Providedby

Huawei

(10)

Battery CAN

communicationscable

(11)

PDU PE

25 mm

2M6 OT terminal

4.8 N

⋅m

Self

-provided

(12)

Battery PE

6 mm

2M6 OT terminal

4.8 N

⋅m

Self

-provided

(13)

Battery PE

6 mm

2M6 OT terminal

4.8 N

⋅m

Self

-provided

Recommended Cables

Cable Description

No.

Cable name

Cable

Label (Connect to

UPS)

Cable

Label (Connect

to PDU)

Cable

Color

(

UPS outputpower

cable (sL/N/PE)

AC_OUTPUT_L

UPS_OUT_L

BLACK

AC_OUTPUT_N

UPS_OUT_N

WHITE

AC_OUTPUT_PE

UPS_OUT_PE

GREEN/YELLOW

(4)

UPS inputpower

cable (L/N/PE)

AC_INPUT_L

UPS_IN_L

BLACK

AC_INPUT_N

UPS_IN_N

WHITE

AC_INPUT_PE

UPS_IN_PE

GREEN/YELLOW

(5)

UPS batterycable

(+, N, N,

–, PE)

BATT+

UPS_BAT+

RED

BATT_N

UPS_BAT_N

WHITE

BATT_N

BATT

UPS_BAT

BLUE

BATT_PE

UPS_BAT_PE

GREEN/YELLOW

Battery

undervoltage

UPS faults

Backfeed

Bypass mode

Battery mode

Normal mode

Shutdown

signals

4(Optional) Connecting Cables to Optional Cards

Dry Contact Card

Customer

equipment

Typical Application Scenario

Pin Dry Contact

Definition

(Default) Contact Report Criteria Reference

18, 5 UPS faults Contact a, lower

than 30 V/1 A

The UPS is faulty, including:

startup failure, battery fault,

rectifier fault, INV fault, internal

fault, fan fault, charger fault,

memory fault, overvoltage, and

software version fault.

Contact 6

7, 19 Backfeed Contact a, lower

than 30 V/1 A

Bypass backfeed alarm. The

possible cause is that the bypass

component is faulty. Contact 5

21, 8 Battery

undervoltage Contact a, lower

than 30 V/1 A The battery voltage is less than

47 V. Contact 4

10, 22 Bypass mode Contact a, lower

than 30 V/1 A

The UPS works in bypass mode

when the following conditions are

met: The UPS is not powered on,

the UPS is overloaded, ECO is

triggered, and the UPS is

manually shut down.

Contact 3

24, 11 Battery mode Contact a, lower

than 30 V/1 A

The UPS battery supplies power.

The possible cause is that the

mains supply is abnormal, the

battery test is started, and the

battery is powered on in cold start

mode.

Contact 2

13, 25 Normal mode Contact a, lower

than 30 V/1 A Mains inverter mode Contact 1

14, 1 Shutdown signals Signal input -- ---

You can customize dry contact inputs by choosing Settings > Communication Card on the LCD.

NOTE

5(Optional) Connecting Cables to EPO Port

NOTE

1. Connect an external switch to the EPO ports. One second after you turn on the switch, which

means that terminals 1 and 2 are short-circuited, the inverter stops, and the bypass mode is

disabled. In this way, the UPS stops supplying power immediately.

2. The customer provides the external switch (it can be a common switch) that connects to EPO

ports.

6Verifying the Installation

No. Item Result

1If the input or output system changes, ensure the correct short-circuit copper bar

status and cable connections are applied to the input and output ports. □Passed

□Failed

2The input phase sequence is correct. Use a multimeter to check that the input

and output are not short-circuited. □Passed

□Failed

3 Cables and terminals are securely connected. □Passed

□Failed

4Battery cables and terminals are connected correctly, and voltages comply with

industry standards. □Passed

□Failed

5 The UPS is properly connected to battery strings. □Passed

□Failed

6 Input circuit breakers and load circuit breakers are OFF. □Passed

□Failed

7 Power cables and signal cables are correctly identified. □Passed

□Failed

8Ground cables are firmly connected. The voltage difference between a neutral

wire and a ground cable is less than 5 V AC. □Passed

□Failed

9The mains supply voltage is 73–144 V AC during power-on (73–144 V AC after

power-on). The battery voltage is greater than 46.5 V DC. □Passed

□Failed

Symbol Description Remarks

Press A. A and B indicate operation symbols on

the control panel.

Press A and then B.

Indicates omitted screens. N/A

A B

7Powering On and Starting the UPS

User interface (UI) snapshots shown in this document correspond to V200R001C91SPC070 and

are for reference only. If any UI changes are made, contact Huawei technical support to obtain

the latest snapshots.

NOTE

1Powering On the UPS

7.1

Check that the UPS has passed all check items described in chapter 6 "Verifying the

Installation".

Press and hold the MANUAL ON/OFF button on each lithium battery for at least 5s

and less than 15s to activate the lithium battery.

Close the upstream AC input circuit breaker for the UPS based on site requirements.

Start

End

No: Start the UPS

in battery mode.

Yes

Press

Start the UPS in normal mode?

The initialization screen is displayed.

Initial Startup

7.2

Parameter

Remarks

Language

You can select

Chinese, English (default), Spain, French, and Russian,

based on site requirements.

Voltage level

The values include

100 V (default), 110 V, and 120 V for single-phase

output.

Set it based on site requirements.

1. Incorrectly setting battery parameters compromises battery safety and battery backup time.

For details about parameter settings.

2. Set system parameters with caution because the settings determine normal UPS operation.

The settings wizard starts automatically when you start the UPS for the first time. For the non-first

startup, you can skip this chapter.

Parameter

Remarks

Frequency level

The values include

50 Hz, 60 Hz (default), and Automatic. Set it based on

site requirements.

If the value is Automatic, the power-

on bypass frequency

ranges from 40 Hz to 55 Hz (excluding 55 Hz), and the system output

frequency is 50 Hz; if the power

-on bypass frequency ranges from 55 Hz to

70 Hz, and the system output frequency is 60 Hz.

Battery capacity

Battery capacity is the sum of all battery capacities, set the parameters

based on the actual battery capacity. The value ranges from 100 Ah to 1000

Ah. The default value is 100 Ah.

Inhaltsverzeichnis

Andere Huawei UPS Handbücher

Huawei

Huawei Telecom Power TP48200A-DX12A1 Bedienungsanleitung

Huawei

Huawei PDU8000 Series Bedienungsanleitung

Huawei

Huawei UPS5000-A-200K-ST Bedienungsanleitung

Huawei

Huawei UPS2000-G-3KRTL-V2 Bedienungsanleitung

Huawei

Huawei SmartLi Series Bedienungsanleitung

Huawei

Huawei UPS5000-A-400 kVA Bedienungsanleitung

Huawei

Huawei UPS5000-E-50K-HABBS Bedienungsanleitung

Huawei

Huawei UPS5000-E Series Bedienungsanleitung

Huawei

Huawei UPS5000-A-400K-SL Bedienungsanleitung

Huawei

Huawei UPS5000-E-600 kVA Bedienungsanleitung

Huawei

Huawei UPS5000-S Series Bedienungsanleitung

Huawei

Huawei PDU8000 Series Bedienungsanleitung

Huawei

Huawei PDU8000 Series Bedienungsanleitung

Huawei

Huawei UPS5000-H Series Bedienungsanleitung

Huawei

Huawei UPS5000-S-1600KVA-FP Bedienungsanleitung

Huawei

Huawei UPS5000-S Series Bedienungsanleitung

Huawei

Huawei UPS5000-S-1200 kVA Bedienungsanleitung

Huawei

Huawei UPS5000-E-400K Series Bedienungsanleitung

Huawei

Huawei UPS5000-E-40 kVA Bedienungsanleitung

Huawei

Huawei UPS5000-E Series Bedienungsanleitung

Huawei

Huawei UPS5000-S-1200 kVA Bedienungsanleitung

Huawei

Huawei UPS5000-A-500 kVA Bedienungsanleitung

Huawei

Huawei UPS5000-H-1200K-NT Bedienungsanleitung

Huawei

Huawei UPS2000-G-3 kVA Bedienungsanleitung

Beliebte UPS Handbücher anderer Marken

Pylontech

Pylontech Victron & Pylontech US5000 Bedienungsanleitung

Tecnoware

Tecnoware EVO DSP PLUS MM 6.8 Bedienungsanleitung

Mecer

Mecer ME-1000-WTU Bedienungsanleitung

Mustek

Mustek PowerMust 530(B) Plus Installations- und Betriebshandbuch

Emerson

Emerson Liebert NXL series Bedienungsanleitung

MAKELSAN

MAKELSAN BOXER SERIES Bedienungsanleitung

Block

Block PC-0524-400-0 Bedienungsanleitung

CyberPower

CyberPower CP585LCD Bedienungsanleitung

Eaton

Eaton 3S Montageanleitung

CyberPower

CyberPower Office Tower Series UPS 1000 Bedienungsanleitung

CyberPower

CyberPower BM100 Bedienungsanleitung

Best Power

Best Power 610 Bedienungsanleitung

Best Power

Best Power Unity/I UT3K Bedienungsanleitung

Mustek

Mustek PowerMust 400 Offline Bedienungsanleitung

Xantrex

Xantrex Trace 512 UR-UPS Bedienungsanleitung

Forza

Forza SL-1501UL Bedienungsanleitung

LEGRAND

LEGRAND keor 310081 Bedienungsanleitung

ABB

ABB Conceptpower DPA 500 Bedienungsanleitung
