Huawei UPS5000-S200K-SM Bedienungsanleitung

Issue: 06

Part Number: 31507818

Date: 2019-10-16

UPS5000-S-(50 kVA-200 kVA)

Quick Guide

1Overview

UPS Model Cabling Mode Capacity Weight (Full

Configuration) Dimensions (H x W

x D)

UPS5000-S-

200K-SM Routed in and out from the

top or bottom 50 kVA,

100 kVA,

150 kVA,

200 kVA

330 kg

2000 mm x 600 mm

x 850 mm

UPS5000-S-

200K-FM

Routed in and out from the

top, routed in and out from

the bottom (install a cable

entry cabinet)

370 kg

The UPS5000-S-200K-SM is a standard configuration model. The UPS5000-S-200K-FM is a full

configuration model. A UPS in standard configuration has no mains input switch, bypass input

switch, or output switch.

NOTE

1. Before installation, read the user manual carefully to get familiar with product information and

safety precautions.

2. Use insulated tools when installing the equipment.

3. Only engineers certified by Huawei or its agent are allowed to install, commission, and maintain

the UPS. Otherwise, personal injury or equipment damage may occur, and the resulting UPS

faults are beyond the warranty scope of Huawei.

4. This document describes the installation procedure for a single UPS. For details about how to

install a parallel system, contact Huawei technical support.

UPS5000-S-200K-SM UPS5000-S-200K-FM

(1) Power modules (2) Bypass module (3) Control module (CM)

(4) Power distribution subrack cover (5) Filler panel (6) Monitor display unit (MDU)

(7) Maintenance bypass switch (8) Folder (9) Bypass input switch

(10) Main input switch (11) Output switch

2Installing the UPS

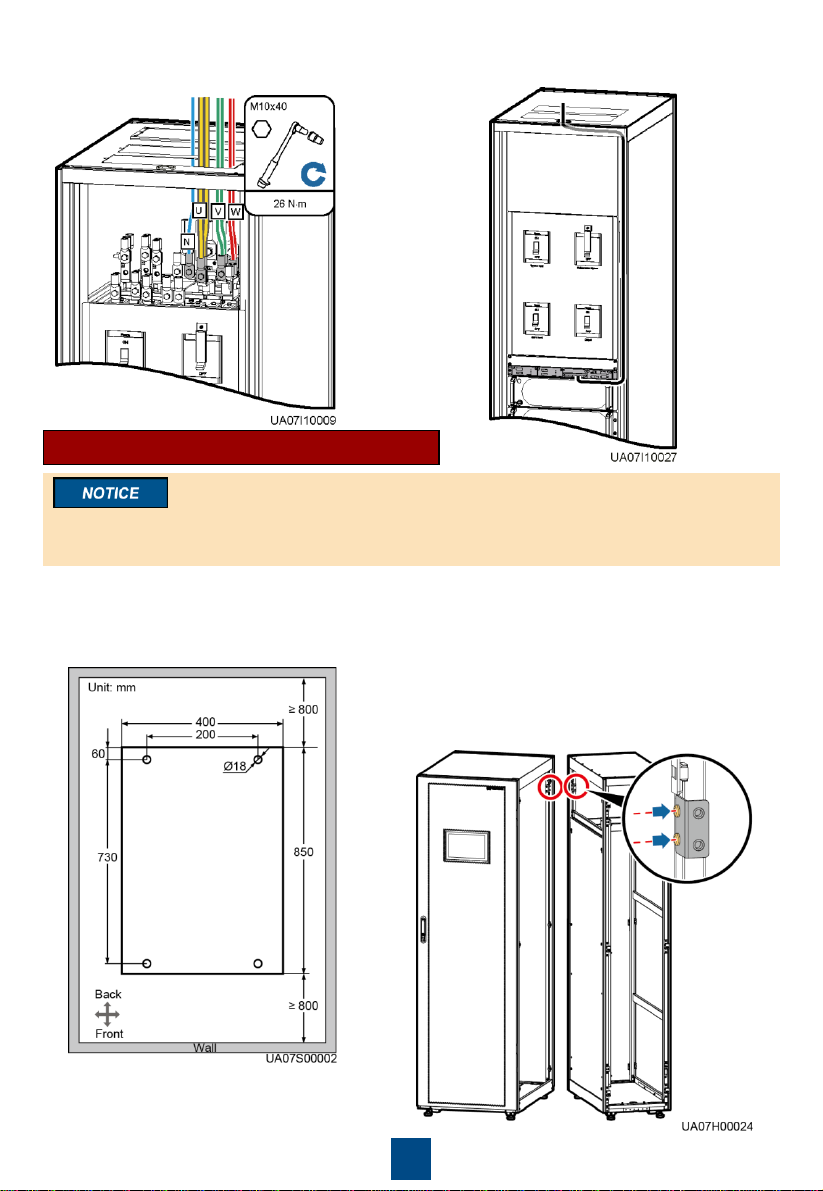

1. Determine the position for installing the cabinet. Mark mounting holes based on the drawings.

(unit: mm)

Secured Installation

1. Adjust the four anchor bolts at the bottom of the UPS cabinet until all the four castors at the

bottom hang in the air and the anchor bolts bear all of the cabinet weight.

2. Check the cabinet levelness using a level. If the cabinet is not level, wrench the anchor bolts.

7. Insert four M12x115 expansion bolts into

the expansion bolt holes in the floor, and

tighten the expansion bolts.

3Connecting Cables

1. This document describes cable routing by removing the top cover when there are two mains

inputs.

2. In the case of single mains, you do not need to connect bypass input power cables and remove

short-circuit copper bars.

6. Remove the four rubber plugs from the

bottom of the cabinet (two on the front and

two at the back).

Non-Secured Installation

2. Use a hammer drill to drill four holes for installing expansion bolts and then install four

expansion bolts in the holes. Remove the bolt, spring washer, and flat washer.

3. Slide the cabinet on its castors to the installation position.

4. (Optional) If the castors of the UPS need to be lifted from the ground, perform Step 1 to Step 2

in Non-Secured Installation.

5. Remove the rear panel of the cabinet, and then open the front door.

UPS Cable Connection Reference

3.1

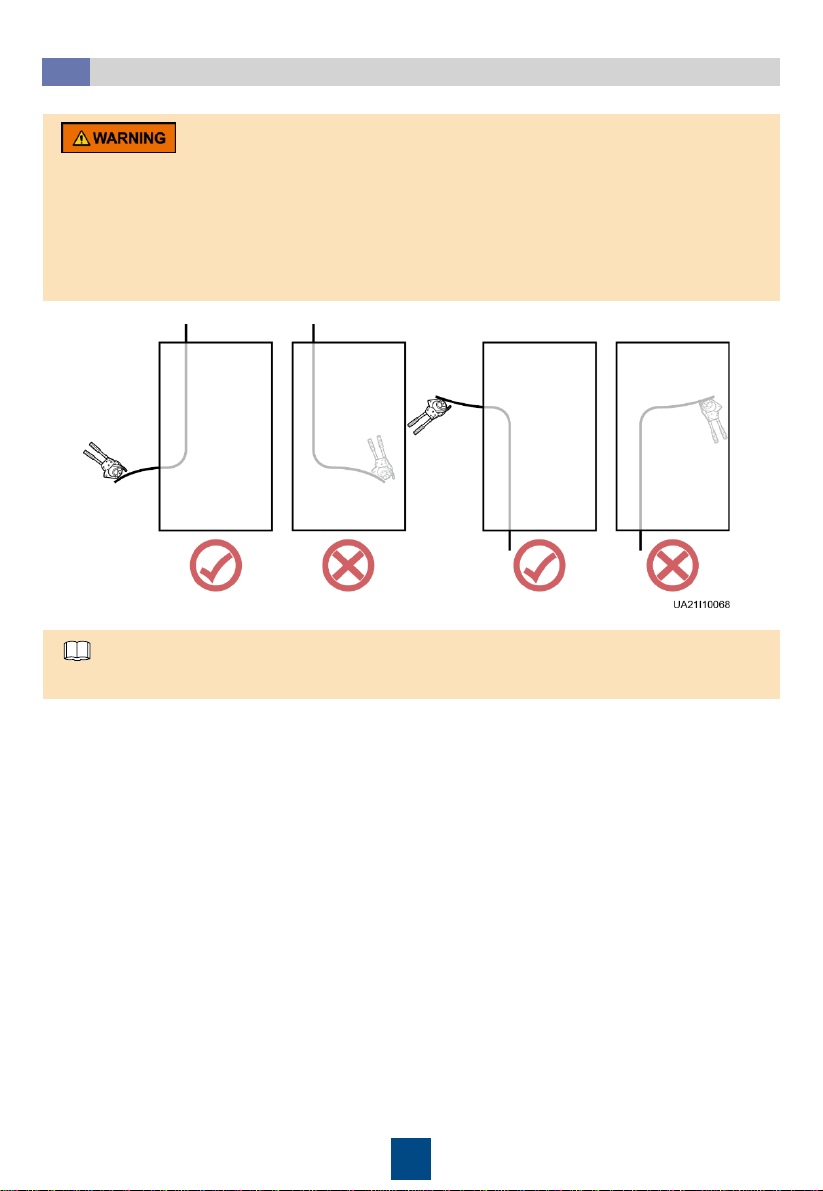

•Prepare cables away from the cabinets to prevent scraps from falling inside. Cable scraps may

ignite and cause personal injury or device damage.

•After cables have been installed, clean the cabinets in a timely manner. Keep the cabinets and

surrounding environment clean and tidy.

•You need to prepare terminals onsite. The stripped length of the copper wire should be the

same as that of the part of the terminal that covers the conductor.

The cabling route is for reference only. Connect cables based on site requirements.

NOTE

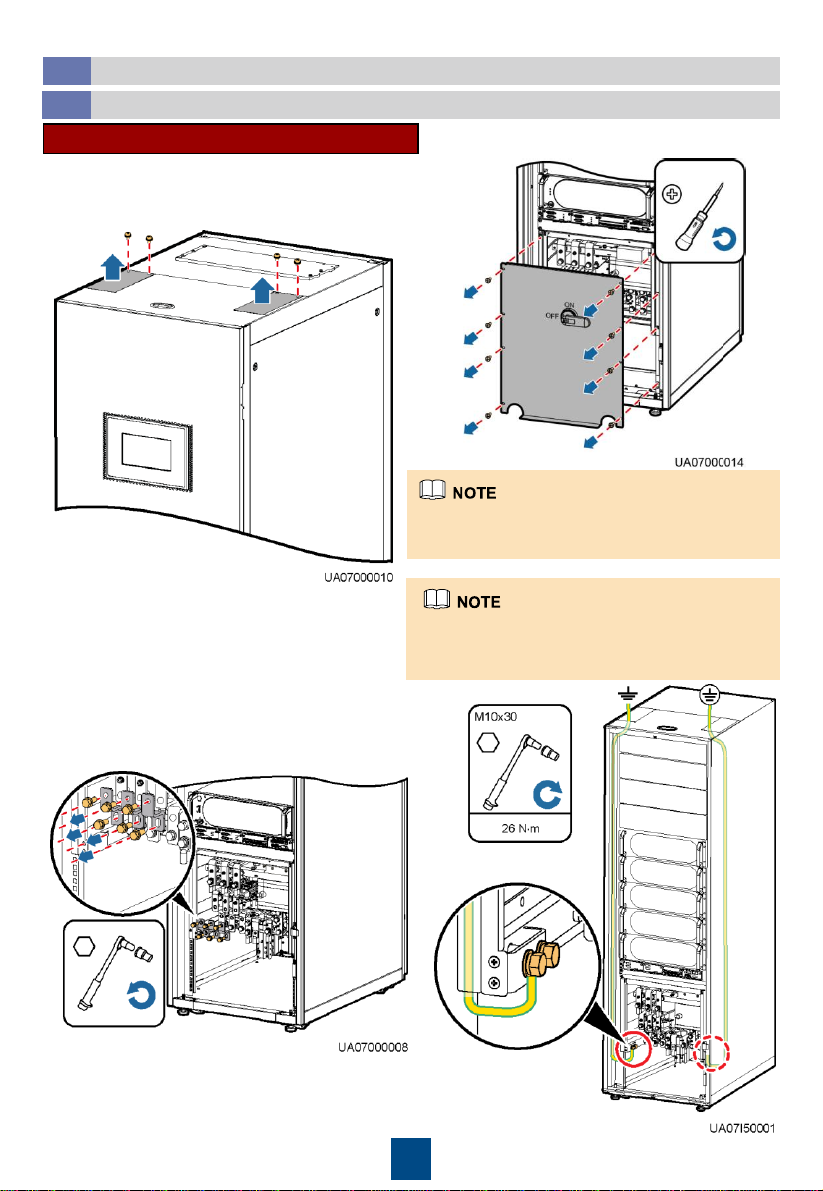

2. Remove the cover from the power

distribution subrack.

3. Remove the connecting copper bars

between the mains input terminals and

bypass input terminals.

The cover can be opened only if the

maintenance bypass switch is OFF.

4. Connect the ground cable to the UPS.

In the preceding figure, circled wiring

terminals are primary ones and must connect

to the ground cable.

1. Remove the small covers of the cabinet top.

Connecting Cables to the UPS5000-S-200K-SM

Connecting Cables

3.2

Scenario 1: Routing Cables from the Top

6. Connect the output power cable.

7. Connect the battery cable. 8. Connect signal cables.

5. Connect the mains and bypass input power

cables.

NOTE

The number and

color of signal cables

in the figure are for

reference only.

Signal cables can be

routed along the left

or right side of the

cabinet. Route signal

cables based on the

actual situation.

NOTE

For the cable connection method for the TN-C

system, see the user manual.

Scenario 2: Routing Cables from the Bottom

1. Remove the cover from the power

distribution subrack.

2. Remove the copper bars between mains

input terminals and bypass input terminals.

3. Remove small covers from the bottom based

on site requirements.

4. Connect power cables.

For the screw specifications and torque used

for connecting cables in a bottom cable

routing scenario, refer to the top cable

routing scenario. This section only shows the

cable routes in the bottom cable routing

scenario.

5. Connect signal cables.

The number and color of signal cables in the

figure are for reference only. Signal cables can

be routed along the left or right side of the

cabinet. Route signal cables based on the

actual situation.

NOTE

Connecting Cables to the

UPS5000-S-200K-FM

1. Remove a certain number of small covers

from the top of the cabinet based on site

conditions.

Scenario 1: Routing Cables from the Top

2. Remove the cover from the power

distribution subrack. 3. Remove the copper bars between mains

input terminals and bypass input terminals.

4. Connect the ground cable to the UPS. 5. Connect the mains input

power cable.

6. Connect the bypass input power cable. 7. Connect the battery cable.

8. Connect the output power cable. 9. Connect signal cables.

Scenario 2: Routing Cables from the Bottom

A cable entry cabinet needs to be installed when cables are routed from the bottom. This

document uses the cable entry cabinet installed on the right of the UPS cabinet as an example.

For the cable entry cabinet installed on the left of the UPS cabinet, refer to the user manual.

1. (Optional) Determine the installation

position for the cable entry cabinet, and

draw mounting holes in the installation

position based on drawings.

2. Remove the right and rear covers from the

UPS cabinet, and remove the front and rear

covers from the cable entry cabinet. Put away

the removed screws and covers.

3. Adjust the anchor bolts of the cable entry

cabinet to make it flush with the UPS cabinet.

4. Install equipotential plate mounting kits on the

same horizontal plane of the UPS cabinet and

cable entry cabinet.

5. Place the cable entry cabinet on the right of

the UPS cabinet.

6. Install the front and rear connecting kits.

7. (Optional) Secure the cable entry cabinet to

the ground.

8. Install an equipotential plate.

9. Remove a certain number of small covers

from the bottom of the cable entry cabinet

based on site conditions.

10.Remove the signal cable trough cover from

the cable entry cabinet.

If the cable entry cabinet is placed on the left of

the UPS cabinet, remove the cable trough for

signal cables and install it on the right of the

cable entry cabinet.

NOTE
