INSTALLATION INSTRUCTIONS

PARTS REQUIRED

Tools required for installation

2.5mm hex key (included)

4.0mm hex key (included)

6.0mm hex key(included)

Phillips head screw driver

(package contents will depend on conﬁguration ordered)

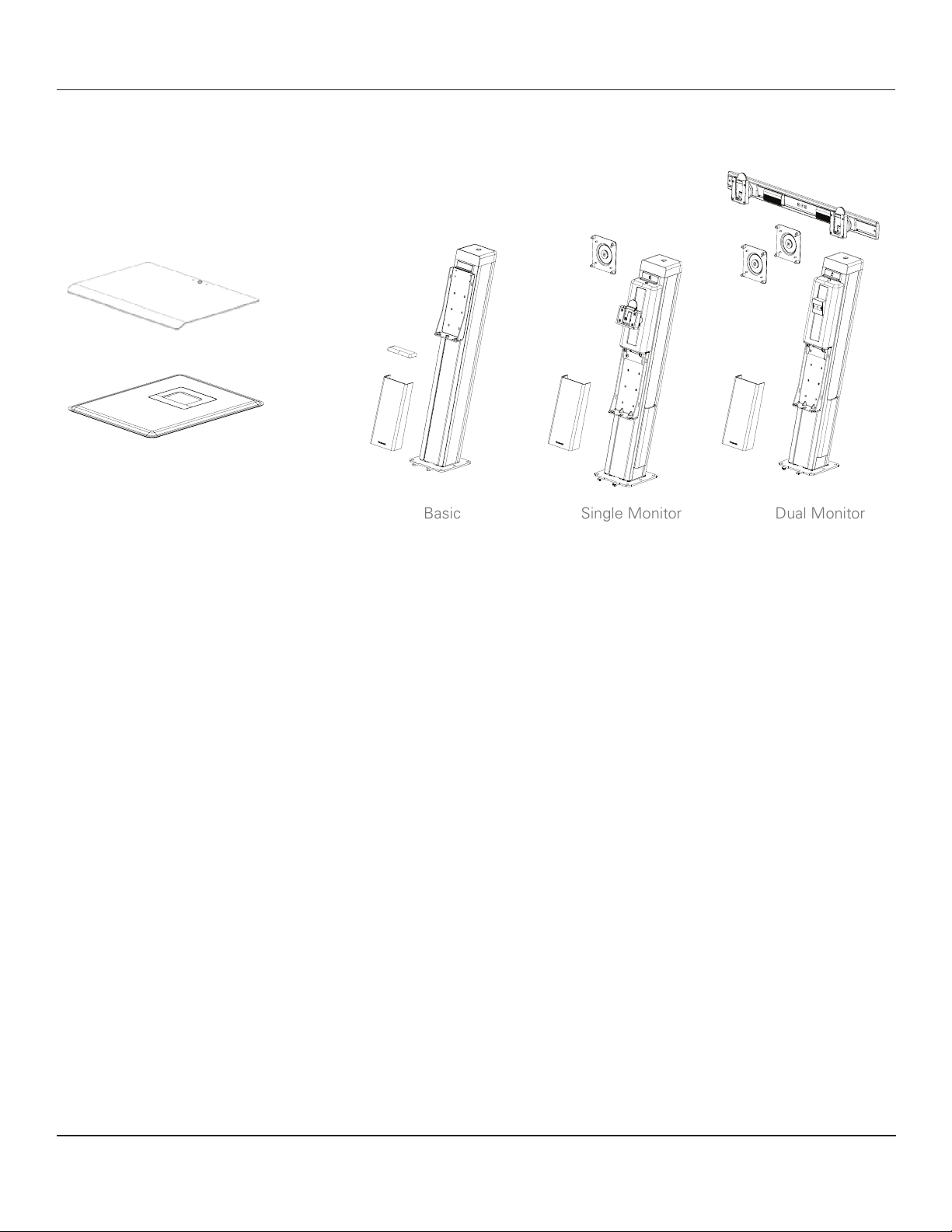

Basic

Single Monitor

Dual Monitor

www.humanscale.com

Tools required for installation

2.5mm hex key (included)

4.0mm hex key (included)

6.0mm hex key(included)

Phillips head screw driver

(package contents will depend on conguration ordered)

Single monitor Dual monitorBasic

Step 2

Slide the main post onto the base by inserting the 2 tabs in the front and

secure the main post with 6 screws. Snap on the plastic covers removed in

Step1. Start with the rear cover and then snap on the front cover.

Step 1

Place the base on a desk and remove the plastic covers and set them aside.

X 6

Step 2

Slide the main post onto the base by inserting the 2 tabs in the front and

secure the main post with 6 screws. Snap on the plastic covers removed in

Step1. Start with the rear cover and then snap on the front cover.

Step 1

Place the base on a desk and remove the plastic covers and set them aside.

X 6

STEP 2

• Slide the main post onto the base by inserting the 2 tabs in the front

and secure the main post with 6 screws.

• Snap on the plastic covers removed in Step1.

• Start with the rear cover and then snap on the front cover.

STEP 1

• Place the base on a desk and remove

the plastic covers and set them aside.

Step 4

Attach lower cover.

Step 3

Slide the pre-installed screw and work surface into the slotted position. Hand

tighten all 3 screws with the 6mm ball point allen wrench. Then tighten all 3

screws securely using the short end side of the allen wrench.

X 3

STEP 3

• Slide the pre-installed screw and work surface into the slotted position.

• Hand tighten all 3 screws with the 6mm ball point allen wrench. Then tighten

all 3 screws securely using the short end side of the allen wrench.

STEP 4

• Attach lower cover.

STEP 5

• Install the Vesa plate onto the monitor(s).

X 3

Step 6a (for dual monitor)

Attach the crossbar to the unit. Attach both monitors to the crossbar.

Refer to the crossbar installation manual.

Step 6 (for single monitor)

Attach the monitor to the unit by sliding the Vesa

plate tab in from the top.

Step 6a (for dual monitor)

Attach the crossbar to the unit. Attach both monitors to the crossbar.

Refer to the crossbar installation manual.

Step 6 (for single monitor)

Attach the monitor to the unit by sliding the Vesa

plate tab in from the top.

Step 7

Push the keyboard platform lower to remove the lock piece.

STEP 6 (FOR SINGLE MONITOR)

• Attach the monitor to the unit by sliding the Vesa plate tab in from the top.

STEP 6A (FOR DUAL MONITOR)

• Attach the crossbar to the unit. Attach both monitors to the crossbar.

• Refer to the crossbar installation manual.

STEP 7

• Push the keyboard platform lower to remove the lock piece.

STEP 8

Adjust the counter balance system

• Using the 6mm hex tool, rotate the screw located on the top clockwise until

forces pushing the keyboard platform up and down becomes about equal.

• Clockwise to increase upward force and counter clockwise to lower upward force.

STEP 9

Adjust The Monitor Height

• Using the 6mm hex tool, rotate the screw located on the top clockwise

to raise the monitor and counter clockwise to lower the monitor..

• The top edge of the monitor screen should be at your eye level.

STEP 10

• With the keyboard platform at its highest position, remove the cable cover

and feed the power and video cables through the clips shown below.

STEP 10A (FOR MODELS WITH CABLE COVERS)

• Bundle the cables with the cable wrap and tie each end.

STEP 11

• Install the cable cover back on.

• Repeat these steps on the other side for dual monitor.

Single Monitor Dual Monitor

STEP 1

• Remove the top cover.

STEP 2

• Remove front cover.

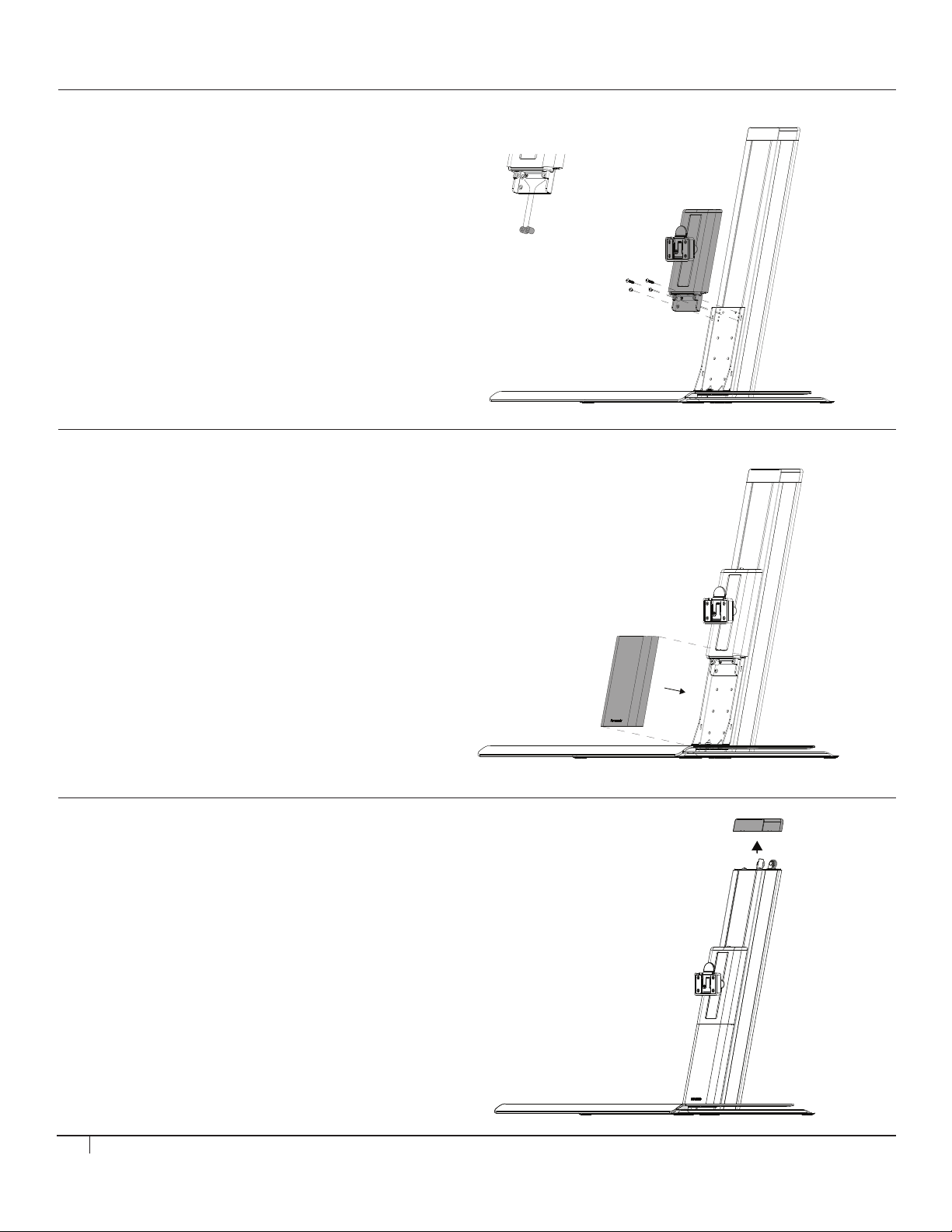

CONVERSION FROM LAPTOP TO SINGLE/DUAL MONITOR

STEP 3

• Attach monitor mount assembly.

STEP 4

• Attach lower plastic cover.

STEP 5

• Remove the main colomn top cover.
