Humanscale QuickStand Eco Bedienungsanleitung

INSTALLATION INSTRUCTIONS

North America: +1 800 400 0625

Europe: +353 (0)1 858 0910

Asia Pacic: +852 2581 0570

PARTS AND TOOLS INCLUDED (package contents will depend on conguration ordered)

www.humanscale.com

1x work surface 1x base 1x base plastic covers

1x main post

1x plastic cover

(laptop only)

Tools included for installation

2.5mm hex key

6mm hex key

Phillips head screw driver

Single monitor Dual monitorBasic

1x plastic cover

(single and dual only)

Tools included for installation

2.5mm hex key

6mm hex key

Phillips head screw driver

Single monitor Dual monitorBasic

1x plastic cover

(single and dual only)

1 or 2x VESA plate(s)

1x crossbar

(dual monitor conguration only)

laptop single monitor dual monitors

1x 2.5 mm hex key

1x 6 mm hex key

1x 3 mm hex key

(only with crossbar)

2x M8 21mm screw

6x M6 6mm screw

4x M4 18mm screw

(VESA hardware kit)

4x M4 8mm screw

(VESA hardware kit)

2x M5 17mm screw

(only with crossbar)

1x M6 17mm screw

(only with crossbar)

TOOLS NEEDED FOR ASSEMBLY

phillips head screwdriver

STEP 2

• Slide the main post onto the base by inserting the

2 tabs in the front and secure the main post with 6 screws.

• Snap on the plastic covers removed in step 1. Rear cover rst, then front cover.

STEP 1

• Place the base on a desk. Remove

the plastic covers and set them aside.

STEP 3

• Slide the work surface, with preinstalled screw, into the slot in the support bracket.

This will allow you to support the work surface with one hand and use

your other hand to insert and secure the other two screws.

• Tighten all three screws securely with the 6mm hex key.

Step 4

Install the Vesa plate onto the monitor(s).

Step 3

The support bracket is slotted, slide the preinstalled screw and work surface

into the slotted position. This will allow you to support the work surface on

the end with one hand and use your other hand to insert and secure the

other two screws. Tighten securely with the 6mm ball pointz allen wrench.

X 3

STEP 4

• Attach the VESA plate onto the monitor(s).

STEP 5

• Reposition the 4 monitor height screws if necessary. Refer to the chart for recommended screw location.

• To adjust position, loosen the 4 screws shown here

with the 2.5mm hex key. Lift and pull to remove

the monitor mount off the unit. Relocate the

screws to the desired hole numbers,

replace monitor mount and tighten

the screws.

User Height

(cm/ft)

Use hole

numbers

190cm / 6'-3" 1 & 2

180cm / 5'-11"' 2 & 3

175cm / 5'-9" 3 & 4

170cm / 5'-7" 4 & 5

165cm / 5'-5" 5 & 6

STEP 6 (FOR SINGLE MONITOR)

• Attach the monitor to the unit by sliding the VESA plate tab in from the top.

STEP 6A (FOR DUAL MONITORS)

• Attach the crossbar to the unit using the 3 screws as shown.

• Attach both monitors to the crossbar.

Refer to the crossbar installation manual.

STEP 7

• Push the keyboard platform down to remove the lock piece.

WARNING: PINCH POINT POTENTIAL!

KEEP FINGERS CLEAR

DURING OPERATION

Warning: Pinch Point

STEP 8

Attach the plastic covers

• Make sure the tabs on the lower plastic cover slide

into the slots in the bracket (see arrows).

• The upper cover slides down from the top, behind the monitor mount bracket.

STEP 9

Adjust the counterbalance system

• Before making any adjustments to the tension, check to see if an adjustment is needed.

• After you have installed all of your peripherals (ie. laptop on surface and/or you have installed your monitor(s), keyboard and

mouse), test the balance of the surface. By grabbing both side edges of the work surface you should be able to seamlessly raise

and lower the platform.

• If the work surface holds its position after you move it — meaning that you don’t feel the platform attempting to raise or lower

on its own — then no tension adjustment is needed.

• If the surface does move upward or downward after you change position,

then refer to the information on the next page.

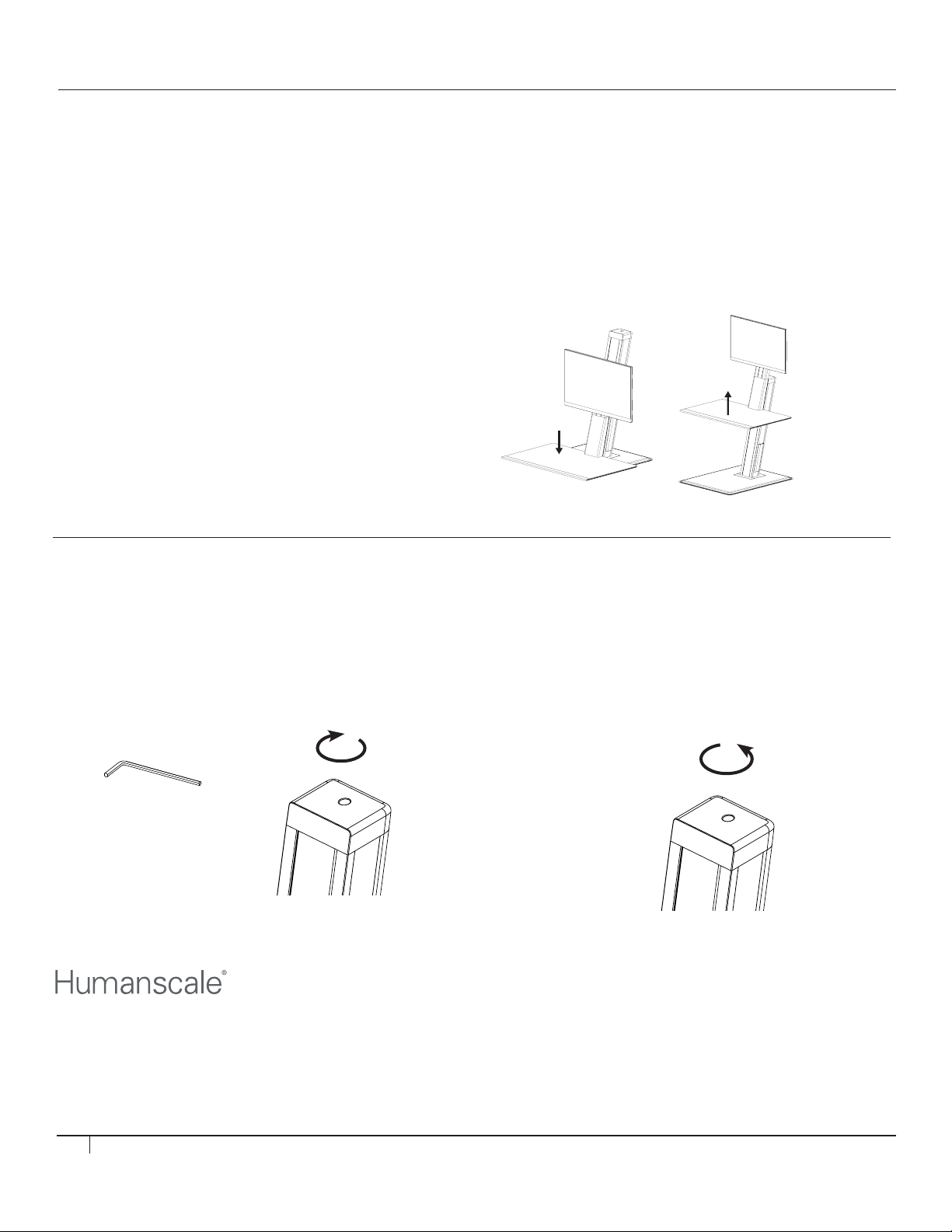

STEP 9 (CONTINUED)

Scenario A:

Surface lowers on its own without assistance, or lowers

when you place your hands on the keyboard.

• Place the 6mm hex key into the adjustment screw

on the top of the column. Turn the adjustment screw

clockwise until the platform holds position and feels

balanced while raising and lowering the work surface.

Scenario B:

Surface raises on its own or is difcult to lower.

• Place the 6mm hex key into the adjustment screw

on the top of the column.

• Turn the adjustment screw counterclockwise until the

platform holds position and feels balanced while

raising and lowering the work surface.

Step 9

Adjust the counter balance system.

Using the 6mm hex tool, rotate the screw located on the top clockwise

until forces pushing the keyboard platform up and down becomes about

equal. Clockwise to increase upward force and counter clockwise to lower

upward force.

Step 9

Adjust the counter balance system.

Using the 6mm hex tool, rotate the screw located on the top clockwise

until forces pushing the keyboard platform up and down becomes about

equal. Clockwise to increase upward force and counter clockwise to lower

upward force.

humanscale.com

For our terms and conditions please go to

https://www.humanscale.com/about/legal-information/terms-conditions.cfm

Humanscale Corporation and are registered in the United States and certain other countries. The Quickstand Eco trademark is owned by Humanscale.

Corporation.

GT-NPD-IM-8778-001
