GETTING STARTED

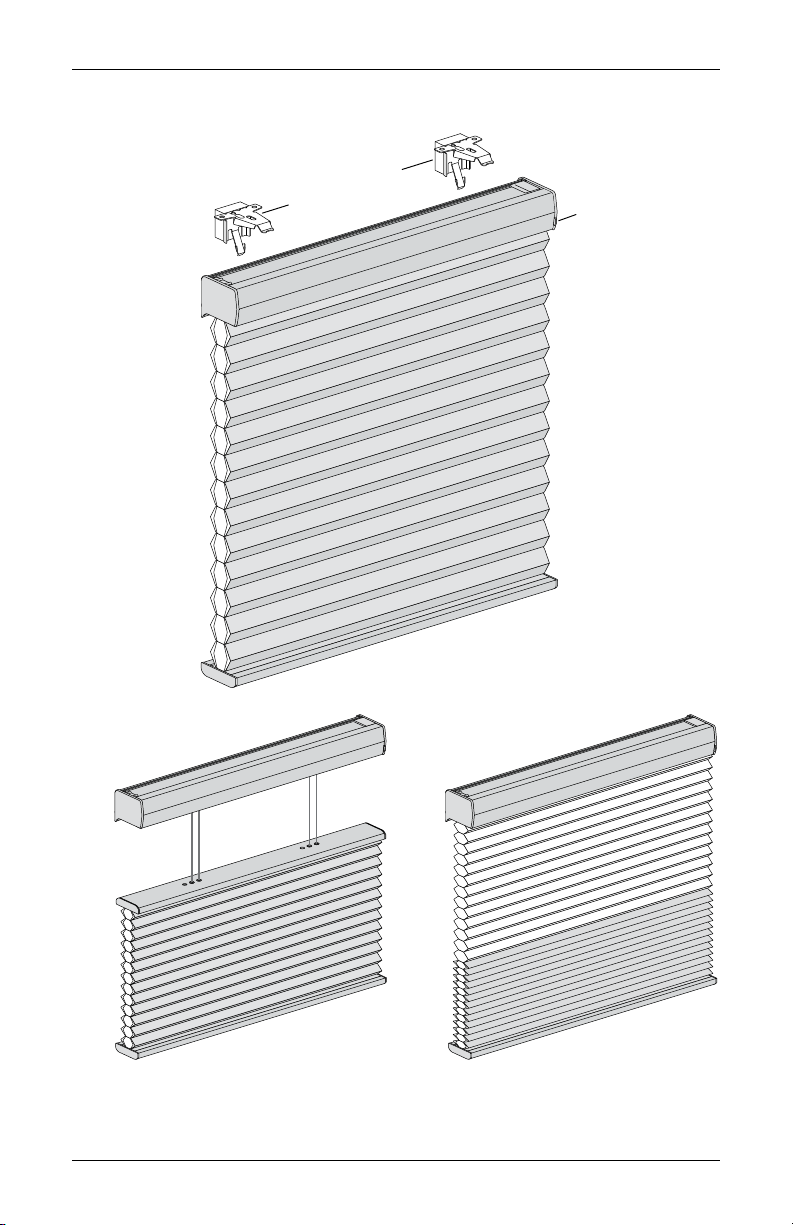

Product View

PowerView

Gen 3

Bottom Up

Control

Button

Installation Brackets

with Spacer Blocks

Duolite®

Top-Down and

Top-Down/Bottom-Up

GETTING STARTED

Thank you for purchasing Hunter Douglas Duette®and Applause®Honeycomb Shades with

PowerView®Gen 3 Automation. With proper installation, operation, and care, your new

shades will provide years of beauty and performance.

Please thoroughly review this instruction booklet and the enclosed packing list before

beginning the installation.

Tools and Fasteners Needed

■

⁄

" Hex, Flat blade, and Phillips screwdrivers

■ Level (laser level is recommended)

■ Measuring tape and pencil

■ Power drill,

⁄

" drill bit, and

⁄

" hex driver

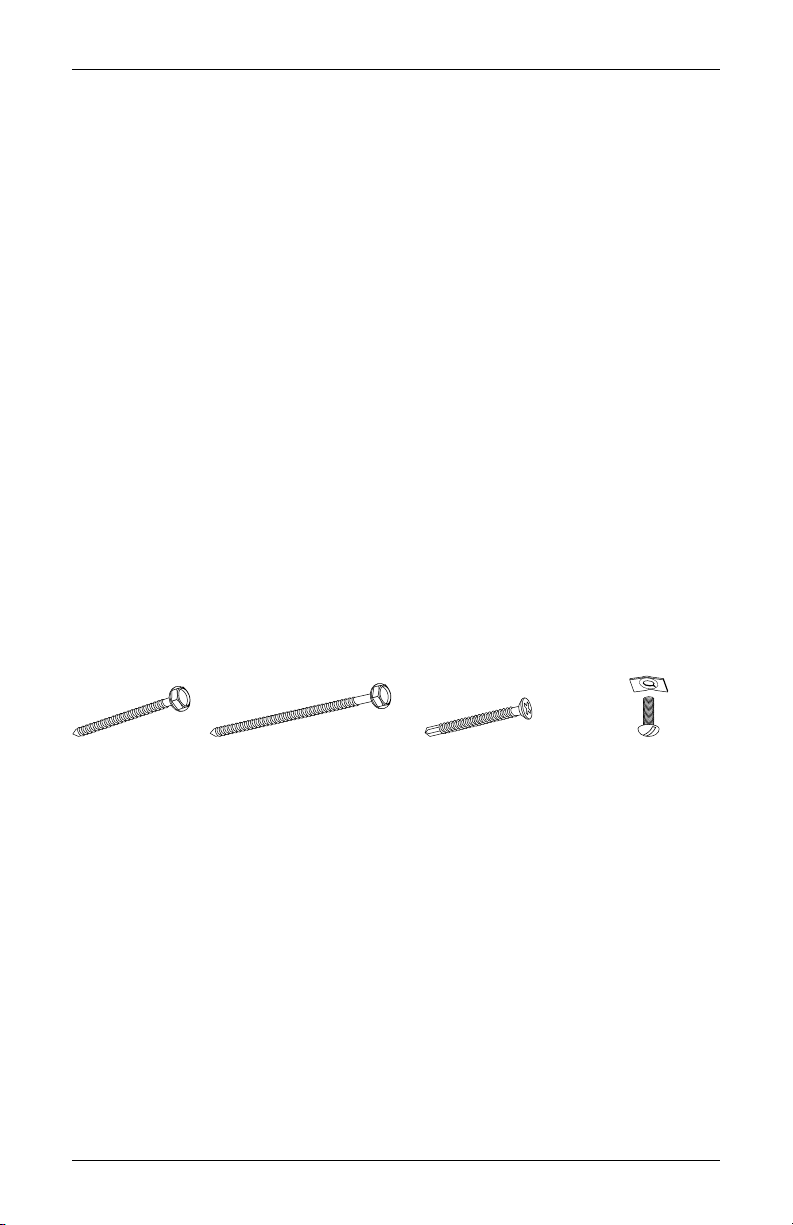

In addition, you will need fasteners designed to work with your specific mounting surface(s).

■ #6 Hex Head Screws (Provided). Two 1

⁄

" screws are provided per installation bracket.

■ Longer #6 Hex Head Screws (Not Provided). If using spacer blocks, use #6 screws

long enough for a secure attachment.

■ #6 Flat Head Screws (Provided). If end mounting the shade, use two 1

⁄

" screws per

installation bracket.

■ Speed Nuts and Screws (Provided). Extension brackets come with speed nuts and

screws.

■ Drywall Anchor (Not Provided). Use drywall anchors when mounting into drywall.

#6 x 1

∕

Hex Head Screw

(Provided)

Longer #6 Hex Head Screw

for Use

with Spacer Blocks

(Not Provided)

#6 Flat Head Screw

for Use

with End Mounts

(Provided)

Speed Nut and Screw

(Two Provided

with Each

Extension Bracket)

INSTALLATION

Installation Overview

To install your shade, you will need to perform the following four steps:

STEP 1: Mount the Installation Brackets

STEP 2: Mount the Battery Wand, If Applicable

STEP 3: Install the Shade

STEP 4: Connect the Power Source

STEP 1: Mount the Installation Brackets

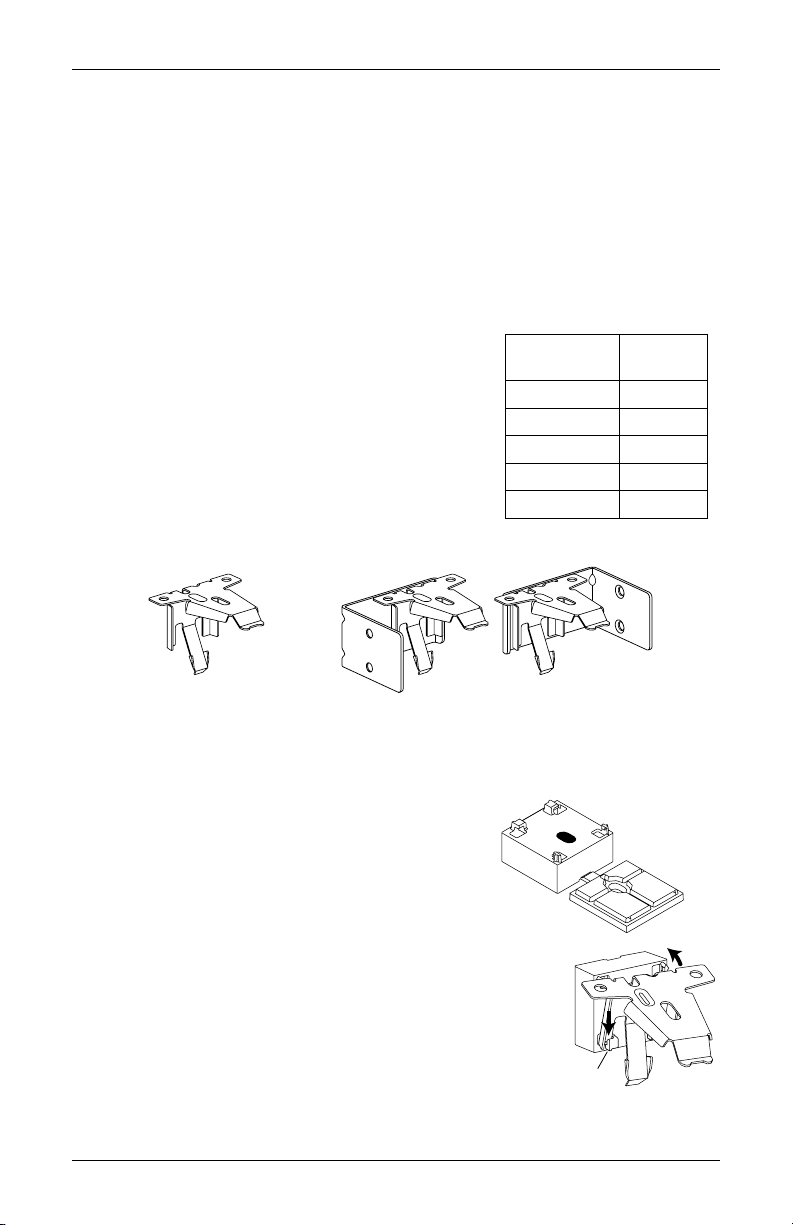

■ Your order will include the correct number of installation

brackets for your shade width, as shown in the table.

➤ There are two sizes of installation brackets, one for

⁄

" and

⁄

" pleat sizes and a larger one for the 1

⁄

pleat size.

➤ For end mounts, two brackets are used up to the

maximum width of 72".

IMPORTANT: A

⁄

" spacer block is required for shades using an attached battery wand;

two

⁄

" spacer blocks are required for shades using a headrail-mounted rechargeable battery

wand. The spacer blocks are pre-attached to the back of the installation bracket.

■ Should the spacer block become detached, reattach it.

➤ Insert the legs of the installation bracket into the tabs

on the spacer block.

➤ Rotate the installation bracket back, as shown, to snap

it in place.

Shade

Width

Brackets

Required

12" – 36" 2

∕

" – 72" 3

∕

" – 108" 4

108

∕

" – 144" 5

144

∕

" – 174" 6

Installation

Bracket

End Mount

Brackets

∕

" Spacer Block

∕

" Shim

INSTALLATION

Mounting Types and Window Terminology

If the installation brackets are mounted correctly, the rest of the installation process follows

easily. To prepare for this important first step, review the mounting types and basic window

terminology illustrated below.

■ Refer to the appropriate page below based on your order:

➤ Inside Mount — below

➤ Outside Mount — Page 7

➤ End Mount — Page 9

Mount the Installation Brackets — Inside Mount

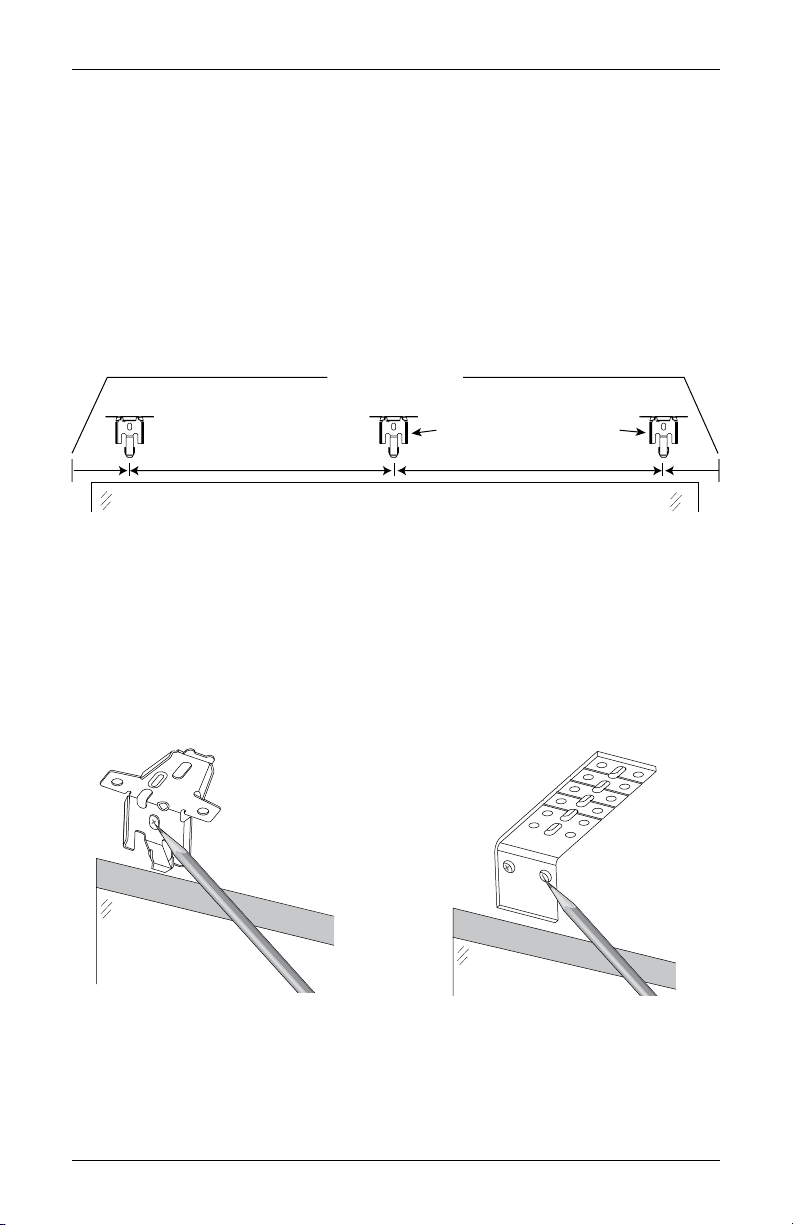

■ Mark 2" in from each jamb for bracket location.

➤ If more than two installation brackets came with your order, space additional bracket(s)

evenly between the two end brackets and mark their location. Allow a minimum of

15" between the brackets on the right-side motor end for the battery wand/

rechargeable battery wand. Mount into wood whenever possible.

Outside Mount

Shade mounts outside

window opening.

Inside Mount

Shade ﬁts within

window opening.

Collectively, the sill and

jambs are called the

“window casement.”

Head Jamb

Sill

Jamb Jamb

2" Space Evenly

Jamb Jamb

Space Evenly 2"

Minimum of 15" for

Battery Wand or

Rechargeable Battery Wand

INSTALLATION

■ Center the brackets on your marks, then mark each of the screw holes.

➤ Mounting depths vary depending on the fabric pleat size. See the following chart for

minimum and fully recessed depth requirements (measured from the front of the sill to

the back of the installation bracket).

➤ Mark both winged screw holes with shallow mounting depths.

➤ Mark the center screw hole when depth permits. The center hole requires 1

⁄

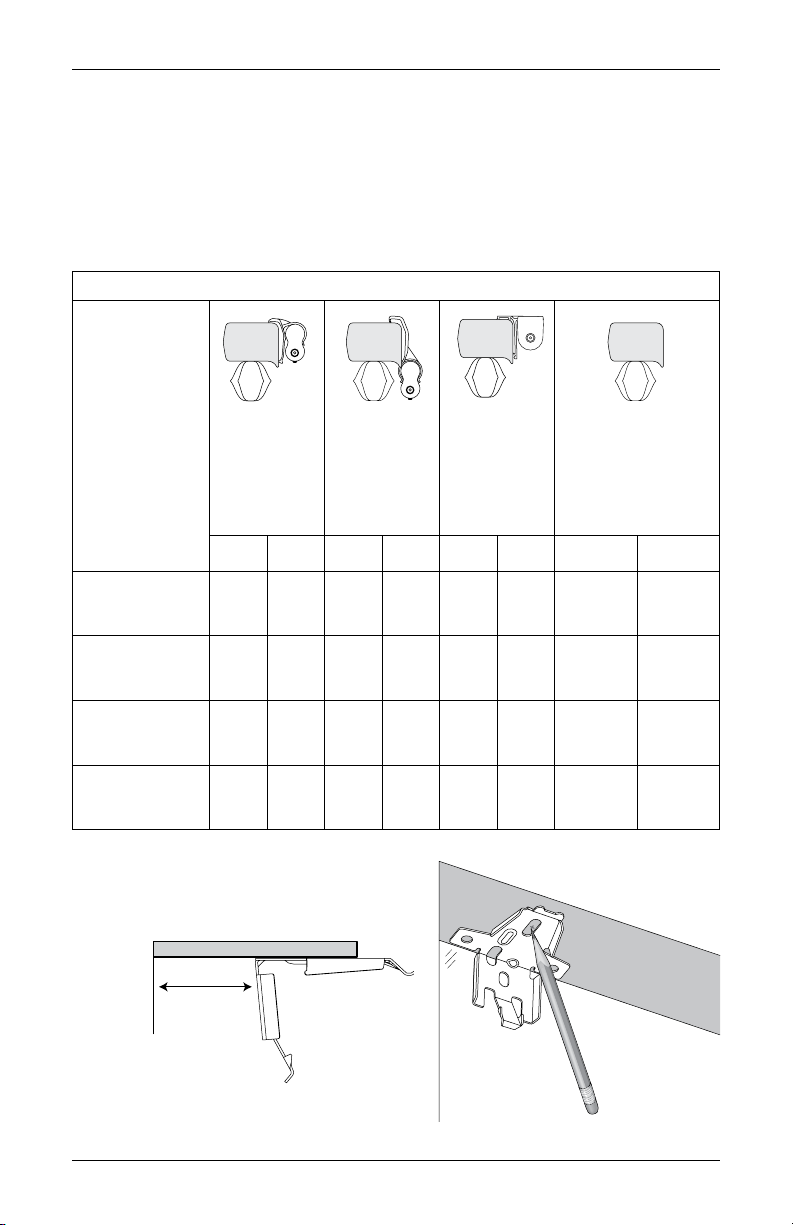

Mounting Depth Requirements

Pleat Size:

Battery Wand

High Mount

Bracket

(Standard)

Battery Wand

Low Mount

Bracket

(Optional)

Headrail-

Mounted

Rechargeable

Battery Wand

(Optional)

Satellite Battery Pack/

Rechargeable Battery

Wand,

C-Size Battery Wand,

18V DC Power Supply,

16 Shade DC Power

Supply

∕

" 1

∕

" 1

∕

" 1

∕

" 1

∕

Minimum casement

depth:

Inside Mount

1" 1" 1" 1" 1

∕

" 1

∕

Minimum casement

depth:

End Mount

∕

" 1

∕

" 1

∕

" 1

∕

" 2" 2" 1

∕

" 1

∕

Minimum casement

depth:

Flush Mount

∕

" 3

∕

" 2

∕

" 3

∕

" 3

∕

" 3

∕

" 2

∕

" 3

∕

Minimum mounting

surface height:

Outside Mount

∕

" 1

∕

" 1

∕

" 1

∕

" 1

∕

" 1

∕

" 1

∕

" 1

∕

Recessed

Depth

Nearest

Obstruction

Jamb

See Depth

Chart

Use Center Hole

When Depth Permits

INSTALLATION

■ Drill the screw holes using a

⁄

" drill bit.

CAUTION: Use drywall anchors when mounting into drywall.

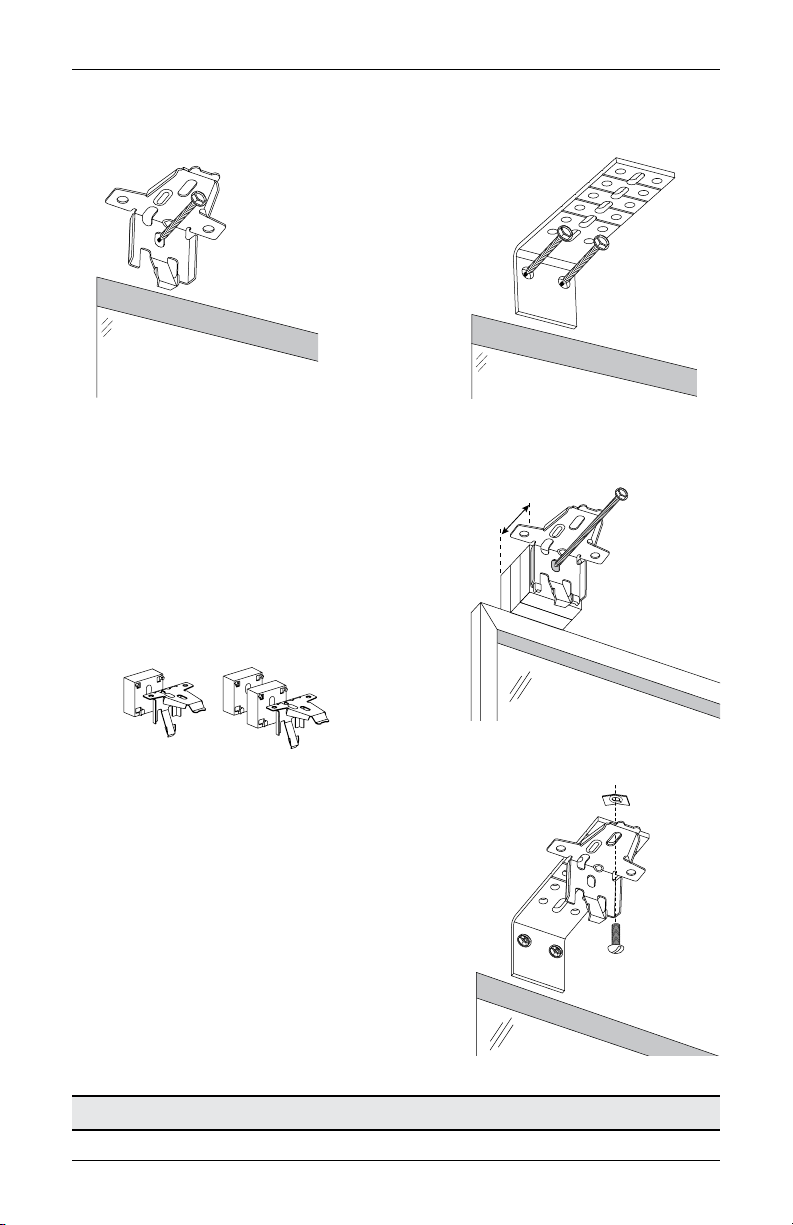

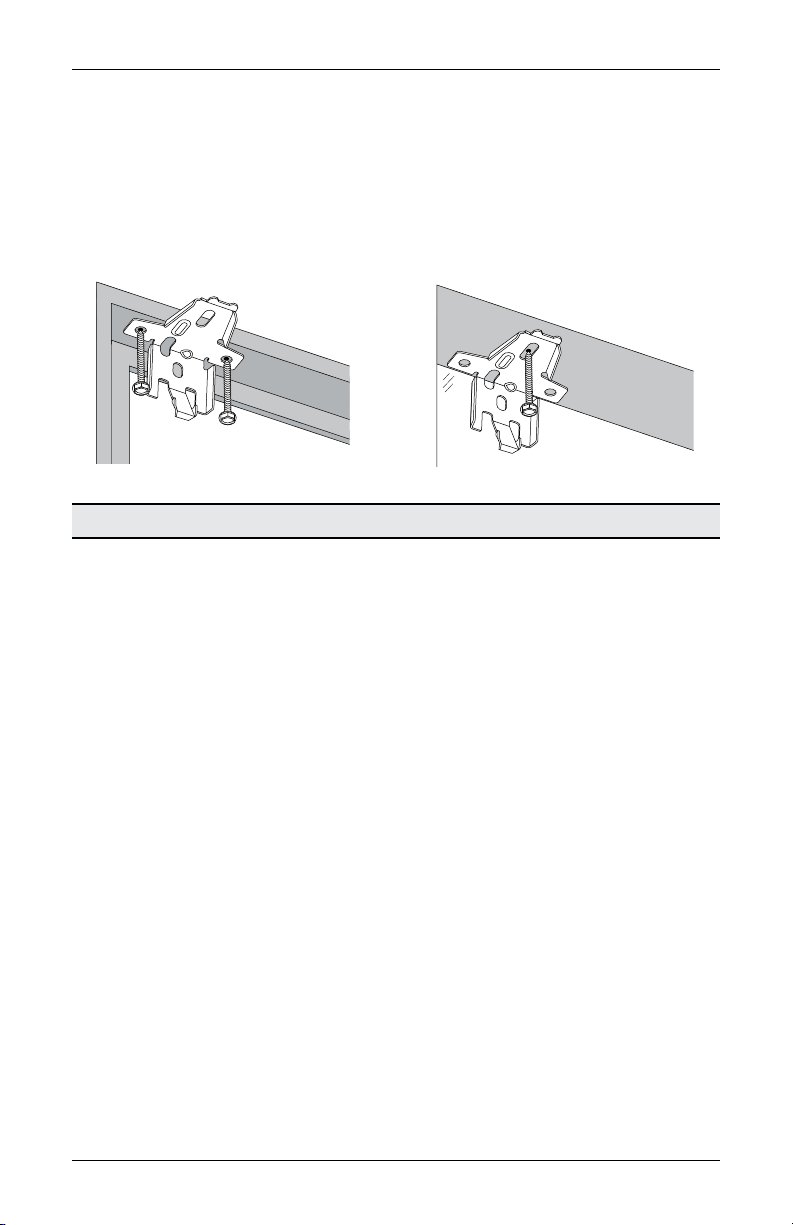

■ Use a level to check that the mounting surface is level. Shim the brackets if necessary.

■ Attach the installation brackets using the screws provided.

IMPORTANT: The front edges of the installation brackets must be level and aligned. If

mounting to a heavily textured surface, shim the brackets, if needed.

Proceed to “STEP 2: Mount the Battery Wand (If Applicable)” on page 10.

INSTALLATION

Mount the Installation Brackets — Outside Mount

■ Center the headrail over the window opening at the desired height. Use a pencil to lightly

mark the wall at each end of the headrail.

➤ Alternatively, measure the width of the headrail and use that width to mark the

headrail end points over the window opening.

■ Mark 2" from each end of the headrail.

➤ If more than two installation brackets came with your order, space additional bracket(s)

evenly between the two end brackets and mark their location. Allow a minimum of

15" between the brackets on the right-side motor end for the battery wand/

rechargeable battery wand. Mount into wood whenever possible.

■ Center the brackets on your marks, then mark each of the screw holes.

➤ A minimum of 1

⁄

" flat vertical surface is required to mount the brackets.

➤ The top of the installation brackets or extension brackets should be at the desired

shade height. The brackets should be level and aligned.

➤ When using extension brackets, mark two screw holes per bracket.

CAUTION: The rear of the brackets must be flush against a flat mounting surface. Do not

mount brackets on curved molding.

■ Drill the screw holes using a

⁄

" drill bit.

CAUTION: Use drywall anchors when mounting into drywall.

Minimum of 15" for

Battery Wand or

Rechargeable Battery Wand

Headrail End Marks

Window Opening

2" Space Evenly Space Evenly 2"

INSTALLATION

■ Attach the installation or extension brackets using the screws provided.

IMPORTANT: The front edges of the brackets must be level and aligned to each other.

■ If using spacer blocks, attach the spacer block/installation bracket assembly to a flat

vertical mounting surface with a #6 mounting screw long enough for a secure installation.

➤ Use one

⁄

" spacer block per installation

bracket to provide clearance required for

standard battery wand.

➤ Use two

⁄

" spacer blocks per installation

bracket to provide clearance required for

rechargeable battery wand.

➤ A maximum of 1

⁄

" of spacer blocks per installation

bracket is recommended. Spacer blocks and shims

may be stacked.

➤ The top of the spacer blocks should be at

the desired shade height.

CAUTION: Use drywall anchors when mounting

into drywall.

■ If using extension brackets, attach an installation

bracket to the underside of each extension bracket

using the provided screws and speed nuts.

Proceed to “STEP 2: Mount the Battery Wand (If Applicable)” on page 10.

Longer Screw

(Not Provided)

Maximum

∕

Battery

Wand

Rechargeable

Battery Wand

Andere Handbücher für PowerView Gen 3

Inhaltsverzeichnis

Andere HunterDouglas Jalousie Handbücher

HunterDouglas

HunterDouglas Solera EasyRise Stücklistenhandbuch

HunterDouglas

HunterDouglas Luxaflex PowerView Bedienungsanleitung

HunterDouglas

HunterDouglas EverWood Benutzerhandbuch

HunterDouglas

HunterDouglas Duette Honeycomb Shades Bedienungsanleitung

HunterDouglas

HunterDouglas Decor Standard Cordlock Betriebsanleitung

HunterDouglas

HunterDouglas LiteRise Stücklistenhandbuch

HunterDouglas

HunterDouglas LiteRise Bedienungsanleitung

HunterDouglas

HunterDouglas Vignette Traditional Bedienungsanleitung

HunterDouglas

HunterDouglas LiteRise Bedienungsanleitung

HunterDouglas

HunterDouglas Duette Stücklistenhandbuch

HunterDouglas

HunterDouglas Reveal with MagnaView Bedienungsanleitung

HunterDouglas

HunterDouglas Luminette Privacy Sheers Stücklistenhandbuch

HunterDouglas

HunterDouglas Duolite Shades Stücklistenhandbuch

HunterDouglas

HunterDouglas Pirouette PowerView+ Gen 3 Automation Stücklistenhandbuch

HunterDouglas

HunterDouglas Brilliance Bedienungsanleitung

HunterDouglas

HunterDouglas 2" Horizontal Aluminum Blinds Stücklistenhandbuch

HunterDouglas

HunterDouglas RB 500 Bedienungsanleitung

HunterDouglas

HunterDouglas Duette SkyLift Bedienungsanleitung

HunterDouglas

HunterDouglas Reveal Stücklistenhandbuch

HunterDouglas

HunterDouglas Solera Soft Shades Bedienungsanleitung

HunterDouglas

HunterDouglas Standard Cordlock, Moveable Slat Specialty... Benutzerhandbuch

HunterDouglas

HunterDouglas PowerView Venetian Blind 18VDC Bedienungsanleitung

HunterDouglas

HunterDouglas Vignette Modern Roman Shades Stücklistenhandbuch

HunterDouglas

HunterDouglas Silhouette Nantucket PowerView Gen 3... Stücklistenhandbuch

Beliebte Jalousie Handbücher anderer Marken

Jysk

Jysk ROGEN Bedienungsanleitung

SOMFY

SOMFY 1241752 Bedienungsanleitung

Rollos

Rollos S-Nanorollo V2 Planungshandbuch

Teptron

Teptron Move Bedienungsanleitung

Renson

Renson Outdoor Loggia Sicherheitsleitfaden

Project Source

Project Source CDLF2342W Bedienungsanleitung

Domondo

Domondo PureNight Installationsanleitung

rollease acmeda

rollease acmeda Easy Spring Air Einrichtungshandbuch

IKEA

IKEA KADRILJ Bedienungsanleitung

Hallis Hudson

Hallis Hudson Rolls Super glide Bedienungsanleitung

Benthin

Benthin P1614 Bedienungsanleitung

MV LINE

MV LINE CLARA 015 Bedienungsanleitung

Current

Current E-WAND Leitfaden

weinor

weinor VertiTex ZipR Handbuch

Roto

Roto ZAR M R4/R7 Bedienungsanleitung

SOMFY

SOMFY Movelite WT Series Bedienungsanleitung

Acmeda

Acmeda RF400 Series Bedienungsanleitung

Motura

Motura Pli_353/3 Bedienungsanleitung
