HunterDouglas PowerView M40T Bedienungsanleitung

PowerView® Roller Blind 230VAC

Programming with Remote control

The PowerView® M40T tubular motor is suited to be used with EOS® 500 Roller Blinds from Hunter Douglas.

1. Delivery condition

As standard, no remote control or hub is connected to the motor. No limits are set. Motor is default set to ro

ller blind motor type.

IMPORTANT!

Factory fresh motors do not have default limits set. Limits must be set to enable normal operation. If

operated without limits, the shade could be damaged by rolling over the top or wrapping backwards on

the roller.

1.2. Network reset

This procedure will erase all network data stored in the motor, including Network ID and Group assignments.

It will not clear the end limits. Completing a Network reset will prevent a PowerView® remote or App from

operating the window covering until it is reprogrammed.

Page 1 of 18 version: 1.0

2. Pairing a remote to the blind

A PowerView® remote can control up to 6 individual groups of blinds (buttons 1 to 6 at the top of the remote).

The instructions below assign a blind to group 1.

1.2.1 Press and hold the manual control button on

the motor for 12 seconds .

The blind will jog 1x at 6 seconds

and a second time at 12 seconds

1.2.2 Release the manual control button after the

second jog.

The Network ID and Group assignments have

been cleared.

This instruction will make use of these buttons on the

remote:

Page 2 of 18 version: 1.0

Procedure

IMPORTANT

Watch out to perform steps 2.4 and 2.5 within 3 seconds!

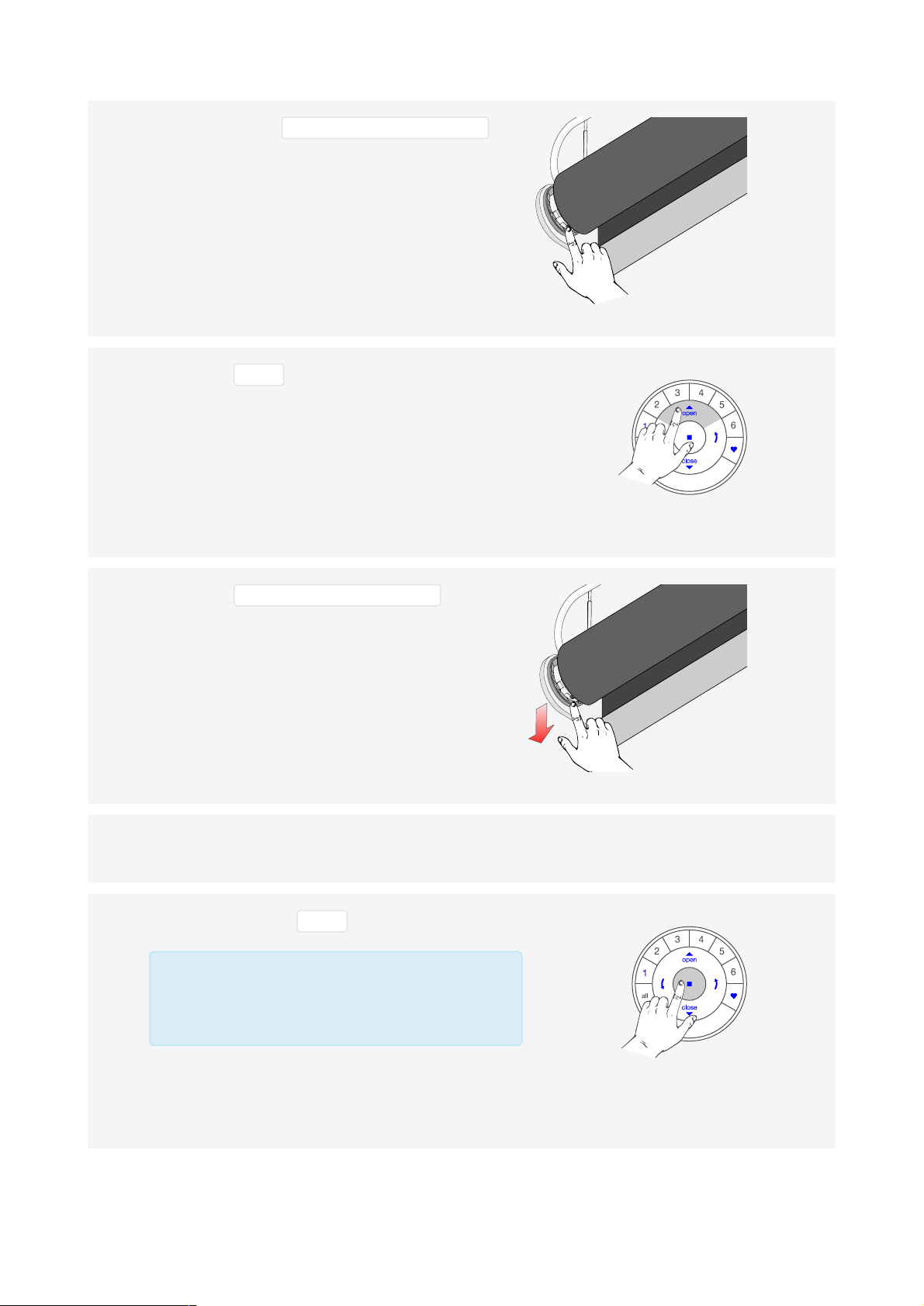

2.1 Locate the manual control button on your

blind.

2.2 Press and hold the stop button for 4 seconds.

Keep pressing until the remote

lights start blinking

2.3 Press the group1 button.

Page 3 of 18 version: 1.0

2.4 Press and hold the manual control button .

2.5 Press the open button.

The blind will jog 2x

2.6 Release the manual control button .

2.7 The blind will jog 2x to indicate it has joined the group

2.8 Press and hold the stop button for 4 seconds.

The remote will exit programming mode

automatically after 20 seconds.

Keep pressing until the remote

lights stop blinking

Page 4 of 18 version: 1.0

3. Reversing motor direction

IMPORTANT

Reversing motor direction is only possible with a fresh out of the box motor (no limits set) or when the

end limits are reset. Before any limits are programmed, the motor direction has to be checked and

reversed if needed.

If the top or bottom Limit is already set, and the motor direction has to be reversed, perform a reset

before continuing.

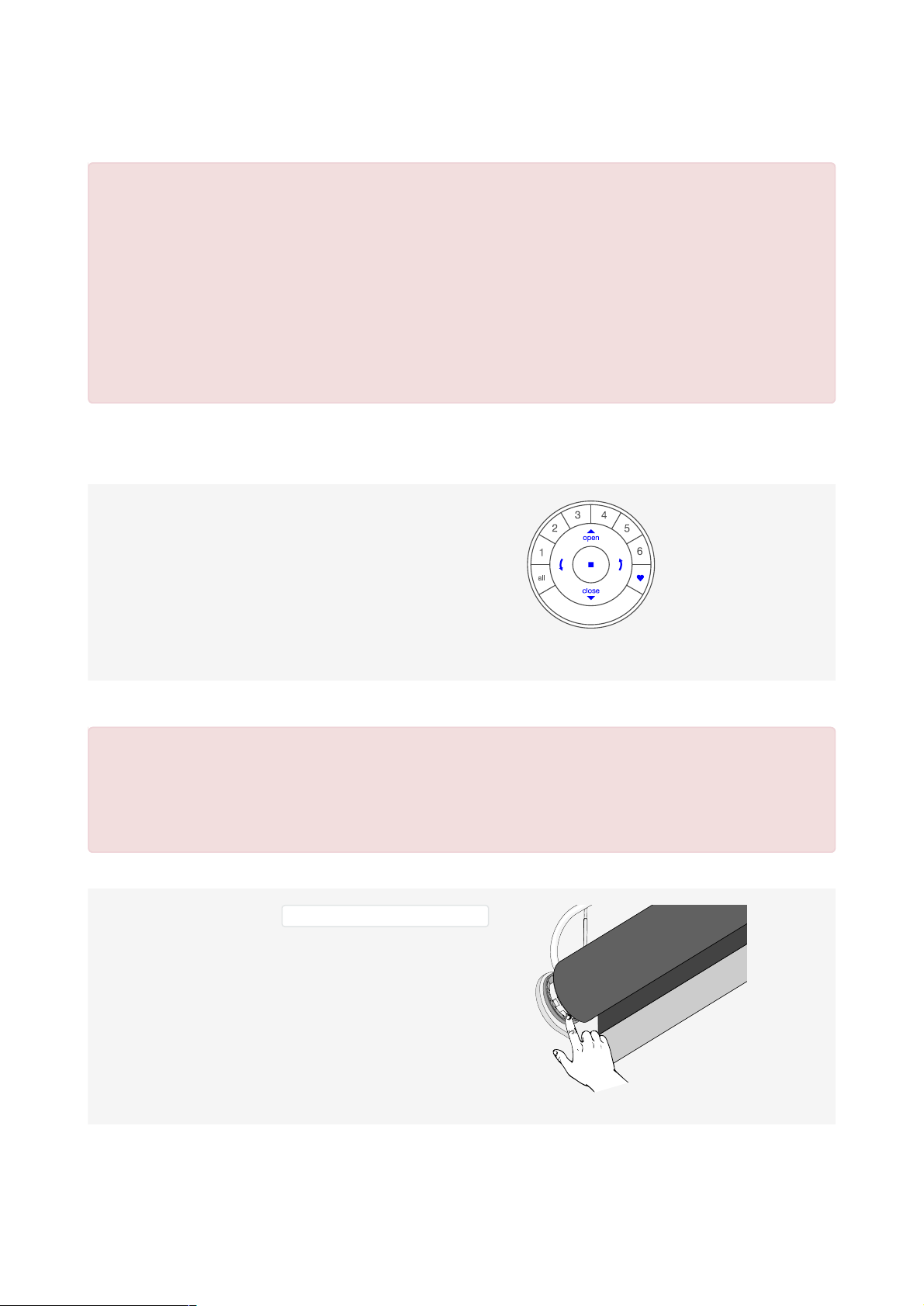

3.1. Deselect all GROUP numbers on the remote

IMPORTANT

Watch out to perform steps 3.1.2 and 3.1.3 within 3 seconds!

3.1.1 Deselect all Group number on the remote

3.1.2 Press and hold the manual control button .

Page 5 of 18 version: 1.0

Note

If end limits were already set, the motor will not jog, indicating the motor direction did not change.

Note

Verify that all GROUP lights are turned off on the remote, clear both limits, and try again.

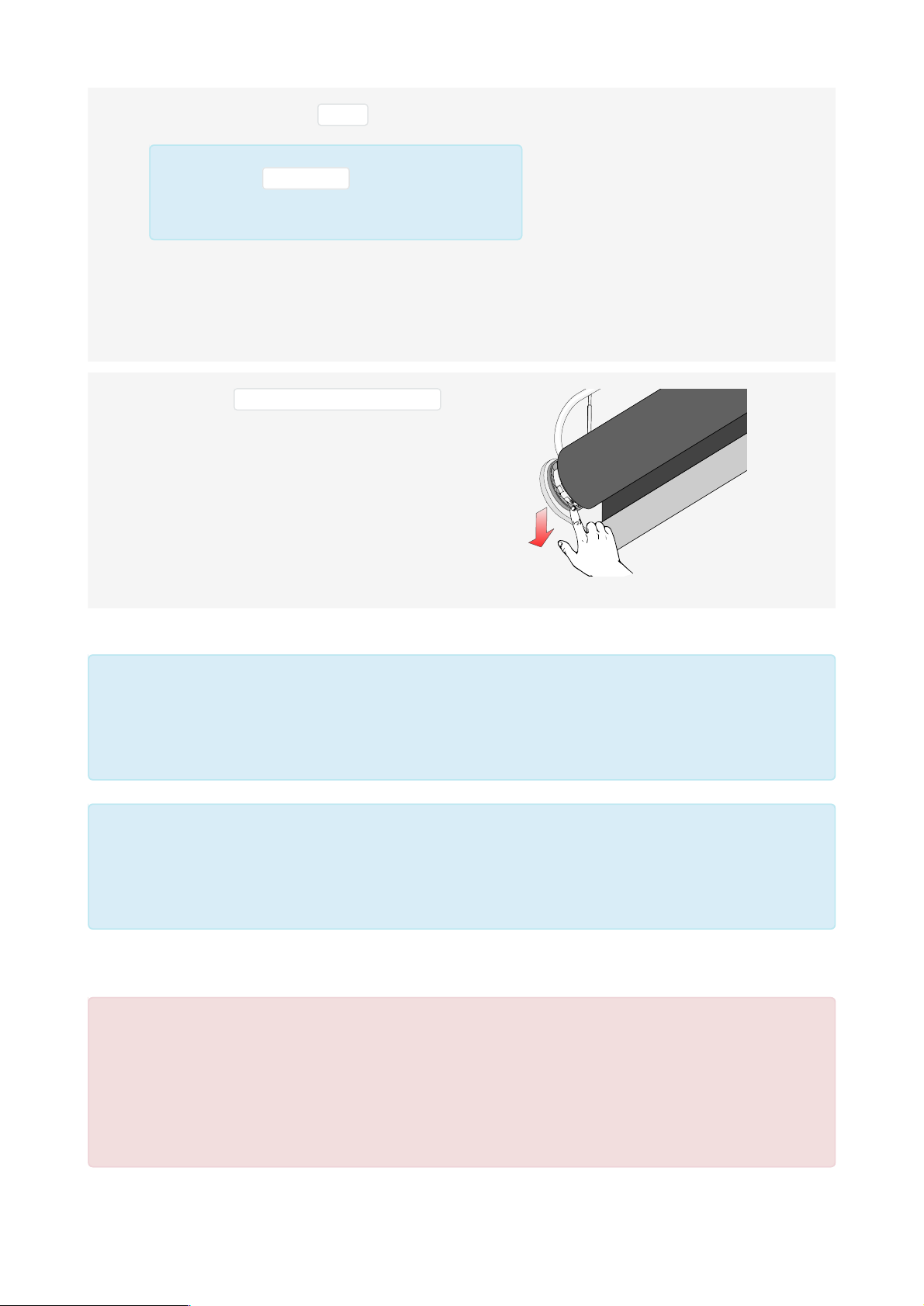

3.2. Check and conﬁrm

IMPORTANT

Watch out to perform steps 3.2.1 and 3.2.2 immediately after each other to avoid mechanical damage!

Carefully read them ﬁrst before executing!

3.1.3 Press and release the stop button.

Make sure no group on the remote is

selected.

The blind will jog 2x to indicate it

has reversed motor direction

3.1.4 Release the manual control button .

Page 6 of 18 version: 1.0

4. Setting end limits

It doesn’t matter if you start with setting the open or the close limit ﬁrst. In this description we start with the

open (top) limit.

Note

It is important to have the fabric of the blind tight around the tube.

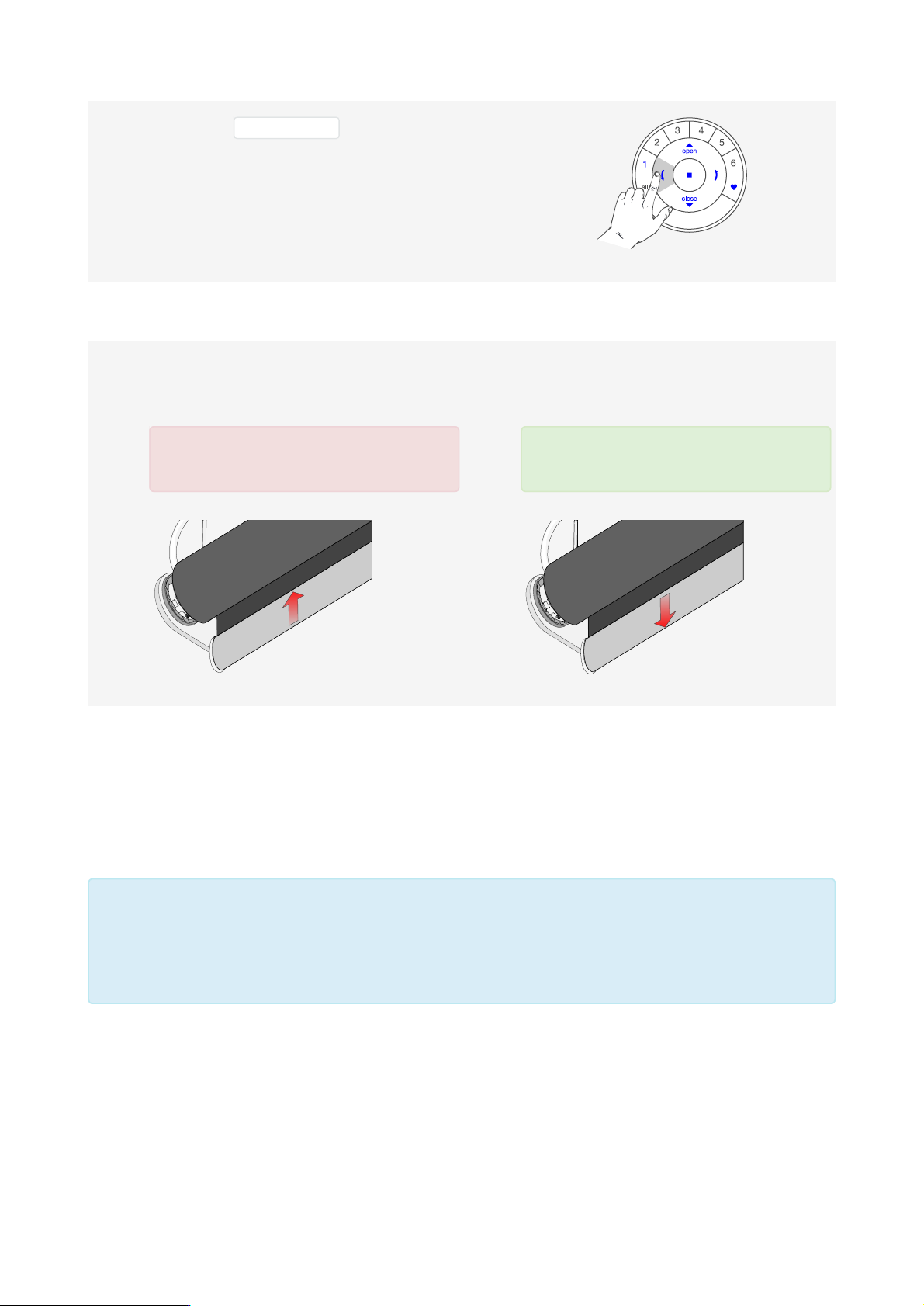

3.2.1 Press the arrow down button to check motor

direction.

3.2.2.AIf the blind moves upwards, repeat steps

3.1.1 --> 3.1.3

Motor direction NOT OK!

3.2.2.BIf the blind moves downwards, continue with

step 4.1.4

Motor direction OK!

Page 7 of 18 version: 1.0

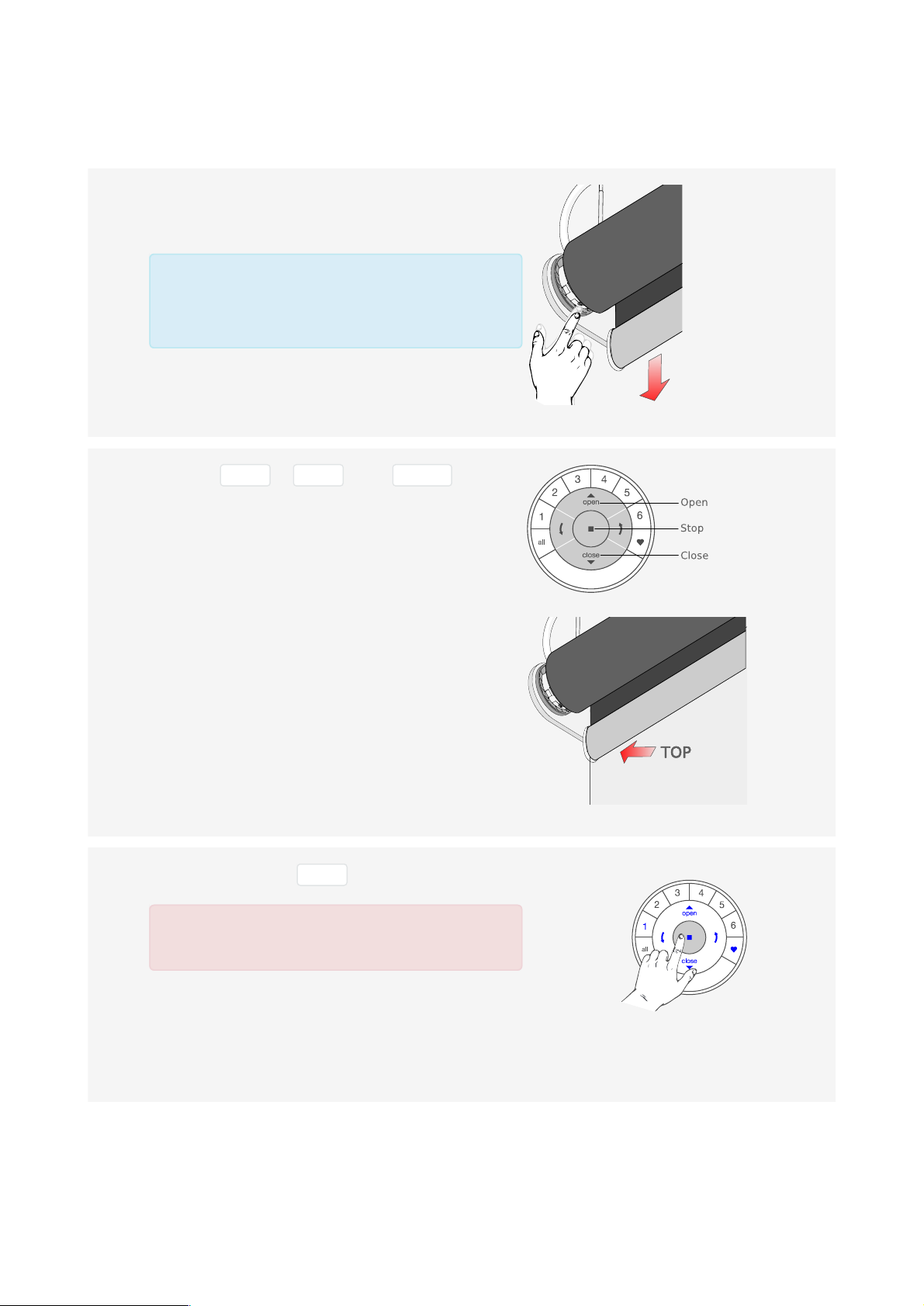

4.1. Open limit (top)

4.1.1 Use the manual button on the motor to move the blind

to the desired top position

Each "press and release" of the button will toggle

between Up, Stop and Down.

4.1.2 Use the open , stop and close buttons

to ﬁne tune the blind to the desired position.

4.1.3 Press and hold the stop button for 6 seconds.

DO NOT select a group on the remote!

Keep pressing until the remote

lights start blinking

Page 8 of 18 version: 1.0

IMPORTANT

Watch out to perform steps 4.1.6 and 4.1.7 within 3 seconds!

4.1.4 Press and hold the manual control button .

4.1.5 Press the open button.

The blind will jog 2x to

acknowledge the limit is set

4.1.6 Release the manual control button .

Page 9 of 18 version: 1.0

Note

To re-position the top limit of the blind, clear the top limit and repeat step 4.1 Open limit (top)

4.2. Close limit (bottom)

4.1.7 Press and hold the stop button for 6 seconds.

The remote will exit programming mode

automatically after 20 seconds.

Keep pressing until the remote

lights stop blinking

4.1.8 The top limit is set!

4.2.1 Use the manual button on the motor to move the blind

to the desired bottom position

Each "press and release" of the button will toggle

between Up, Stop and Down.

Page 10 of 18 version: 1.0
