HunterDouglas Vignette Traditional Bedienungsanleitung

Installation •Operation •Care

Vignette®Modern Roman Shades

Traditional™Style Shades

PowerView™Motorization

CONTENTS

Getting Started:

Product View ................................................................ 1

Tools and Fasteners Needed .......................................... 2

Installation:

Installation Overview ..................................................... 3

STEP 1 — Install the Brackets....................................... 3

STEP 2 — Install the Shade .......................................... 7

STEP 3 — Connect the Power Source............................ 8

Attach Magnetic Hold-Down Brackets (Optional)............ 12

Operation:

Testing the Shade ....................................................... 13

Using the PowerView™Remote .................................... 14

Resetting the Shade.................................................... 15

Troubleshooting .......................................................... 16

Care:

Removing the Shade (If Necessary) .............................. 19

Cleaning Procedures ................................................... 19

Declarations ........................................Inside Back Cover

Warranty.........................................................Back Cover

Questions?

Call the Hunter Douglas Customer Information Center at

1-888-501-8364.

their respective owners.

GETTING STARTED

Product View Battery

Wand

Battery

Wand Clips

Magnetic

Hold-Down

Brackets

(Optional)

Headrail

Installation

Brackets

Power Cable*

Extension Cable

Bottom Rail

Weight

Clips

Balance

Weight

Spacer

Blocks

*The power cable can be located at either end of the headrail, depending on the speciﬁed motor placement.

GETTING STARTED

Thank you for purchasing Hunter Douglas Vignette®Modern Roman Shades with PowerView™

Motorization. With proper installation, operation, and care, your new shades will provide years of

beauty and performance.

Please thoroughly review this instruction booklet and the enclosed packing list before beginning

the installation. For information regarding operation and programming, refer to the guide

included with your remote control.

Tools and Fasteners Needed

■Flat blade and Phillips screwdrivers

■Level (laser level is recommended)

■Measuring tape and pencil

■Power drill,

" drill bit, and

" hex driver

In addition, you will need fasteners designed to work with your speciﬁc mounting surface(s).

■#6 Hex Head Screws (Provided). Two 1

" screws are provided per installation bracket.

■Longer Hex Head Screws (Not Provided). If using spacer blocks, use #6 screws long

enough for a secure attachment.

■Speed Nuts and Screws (Provided). Extension brackets are supplied with screws and

speed nuts.

■Drywall Anchors (Not Provided). Use drywall anchors when mounting into drywall.

Speed Nut

and Screw

(Two Provided with

Each Extension Bracket)

#6 x 1

Hex Head Screw

(Provided)

Longer #6 Hex Head Screw

for Use with Spacer Blocks

(Not Provided)

INSTALLATION

Installation Overview

To install your shade, you will need to perform the following three steps:

STEP 1: Install the Brackets

STEP 2: Install the Shade

STEP 3: Connect the Power Source

STEP 1 — Install the Brackets

■Your order will include the correct number of installation brackets for your shade width, as

shown in the table below.

■Shade orders will also include spacer blocks if needed for added clearance.

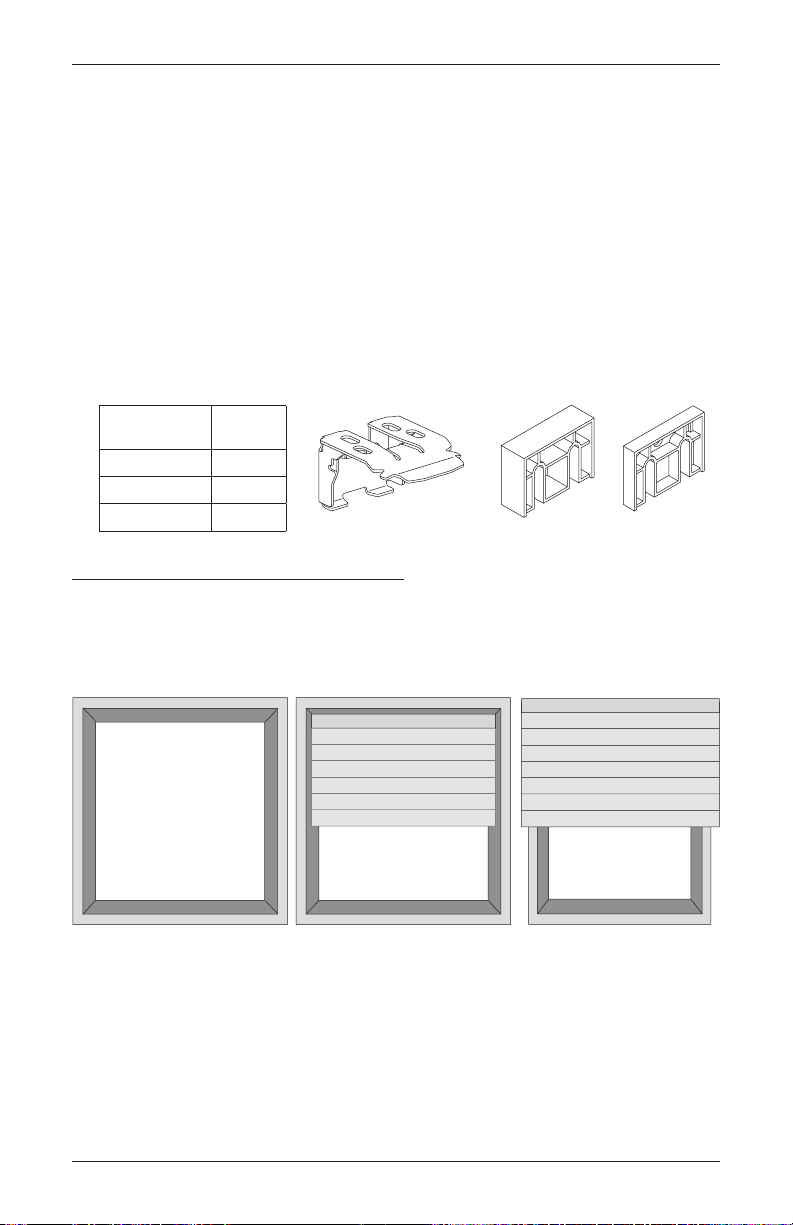

Mounting Types and Window Terminology

If the installation brackets are mounted correctly, the rest of the shade installation process

follows easily. To prepare for this important ﬁrst step, review the mounting types and basic

window terminology illustrated below.

■Refer to the appropriate page below based on the mounting type chosen for your order:

➤Inside Mount — Page 4

➤Outside Mount — Page 5

➤End Mount — Page 6

Outside Mount

Shade mounts outside

window opening.

Inside Mount

Shade ﬁts within

window opening.

Collectively, the sill and

jambs are called the

“window casement.”

Molding

Head Jamb

Sill

Jamb Jamb

Shade

Width

Brackets

Required

12" –48" 2

" –84" 3

" –96" 4

Spacer Blocks

Installation Bracket

INSTALLATION

Casement

Depth

Casement

Depth

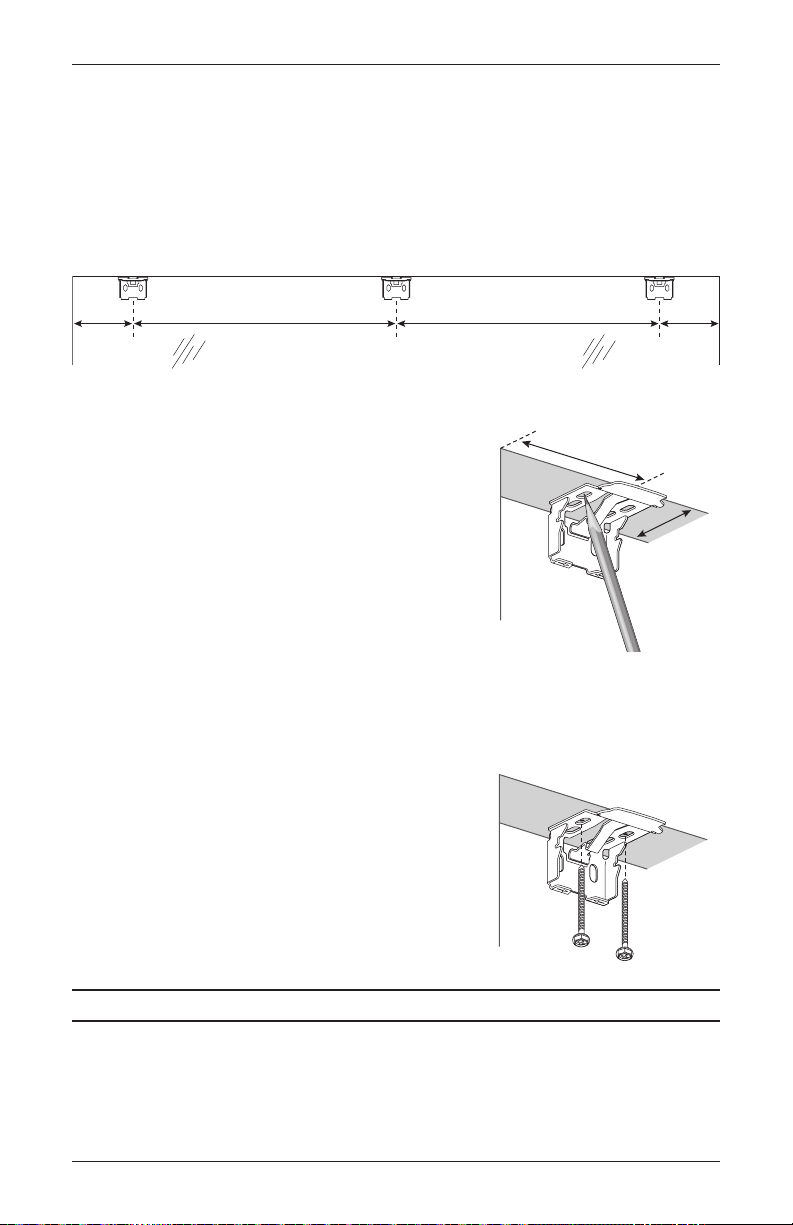

Mount the Installation Brackets — Inside Mount

■Measure and mark 3" in from each jamb for bracket location.

➤If more than two installation brackets came with your order, mark the location of the

additional bracket(s) spaced evenly between the two end brackets. Mount into wood

whenever possible. Allow a minimum of 18" from the motor side for the battery

wand.

■Center the brackets on yourmarks, then mark the screw hole locations.

➤The minimum casement depth for installation

brackets is 1" (1

" with battery wand). Mark the

rear set of installation bracketholes with shallow

mounting depths.

➤The minimum casement depth for a fully recessed

mount is 3

" (4

" with battery wand). Mark the

front set of bracket holes when depth permits.

IMPORTANT: For shades with a battery wand, allow

a minimum of

" clearance behind the brackets to

accommodate the wand.

■Drill the screw holes using a

" drill bit.

CAUTION: Use drywall anchors when mounting into drywall.

■Use a level to check that the mounting surface is level.

Shim the brackets if necessary.

■Attach the installation brackets using the screws

provided.

IMPORTANT: The front edges of the installation

brackets must align to each other.

Proceed to “STEP 2 — Install the Shade” on page7.

Jamb Jamb

Window Opening

Space Evenly Space Evenly3" 3"

INSTALLATION

Mount the Installation Brackets — Outside Mount

■Center the headrail over the window opening at the desired height. Use a pencil to lightly

mark each end of the headrail.

➤Alternatively, measure the width of the headrail and use that width to mark the headrail

end points over the window opening.

■Measure and mark 3" in from each end of the headrail.

➤If more than two installation brackets came with your order, mark the location of the

additional bracket(s) spaced evenly between the two end brackets. Mount into wood

whenever possible. Allow a minimum of 18" from the motor side for the battery

wand.

■Center the brackets on yourmarks, then mark the screw hole locations.

➤A minimum 1" ﬂat vertical surface is required.

➤The top of the installation brackets should be at

the desired height. The brackets must be level

andaligned.

CAUTION: The rear of the brackets must be ﬂush

against a ﬂat mounting surface. Do not mount brackets

oncurved molding.

■Drill the screw holes using a

" drill bit.

CAUTION: Use drywall anchors when mounting into drywall.

■Attach the installation brackets using the screws provided.

IMPORTANT: If using a battery wand, use a minimum

of one

" and one

" spacer blocks per installation

bracket to provide the clearance required for the battery

wand. See the instructions on the following page.

Window Opening

Space Evenly Space Evenly3" 3"

Headrail End Mark Headrail End Mark

Spacer

Blocks

INSTALLATION

■If the shade will be powered by a battery wand: Attach the installation brackets with the

" and

" spacer blocks. Use 2" #6 hex head screws (not provided).

➤The solid side of the spacer blocks faces the

mounting surface.

➤If using additional spacer blocks for more

clearance, attach the installation brackets and

spacer blocks with #6 screws long enough for

a secure installation.

IMPORTANT: Do not add more than 1

" of

clearance using spacer blocks.

IMPORTANT: The tops of the installation brackets

must be level with the front edges aligned.

Proceed to “STEP 2 — Install the Shade” on page7.

Mount the Installation Brackets — End Mount

End mount the headrail when conventional

mounting techniques will not work — for example,

in an arched window opening.

■Mount extension brackets to each side of the

opening at the desired height of the shade.

➤The mounting surface must be vertical and

ﬂat, not part of an arched curve.

➤Minimum mounting surface width with a

built-in battery wand is 2".

➤Minimum mounting surface width with a

satellite battery pack, C-size satellite battery

wand, or DC power supply is 1

■Attach the installation brackets to the extension

brackets using the provided screws and

speednuts.

Proceed to “STEP 2 — Install the Shade” on page7.

Spacer

Blocks

Longer

Screws

Mounting

Surface

Width

Extension

Bracket

Speed Nuts

Screws

Installation

Bracket

INSTALLATION

STEP 2 — Install the Shade

Mount the Headrail

CAUTION: Be sure the cables do not become pinched by the installation brackets when

mounting the headrail.

■Hold the headrail so the front (curvedside) faces you.

■Push the top edge of the headrail into the installation brackets.

■Rotate and push the headrail back until it snaps into place. You will hear a click when the

shade is securely installed.

WARNING: Failure to snap the headrail securely into the installation brackets may

cause the shade to release unexpectedly.

■Gently pull on the front of the headrail to ensure that the shade is locked into the brackets.

■Remove the plastic covering on the front of the headrail.

Headrail

Installation Bracket

Fabric Guard

INSTALLATION

STEP 3 — Connect the Power Source

NOTE: When power is connected to the motor, a green LED inside the manual control button

housing will ﬂash to indicate the shade is ready for operation.

■Refer to the appropriate page based on the ordered power source.

➤For a battery wand, see below.

➤For a satellite battery pack, see page 9.

➤For an 18V DC power supply, see page10.

➤For an 18V DC power supply with daisy-chain connections, see page11.

➤For a C-size satellite battery wand or large DC power supply, see the instructions that

came with the unit.

If You Have a Battery Wand...

Install Batteries Into the Battery Wand

■Squeeze the cap latch to release thecap.

■Remove the cap from the battery wand.

■Install the batteries according to the

instructions on the battery wand label.

■Hunter Douglas recommends AA alkaline batteries for use with our battery-powered shades.

These will provide approximately one year of operation. Lithium and rechargeable batteries

are not recommended.

■Replace the cap.

➤Align the tab with the end of the wand.

➤Press the cap on until it latches.

Mount the Battery Wand into theBattery Wand Clips

■Align the battery wand with its

socket toward the motor

cartridge end cap on the shade.

■Push the battery wand straight up

into the battery wand clips until it

snaps into place. Check to make

sure the battery wand is secure.

CAUTION: Be sure the cables do not become pinched by the battery wand clips during

installation. Damage or overheating of components could result.

TabSlot

Cap

Latch

Battery Wand

Squeeze

Back of Shade

Socket

Inhaltsverzeichnis

Andere HunterDouglas Jalousie Handbücher

HunterDouglas

HunterDouglas PowerView Stücklistenhandbuch

HunterDouglas

HunterDouglas Wood Blinds Bedienungsanleitung

HunterDouglas

HunterDouglas Standard Cordlock, Moveable Slat Specialty... Benutzerhandbuch

HunterDouglas

HunterDouglas 5-216 Bedienungsanleitung

HunterDouglas

HunterDouglas 5-151 Bedienungsanleitung

HunterDouglas

HunterDouglas Duette Honeycomb Shades Bedienungsanleitung

HunterDouglas

HunterDouglas Country Woods Bedienungsanleitung

HunterDouglas

HunterDouglas Pirouette PowerView+ Gen 3 Automation Stücklistenhandbuch

HunterDouglas

HunterDouglas Alustra Woven Textures ST30 Stücklistenhandbuch

HunterDouglas

HunterDouglas Designer Roller Shades Stücklistenhandbuch

HunterDouglas

HunterDouglas Silhouette Stücklistenhandbuch

HunterDouglas

HunterDouglas DecoFlex WireFree Telis Betriebsanleitung

HunterDouglas

HunterDouglas 5-156 Bedienungsanleitung

HunterDouglas

HunterDouglas Silhouette A Deux Stücklistenhandbuch

HunterDouglas

HunterDouglas Solera Soft Shades Bedienungsanleitung

HunterDouglas

HunterDouglas Horizontal Aluminum Blinds Bedienungsanleitung

HunterDouglas

HunterDouglas Solera EasyRise Stücklistenhandbuch

HunterDouglas

HunterDouglas PowerView EOS Plisse Bedienungsanleitung

HunterDouglas

HunterDouglas RB 500 Bedienungsanleitung

HunterDouglas

HunterDouglas Cadence Soft Vertical Blinds Stücklistenhandbuch

HunterDouglas

HunterDouglas Luxaflex PowerView Bedienungsanleitung

HunterDouglas

HunterDouglas ZIP 100 Wartungs- und Serviceanleitung

HunterDouglas

HunterDouglas Design Studio Installationshandbuch

HunterDouglas

HunterDouglas Decor Standard Cordlock Betriebsanleitung

Beliebte Jalousie Handbücher anderer Marken

Jysk

Jysk ROGEN Bedienungsanleitung

SOMFY

SOMFY 1241752 Bedienungsanleitung

Rollos

Rollos S-Nanorollo V2 Planungshandbuch

Teptron

Teptron Move Bedienungsanleitung

Renson

Renson Outdoor Loggia Sicherheitsleitfaden

Project Source

Project Source CDLF2342W Bedienungsanleitung

Domondo

Domondo PureNight Installationsanleitung

rollease acmeda

rollease acmeda Easy Spring Air Einrichtungshandbuch

IKEA

IKEA KADRILJ Bedienungsanleitung

Hallis Hudson

Hallis Hudson Rolls Super glide Bedienungsanleitung

Benthin

Benthin P1614 Bedienungsanleitung

MV LINE

MV LINE CLARA 015 Bedienungsanleitung

Current

Current E-WAND Leitfaden

weinor

weinor VertiTex ZipR Handbuch

Roto

Roto ZAR M R4/R7 Bedienungsanleitung

SOMFY

SOMFY Movelite WT Series Bedienungsanleitung

Acmeda

Acmeda RF400 Series Bedienungsanleitung

Motura

Motura Pli_353/3 Bedienungsanleitung
