HunterDouglas Duette Honeycomb Shades Bedienungsanleitung

Installation

•

Care

Duette

Honeycomb Shades

LightLock

™

System for LiteRise

and

PowerView

Automation Operating Systems

CONTENTS

their respective owners.

GETTING STARTED

LightLock™Parts.............................................................................1

Tools and Fasteners Needed ..........................................................2

INSTALLATION

Install the Channels........................................................................3

Install the Brackets.........................................................................7

Apply D-seal (If Necessary) ............................................................7

Install the Shade.............................................................................8

Test the Shade................................................................................8

Finish the Installation .....................................................................8

CARE

Removing the Shade (If Necessary) .............................................11

Removing the Bottom and Rear Channels (If Necessary) ............11

WARRANTY ......................................................................... 13

Questions?

Call Hunter Douglas Consumer Support at 1-888-501-8364.

GETTING STARTED

Front Channel

Bottom Channel

Pre-drilled

Mounting Channel

Top End Cap

Bottom End Cap

Rear Channel Template

Room Side

Duette®LightLock™Template

3”

Flush Mount

Depth (2

"):

- LiteRise

Alltrademarks used herein are the property of

HunterDouglas or their respective owners.

Flush Mount

Depth (3

"):

- PowerView

(Headrail-mounted

rechargeable

battery wand)

Flush Mount

Depth (3"):

- PowerView

(Batterywand —

high and low mount)

Trim the template at this dotted line for: PowerView®

(High and low mount battery wand)

Trim the template at this dotted line for: LiteRise®

5109604505 Rev. 10/20

QTY: 1

Mounting Channel (Mount to Window Jamb)

Street Side

Room Side

Rear Channel

(Snap into

Mounting Channel)

Channel Assembly (Top View)

Window Jamb

Front Channel

(Snap into Rear Channel)

Bottom

Channel

LightLock™Parts

GETTING STARTED

Thank you for purchasing Hunter Douglas Duette®Honeycomb Shades. With proper

installation, operation, and care, your new shades will provide years of beauty and

performance.

Please thoroughly review this instruction booklet and the enclosed packing list before

beginning the installation.

Tools and Fasteners Needed

■ 1" metal putty knife

■

⁄

" hex and Flat blade screwdrivers

■ Level (laser level is recommended)

■ Mallet

■ Measuring tape and pencil

■ Power drill,

⁄

" drill bit and

⁄

" hex driver

■ Scissors

In addition, you will need fasteners designed to work with your specific mounting surface(s).

■ #6 Hex Head Screws (Provided). 1

⁄

" screw is provided per installation bracket. Also,

⁄

" screws are provided for the mounting channels — the number of the screws provided

depends on the length of the channels.

Mounting Type and Window Terminology

If the mounting channels and installation brackets are mounted correctly, the rest of the

installation process follows easily. To prepare for these important steps, review the basic

window terminology illustrated below. Note that the LightLock™system is only available for

inside mount.

#6 x 1

∕

Hex Head Screw

(Provided)

Longer #6 Hex Head Screw

for Use with Spacer Blocks

(Not Provided)

#6 Flat Head Screw

for Use with End Mounts

(Provided)

Speed Nut

and Screw

(Two Provided with

Each Extension Bracket)

Inside Mount

Shade ﬁts within

window opening.

Collectively, the sill and

jambs are called the

“window casement.”

Molding

Head Jamb

Sill

Jamb Jamb

INSTALLATION

Install the Channels

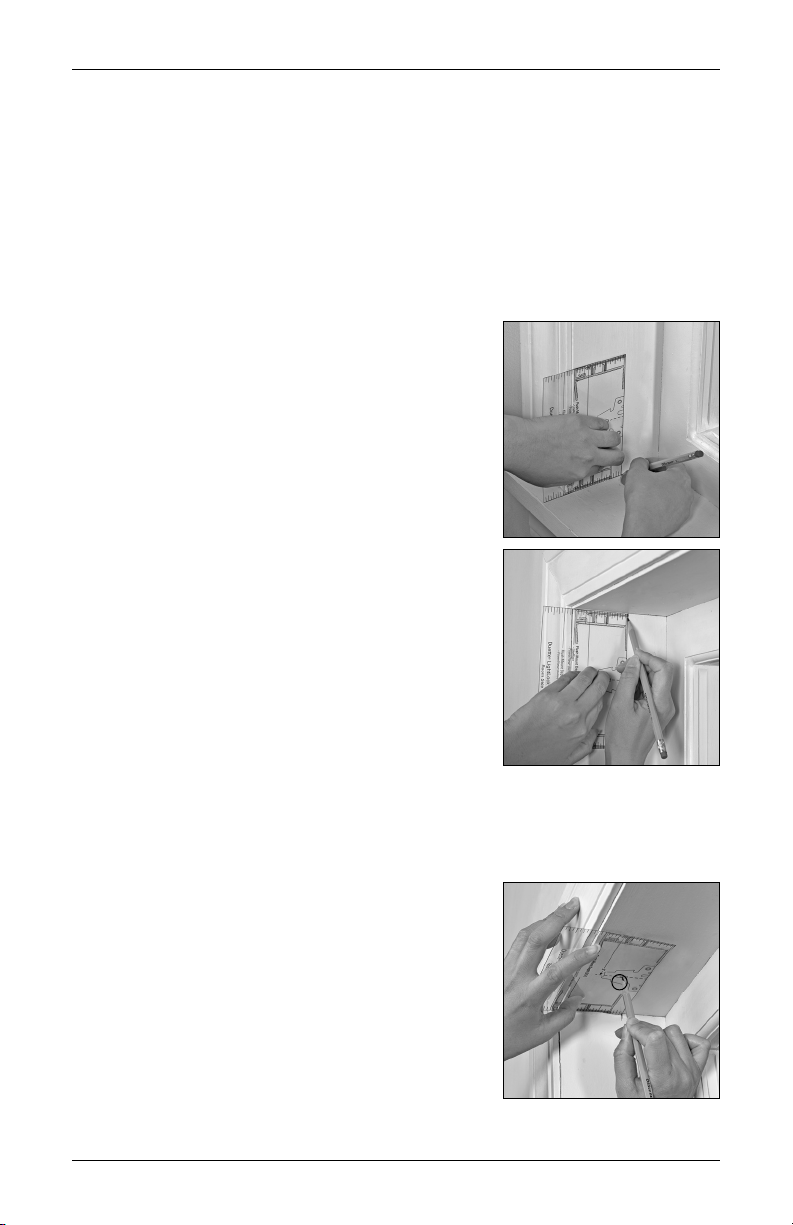

■ Using the outline on the template, determine where to mount the side channel.

➤ If your shade is LiteRise®or PowerView®(battery wand), the minimum mounting depth

for flush mount is 2

⁄

". Trim the template at the dotted line prior to use.

➤ If your shade is PowerView (battery wand — high and low mount), the minimum

mounting depth for flush mount is 3".

➤ If your shade is PowerView (rechargeable battery wand), the fully recessed minimum

mounting depth is 3

⁄

" and the minimum casement depth is 1

⁄

■ Place the template at the bottom of the left side jamb

and mark the rear edge of the template on the jamb.

➤ This mark represents the rear edge of the mounting

channel.

■ Repeat this step for the top of the left jamb.

■ Repeat the above steps for the right jamb.

■ Using the template, mark the location for the installation brackets on the head jamb.

➤ Place the template in the top left corner of the window opening.

➤ Line up the back edge of the template with the mark

previously made on the side jamb.

➤ Mark the center hole, if depth permits.

➤ Repeat for the right side.

➤ If more than two installation brackets came with your

order, space additional bracket(s) evenly between the

two end brackets and mark their location.

INSTALLATION

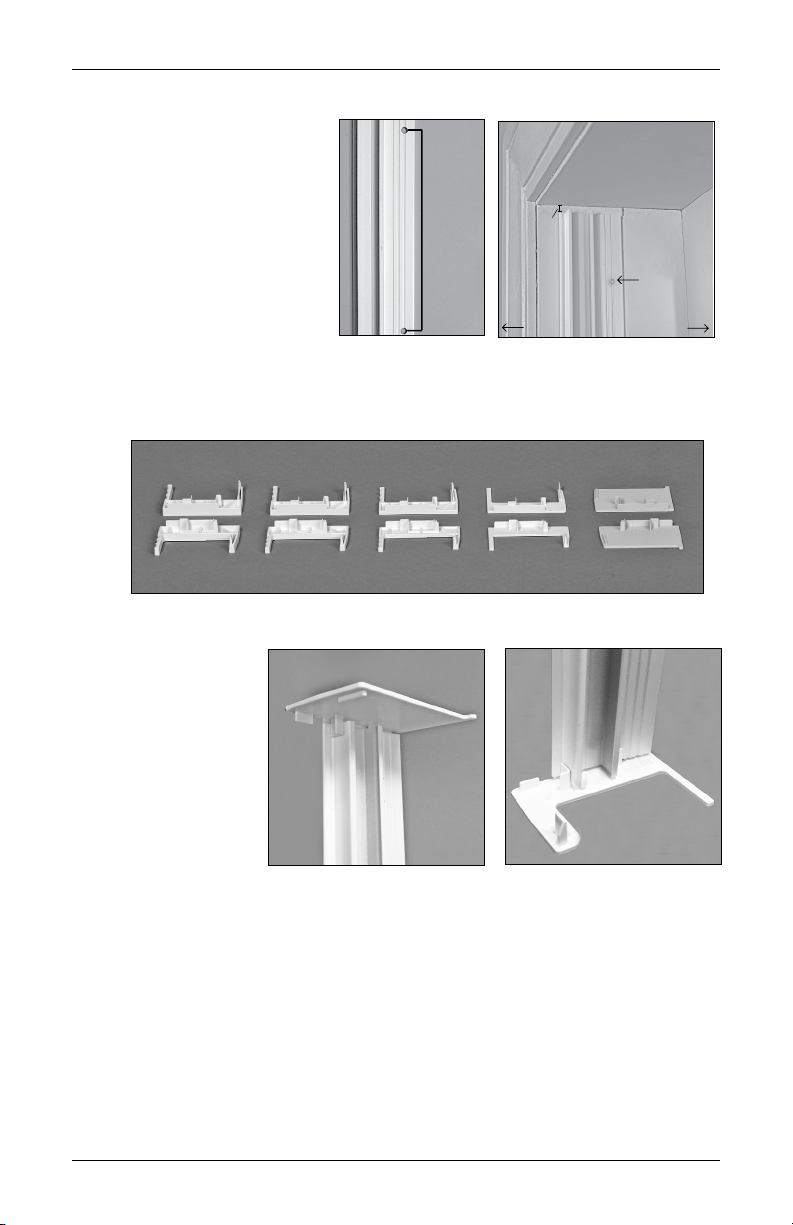

■ Test fit the left pre-drilled mounting channel into the window opening.

➤ If the gap is greater than

⁄

", select the proper combination of top and bottom end

caps to minimize the gap.

NOTE: D-seal on the top of the top end caps can be effective in reducing light gaps.

➤ Attach the end caps as shown and test to ensure a snug fit.

■ Repeat for the right side.

Gap

Street

Pre-drilled

holes

Room

Top Left Bottom Left

Pre-drilled

holes are

6in apart

INSTALLATION

■ Place the mounting channel in the window opening, lining up the rear of the mounting

channel to the marks previously made on the side jambs.

■ Attach the mounting channel to the window frame at the

pre-drilled holes using the screws provided.

NOTE: For highly nonconforming flat surfaces or

out of square installs, it may be necessary to add

an additional screw in the not pre-drilled location

of the mounting channel for additional support.

Screws in the U channel should be placed a

maximum of 18" apart.

■ Repeat for the opposite side.

Optional hole location.

Maximum 18in apart

For nonconforming ﬂat or

out of square installs.

INSTALLATION

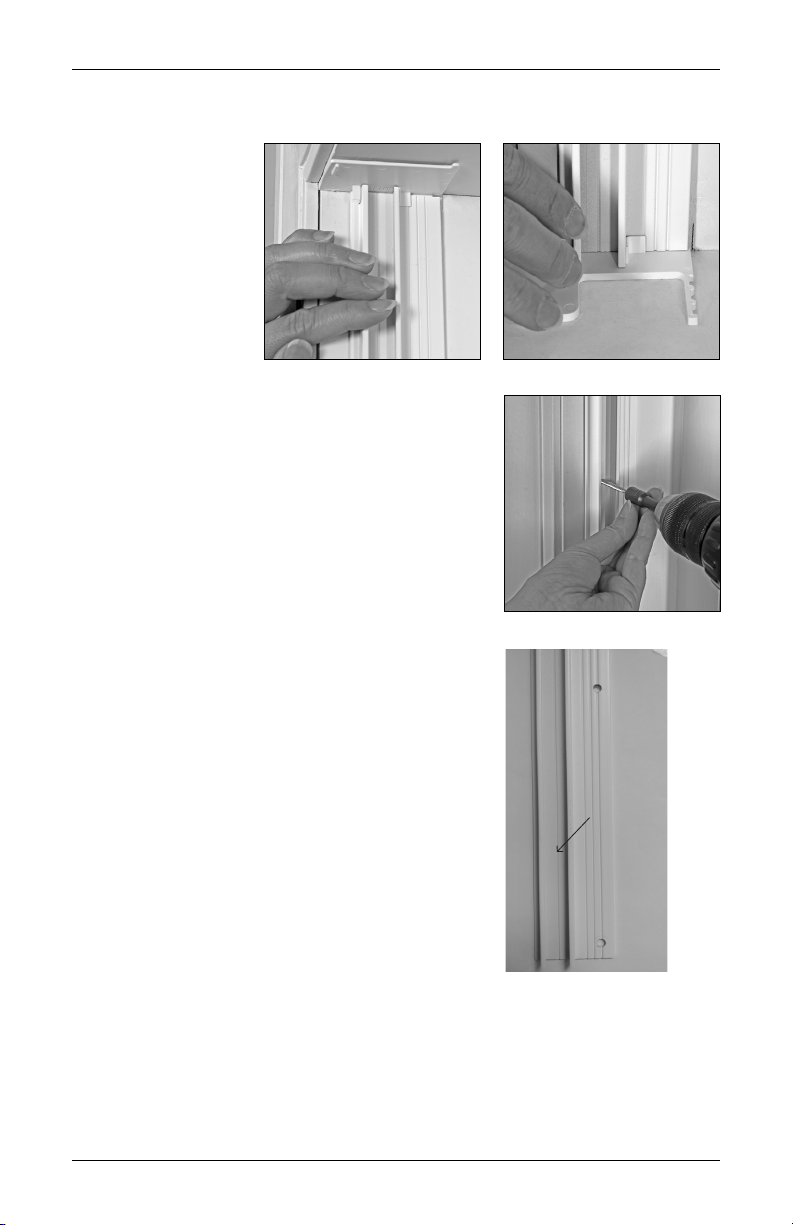

■ Remove the protective liner from the front and the rear channels.

■ Snap the rear channel onto the mounting channel, starting at the bottom and working up

to the top. Use a mallet if necessary.

■ Reach behind the rear

channel and make

sure there is

no gap between the

rear channel and the

mounting

channel.

■ Repeat for the opposite side.

INSTALLATION

Install the Brackets

■ Your order will include the correct number of installation brackets for your shade width, as

shown in the table.

■ Install the installation brackets.

➤ Drill the screw holes already marked on the head jamb using a

⁄

" drill bit.

■ Use a level to check that the mounting surface is level. Shim the brackets if necessary.

■ Attach the installation brackets using the screws

provided.

IMPORTANT: The back edges of the installation

brackets should line up with the back of the rear

channel. If the brackets are closer to the window,

move them forward.

IMPORTANT: The front edges of the installation

brackets must be level and aligned. If mounting to a

heavily textured surface, shim the brackets, if needed.

Apply D-seal (If Necessary)

■ We have provided an adhesive-backed D-seal to reduce

any light gaps created by uneven surfaces. Install the

D-seal on the headrail, as necessary, to eliminate the

light gaps.

Shade

Width

Brackets

Required

12" – 36" 2

∕

" – 72" 3

∕

" – 108" 4

108

∕

" – 144" 5

144

∕

" – 174" 6

Installation

Bracket

End Mount

Brackets

INSTALLATION

Install the Shade

■ Refer to the appropriate page based on your order.

➤ For LiteRise®shades: see the Duette Honeycomb Shades LiteRise Installation,

Operation, and Care document.

➤ For PowerView®shades: see the Duette Honeycomb Shades PowerView Automation

Installation, Operation, and Care document.

Test the Shade

■ Test the operation. The shade should be evenly spaced from both rear channels and

operate smoothly.

➤ For LiteRise shades: use the handle to lower/raise the shade. Refer to the Duette

Honeycomb Shades LiteRise Installation, Operation, and Care document.

➤ For PowerView shades: use the control button to test the operation. Refer to the

Duette Honeycomb Shades PowerView Automation Installation, Operation, and Care

document.

NOTE: If the channels interferes with the shade’s operation, make sure the side channel is

installed completely to the mounting channel.

Finish the Installation

Install Bottom Channel

■ Clean the sill using standard household cleaners.

■ Test fit the bottom channel.

➤ Trim the channel, if needed.

■ Remove the protective liner from the bottom channel.

IMPORTANT: Be sure that the bottom channel cover is placed on the street side.

Bottom Channel

Bottom

Channel

Cover

Room Side

Street Side
