THANK YOU

USE AND CARE GUIDE

36 IN. -3 DRAWER TOOL CART

We appreciate the trust and confidence you have placed in Husky through the purchase of this chest/cabinet. We strive to continually

create quality products designed to enhance your home. Visit us online to see our full line of products available for your home

improvement needs. Thank you for choosing Husky!

WITH WOOD TOP

Model #HOUC3603B1QWK

THD.com #1000 119 795

Model #HOUC3603BJ1

THD.com #1005 877 478

Questions, problems, missing parts?

Before returning to the store, call

Husky Customer Service

HUSKYTOOLS.COM

1-888-HD-HUSKY

8 a.m. - 7 p.m., EST, Monday-Friday,

9 a.m. - 6 p.m., EST, Saturday

Table of Contents

Table of Contents.....................................................................2

Safety Information...................................................................2

Warranty.......................................................................................3

Pre-Assembly............................................................................4

Assembly............................................................................6

Operation...........................................................................8

Maintenance.....................................................................9

Safety Information

6. Do not pull the tool cart, push it when moving.

7. Do not alter this product in any manner.

DANGER: Do not stand on this product. You

may fall or cause the product to tip.

DANGER: Do not move the product prior to

closing and locking all the drawers. The

drawers could come open and make the

product unstable and tip.

DANGER: Do not mount this product on a

truck bed or any other moving object.

WARNING: Keep the product on a level

surface. The product may become unstable and

tip if stored or moved on an uneven surface.

CAUTION: Do not lift this product directly

with a forklift or tow with any mechanical

devices.

CAUTION: Do not exceed the maximum

product weight, including contents. Do not

exceed the maximum weight for each drawer.

See Specifications on page 4.

CAUTION: Only transport this product when

empty. Properly secure when transporting.

1. Do not open more than one drawer at a time.

2. Do not let children approach the tool cart.

4. Lock all drawers before moving the cart.

5. Do not step in the tray.

3. Keep the locking casters brake set unless you are

moving the cart. This will help to prevent the product

from rolling.

Care and Cleaning..........................................................9

Service Parts....................................................................10

Tools Required...........................................................................4

Hardware Included....................................................................4

Specifications............................................................................4

Package Contents......................................................................5

CAUTION: Do not use the side handle as a

point of leverage to lift the unit off of the ground.

Handle is not intended to withstand the force of

vertical lifting, and is only designed to aid in the

movement of unit around on casters. Failure to

adhere to this warning may cause handle to

break and cause personal injury and/or product

damage.

Warranty

The manufacturer warrants the product to be free from defects in materials and workmanship for a period of three (3) years from date of

purchase. This warranty applies only to the original consumer and only to products used in normal use and service. If this product is

found to be defective, the manufacturer’s only obligation, and your exclusive remedy, is the repair or replacement of the product at the

manufacturer’s discretion, provided that the product has not been damaged through misuse, abuse, accident, modifications, alteration

neglect or mishandling. This warranty shall not apply to any product that is found to have been improperly installed, set-up, or used in

any way not in accordance with the instructions supplied with the product. This warranty shall not apply to a failure of the product

as a result of an accident, misuse, abuse, negligence, alteration, faulty installation, or any other failure not relating to faulty material or

workmanship. This warranty shall not apply to the finish on any portion of the products such as surface and/or weathering, as this is

considered normal wear and tear.

The manufacturer does not warrant and specifically disclaims any warranty, whether express or implied, of fitness for a particular purpose,

other than the warranty contained herein. The manufacturer specifically disclaims any liability and shall not be liable for any consequential

or incidental loss or damage, including but not limited to any labor/expense costs involved in the replacement or repair of said product.

Contact the Customer Service Team at 1-888-HD-HUSKY or visit www.huskytools.com.

HUSKYTOOLS.COM

Pleas e contact 1-888-HD-HUSK Y fo r furthe r assistanc.e

Pre-Assembly

TOOLS REQUIRED

Phillips

screwdriver

Safety

goggles

13 mm

Wrench

HARDWARE INCLUDED

NOTE: Hardware not shown to actual size.

Part Description Quantity

AA Screw M6x15L

BB Bolt M8x15L

10 mm/13 mm wrench

SPECIFICATIONS

Maximum weight capacity (drawers) 150 lbs.

Maximum weight capacity (bottom tray)

250 lbs.

Empty weight 88.9 lbs.

NOTE: Begin product assembly close to the final

intended location of your tool cart . This product is

heavy and may be difficult to move after assembly.

Part Code

L031134F

L031103M815

L3011002

Pre-Assembly (continued)

PACKAGE CONTENTS

Part Description Quantity

A Wood top 1

B Side handle 1

C Legs 4

D Swivel caster with brake 2

E Tray 1

F Drawer slide (pair) 3

Part Description Quantity

G Rigid caster 2

H Key (set) 1

I Drawer 3

J Lock 1

K Drawer Liner 3

HUSKYTOOLS.COM

Pleas e contact 1-888-HD-HUSK Y fo r furthe r assistanc.e

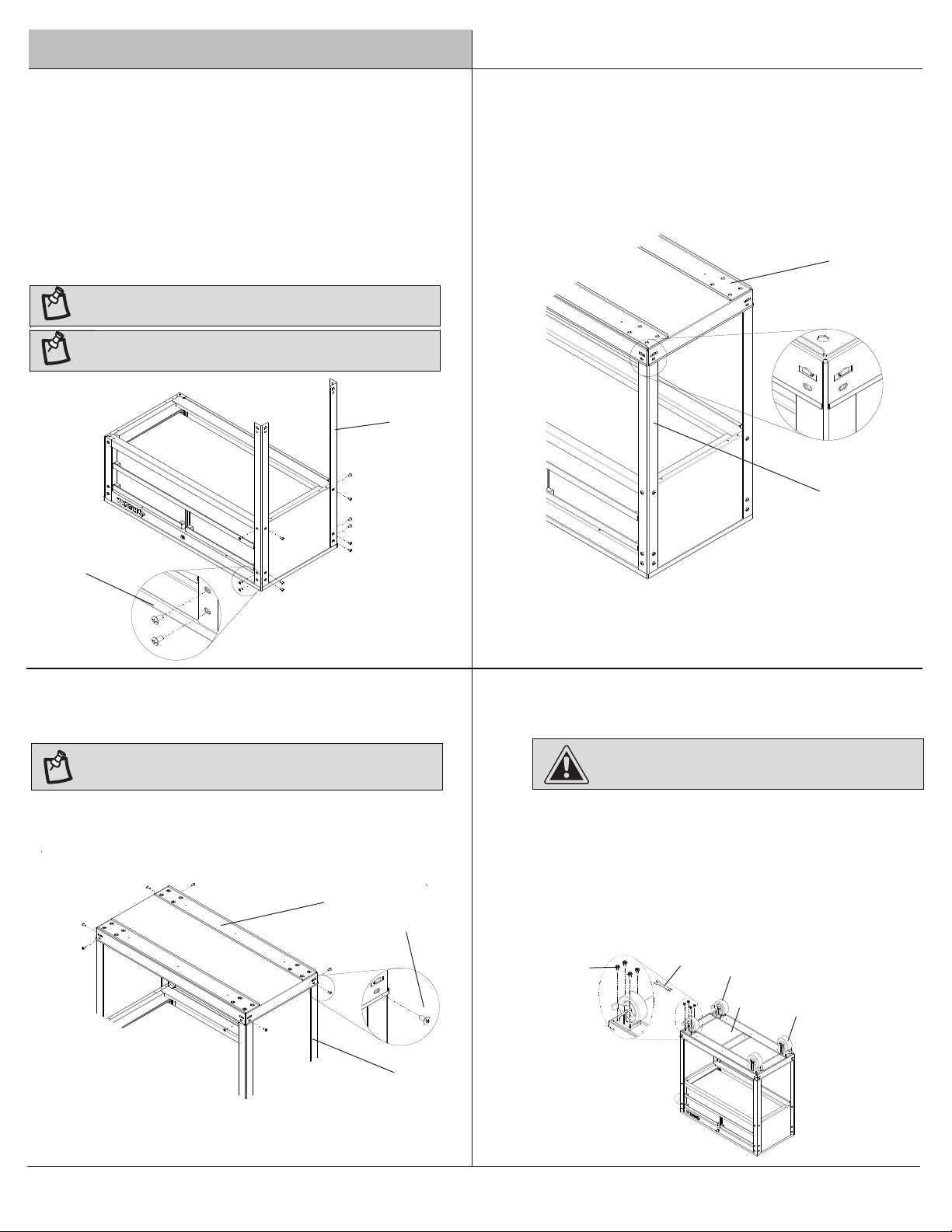

Assembly

Installing the legs 2

Attaching the tray

□ Lay the cart upside down. Use the packaging material

to protect the wood top from damage during assembly.

NOTE: The holes in the tool cart are tapped and do not

require nuts.

□

NOTE: Two people may be required to complete

this step.

Securing the tray

NOTE: The holes in the tool cart are tapped and do not

require nuts.

□

Mount the four legs (C) to the cart using six screws (AA)

□

per leg. Do not install four of the screws (AA) in the legs of the

Clip the tray (E) to the four legs (C).

Ensure all cabinet drawers are securely locked into

place using the lock (J) on the cart.

□

Secure the tray (E) to the legs (C) using two screws (AA)

□

per leg.

□

tool cart on the side adjacent to the Husky badge.

The side handle (B) will be mounted here in a later step.

□

Installing the casters

□

Mount the two swivel casters with brake (D) to the tray (E)

using four bolts (BB) per caster.

The swivel casters with brake (D) should be installed on

Mount the two rigid casters (G) to the tray (E) using four

bolts (BB) per caster.

Tighten all bolts with a 13 mm wrench.

Carefully return the tool cart to its upright position.

the same side as the Husky badge.

CAUTION: Do not over tighten the bolts.

Assembly (continued)

HUSKYTOOLS.COM

Attaching the side handle

NOTE: The holes in the tool cart are tapped and do not

require nuts.

□

□ Attach the side handle (B) to the tool cart using four screws (AA).

Pleas e contact 1-888-HD-HUSK Y fo r furthe r assistanc.e

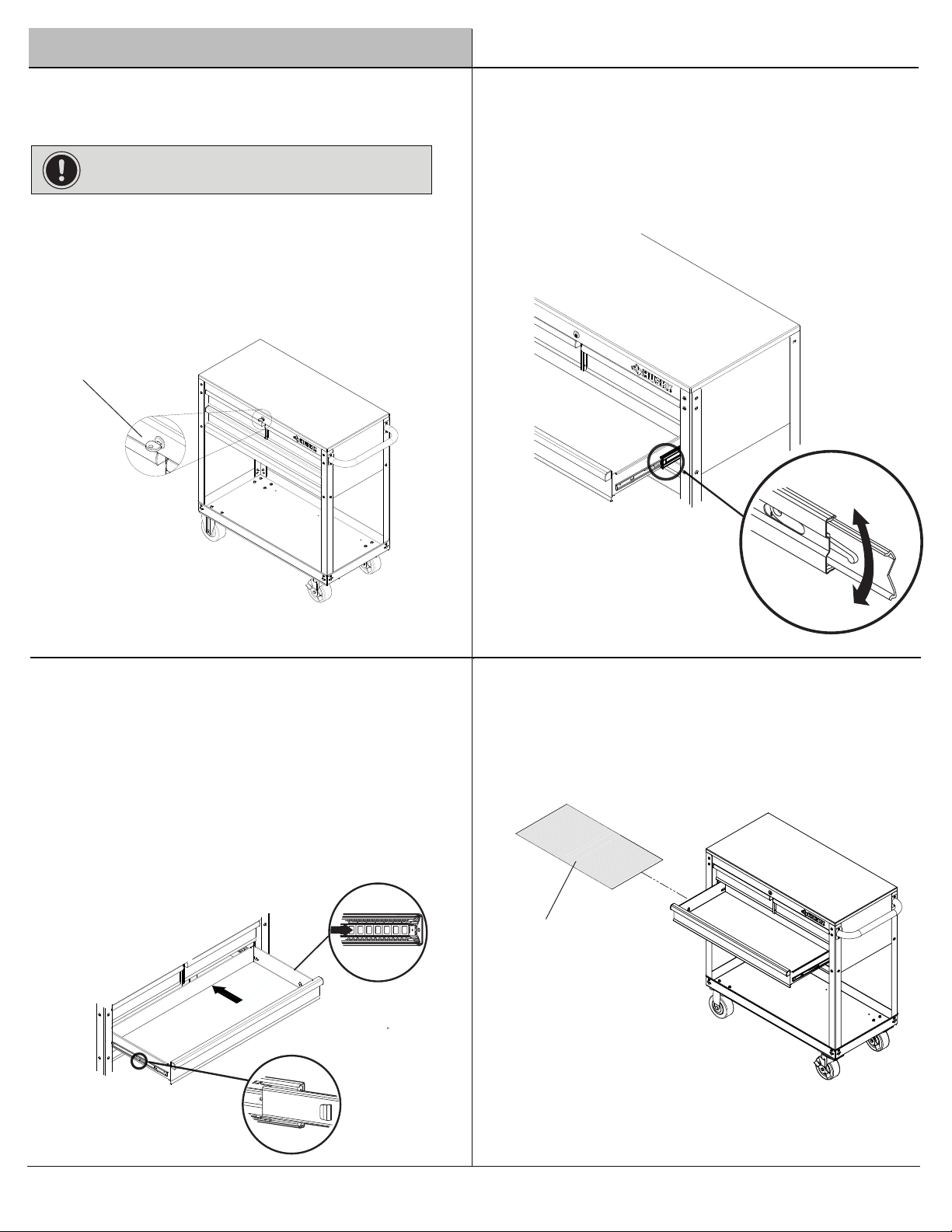

Operation

Installing the drawers

□ Pull the slides and slide carrier out until fully extended.

□ Hold the slide on the cabinet while aligning it with

the slide on the drawer.

□

□ Slowly push the drawer until it is fully closed to

engage the slide.

□ Open the drawer and close it to verify proper

operation.

Slightly insert one side and repeat for the other side.

2Removing the drawers

□ Fully extend and empty the drawer.

□ Depending on the slide, either lift or lower the

release lever on both sides so the slides can ride over

the stops. Pull out to remove.

1 Locking and unlocking the unit

IMPORTANT : The drawers must be fully closed before

locking / unlocking the unit.

□ Insert the key (H) into the lock and turn it fully to the left to lock.

□ Remove the key (H).

□ Insert the key (H) into the lock and turn it fully to the right to

□ Remove the key (H).

unlock.

Installing the drawer liner

□ Place the drawer liners (K) in appropriately sized

drawers to protect the surface.

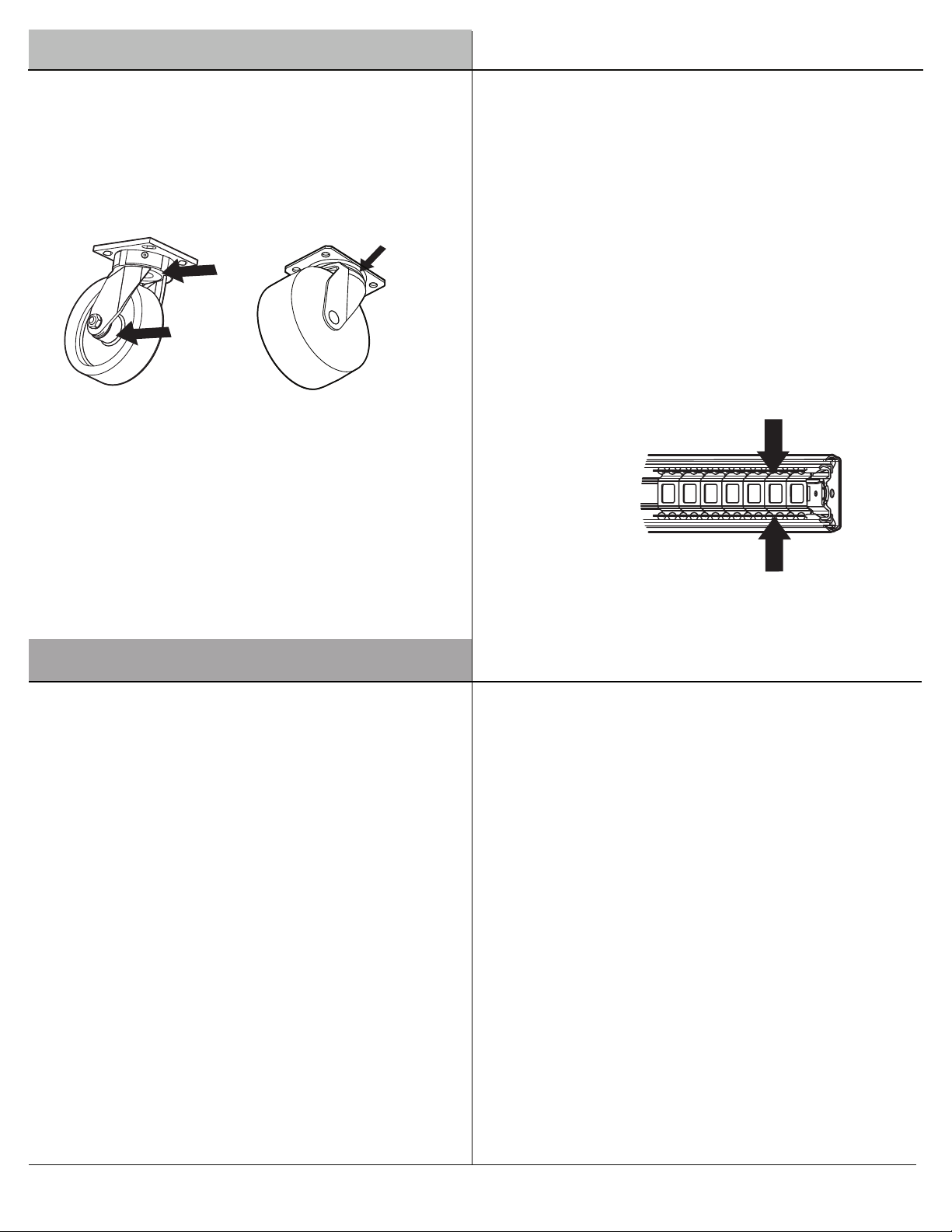

Maintenance

Maintaining the casters 2 Maintaining the drawers

□ Grease the casters annually using high quality

bearing grease.

□ Periodically clean the drawer trim, and

inside the drawers with a mild detergent and water.

□ Remove grease and oil with a standard,

nonflammable cleaning fluid.

□ The use of drawer liners is recommended to protect

the finish inside the drawers and make the drawers

easier to clean. Drawer liners can be purchased at

The Home Depot and can be cleaned with soap

□ Lubricate the slides semi-annually with grease or

equivalent.

□

This steel product has been coated with industrial powder coating

Care and Cleaning

□

To help protect the powder coated finish, do not allow harsh

□

Use a glass cleaner (Windex or equivalent product) to clean and

chemicals (oil, grease, or other chemical) to remain on the powder

and water.

for a durable finish.

coating surface.

maintain all surfaces of powder coating.

□

The wood top is made of Parawood (also called Rubberwood) which

has UV coating to help protect it from moisture. It can be

cleaned with most household cleaners, such as Windex .

Pleas e contact 1-888-HD-HUSK Y fo r furthe r assistanc.e

HUSKYTOOLS.COM

Service Parts

Part Part Code Description Quantity

A K2532038 Wood top 1

DTC04003 (Black)

DTC04008Z (Chrome) Side handle 1

CD290021 (Black)

D29002J (White) Legs 4

D K03220053 Swivel caster with brake 2

ED640021 (Black)

D64002J (White) Tray 1

F DTC35016 Drawer slide (pair) 3

G K03220263 Rigid caster 2

H K06120122 Key (set) 1

J K06120121 Lock 1

K K0129140 Drawer liner 3
