Product Manual

MRC-E250

Original Instruction

Version 221206



Table of Contents

Introduction
Product Features
Product Description ..................................................................................1
Parts Description ......................................................................................1
Product Dimension ...................................................................................2
Technical Data
Function....................................................................................................4
Characteristic............................................................................................4
Mounting Parameter .................................................................................5
Connection................................................................................................5
Certification...............................................................................................5
Mounting
Tool List ....................................................................................................6
Accessory List...........................................................................................6
Mounting Instructions................................................................................7
Safety Instructions
Important Notice .......................................................................................9
Moving and Storage Instructions ..............................................................9
Maintenance .............................................................................................9
Disposal....................................................................................................9


HYENA E-BIKE SYSTEMS

Introduction

This manual is intended primarily for the trained technician to install, disassemble, or maintain the Hyena e-bike system only.

Please read all the safety warnings and instructions carefully. Failure to follow the warnings and instructions may result in

death or severe injuries. Save this manual for future reference.

Product Features

Product Description

The MRC-E250 rear hub motor provides power for the e-bike. It features an amazingly lightweight, extra small size, and is

maintenance-free.

Parts Description

Item

Description

Item

Description

M6 Hex socket security bolt

Sticker (remove on install)

Anti-rotation flange nut

Cable (connect to controller)

M5 button-head hex socket screw

Cassette mounting base

HYENA E-BIKE SYSTEMS

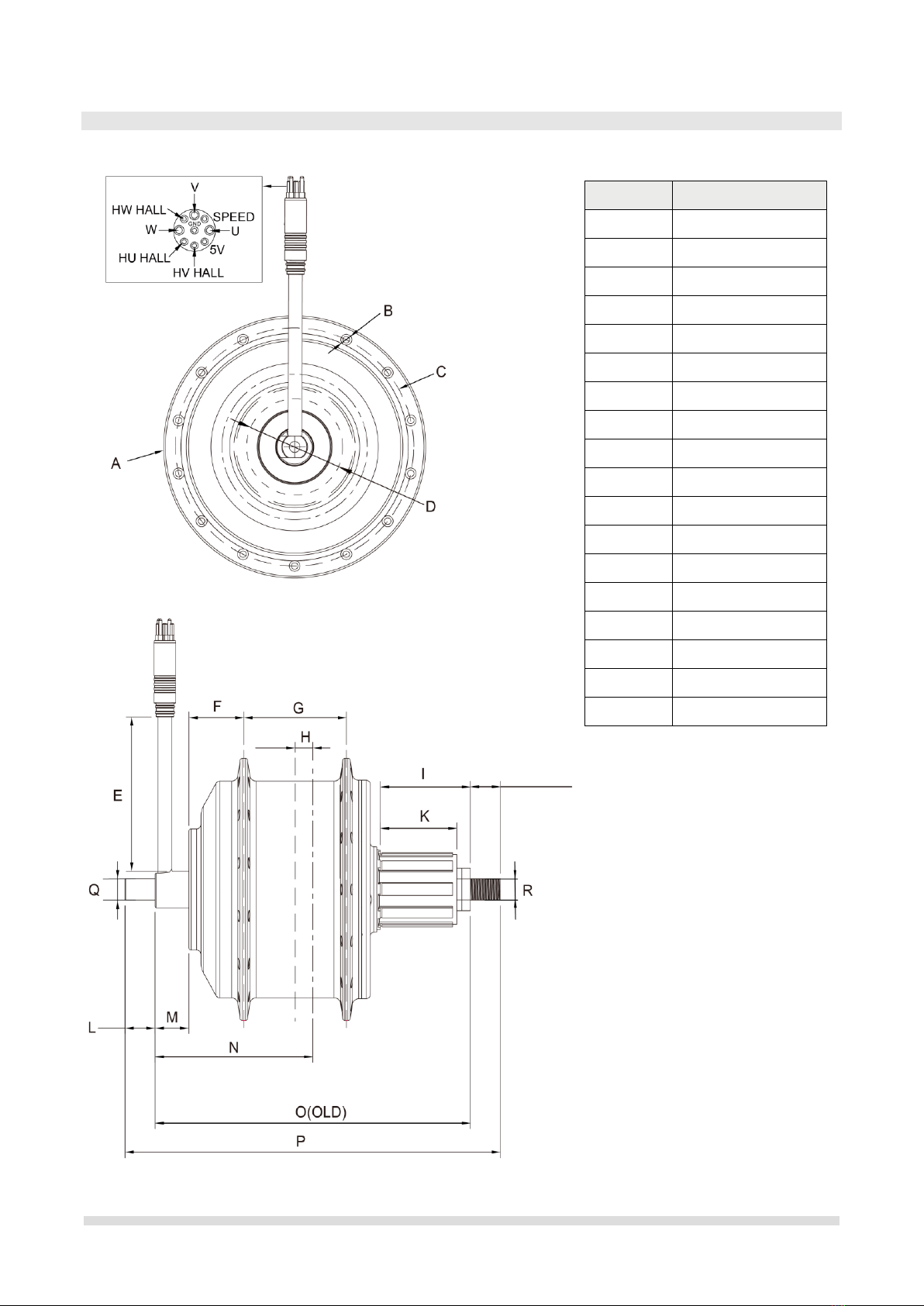

Product Dimension

28H: 40010M20B-1

Unit: mm

Item

Dimension

Φ120.0

Φ3.0, 28 Holes

PCD Φ109.0

PCD Φ44.0

Cable 220 mm

25.2

47.0

8.0

41.2

13.8±0.1

35.0

13.8±0.1

15.5

72.2

144.5±1

172±1

-0.2

+10

-0

HYENA E-BIKE SYSTEMS

32H: 40010M20A-1

Unit: mm

Item

Dimension

Φ120.0

Φ3.0, 32 Holes

PCD Φ109.0

PCD Φ44.0

Cable 220 mm

25.2

47.0

8.0

41.6

13.6±0.6

35.0

13.8±0.1

15.5

72.2

144.5±1

172±1

-0.2

+10

-0

HYENA E-BIKE SYSTEMS

Technical Data

Function

Rated power

250 W

Rated voltage

36 V

Wheel size

26 to 28 inches

Max. torque

40 Nm

No-load RPM

≥270 RPM

w/o loading

Max. current at n0 RPM

≤1.7 A

w/o loading

Max. noise at n0 RPM

< 60 dB

w/o loading

Rated RPM

250 ±5% RPM

Max. efficiency

≥80 %

Weight

2.2 Kg

Waterproof level

IP54

Hall sensor

Yes

Speed sensor

Yes

1 Magnet

Characteristic

Protocol

N/A

Control type

Sine wave

Reduction ratio

1:12.6

Operating temperature

-10℃to +50℃80%RH

Storage temperature

-20℃to +70℃80%RH

Insulation

≥50 MΩ

HYENA E-BIKE SYSTEMS

Mounting Parameter

Mounting position

Rear Hub

Outer dimension

120 mm

Shaft length

197 mm

O.L.D. (over-locknut dimension)

144.5 mm

Axle type

10 mm

Spoke hole

28H/32H

28H: 40010M20B-1

32H: 40010M20A-1

Spoke hole type

13G

Brake type

Disk brake BCD 44 mm 6 bolts

Derailleur

Cassette 8-11 speed

≥ 34T freewheel

Cable outlet

Non-drive side through the shell

Cable length

220±10 mm

Standard connector

CM-WP412-09M

Connection

N/A

Certification

EN 15194:2017

Yes

RoHS

Yes

HYENA E-BIKE SYSTEMS

Mounting

Tool List

Torque wrench set

Hexagon key set

Freewheel tool

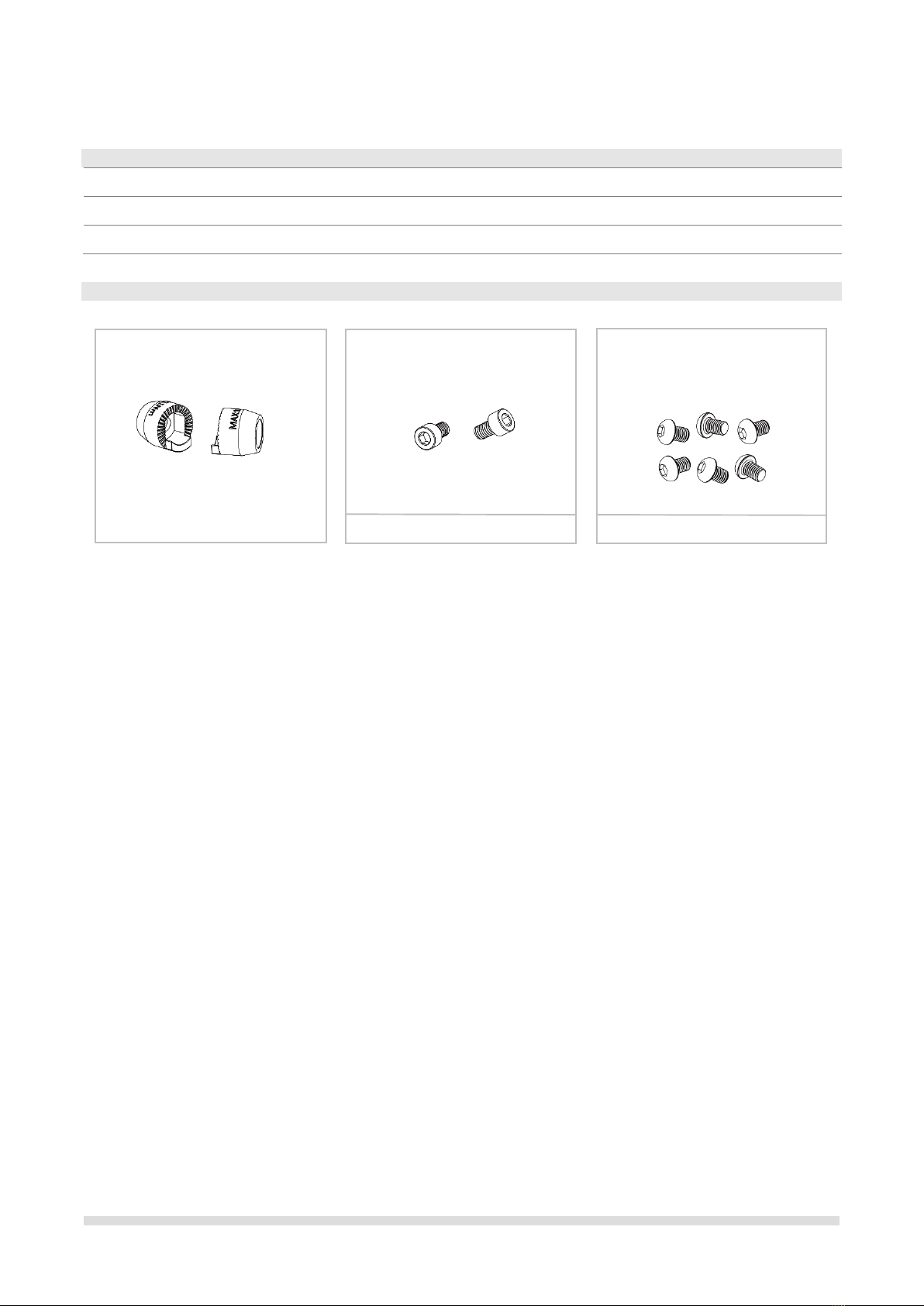

Accessory List

Anti-rotation flange nuts (2 pcs)

Hex socket security bolts (2 pcs)

M5 button-head hex socket screws

(6 pcs)

M6xP1.0xt14mm

M5x7mm

HYENA E-BIKE SYSTEMS

Mounting Instructions

• Use the proper bicycle tools during the installation or removal process.

• Carefully installing this product is necessary, do not strike it with any tool such as a hammer or wrenches.

• CAUTION! Please strictly follow these steps for assembly; otherwise, an incorrect assembly may cause permanent

damage.

• NOTE: The bike image in the manual may be different from the actual bike, but will be enough to help you understand

related instructions.

Exploded View of Assembly

Installation

Peel the sticker away from the motor (left side).

Install the disc.

STEP

HYENA E-BIKE SYSTEMS

Fasten the screws (maximum torque 4.5 Nm).

Install and fasten the cassette sprocket and cassette

locking ring (right side).

Install the motor (rear wheel).

Insert the torque washer through the motor shaft

(washer bulge aligns with the flat side of the shaft), then

fasten the flange nut (maximum torque 11 Nm).

Completed.

STEP
