Installation Manual for HyNet Attachment Kit: MX3868

This document is a supplemental document that provides specic information regarding

conguration of the HySecurity gate operator with installation and wiring of the HyNet Gateway. For

safety considerations and information specic to your gate operator, refer to the HySecurity gate

operator's product manuals.

StrongArm M30, StrongArm M50,

HydraSupply XL, HydraWedge SM50

HyNet Components

Drawing is not to scale

LED Indicators

Height

1¼ inches

SFP Module

(100/1000/2500)

Managed Switch

RJ-45 Integration Hub

4-Port Copper Gigabit

(100/1000/2500)

Micro USB

Reset Button

RS-485

USB OTG

Micro SD Card Slot

Mounting Plate

4 x 7½ inches

LED (position 1)

Table 1: HyNet LED Indicators

LED Position LED Color Indicates

1RED ashing No communication from gate operator to HyNet.

1Green steady Communication is established between gate operator and HyNet.

2RED steady Gate operator network communication is not congured or established.

2RED ashing HyNet is attempting to connect to network (web interface).

2GREEN ashing Network (web interface) is established and working. (May not be wholly

congured, yet. Verify conguration with your IT administrator.)

3RED steady Hardware fault.

3RED ashing Charge is low on coin battery. Replace coin battery.

3GREEN steady Hardware functioning and coin battery charged.

4Red steady or no LED lit HyNet internal switch is not functioning.

4GREEN steady HyNet internal switch is functioning.

4321

HySecurity CRASH Products and

HyNet Assembly with Attachment Bracket

DIN rail mount

Bracket mounting screws

HyNet Mounting Plate

Attachment Bracket

DIN rail mounting screws

Star washers

Tools Required

• Phillips head screwdriver

HyNet Assembly

DIN Rail Mount

Attachment

bracket

HyNet

Mounting plate

Mount HyNet module

onto DIN rail next to

Power Disconnect

Switch.

HyNet Installation on

StrongArm M30 Control

Panel

Mount HyNet Assembly to DIN Rail

Mount the HyNet assembly to the DIN rail inside the gate operator or HydraSupply.

NOTE: The HydraSupply cabinet (not shown) contains a DIN rail and the HyNet is mounted similarly to it.

Tip the HyNet Assembly so the

spring loaded pins t under the

DIN rail.

Pull on the DIN rail mount

to slide and set the opposite

section over the DIN rail.

NOTE: The DIN rail mount is

interchangeable and can be

assembled so that the spring

loaded pins clasp onto the

top rail or the bottom rail.

NOTE: For clarication only, DIN rail

and DIN rail mount shown without

HyNet Assembly attached.

StrongArm M30

HyNet Assembly shown attached to DIN rail in Pivot Post

DIN rail

Pins

Springs

DIN rail mount

DIN

rail

HyNet Assembly

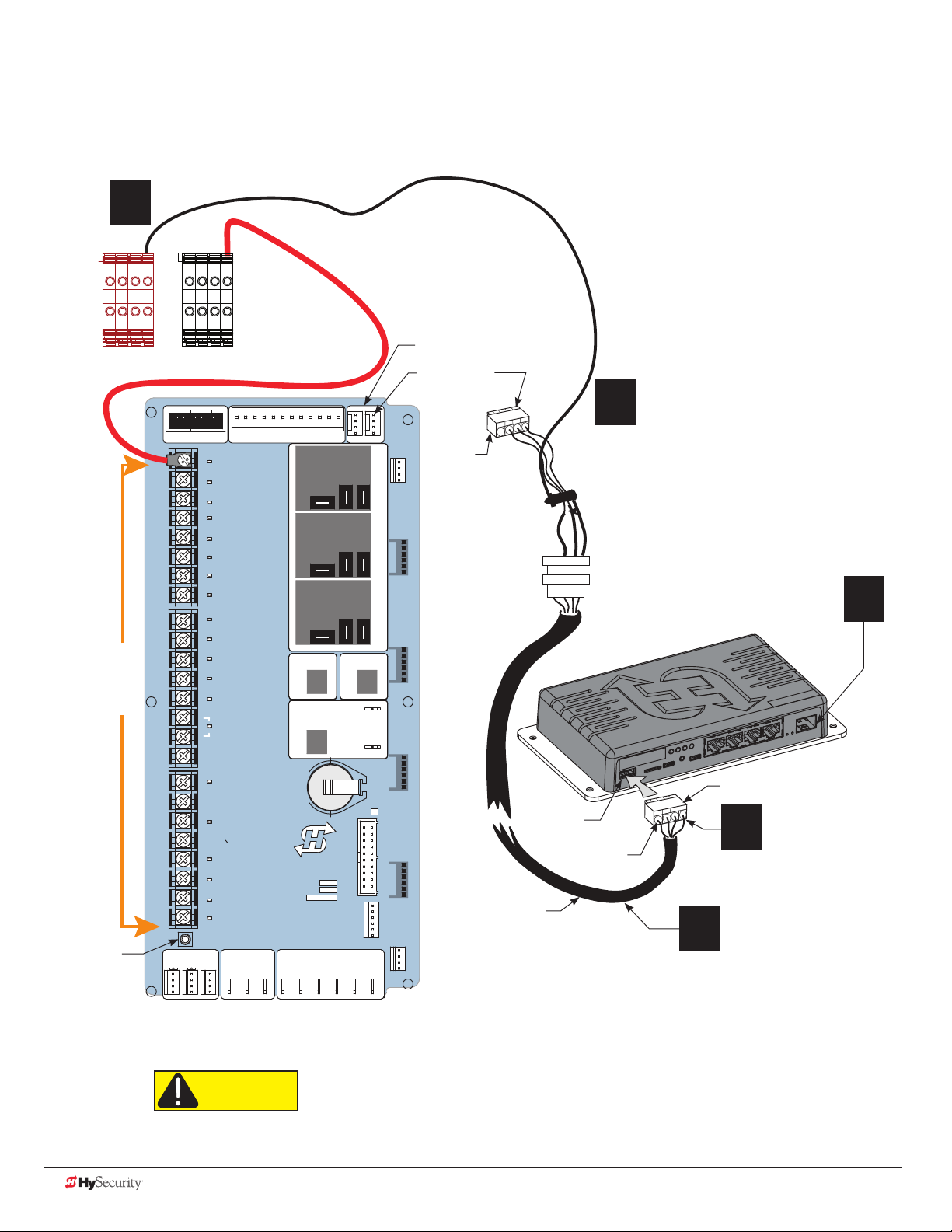

HyNet Gateway

Pin 1, COM

Installer supplied

shielded cable

STOP BUTTON

OPEN BUTTON

CLOSE BUTTON

REMOTE OPEN AND

RADIO CONTROL

OPEN/CLOSE

OPEN PARTIAL

INTERLOCK OPEN

TIME CLOCK OPEN

FREE EXIT DETECTOR

DISABLE EXIT DETECTOR

DISABLE CLOSE TIMER

INSIDE OBSTRUCTION

VEHICLE DETECTOR

OUTSIDE OBSTRUCTION

VEHICLE DETECTOR

SHADOW/RESET

VEHICLE DETECTOR

SENSOR 1

SENSOR COM

DO NOT USE

CHARGER

AC LOSS

LOCK INTERLOCK

EMERG CLOSE

FIRE DEPT OPEN

Smart Touch Controller

LIMIT DUAL GATE RADIO OPTIONS

DRIVE POWER RS485

MOTOR USER 1 USER 2

USER 3

VEHICLE DETECTORVEHICLE DETECTORVEHICLE DETECTOR

STOP/BUZZER

FREE

EXIT

INSIDE

OBSTR

OUTSIDE

OBSTR

SHADOW

RESET

WIEGAND

HySecurity

COM

MX000585

VERSION

S/N

RS232

DISPLAY

VEHICLE DETECTOR

COM COMA B

RPM

COMOPEN S 1+24V +24V

STAT U S

LED

Inputs

SENSOR 2

SENSOR 3

(+24V)

(-24V)

BLACK

TERMINAL

BLOCKS

RED

TERMINAL

BLOCKS

Pin 1, +24V

DO NOT connect to +24V tabs at base of

Smart Touch Controller. Only use the +24V

connections on the power supply terminal

block.

CAUTION

Drawing is not to scale.

Attach shielded cable

to wire harness.*

1Attach to RS-485

port on HyNet.

3Connect to RS-485 port on

Smart Touch Controller.

Snip off lug and strip

wire. Connect ying

lead to +24VDC

terminal block.

Tact

button

Wire harness

(supplied in box)

Supply RJ-45 network

connection

HyNet

RS-485

port

Smart Touch Controller

RS-485

Connector

RS-485 Connector

RS-485 ports

*Measure distance between

HyNet and Controller

connections for appropriate

shielded cable length.

NOTE: More detailed wiring information

is shipped with the HyNet.

STOP BUTTON

OPEN BUTTON

CLOSE BUTTON

REMOTE OPEN AND

RADIO CONTROL

OPEN/CLOSE

OPEN PARTIAL

INTERLOCK OPEN

TIME CLOCK OPEN

FREE EXIT DETECTOR

DISABLE EXIT DETECTOR

DISABLE CLOSE TIMER

INSIDE OBSTRUCTION

VEHICLE DETECTOR

OUTSIDE OBSTRUCTION

VEHICLE DETECTOR

SHADOW/RESET

VEHICLE DETECTOR

SENSOR 1

SENSOR COM

DO NOT USE

CHARGER

AC LOSS

LOCK INTERLOCK

EMERG CLOSE

FIRE DEPT OPEN

Smart Touch Controller

LIMIT DUAL GATE RADIO OPTIONS

DRIVE POWER RS485

MOTOR USER 1 USER 2

USER 3

VEHICLE DETECTORVEHICLE DETECTORVEHICLE DETECTOR

STOP/BUZZER

FREE

EXIT

INSIDE

OBSTR

OUTSIDE

OBSTR

SHADOW

RESET

WIEGAND

HySecurity

COM

MX000585

VERSION

S/N

RS232

DISPLAY

VEHICLE DETECTOR

COM COMA B

RPM

COMOPEN S 1+24V +24V

STAT U S

LED

Inputs

SENSOR 2

SENSOR 3

(+24V)

(-24V)

BLACK

TERMINAL

BLOCKS

RED

TERMINAL

BLOCKS

Smart Touch Controller

RS-485

Connector

button

Select

button

Reset

button

Open

button

SA 1

SYSTEM ADDRESS

Press Select again to set gate operator's system

address (Each gate operator attached to the

same HyNet must have a unique SA number.

Choose 1, 2, 3, or 4.)

1To access Installer Menu, press Menu button

twice. Then, press Reset and Open.

Press Select to navigate to Installer Menu item

"SA" System Address.

3To exit Menu mode, press Menu. The gate

operator returns to Run mode.

4Refer to "Table 1: HyNet LED Indicators"

on page 2. Solid green means serial

communication is active and functioning well.

HySecurity gate operators provide a 2-wire, serial interface (RS-485 connection) which allows remote access to

one or more operators.

When the physical connection is made and protocols are established, an SA (System Address) must be assigned

for each operator through its Installer Menu.

For network communication, choosing a “SA” of 1 to 4 establishes individual network polling addresses. HyNet

only utilizes numbers 1, 2, 3, or 4.

A “SA” of zero means no network communication is desired.

5For IP network setup, refer to the HyNet Quick

Start manual supplied in the HyNet box..

Tact

button

Common Bus (-)

Installer’sCheCklIst

Date Installed: ________________ Gate Operator Model: _________________________________________________________________

Site Location:__________________________________________________________________________________________________________

HyNet Serial Number:___________________________________

Gate Operator Serial Number: ___________________________

Customer Name:_______________________________________________________________________________________________________

Mailing Address:________________________________________ Inspected by: ____________________________________________

________________________________________________________ Date Inspected: __________________________________________

Phone Contact: _________________________________________ Phone contact number: ___________________________________

Checked Initials

1. Site Planning _____________

RJ-45 cable to system network.

2. Safety _____________

Review Important Safety Information in the gate operator's product manual.

Warning labels apparent and afxed properly.

Area around the gate and gate operator free of debris, cabinets/chassis include locking mechanism.

3. Electrical _____________

3.1 Grounding

• NFPA 780 Standard for the Installation of Lighting Protection Systems.

• Solid copper ground rod (C\,-inch diameter, 10 ft length) driven into ground within 3 ft of the gate operator.

• Single length of unspliced 6AWG copper wire less than 3 ft long attached to lug nut in gate operator.

3.2 Gate operator has current software loaded.

3.3 Congure the Controller

• Set the System Address (SA) in the Installer Menu.

• Communicate (verify) system address to IT Network Admin for proper web page conguration.

4. Review gate operator installation checklist from gate operator manual _____________

5. Take photographs of installation and provide an End User Demo _____________
