i-Aida IAHD7710 Bedienungsanleitung
1
Safety Instructions
!Always read the safety instructions carefully
!Keep this User's Manual for future reference
!Keep this equipment away from humidity
!Lay this equipment on a reliable flat surface before setting it up.
!Do not stand it on soft furnishings.
!If any of the following situation arises, get the equipment checked by a service
technician:
- The equipment has been exposed to moisture.
- The equipment has been dropped and damaged.
- The equipment has obvious sign of breakage.
- The equipment has not been working well or you cannot get it work according to User's
Manual.
Warning
!To prevent the risk of electric shock, do not open the cover or the back of the receiver.
!Do not block the ventilation holes of the device. Leave appropriate gap above and
around it to allow for adequate ventilation.
!Do not place the device in an unventilated cabinet or on top of a unit which emits heat.
!To reduce the risk of fire or electric shock, do not expose this apparatus to rain or colds.
Copyright Statement
No part of this publication may be reproduced in any form by any means without the prior
written permission. Other trademarks or brand names mentioned herein are trademarks or
registered trademarks of their respective companies.
Disclaimer
Information in this document is subject to change without notice. The manufacturer does
not make any representations or warranties (implied or otherwise) regarding the accuracy
and completeness of this document and shall in no event be liable for any loss of profit or
any commercial damage, including but not limited to special, incidental, consequential, or
other damage.

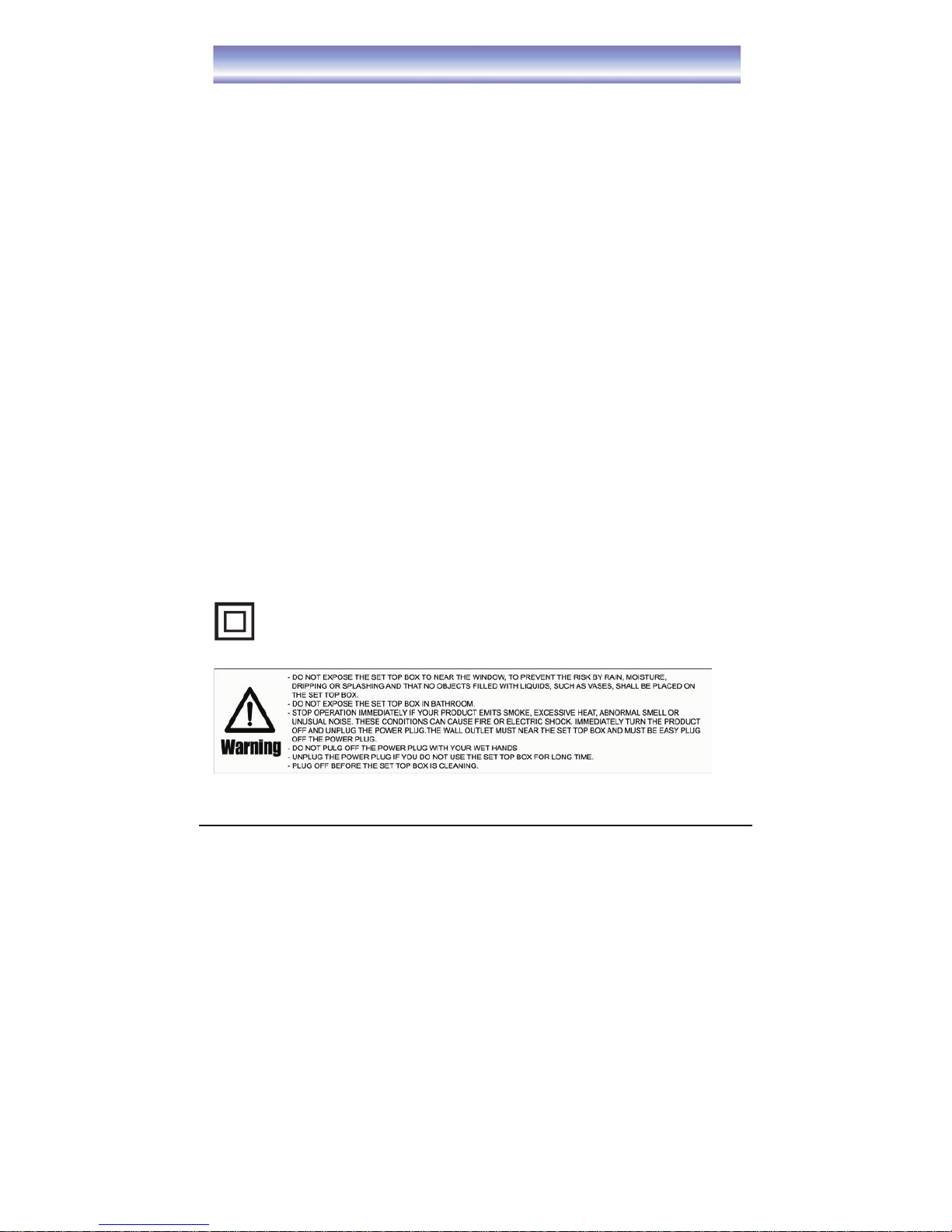

This symbol indicates that this product incorporates double insulation between
hazardous mains voltage and user accessible parts. When servicing use only
identical replacement parts.
2
Table Of Contents
Introduction……………………………………………………………………3
Front panel and rear panel illustration…………………………………...4
Front Panel………………………………………………………………….4
Rear Panel……………………………………………………………….….4
Remote control……………………………………………………………….5
Installing the batteries………………………………………………………6
Connecting to equipments…………………………………………………7
First time installation………………………………………………………10
Basic operations……………………………………………………………11
Main menu ............................................................................................14
Menu Tree...................................................................................……15
Installation............................................................................................16
Auto Scan..........................................................................................16
Manual Scan .....................................................................................16
Program edit.........................................................................................17
System setup........................................................................................19
A/V Output Setting ...........................................................................19
Local Time Setting ...........................................................................19
Timer Setup………………………………………………………………..19
System Information..........................................................................19
Factory Default .................................................................................19
User preferences..................................................................................20
OSD Language..................................................................................20
OSD Transparency ...........................................................................20
CH Info Bar Time Out .......................................................................20
Volume Bar Time Out .......................................................................20
Parental Control ............................................................................... 21
Trouble shooting……………………………………………………………22
Technical specifications…………………………………………………..23
3
Introduction
This DVB-T TV Receiver is a Free-To-Air digital terrestrial receiver, allowing you to access
free-to-air digital terrestrial TV channels and radio broadcasts on your TV set. Its digital
reception covers VHF & UHF band. Compared with the analog TV programs, digital TV
programs eliminate the noise and interference but offer high quality video and audio. An
on-screen initial installation guide is provided so that you can easily start to enjoy watching
the programs. In addition, a fully featured remote control is included that offers you access
to every feature with a simple press of a button.
Main Features
- DVB-T compliant
- HDMI Digital Connection
- Simultaneous HD/SD output
- Video output selection:Component (RCA,YpbPr),S-Video,Composite(RCA)
- 1080i,720p,576p video format support
- 4:3/16:9 Pictures
- Logical and Easy-to-Use Graphical User’s Interface(GUI)
- 7-days Electronic Program Guide(EPG)
- Easy Installation
- Favourite Channel Editing
- Teletext support
- Digital Surround Sound
- Coaxial/Optical Digital Audio Output
- Parental Rating Setting
- Time-Zone and daylight-saving time options
- Low power consumption
- Timer setup
Package Contents
Before installation, please check the items of the package. The package should contain
the following items:
1. DVB-T receiver x 1
2. Remote control x 1
3. AAA size battery for the remote control x 2
4. Instruction manual x 1
5. AV cable x 1
6. Warranty Card x 1
4

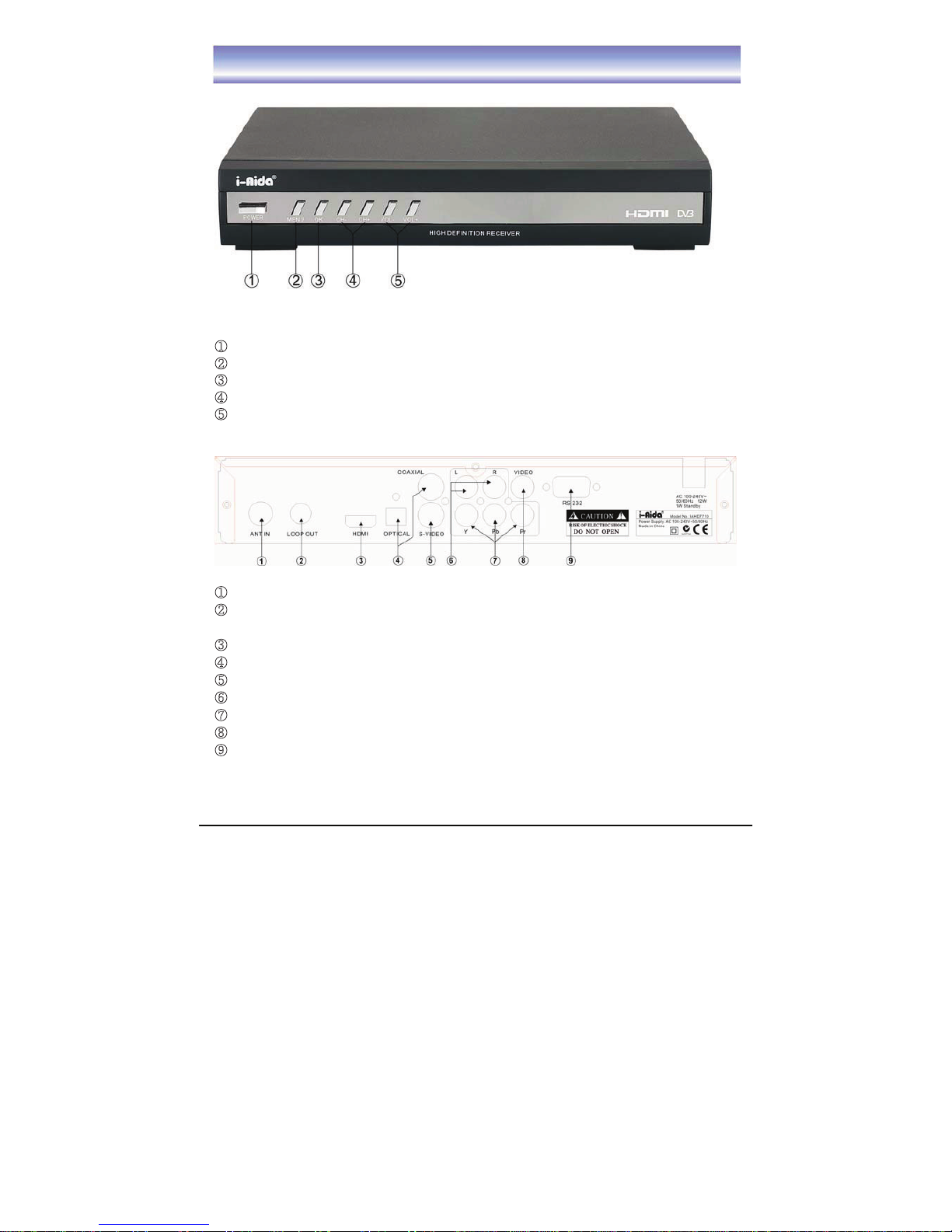

Front panel and rear panel illustration
Front Panel
ཛPOWER To switch ON/OFF.
ཛྷMENU To enter into the main menu, press again to exit to previous menu.
ཝOK To confirm the selected menu item / to open the program list.
ཞCH-/+ To change the program downward/ upward.
ཟVOL-/+ To control the level of the volume.
Rear Panel
ཛANT IN To connect the antenna here.
ཛྷLOOP OUT To connect a RF signal from the STB to either the RF Input jack (antenna)
on your VCR or to the antenna input of your TV.
ཝHDMI video output used to connect to your HDMI device.
ཞOPTICAL/COAXIALGDigital audio output.
ཟS-VIDEOGY/C output for a S-VHS or Hi-Fi Video Recorder.
འAUDIOL/RGAudio output to connect to your TV.
ཡYPbPr High definition video output to connect to your TV.
རVIDEO CVBS output to connect to your TV.
ལRS-232GSerial port for software upgrade.
5

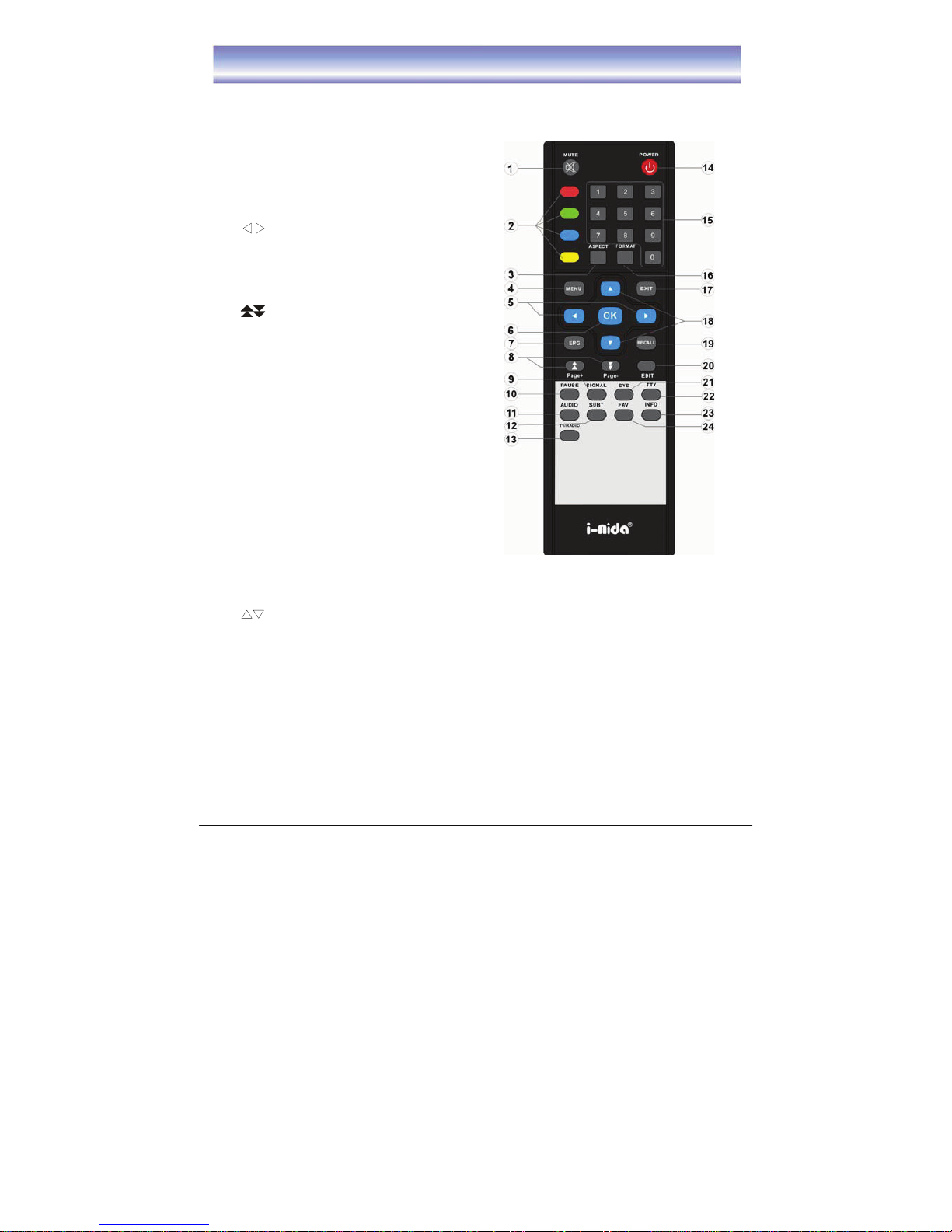

Remote control
Remote key functions:
1. MUTE To mute or recover the sound of the receiver.
2. 4 COLOR KEY To assist the operation of the box.
3. ASPECT To toggle among 16:9 full screen,
16:9 letter box, 4:3 full screen, 4:3 letter box,
panscan.
4. MENU To enter into the main menu, Press
again to exit to previous menu.
5. ൖ൘To control the level of the volume.
6. OKGTo confirm the selected menu item / to
open the program list.
7. EPG To introduce some program info to
the user.
8. To Page Up/ Down(5+/-)
9. SIGNAL Shows the quality level of the
signal.
10. PAUSE To Pause the current program
when pressed and go on playing the current
when pressed again.
11. AUDIO To display the Audio info of the
selected program.
12. SUBT To switch the close caption
ON/OFF.
13. TV/RADIO To switch the program between
TV and Radio.
14. POWER To turn the Stand-by mode
ON/OFF.
15. Numeric buttons (0-9) To control the
numerical operation and especially to change program directly.
16. FORMAT To change the resolution (1080i, 720P, 576P supported).
17. EXIT To cancel operation or exit the menu directly.
18. To change the program upward / downward.
19. RECALLGTo return to view the previous program.
20. EDIT To edit the properties of the current program. Add to favourites groups, lock and
skip.
21. SYS To view the software/hardware of the unit.
22. TTX To switch the teletext service ON/OFF.
23. INFO To display the current program information.
24. FAV To access and exit the favourite programs list.
6

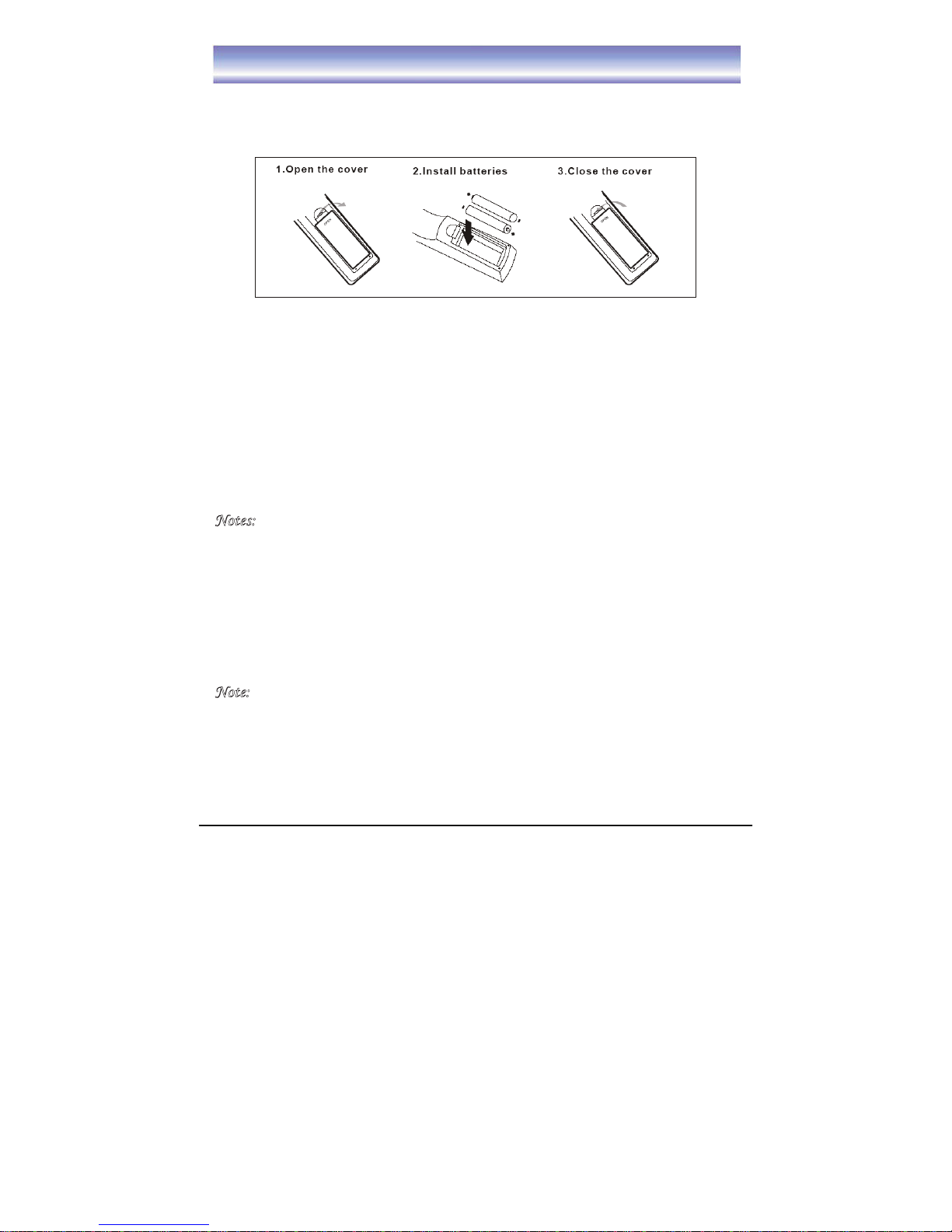

Installing the batteries
Remove the battery cover from the remote control and put two AAA size batteries inside
the compartment.
The diagram inside the battery compartment shows the correct way to install the batteries.
Caution:
1. Keep batteries out of children’s reach.
2. Don’t attempt to recharge, short-circuit, disassemble, heat or throw the batteries into the
fire.
3. Always replace both batteries at the same time. Never mix new and old batteries or
batteries of a different type.
4. If you don’t intend to use the remote controller for an extended period, remove the
batteries to prevent possible leakage and corrosion.
5. Do not drop, apply shock or step on the remote control.
6. Do not spill water on the remote control.
Notes: If the receiver does not operate when operating the remote control from a close range,
you need to replace the batteries.
Using the Remote Control
1. To use the remote control, point it towards the front of the digital set top box.
2. The remote control has a range of up to 7 metres from the set top box at an angle of up
to 60 degrees.
3. The remote control will not operate if its path is blocked.
Note: Sunlight or very bright light will decrease the sensitivity of the remote control.
7
Connecting to equipments
How to get good receptionGˍGIn general you are not required to change the existing antenna. However if your antenna
is not in good condition you should consider replacing them to ensure uninterrupted digital
television viewing.
ˍViewers in areas of poor analog reception may need specialists’ advice about antenna
requirements for digital reception in their area.
ˍIt’s recommended that viewers use quad shielded cable from the antenna to the
television.
Connections to a TVGThere are several ways of connecting your STB receiver to the TV and Hi-Fi System. For
high definition viewing your TV must support either 576p, 720p, 1080i resolution. Also the
connection between the STB receiver and TV must be YPbPr component or HDMI. Other
connection will provide standard definition viewing.

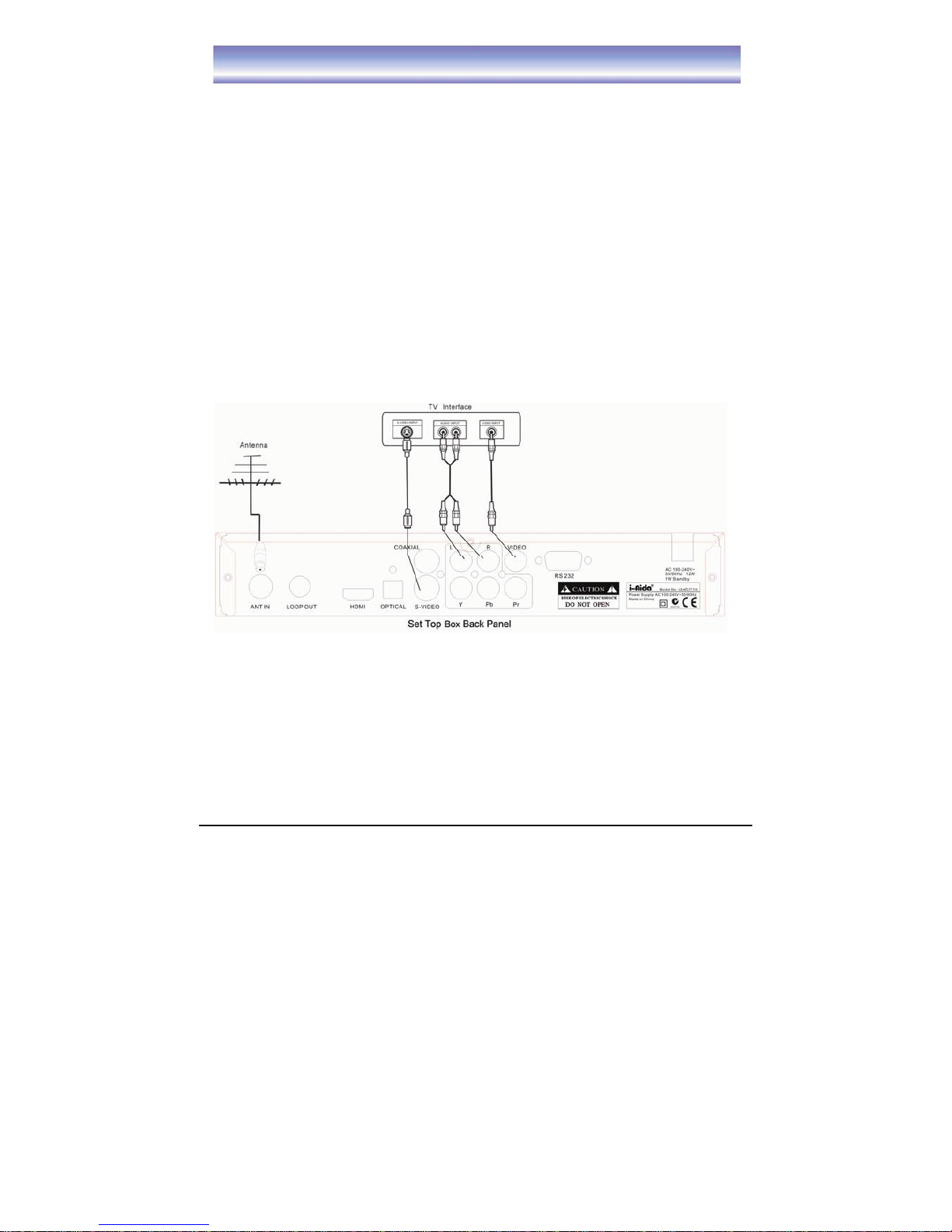

Connect the STB receiver via Video/S-Video and Audio
(for standard definition viewing)
G
8
Connecting to equipments

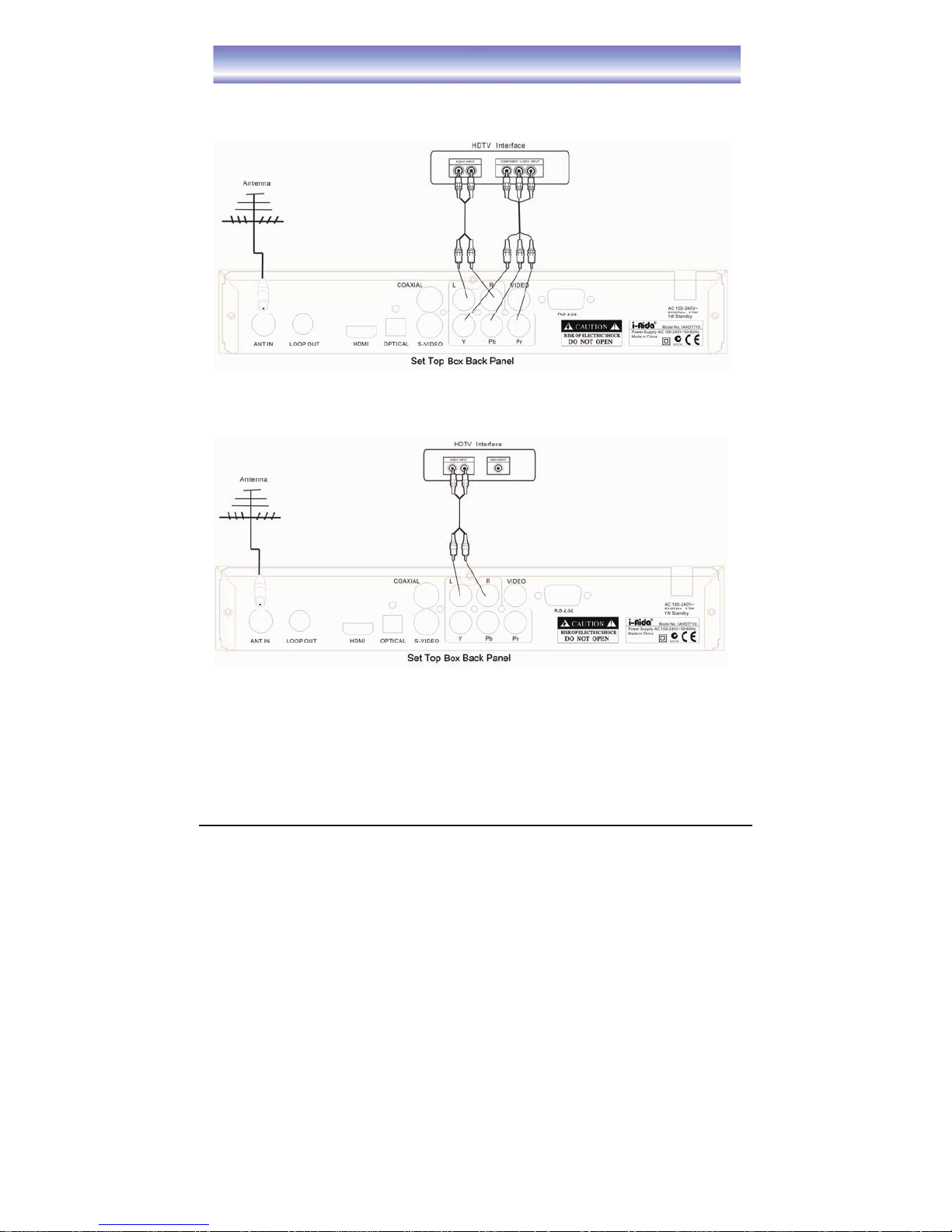

Connect the STB receiver via YPbPr output and Audio output
(for high definition viewing)
Connect the STB receiver via Audio output
(for high definition viewing)
G
9
Connecting to equipments
Connect the receiver via HDMI output (for high definition viewing)
Audio connections via Optical/Coaxial/Mixed Audio L/R Output
