1. Warnings and operation notes
Please read this guide carefully before you install the dome camera.
Keep this guide for future reference.
Thank you for purchasing an i3 Ax68R/78R-series 360-degree camera.
If the system needs to be modified or repaired, contact a certified i3 International
Dealer/Installer. When serviced by unauthorized technician, the system warranty
will be voided. Should you have any problems or questions regarding our products,
contact your local i3 International Dealer/Installer.
1.1 Precautions
Installation and serving should be performed only by qualified and
experienced technicians to conform to all local codes and to maintain
your warranty.
When installing your Ax68R/Ax78R camera be sure to avoid:
• excessive heat, such as direct sunlight or heating appliances
• contaminants such as dust and smoke
• strong magnetic fields
• sources of powerful electromagnetic radiation such as radios or TV transmitters
• moisture and humidity
• areas with mechanical vibrations
• fluorescent lamps or objects that reflect light
• unstable light sources as this may cause flickering
• temperatures below -30° Celsius or -22° Fahrenheit and above 60° Celsius or
140° Fahrenheit.
WARNING! To reduce the risk of fire or electric shock, do not
expose the product to rain or moisture.
Camera’s default IP address is 192.0.0.16
Camera’s default Subnet mask address is 255.255.255.0.
Default camera User Name: i3admin and default Password: i3admin
4
i3-TRNG-CAMS-68R_78R.indd Rev. 150505
1.2 Power Supply
Ax68R/Ax78R Power consumption requirement: 12V DC / PoE (IEEE 802.3af).
Ensure the supplied voltage meets the power consumption requirements of this
camera before powering the camera on. Incorrect voltage may cause irreparable
damage to the video camera and will effectively void the camera warranty.
PoE power is supported.
1.3 Cleaning
• For maximum optical clarity, the camera or lens must remain clean. Use a soft,
dry cloth to remove finger prints and dust from the dome cover.
• Use a blower to remove dust from the lens.
• Clean the body with a soft, dry cloth. If it is very dirty, use a cloth dampened
with a small quantity of neutral detergent, then wipe dry.
• Do not use volatile solvents such as alcohol, benzene, or thinners, as they may
damage the surface finish.
1.4 Servicing
To avoid electrical shock and to preserve the product warranty, DO NOT disassemble
the camera. Refer servicing to qualified personnel only.
1.5 Routine Maintenance
• The dome bubble is an optical part. Use a soft and dry cloth to remove any
fingerprints and dust.
• Clean the camera housing with a soft and dry cloth. For more stubborn marks,
use a cloth dampened with a small quantity of neutral detergent, then wipe dry.
• CAUTION: Do not use volatile solvents such as alcohol, benzene or
thinners, as they may damage the surface finish.
5Rev. 150505i3-TRNG-CAMS-68R_78R.indd

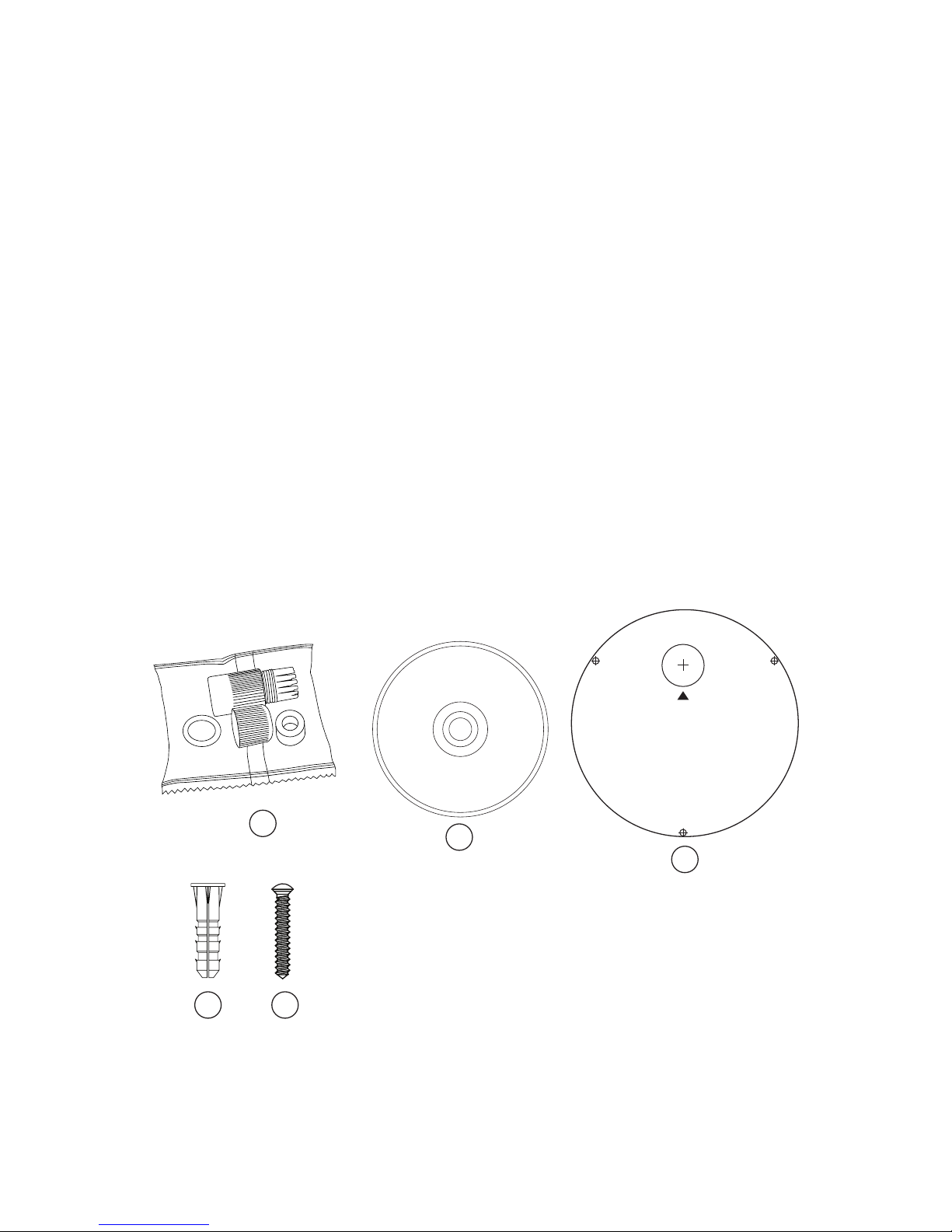

2.1. Accessories (not to scale)
User Guide
ACT
2. Unpacking
Ensure that the items received match those listed on the order form and the packing
slip. In addition to this manual and a fully assembled camera, the dome camera
packing box includes:
1. Waterproof RJ45 connector (x1 package with 4 pcs).
Use to protect RJ45 cable connector from the elements.
2. User Manual and Annexxus Finder CD x1
3. Surface Mount template x1
4. Plastic Anchor x4
5. Round Head Screw (Tapping Type) x4
If any parts are missing or damaged, contact the dealer you purchased the camera
from.
*Note: Based on installation location and surface type, supplied screws and anchors
may not be adequate. Mounting hardware is site-specific and may need to be
supplied by the installer.
2
11
1
TOP
Drill Template
Hole A : for cables routed through the ceiling
Screw hole 1 : for Mounting Base
Figure 1. Ax68/Ax78 Accessories
5
3
1
4
6
i3-TRNG-CAMS-68R_78R.indd Rev. 150505
3. Installation
Ax68R/78R 360-degree Fisheye camera series is suitable for both indoor and outdoor
installations in commercial and residential environment.
The Ax68R/78R camera is suitable for surface installation without added equipment.
Available accessories:
DB78BB - back box, for surface, goose-neck, and pendant installations
DB60 - goose-neck bracket, used in conjunction with DB78BB in wall installations
DB78TSM - angle mount bracket for surface installations
3.1 Disassembling the Camera
Before mounting the camera, follow these steps to disassemble the camera.

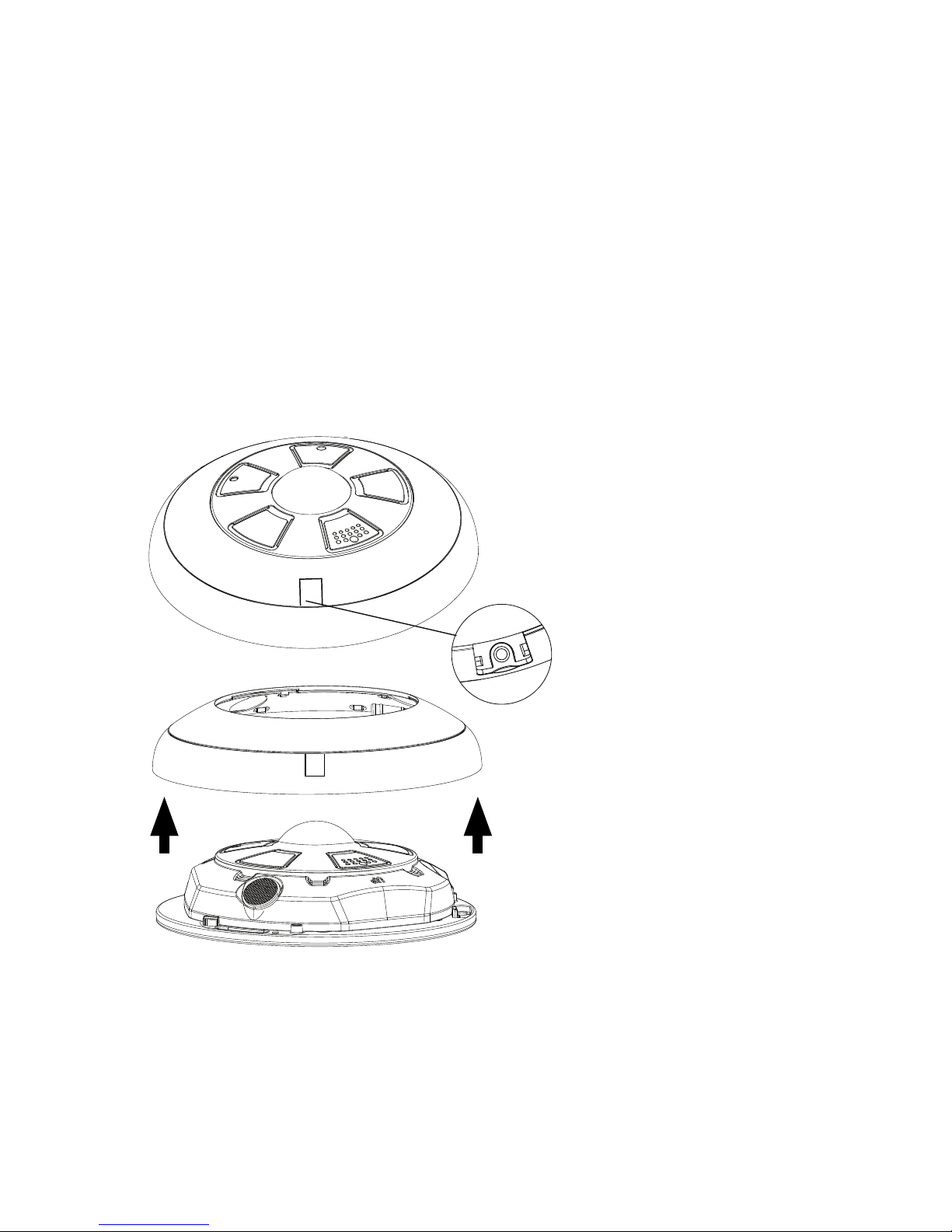

Step 1
To expose the mounting screw holes,
the camera cover must first be removed.
Lift the safety lock screw cover to reveal
the safety lock screw.
Safety Lock Screw
(lift cover)
Step 2
Use a Phillips screwdriver to loosen
the safety lock screw, then grip the
camera cover and flex on one side,
towards the center.
Lift UP to remove.
Figure 2. Disassembling Ax68R/Ax78R
Step 3
To re-attach the camera cover, match
up the safety lock screw with the screw
hole on the camera body (10), then
push straight down onto the camera
cover to engage the clips. The camera
cover will re-attach.
Step 4
Use a Phillips screwdriver to re-tighten the
safety lock screw.
7Rev. 150505i3-TRNG-CAMS-68R_78R.indd
3.2 Dimensions & Parts Identification

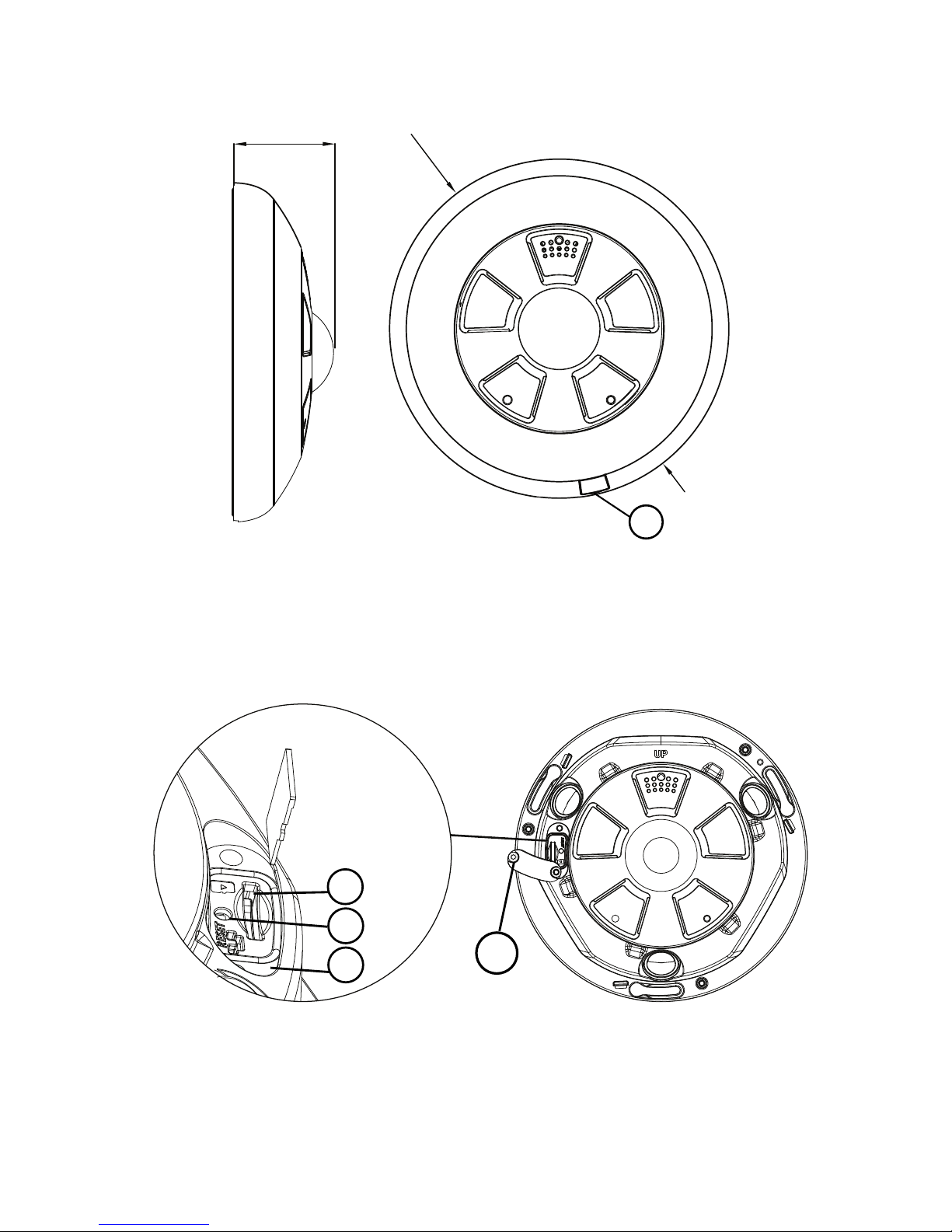

52 mm
168 mm
Figure 3. Ax68/Ax78 Camera
Side view, with
camera cover
attached
52 mm
168 mm
1
2
3
4
5
Figure 4. Ax68/Ax78 Camera, Top view, with camera
cover attached. Lift the safety lock screw
cover to reveal the safety lock screw (1).
Use a Phillips screwdriver to loosen the lock
screw, then grip the camera cover and flex
on one side, towards the center. Lift UP to
remove.
Figure 5. Camera module with camera cover removed.
Use a Phillips screwdriver to remove the SD card panel cover (2).
to expose microSD card slot (3) and the RESET pin hole (4).
Rubber gasket is provided for an airtight seal and moisture protection (5).
8
i3-TRNG-CAMS-68R_78R.indd Rev. 150505
6
13
9
8
12
11
7
10
Figure 6. Camera module with camera cover removed.
6. Built-in speaker
7. MicroSD card slot
Insert a micro SDHC card for backup/
emergency recording and/or storage.
RESET pin hole
Use a sharp object to Press the Reset
button, the camera will be rebooted.
8. Light sensor for day/night switching
9. IR LEDs x3
10. Camera cover lock screw hole
11. Mounting screw hole/slot x3
12. Camera cover clips x3
13. Built-in microphone
14. DC12V Power connector
15. RJ45 Network connector
(PoE supported)
14
15
Figure 7. Ax68/Ax78 cabling.
9Rev. 150505i3-TRNG-CAMS-68R_78R.indd
Important. Please Read:
• Use sealant at the locations shown on the mounting diagrams to maintain
IP66 rating when installing outside.
• It is the installer’s responsibility to ensure that the mounting surface is
suitable for the chosen installation method.
• Based on installation location and surface type, supplied screws and
anchors may not be adequate.
• Mounting hardware is site-specific and may need to be supplied by the
installer.
11
1
TOP
Drill Template
Hole A : for cables routed through the ceiling
Screw hole 1 : for Mounting Base
Figure 8. Surface Mount Template
3.3 Surface Mounting

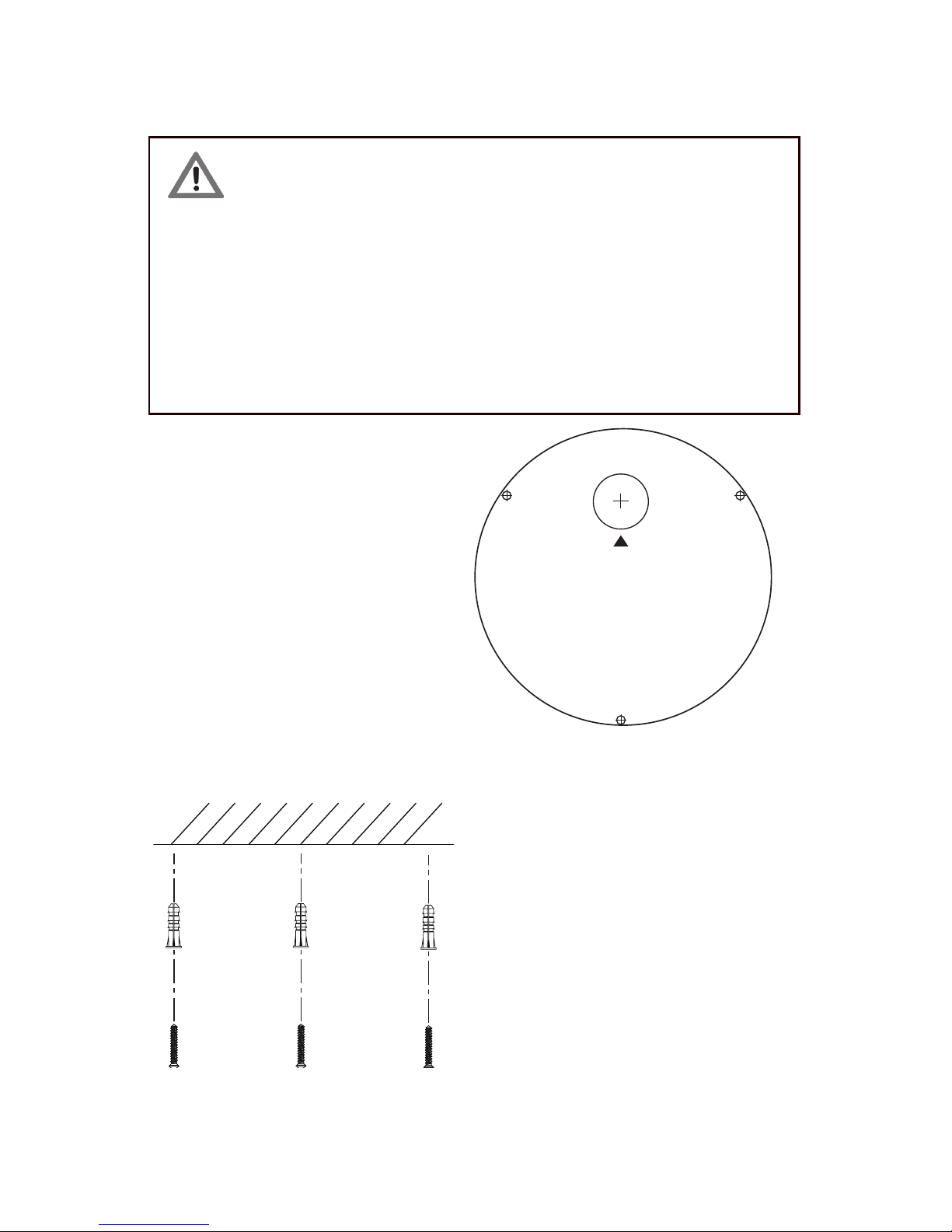

1. Use the Surface Mount
Template to drill three (3)
6 mm (0.2”) screw holes at the
marked template positions on
the mounting surface.
2. Drill the cable opening at the
marked template position.
129.5
112.1
ø
30
3. Insert three (3) supplied screw
anchors into the drilled holes in
the mounting surface.
4. Use a Phillips screwdriver to insert
supplied screws into the screw
anchors. Leave enough screw
length protruding from the each
anchor to allow for the camera
body to be rotated onto the
screws.
Figure 9. Surface Mount - Steps 3-4.
10
i3-TRNG-CAMS-68R_78R.indd Rev. 150505
129.5
112.1
ø
30
129.5
112.1
ø
30
129.5
112.1
ø
30
5. Remove the camera cover.
Use a Phillips screwdriver to loosen
the safety lock screw, then grip the
camera cover and flex on one side,
towards the center.
Lift UP to remove.
6. Feed the camera cabling through
the cable opening drilled in the
mounting surface.
7. Slide the protruding mounting
screws through three matching
mounting screw holes on the
camera body and rotate the camera
clockwise to secure the camera
body on the mounting surface. Use
a Phillips screwdriver to tighten
three mounting screws in place.
8. Replace the camera cover.
Match up the safety lock screw
with the screw hole on the camera
body, then push straight down
onto the camera cover to engage
the clips. The camera cover will
re-attach.
9. Use a Phillips screwdriver to
re-tighten the safety lock screw.
Figure 10. Surface Mount - Steps 6-7.
Figure 11. Surface Mount - Step 8.
Figure 12. Surface Mount - Step 9.
Inhaltsverzeichnis
Andere i3 International Sicherheitskamera Handbücher
i3 International
i3 International i3F417U Bedienungsanleitung
i3 International
i3 International H59B2 Bedienungsanleitung
i3 International
i3 International Ax50D Bedienungsanleitung
i3 International
i3 International Ax40W2 series Bedienungsanleitung
i3 International
i3 International Am52RM Bedienungsanleitung
i3 International
i3 International C-Di210 Bedienungsanleitung
i3 International
i3 International Am52R Bedienungsanleitung
i3 International
i3 International Ax36 series Bedienungsanleitung
i3 International
i3 International Am57 Bedienungsanleitung
i3 International
i3 International Ax47R series Bedienungsanleitung
i3 International
i3 International Am73 Bedienungsanleitung
i3 International
i3 International Ax61 series Bedienungs- und Wartungsanleitung
i3 International
i3 International Di721 Bedienungsanleitung
i3 International
i3 International Am53 Bedienungsanleitung
i3 International
i3 International Am42 Series Bedienungsanleitung
i3 International
i3 International Ax40W2 series Bedienungsanleitung
i3 International
i3 International Am52 Series Bedienungsanleitung
i3 International
i3 International Ax63Z Series Bedienungsanleitung
i3 International
i3 International Ax68R Bedienungsanleitung
i3 International
i3 International Ax51B Bedienungsanleitung
