IBM BladeCenter HS22V 1

I B M ®

IBM BladeCenter HS22V

IBM Redbooks Product Guide

The IBM® BladeCenter® HS22V is a two-way high-performance blade server that offers outstanding

performance for virtualization with new levels of memory capacity and CPU performance. It offers 18

DIMM slots supporting up to 288 GB of DDR3 memory for more and larger virtual machines per blade.

HS22V supports durable solid-state drives and hardware RAID 0,1 providing outstanding reliability when

virtualizing multiple workloads on a single blade. Combining the HS22V with Virtual Fabric from IBM

BladeCenter provides flexible, easy, fast, and reliable I/O that supports up to 40 GbE to each blade and

up to a total of eight ports of I/O per blade.

The HS22V is shown in Figure 1.

Figure 1. IBM BladeCenter HS22V

Did you know?

BladeCenter HS22V delivered leadership performance for a 2-processor blade server running

virtualization applications based on SPECvirt_sc2010 benchmark. The HS22V achieved an overall

performance score of 1,367 @ 84 VMs. The HS22V was configured with the Intel Xeon Processor X5690

(3.46GHz with 256KB L2 cache per core and 12MB L3 cache per processor—2 processors/12 cores/6

cores per chip), 288 GB of memory, two 50 GB disk drives, and Red Hat Enterprise Linux 6.0, and

Kernel-based Virtual Machine (KVM) hypervisor.

IBM BladeCenter HS22V 2

Locations of key components and connectors

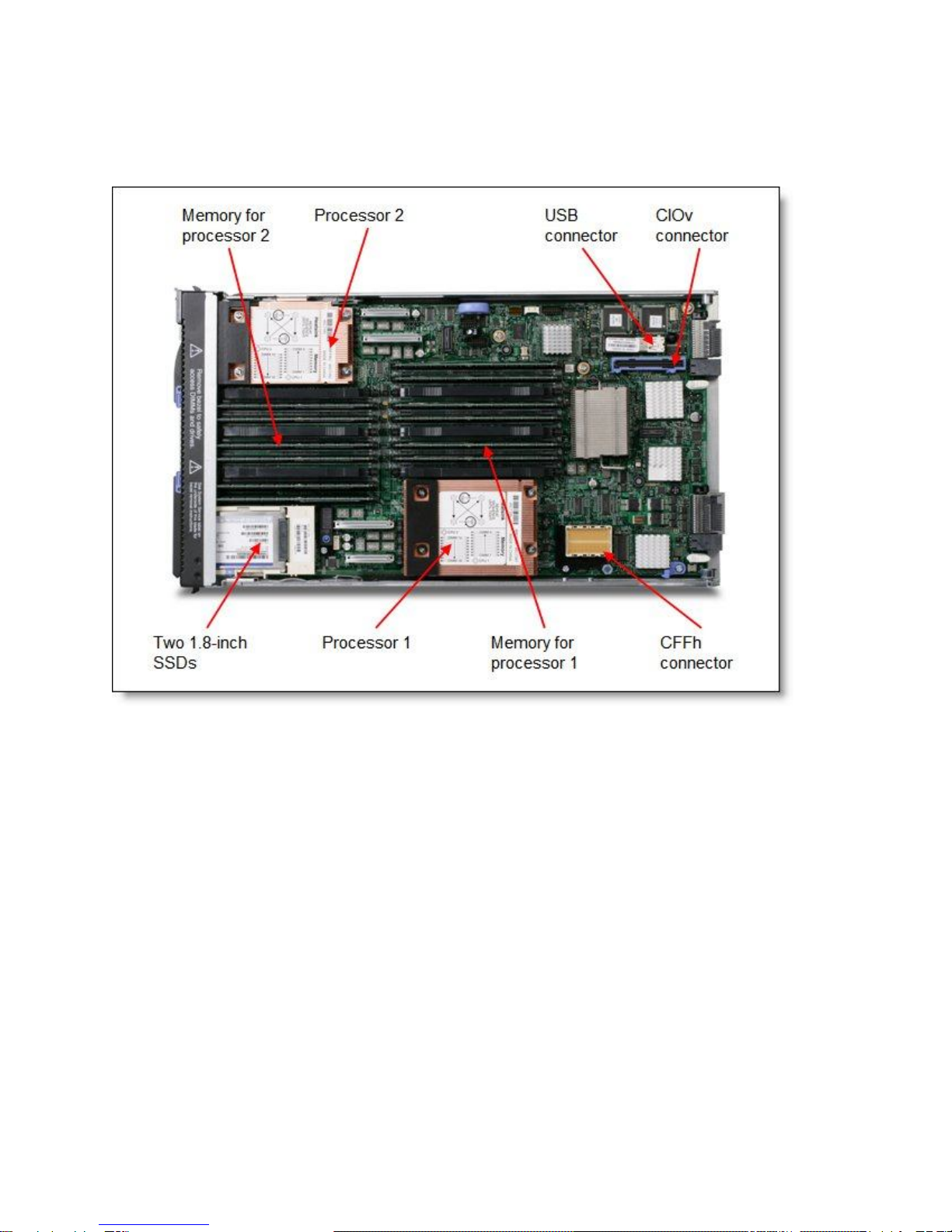

Figure 2 shows the inside of the server indicating key components.

Figure 2. IBM BladeCenter HS22V

IBM BladeCenter HS22V 3

Standard specifications

The following table lists the standard specifications.

Table 1. Standard specifications

Components Specification

Form factor Single-wide (30 mm)

Processor (max) Intel Xeon 5500 series processors

Intel Xeon 5600 series processors

Number of

processors 1 standard / 2 maximum

Memory DIMM

sockets 18x DDR-3 VLP DIMM slots

Maximum

memory Models with Xeon 5600 processors: 288 GB using 16 GB DIMMs (144 GB per processor)

Models with Xeon 5500 processors: 144 GB using 8 GB DIMMs (72 GB per processor)

Expansion slots One CIOv slot: 2 ports

One CFFh slot: 4 ports

Disk bays Two non-hot-swap bays supporting two solid-state drives

Maximum

internal storage Up to 100 GB total internal storage

Network

interface 2x 1Gb Ethernet using a Broadcom 5709S onboard NIC

Some models also include a 2-port 10Gb controller installed in the CFFh slot

Some models also include a 2-port 8Gb Fibre Channel controller installed in the CIOv slot

Hot-swap

components None

RAID support RAID-0, -1 and -1E (optional RAID-5 with battery-backed cache)

Systems

management Unified Extensible Firmware Interface (UEFI), IBM Integrated Management Module (IMM),

Predictive Failure Analysis, optional embedded hypervisor for virtualization, IBM Systems

Director Active Energy Manager™, light path diagnostics, IBM Systems Director, and IBM

ServerGuide

Security Trusted Platform Module (TPM), Power-on password, administrator password, unattended

boot, selectable boot, unattended start mode

Operating

systems

supported

Microsoft Windows, Red Hat Enterprise Linux, SUSE Linux Enterprise, VMware, Oracle Solaris

Limited warranty Three-year customer replaceable unit, and onsite and offsite limited warranty

The IBM BladeCenter HS22V is shipped with the following items:

Documentation CD



Environmental Notices CD



Statement of Limited Warranty



Important Notices



Technical Note Flyer



IBM BladeCenter HS22V 4

Standard models

The following table lists the standard models.

Table 2. Standard models

Model Processor* (2 max) Memory

(std / max) Eth† RAID Bays

(used/max) Disk

drives Slots

(used/max)

Models with Intel Xeon 5500 Series Processors: 4-core and 2-core

7871-B4x 1x Xeon E5540 4C 2.53GHz

8MB 1066MHz 80w 3x 2GB / 144 GB 2x 1Gb SAS RAID 0 / 2 Open 0 / 2

7871-C4x 1x Xeon X5570 4C 2.93GHz

8MB 1333MHz 95w 3x 2GB / 144 GB 2x 1Gb SAS RAID 0 / 2 Open 0 / 2

Models with Intel Xeon 5600 Series Processors: 4-core

7871-A5x 1x Xeon E5603 4C 1.60GHz

4MB 1066MHz 80w 1x 4GB / 288 GB 2x 1Gb SAS RAID 0 / 2 Open 0 / 2

7871-A7x 1x Xeon E5607 4C 2.26GHz

8MB 1066MHz 80w 1x 4GB / 288 GB 2x 1Gb SAS RAID 0 / 2 Open 0 / 2

7871-G2x 1x Xeon E5620 4C 2.40GHz

12MB 1066MHz 80w 3x 2GB / 288 GB 2x 1Gb SAS RAID 0 / 2 Open 0 / 2

7871-B5x 1x Xeon X5647 4C 2.93GHz

12MB 1066MHz 130w 3x 4GB / 288 GB 2x 1Gb SAS RAID 0 / 2 Open 0 / 2

7871-H5x 1x Xeon X5667 4C 3.06GHz

12MB 1333MHz 95w 3x 2GB / 288 GB 2x 1Gb SAS RAID 0 / 2 Open 0 / 2

7871-C5x 1x Xeon X5672 4C 3.20GHz

12MB 1333MHz 95w 3x 4GB / 288 GB 2x 1Gb SAS RAID 0 / 2 Open 0 / 2

7871-C7x 1x Xeon X5687 4C 3.60GHz

12MB 1333MHz 130w 3x 4GB / 288 GB 2x 1Gb SAS RAID 0 / 2 Open 0 / 2

Models with Intel Xeon 5600 Series Processors: 6-core

7871-N2x 1x Xeon L5640 6C 2.26GHz

12MB 1333MHz 60w 3x 2GB / 288 GB 2x 1Gb SAS RAID 0 / 2 Open 0 / 2

7871-B6x 1x Xeon E5649 6C 2.53GHz

12MB 1333MHz 80w 3x 4GB / 288 GB 2x 1Gb SAS RAID 0 / 2 Open 0 / 2

7871-D4x 1x Xeon E5649 6C 2.53GHz

12MB 1333MHz 80W 3x 4 GB / 288 GB 2x 1 Gb SAS RAID 0 / 2 Open 0 / 2

7871-H2x 1x Xeon X5650 6C 2.66GHz

12MB 1333MHz 95w 3x 2GB / 288 GB 2x 1Gb SAS RAID 0 / 2 Open 0 / 2

7871-HXx 2x Xeon X5660 6C 2.8GHz

12MB 1333MHz 95w 18x 4GB / 288 GB 2x 1Gb +

2x 10Gb +

2x 8Gb FC

SAS RAID 0 / 2 Open 2 / 2

7871-C6x 1x Xeon X5675 6C 3.06GHz

12MB 1333MHz 95w 3x 4GB / 288 GB 2x 1Gb SAS RAID 0 / 2 Open 0 / 2

7871-C8x 1x Xeon X5690 6C 3.46GHz

12MB 1333MHz 130w 3x 4GB / 288 GB 2x 1Gb SAS RAID 0 / 2 Open 0 / 2

* Processor detail: (model, cores, core speed, L3 cache, memory speed, power)

† All models contain an onboard 2-port Gigabit Ethernet controller. Model HXx also includes Broadcom 10Gb Gen2

2-port Ethernet Expansion Card (CFFh) installed in the CFFh expansion slot and Qlogic 8Gb Fibre Channel

Expansion Card (CIOv) installed in the CIOv expansion slot.

IBM BladeCenter HS22V 5

Three models have an additional 2-port 10Gb Ethernet controller installed in the CFFh slot, and one also

has a Fibre Channel card installed:

Model GDx includes an Intel 10Gb 2-port Ethernet Expansion Card (CFFh)



Model HAx includes an Emulex 10Gb Virtual Fabric Adapter (CFFh)



Model HXx includes a Broadcom 10Gb Gen2 2-port Ethernet Expansion Card (CFFh) and a Qlogic



8Gb Fibre Channel Expansion Card (CIOv).

Refer to the Standard Specifications section for information about standard features of the server.

Express models

The following table lists the express models.

Table 3. Express models

Model Processor* (2 max) Memory

(std / max) Ethernet RAID Bays

(used/

max)

Disk

drives Slots

(used/

max)

North America and Latin America

7871-E2U 2x Xeon E5649 6C 2.53GHz

12MB 1333MHz 80w 6x 8GB / 288 GB 2x 1 GbE SAS RAID 0 / 2 Open 0 / 2

7871-E3U 2x Xeon X5675 6C 3.06GHz

12MB 1333MHz 95w 12x 8GB / 288 GB 2x 1 GbE SAS RAID 0 / 2 Open 0 / 2

* Processor detail: (model, cores, core speed, L3 cache, memory speed, power)

Chassis support

The HS22V is supported in the various BladeCenter chassis as listed in the following table.

Table 4. Chassis support

Description BC-E

(8677) BC-T BC-S

(8886) BC-H

(8852) BC-HT AC

(8750) BC-HT DC

(8740)

HS22V with 130W CPUs No No Some limits* Some limits* Some limits* No

HS22V with up to 95W CPUs Some limits* No Full Full Full Full

* See Table 4 for details

The number of HS22V servers supported in each chassis depends on the thermal design power of the

processors used in the servers as shown in Table 6. The table uses the following conventions:

A green square in a cell means the chassis can be filled with HS22V blade servers up to the



maximum number of blade bays in the chassis (for example, 14 blades in the BladeCenter H).

A yellow square in a cell means that the maximum number of HS22V blades that the chassis can hold



is fewer than the total available blade bays (for example, 12 in a BladeCenter H). Other bays in the

chassis

may

may not

be occupied by servers other than HS22 and HS22V depending on the

combination and some bays must remain empty. Consult the BladeCenter Interoperability Guide for

specifics: http://ibm.com/support/entry/portal/docdisplay?lndocid=MIGR-5073016

Note: The HS22V is not supported in the BladeCenter E with power supplies smaller than 2000 W.

IBM BladeCenter HS22V 6

Table 5. Chassis support (detailed)

Maximum number of HS22V servers supported in each chassis

BC-E with AMM

(8677) (14 bays) BC-H (models other than 4Tx)

(14 bays) BC-H

(-4Tx)

(14 bays)

2900W supplies 2980W supplies** 2980W

CPU

TDP*

2000 W

power

supplies

2320 W

power

supplies

BC-S

(8886)

bays)

Standard

blowers Enhanced

blowers† Standard

blowers Enhanced

blowers† Enhanced

blowers†

BC-HT

(8750)

(12

bays)

BC-HT

(8740)

(12 bays)

130W None‡ None‡ 5 None‡ 12 None‡ 14 14 10 None‡

95W 11 14 6 14 14 14 14 14 12 None‡

80W 12 14 6 14 14 14 14 14 12 None‡

60W 13 14 6 14 14 14 14 14 12 None‡

40W 14 14 6 14 14 14 14 14 12 None‡

* Thermal Design Power

** IBM BladeCenter H 2980W AC Power Modules, 68Y6601 (standard in 4Tx, optional with all other BC-H chassis

models)

† IBM BladeCenter H Enhanced Cooling Modules, 68Y6650 (standard in 4Tx, optional with all other BC-H chassis

models)

‡ Not supported

Processor options

The HS22V supports the processor options listed in the following table. The server supports one or two

processors. The table also shows which server models have each processor standard. If there is no

corresponding

where-used

model for a particular processor, then this processor is only available through

Configure to Order (CTO).

Table 6. Processor options (Part 1)

Part

number Intel Xeon processor description Models

where used

Intel Xeon 5600 Series Processors: 4-core

81Y6038 Xeon E5603 4C 1.60GHz 4MB 1066MHz 80w A5x

81Y6039 Xeon E5606 4C 2.13GHz 8MB 1066MHz 80w -

81Y6040 Xeon E5607 4C 2.26GHz 8MB 1066MHz 80w A7x

69Y0927 Xeon E5620 4C 2.40GHz 12MB 1066MHz 80w G2x

69Y0926 Xeon E5630 4C 2.53GHz 12MB 1066MHz 80w -

69Y4746 Xeon L5609 4C 1.86GHz 12MB 1066MHz 40w -

69Y4743 Xeon L5618 4C 1.86GHz 12MB 1066MHz 40w -

81Y6041 Xeon X5647 4C 2.93GHz 12MB 1066MHz 130w B5x

81Y6043 Xeon X5672 4C 3.20GHz 12MB 1333MHz 95w C5x

81Y6045 Xeon X5687 4C 3.60GHz 12MB 1333MHz 130w C7x

IBM BladeCenter HS22V 7

Table 6. Processor options (Part 2)

Part

number Intel Xeon processor description Models

where used

Intel Xeon 5600 Series Processors: 6-core

69Y4744 Xeon E5645 6C 2.40GHz 12MB 1333MHz 80w -

81Y6042 Xeon E5649 6C 2.53GHz 12MB 1333MHz 80w B6x

69Y4745 Xeon L5638 6C 2.0GHz 12MB 1333MHz 60w -

69Y0928 Xeon L5640 6C 2.26GHz 12M 1333MHz 60w N2x

69Y0924 Xeon X5650 6C 2.66GHz 12M 1333MHz 95w H2x, HAx

69Y0923 Xeon X5660 6C 2.80GHz 12MB 1333MHz 95w HXx

69Y0922 Xeon X5670 6C 2.93GHz 12MB 1333MHz 95w H4x

81Y6044 Xeon X5675 6C 3.06GHz 12MB 1333MHz 95w C6x

69Y4748 Xeon X5680 6C 3.33GHz 12MB 1333MHz 130w F2x

81Y6046 Xeon X5690 6C 3.46GHz 12MB 1333MHz 130w C8x

Intel Xeon 5500 Series Processors: 4-core

49Y5151 Xeon E5506 4C 2.13GHz 4MB 800MHz 80w -

49Y5163 Xeon E5540 4C 2.53GHz 8MB 1066MHz 80w B4x

49Y5172 Xeon X5570 4C 2.93GHz 8MB 1333MHz 95w C4x

Memory options

The HS22V blade server has 18 DIMM slots. When one processor is installed, then only nine DIMM slots

can be used. When two processors are installed, then all 18 DIMM slots can be used. However, the

maximum amount of DIMMs that can be installed is also limited by the type and rank of DIMM used, as

follows:

Up to 18 single-rank RDIMMs (nine per processor) for a maximum of 72 GB (18x 4 GB)



Up to 18 dual-rank RDIMMs (nine per processor) for a maximum of 288 GB (18x 16 GB) for Xeon



5600 series and 144 GB (18x 8 GB) for Xeon 5500 series

Each CPU has three memory channels, and there are three DIMMs per channel. RDIMMs can be

populated three per channel. Maximum memory speed is limited by memory speed supported by the

specific CPU (that is, if the CPU supports only 1066 MHz, then the memory speed cannot exceed 1066

MHz in any case), and by the number and type of DIMMs installed (whatever is lower), as follows:

Intel Xeon 5600 series processors:



1333 MHz when one or two single-rank or dual-rank RDIMMs per channel are installed



800 MHz when three single-rank or dual-rank RDIMMs per channel are installed



IBM BladeCenter HS22V 8

Quad-core Intel Xeon 5500 series processors:



1333 MHz when one single-rank or dual-rank RDIMM per channel is installed



1066 MHz when two single-rank or dual-rank RDIMMs per channel are installed



800 MHz when three single-rank or dual-rank RDIMMs per channel are installed



Dual-core Intel Xeon 5500 series processors only support memory speed at 800 MHz.



The HS22V supports both 1.5 V and 1.35 V DIMMs. Intel Xeon 5600 series processor can run DIMMs at

either 1.35 V or 1.5 V depending on DIMM voltage and configuration, while Intel Xeon 5500 series

processors run DIMMs at 1.5 V in all cases. Mixing 1.5 V and 1.35 V DIMMs in the same server is

supported, in such a case all DIMMs operate at 1.5 V. With 1.35V DIMMs if there is a need to run two

DIMMs per channel at 1333 MHz then DIMMs will operate at 1.5 V.

The following memory protection technologies are supported:

ECC



ChipKill (for x4-based RDIMMs)



Memory Mirroring



Memory Sparing



If Memory Mirroring is used then DIMMs must be installed in pairs (minimum of one pair per each CPU),

and both DIMMs in a pair must be identical in type and size. If Memory Sparing is used then DIMMs must

be installed in sets of three, and all DIMMs in the same set must be identical in type and size. Memory

sparing is only supported for Intel Xeon 5600 series processor-based systems.

The following two tables list memory options available for HS22V server - one of 5500 series processors

and one for 5600 series processors. DIMMs can be installed one at a time, but for performance reasons,

install them in sets of three, one for each of the three memory channels.

Table 7. Memory options for servers with Xeon 5500 series processors

Part

number Description Maximum

quantity

supported

Models

where used

49Y1427 1 GB (1x 1 GB, 1Rx8, 1.5 V) PC3-10600 CL9 ECC DDR3 1333 MHz 18 -

49Y1428 2 GB (1x 2 GB, 2Rx8, 1.5 V) PC3-10600 CL9 ECC DDR3 1333 MHz 18 -

49Y1429 2 GB (1x 2 GB, 1Rx4, 1.5 V) PC3-10600 CL9 ECC DDR3 1333 MHz 18 -

44T1594 2 GB (1x 2 GB, 1Rx8, 1.5 V) PC3-10600 CL9 ECC DDR3 1333 MHz 18 -

46C0560 2 GB (1x 2 GB, 1Rx8, 1.35 V) PC3L-10600 CL9 ECC DDR3 1333 MHz 18 -

49Y1430 4 GB (1x 4 GB, 2Rx4, 1.5 V) PC3-10600 CL9 ECC DDR3 1333 MHz 18 -

44T1596 4 GB (1x 4 GB, 2Rx8, 1.5 V) PC3-10600 CL9 ECC DDR3 1333 MHz 18 -

46C0563 4 GB (1x 4 GB, 1Rx4, 1.35 V) PC3L-10600 CL9 ECC DDR3 1333 MHz 18 -

46C0564 4 GB (1x 4 GB, 2Rx8, 1.35 V) PC3L-10600 CL9 ECC DDR3 1333 MHz 18 -

46C0568 8 GB (1x 8 GB, 2Rx4, 1.35 V) PC3L-10600 CL9 ECC DDR3 1333 MHz 18 -

49Y1431 8 GB (1x 8 GB, 2Rx4, 1.5 V) PC3-10600 CL9 ECC DDR3 1333 MHz 18 -

IBM BladeCenter HS22V 9

Table 8. Memory options for servers with Xeon 5600 series processors

Part

number Description Maximum

quantity

supported

Models where

used

Standard DIMMs (1.5 V)

49Y1427 1 GB (1x 1 GB, 1Rx8, 1.5 V) PC3-10600 CL9 ECC DDR3 1333 MHz 18 -

49Y1428 2 GB (1x 2 GB, 2Rx8, 1.5 V) PC3-10600 CL9 ECC DDR3 1333 MHz 18 F2x, F3x, G2x,

G4x, GDx,

H2x,

H4x, H5x,

HAx,

N2x

49Y1429 2GB (1x 2GB, 1Rx4, 1.5V) PC3-10600 CL9 ECC DDR3 1333 MHz 18 -

44T1594 2GB (1x 2GB, 1Rx8, 1.5V) PC3-10600 CL9 ECC DDR3 1333 MHz 18 -

44T1596 4 GB (1x 4 GB, 2Rx8, 1.5 V) PC3-10600 CL9 ECC DDR3 1333 MHz 18 -

49Y1430 4GB (1x 4GB, 2Rx4, 1.5 V) PC3-10600 CL9 ECC DDR3 1333 MHz 18 HXx

49Y1431 8GB (1x 8GB, 2Rx4, 1.5V) PC3-10600 CL9 ECC DDR3 1333 MHz 18 -

Low Power DIMMs (1.35 V)

46C0560 2GB (1x 2GB, 1Rx8, 1.35V) PC3L-10600 CL9 ECC DDR3 1333 MHz 18 -

46C0563 4GB (1x 4GB, 1Rx4, 1.35V) PC3L-10600 CL9 ECC DDR3 1333 MHz 18 A5x, A7x, B5x,

B6x, C5x, C6x,

C7x, C8x

46C0564 4GB (1x 4GB, 2Rx8, 1.35V) PC3L-10600 CL9 ECC DDR3 1333 MHz 18 -

46C0568 8GB (1x 8GB, 2Rx4, 1.35V) PC3-10600 CL9 ECC DDR3 1333 MHz 18 -

46C0599 16GB (1x16 GB, 2Rx4, 1.35V) PC3L-10600 CL9 ECC DDR3 1333 MHz 18 -

IBM BladeCenter HS22V 10

Internal disk storage options

The HS22V blade server features an onboard LSI Logic 53C1064E SAS controller that connect to two

SAS ports at the front of the HS22V motherboard. The LSI Logic 53C1064E SAS controller provides RAID

0 or RAID 1 capability and supports up to two internal non-hot-swap 1.8-inch solid state drives (SSDs).

The following table lists the solid state drive options available for internal storage.

Table 9. SSD options for internal disk storage

Part number Description Maximum quantity

supported

43W7726 IBM 50 GB SATA 1.8" MLC SSD 2

43W7746 IBM 200 GB SATA 1.8'' MLC SSD 2

Internal backup units

The server does not support an internal tape drive option.

Optical drives

The server does not support an optical drive option, however it does interface to the optical drive installed

in the BladeCenter chassis media tray if one is installed there.

Andere Handbücher für BladeCenter HS22V

Inhaltsverzeichnis

Andere IBM Server Handbücher

IBM

IBM NetVista Montageanleitung

IBM

IBM eServer xSeries 135 Bedienungsanleitung

IBM

IBM System x3650 M4 Type 7915 Bedienungsanleitung

IBM

IBM 71413SU - System x3950 M2 Service-Handbuch

IBM

IBM Multiprise 3000 S/390 Bedienungsanleitung

IBM

IBM 5100 Produktinformationsblatt

IBM

IBM eserver 630 6C4 Bedienungsanleitung

IBM

IBM eServer 232 xSeries Produktinformationsblatt

IBM

IBM Power System S814 Bedienungsanleitung

IBM

IBM Multiprise 3000 Bedienungsanleitung

IBM

IBM System x3250 M3 Type 4251 Bedienungsanleitung

IBM

IBM HS40 - BladeCenter - 8839 Bedienungsanleitung

IBM

IBM X3850 X6 Montage- und Wartungsanleitung

IBM

IBM 8676 - Eserver xSeries 335 Bedienungsanleitung

IBM

IBM Enterprise Server H80 Series Bedienungsanleitung

IBM

IBM Redbooks x3850 X5 Bedienungsanleitung

IBM

IBM 8668 - Eserver xSeries 232 Betriebsanleitung

IBM

IBM eServer 380 xSeries Bedienungsanleitung

IBM

IBM eserver pSeries 690 Bedienungsanleitung

IBM

IBM 610 Installationsanleitung

IBM

IBM x3500 - System - 7977 Bedienungsanleitung

IBM

IBM QS21 - BladeCenter - 0792 Bedienungsanleitung

IBM

IBM HS12 - BladeCenter - 8028 Bedienungsanleitung

IBM

IBM eServer xSeries 305 Type 8673 Bedienungsanleitung

Beliebte Server Handbücher anderer Marken

HP AlphaServer ES47 Bedienungsanleitung

Dell

Dell PowerEdge R410 Bedienungsanleitung

PowerNAS

PowerNAS CMA Bedienungsanleitung

Supero

Supero FatTwin F617R3-FT Bedienungsanleitung

MSI

MSI P1-109N-L70 Bedienungsanleitung

Dell

Dell PowerEdge XE9640 Handbuch

Dell

Dell PS4100 Montageanleitung

EtroVISION

EtroVISION EV3151 Bedienungsanleitung

NEC

NEC Express5800/T110j Bedienungsanleitung

HP ProLiant Gen9 Bedienungsanleitung

Compaq

Compaq ProLiant 3000 Handbuch

Dell

Dell PowerEdge 3YPMN Bedienungsanleitung

iRobo

iRobo IPC2U Bedienungsanleitung

Nortel

Nortel 1000 Con?guration guide Bedienungsanleitung

Asus

Asus AP7500 Bedienungs- und Wartungshandbuch

Avid Technology

Avid Technology AirSpeed 5000 Bedienungsanleitung

HP Integrity rx2600 Installationsanleitung

Milestone

Milestone Husky IVO 350T Bedienungsanleitung
