System Storage DS3500 and EXP3500 Rack Installation and

Quick Start Guide

This Rack Installation and Quick Start Guide describes the basic procedure for installing the IBM®System

Storage®DS3500 storage subsystem and the IBM System Storage EXP3500 storage enclosure. The

information in this document pertains to the DS3512 and DS3524 storage subsystems, and the EXP3512

and EXP3524 storage enclosures.

For information about cabling and configuring the DS3500 storage subsystem and the EXP3500 storage

enclosure, see the IBM System Storage DS3500 and EXP3500 Installation, User's, and Maintenance Guide that

came with the hardware.

For educational information about the DS3500 and other IBM System Storage products, go to

http://ibmdsseriestraining.com/.

For the latest information about IBM System Storage disk storage systems, including all of the DS3000

storage subsystems and storage enclosures, go to http://www.ibm.com/systems/support/storage/disk.

For safety information, see the multilingual IBM Safety Information document on the Documentation CD.

Rack installation guidelines

Review the documentation that came with your rack cabinet for safety and cabling information. Before

you install the storage subsystem in a rack cabinet, review the following guidelines:

vTwo or more people are required to install devices 18 kg (39.7 lb) or heavier in a rack cabinet.

vMake sure that the room air temperature is below 35°C (95°F).

vDo not block any air vents; usually 15 cm (6 in.) of space provides proper airflow.

vDo not leave open spaces above or below an installed storage subsystem in your rack cabinet. To help

prevent damage to storage subsystem components, always install a blank filler panel to cover the open

space and to help ensure proper air circulation.

vInstall the storage subsystem or expansion enclosure only in a rack cabinet with perforated doors.

vPlan the device installation starting from the bottom of the rack cabinet.

vInstall the heaviest device in the bottom of the rack cabinet.

vDo not extend more than one device out of the rack cabinet at the same time.

vRemove the rack doors and side panels to provide easier access during installation.

vConnect the storage subsystem or expansion enclosure to a properly grounded outlet.

vDo not overload the power outlet when you install multiple devices in the rack cabinet.

vThe storage subsystem or expansion enclosure requires2Uofvertical space in the rack cabinet.

Use safe practices when lifting.

≥18 kg (39.7 lb) ≥32 kg (70.5 lb) ≥55 kg (121.2 lb)

Inventory list

The following inventory list describes the items that you need to install the DS3500 storage subsystem or

EXP3500 storage enclosure in the rack cabinet. If any items are missing or damaged, contact your place of

purchase.

Notes:

1. Depending on your DS3500 or EXP3500 order, your shipping box might contain additional materials

not listed in the following checklist. Review the inventory checklist in the IBM System Storage DS3500

and EXP3500 Installation, User's, and Maintenance Guide that came with the hardware for any additional

parts, and use that checklist in combination with the following information.

2. The host-interface cables, Ethernet cables, Fibre Channel signal cables, and iSCSI signal cables that are

shipped vary with the hardware, and not included in the following list.

After you unpack the DS3500 or EXP3500, verify that you have the following items for each storage

subsystem or storage expansion controller.

vHard disk drives or blank trays (12 or 24) (Your storage subsystem or expansion enclosure might come

with up to 24 drives.)

vRAID controllers (DS3500 only, up to 2)

vEnvironmental Service Modules (ESM) (EXP3500 only, 1)

vAC power models:

– AC power supply and fan units (2)

– Rack jumper line cords (2)

vDC power models:

– DC power supply and fan units (2)

– DC jumper cables (2)

vRack-mounting hardware kit (1), including:

– Support rails (2) (right and left assembly)

– M5 black hex-head slotted screws (8)

– M5 washers (6)

– Small diameter spacers (8) (these come installed, four in each rail)

– Large diameter spacers (8)

– M4 pan-head screws (2)

Important: The DS3500 and EXP3500 ac power models do not ship with region-specific ac power cords.

You must obtain the IBM-approved power cords for your region. The DS3500 and EXP3500 dc

power models do not ship with a 30A rated disconnect device (circuit-breaker) that is

required for the -48V DC power connection. See the IBM System Storage DS3500 and EXP3500

Installation, User's, and Maintenance Guide for more information.

Tools

Before you install the DS3500 or EXP3500, the installation area must have an Internet connection, and you

must have the following tools:

vA cart to hold the storage subsystem and its components

vA 5 mm (3/16-in.) flat-blade screwdriver

vAnti-static protection

Note: A No. 2 Phillips screwdriver and an 8 mm wrench are optional.

Installation overview

The installation of the DS3500 or EXP3500 involves the following procedures:

1. “Unpacking the storage subsystem”

2. “Installing the support rails” on page 4

3. “Removing the storage subsystem or expansion enclosure components” on page 5

4. “Installing the storage subsystem or storage enclosure in the rack cabinet” on page 9

5. “Turning on the power - AC models” on page 11

6. “Installing the software” on page 14

7. “Discovering and setting up the storage subsystem” on page 15

8. “Obtaining information from the IBM Support Web site” on page 16

9. “Updating the storage subsystem firmware” on page 16

10. “Configuring the storage subsystem” on page 16

Unpacking the storage subsystem

Statement 4:

≥18 kg (39.7 lb) ≥32 kg (70.5 lb) ≥55 kg (121.2 lb)

CAUTION:

Use safe practices when lifting.

To unpack the storage subsystem or expansion enclosure, complete the following steps:

1. With the help of one other person, remove the storage subsystem or expansion enclosure from the

shipping box and place it on a cart, table, or other raised surface.

2. Check the storage subsystem or expansion enclosure to make sure that you received all the necessary

parts. See the “Inventory list” on page 2 section for the parts that are included with the storage

subsystem or expansion enclosure.

3. Take the left and right support rails and the M5 screws and proceed to “Installing the support rails”

on page 4.

Installing the support rails

Notes:

1. For proper weight distribution, install the support rails from the storage subsystem ship group in the

lower portion of the rack cabinet.

2. If you are installing a storage subsystem, make sure that you allow for room above and below the

storage subsystem for storage enclosures.

3. The support rails are marked “R” and “L” for right and left.

To install the left and right support rails in the rack cabinet, complete the following steps.

1. Starting with the left support rail, loosen the two rail adjustment screws. The adjustment screws are

used to lock the support rails at a certain length.

2. Hold the front of the left support rail against the inside of the front rack cabinet support flange, and

extend the rear of the support rail until it makes contact with the rear rack cabinet support flange.

The alignment spacers at the rear of the support rail slide into the holes at the rear of the rack cabinet,

as shown in Figure 2.

Note: If the rack has square holes, replace the small spacers on the front and rear of the rails with the

larger spacers that came with the rail kit.

3. From the front of the rack cabinet, with the support-rail flanges positioned inside the rack cabinet

support rail assemblies, tighten one M5 screw in the second hole from the top of the rail bracket with

a screwdriver, as shown in Figure 3 on page 5.

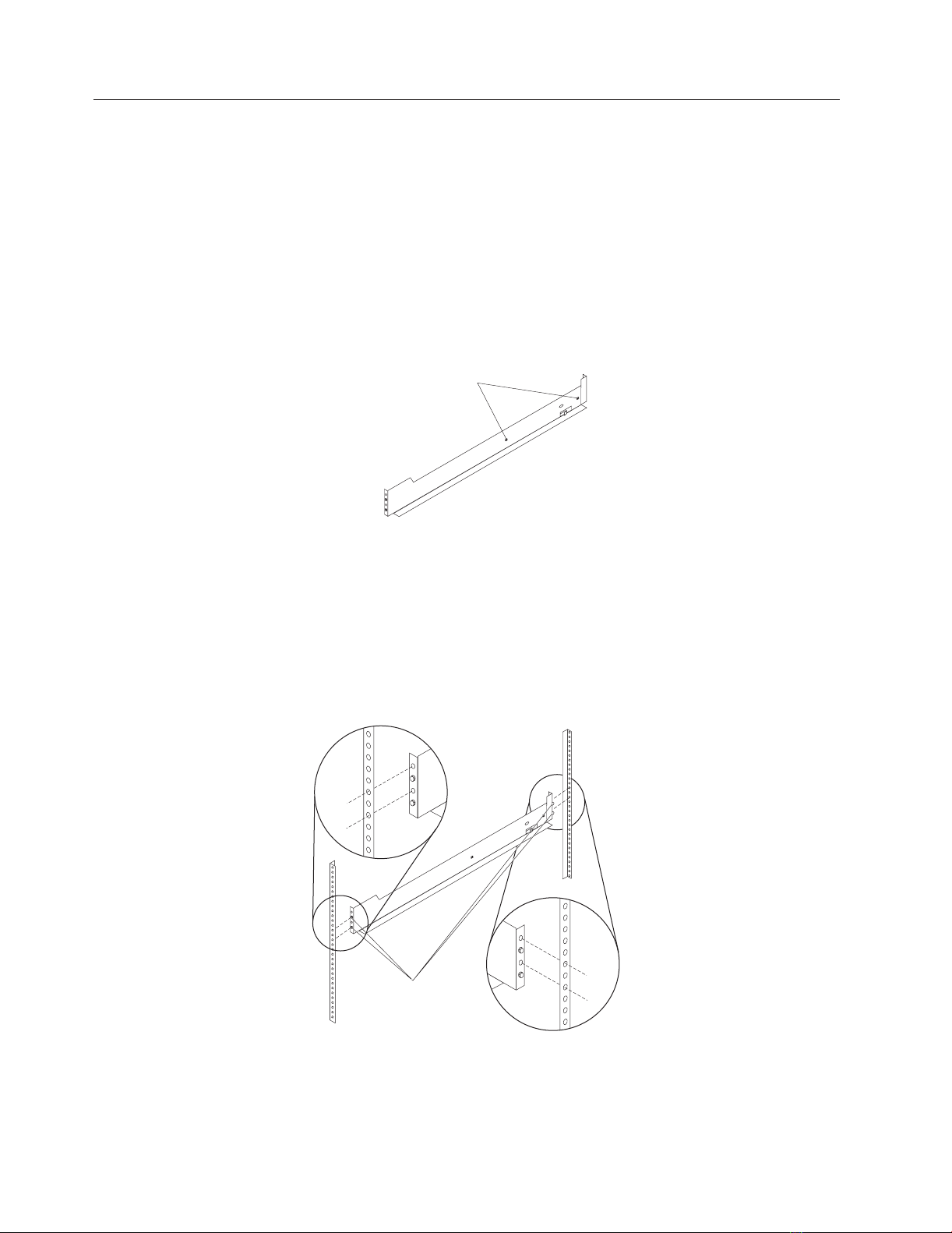

Rail-adjustment screws

Figure 1. Rail-adjustment screws

Alignment spacers

Figure 2. Positioning the support rails in the rack

Note: Make sure that you use a washer when you install an M5 screw through a square hole on a

rack-mounting flange.

4. From the rear of the rack cabinet, tighten two M5 screws in the bottom hole and the hole second from

the top of the rear rail bracket with a screwdriver.

Note: Make sure that you use a washer when you install an M5 screw through a square hole on a

rack-mounting flange.

5. Repeat steps 2 on page 4 through 4 for the right support rail.

Removing the storage subsystem or expansion enclosure components

Remove the controllers or ESMs, hot-swap drives, and the power supply and fan units before you lift the

storage subsystem or expansion enclosure. This reduces the weight of the DS3500 or EXP3500 during

installation. Each component in the back of the DS3500 and EXP3500 is held in place by a lever that has a

locking latch.

To remove the components, complete the following steps.

Note: The DS3500 storage subsystem and the EXP3500 expansion enclosure use the same power supply,

so the same removal procedure applies to both.

M5 screw (1)

M5 screws (2)

Figure 3. Securing the support rails in the rack

1. Remove the power supplies:

a. Press the release tabs and open the release levers as shown in the illustration. The power supply

moves out of the bay approximately 0.6 cm (0.25 inch).

b. Slide the power supply out of the bay and set it aside.

2. If you have an EXP3512 or EXP3524 expansion enclosure, remove the ESMs:

a. Open the two release levers. The ESM moves out of the bay approximately 0.6 cm (0.25 inch).

b. Slide the ESM out of the bay and set it aside.

Power supply

Release

levers

Figure 4. Removing a power supply from a DS3500 storage subsystem or an EXP3500 expansion enclosure

Release

levers

ESM

Figure 5. Removing an ESM from an EXP3512 or EXP3524

3. If you have a DS3512 or DS3524 storage subsystem, remove the controller or controllers:

a. Open the two release levers as shown in the illustration. The controller moves out of the bay

approximately 0.6 cm (0.25 inch).

b. Slide the controller out of the bay and set it aside.

Release

levers

Figure 6. Removing a controller from a DS3512 or DS3524

Drive tray

Tray handle

Latch

Hard disk drive

System Storage

Figure 7. Removing a hard disk drive from a DS3512 or an EXP3512

4. Remove the drives:

a. Label the drives so that you can replace them in their original order.

b. Release the latch on the drive by pressing on the inside of the bottom of the tray handle.

c. Lift the closed latch to its open position. When the latch is open, it is at a 90° angle to the front of

the drive.

d. Pull the drive out of its bay.

e. Repeat steps 4b through 4d for each drive.

5. See the IBM Systems Storage DS3500 and EXP3500 Installation, User's, and Maintenance Guide that came

with the enclosures for more information about removing the components.

Drive tray

Tray handle

Latch Hard disk drive

Figure 8. Removing a hard disk drive from a DS3524 or EXP3524

Installing the storage subsystem or storage enclosure in the rack

cabinet

To install the storage subsystem, complete the following steps:

1. Read the safety information that comes with the storage subsystem or storage enclosure.

2. Slide the rear of the storage subsystem or expansion enclosure onto the support rails as shown for the

DS3512 and EXP3512 in Figure 9, and for the DS3524 and EXP3524 in Figure 10.

Note: The DS3524 and EXP3524 do not use the support rail alignment tabs.

Alignment tab

(both sides)

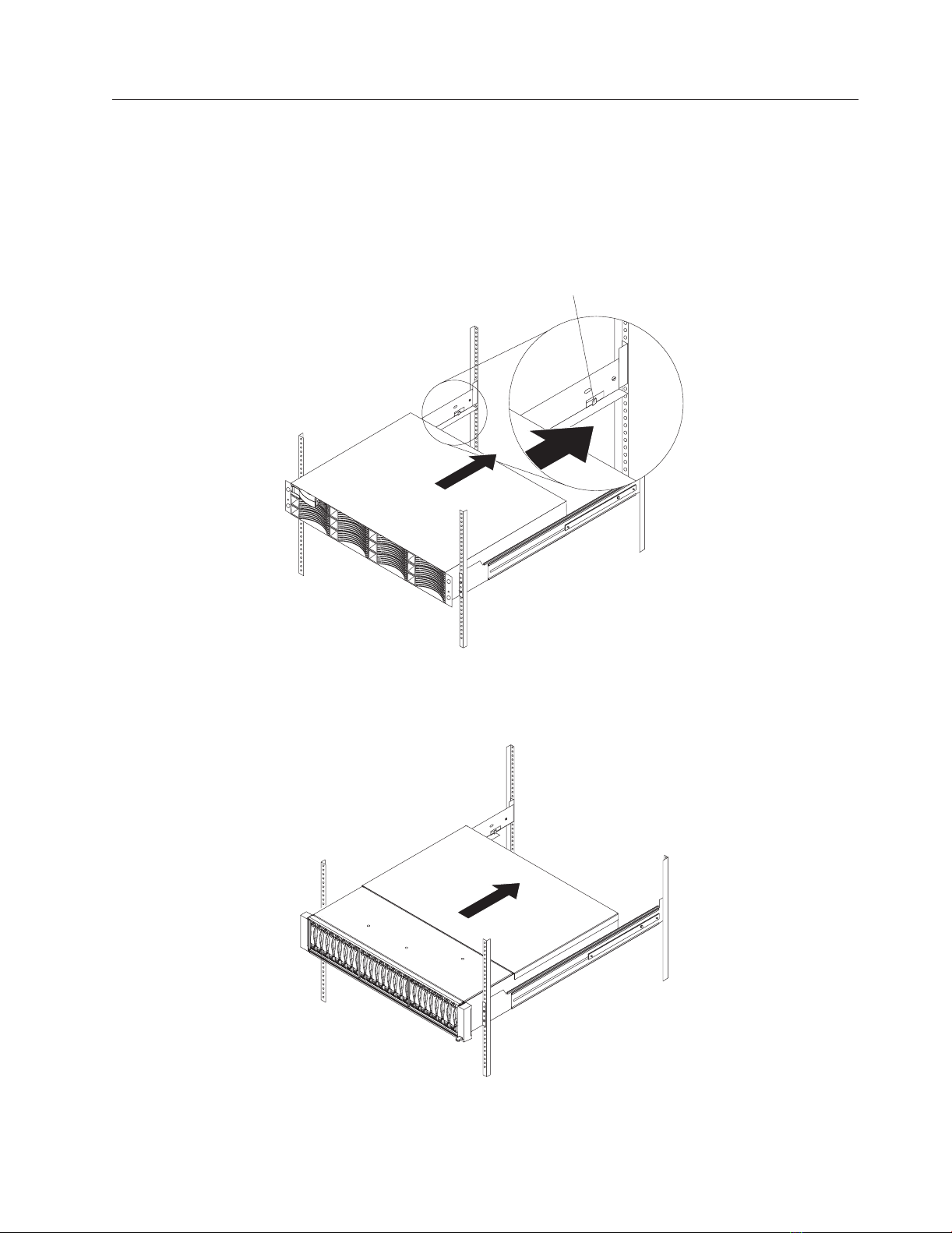

Figure 9. Positioning a DS3512 or EXP3512 in a rack

Figure 10. Positioning a DS3524 or EXP3524 in a rack

3. Align the front mounting holes on each side of the storage subsystem or expansion enclosure with the

mounting holes on the front of the support rails.

4. Install and tighten one M5 screw in the support hole on each side of the front of the storage

subsystem or expansion enclosure (no washer is required), as shown for the DS3512 or EXP3512 in

Figure 11, and for the DS3524 or EXP3524 in Figure 12.

5. Install and tighten the two M4 screws through rear of the support rails into the slotted holes on the

outside of the storage subsystem or expansion enclosure.

M5 screws

Figure 11. Securing a DS3512 or EXP3512 to a rack

Andere Handbücher für DS3500

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere IBM Lagerung Handbücher

IBM

IBM System Storage N7000 Bedienungsanleitung

IBM

IBM Storwize V5000 Gen2 Bedienungsanleitung

IBM

IBM TS1140 Bedienungsanleitung

IBM

IBM XIV STORAGE SYSTEM Bedienungsanleitung

IBM

IBM magstar mp 3570 Einrichtungshandbuch

IBM

IBM 12/24 GB DDS/3 4 mm Bedienungsanleitung

IBM

IBM 20/40GB 4MM Leitfaden

IBM

IBM DR550 V3.0 Bedienungsanleitung

IBM

IBM 342 7208 Bedienungsanleitung

IBM

IBM Ultrastar 36XP Bedienungsanleitung

IBM

IBM System storage DS6000 Series Bedienungsanleitung

IBM

IBM 7212 Model 102 Bedienungsanleitung

IBM

IBM DS3950 Handbuch

IBM

IBM Deskstar Deskstar 3 Bedienungsanleitung

IBM

IBM Storwize V7000 Bedienungsanleitung

IBM

IBM System Storage DS4000 Bedienungsanleitung

IBM

IBM Travelstar VP Bedienungsanleitung

IBM

IBM Storwize V7000 Bedienungsanleitung

IBM

IBM Storwize V7000 Bedienungsanleitung

IBM

IBM 1402 Bedienungsanleitung

IBM

IBM CISCO MDS 9124 - UPDATE FOR SYSTEM STORAGE Technisches Handbuch

IBM

IBM IntelliStation A Pro 6217 Bedienungsanleitung

IBM

IBM TotalStorage DS8000 Bedienungsanleitung

IBM

IBM RDX Bedienungsanleitung

Beliebte Lagerung Handbücher anderer Marken

QNAP

QNAP TS 32PXU Series Bedienungsanleitung

LaCie

LaCie RUGGED RAID Bedienungsanleitung

Freecom

Freecom CLS DOCK Bedienungsanleitung

PNY

PNY Attache P-FD64MBATT3 Bedienungsanleitung

HP StorageWorks MSL2024 Bedienungsanleitung

OLT

OLT 6x6 Maximizer Bedienungsanleitung

Transcend

Transcend JetFlash 160 Bedienungsanleitung

LaCie

LaCie RUGGED MINI Bedienungsanleitung

Thunderbolt

Thunderbolt 600 Bedienungsanleitung

Panasonic

Panasonic LB-DH8 series Handbuch

Intel

Intel RAID High Availability Bedienungsanleitung

LaCie

LaCie 12big Thunderbolt 3 Bedienungsanleitung

Spectra Logic

Spectra Logic T-Series Spectra T50e Bedienungsanleitung

Panasonic

Panasonic LKM-F931-1 Bedienungsanleitung

Tabernus

Tabernus Enterprise Erase E2400 Bedienungsanleitung

Rocstor

Rocstor COMMANDER 3F series Bedienungsanleitung

HP P9000 Bedienungsanleitung

Western Digital

Western Digital Ultrastar Data60 Bedienungsanleitung
