CD40022/40522 Cube Ice Dispenser

CD40022 with ICE0320

Features

•Only 22" (559 mm) wide.

•Only 76 inches (1935 mm) tall with ICE Series machine

•ARI Storage 120 lbs (54 kg) of ice.

•TurboDispense dispenses ¼ lbs of ice per second.

•PowerClean allows access to the bin for easy cleaning without moving the

ice machine. Interlock safety switch turns off machine agitation when top-front

access panel is removed.

•4" (102mm) foam insulation for maximum ice

preservation – no more quick melting ice.

•Constructed from corrosion-resistant stainless steel and fingerprint-proof plastic.

Ice Prodution for Optional Cube Ice Makers

Pounds(Kilograms)per24hours

Model Type ICE0320 ICE0325 ICE0520 ICE0525

Air-Cooled 334 (152) 301 (137) 520 (236) 559 (254)

Water-Cooled 349 (159) n/a 527 (240) n/a

Remote-Cooled n/a n/a n/a n/a

Voltage Char. 115/60/1 220-240/50/1 115/60/1 220-240/50/1

Testedat70ºAir/50ºWater.

2.Allspecicationsandperformancedataaresubjecttonormalmanufacturingvariances.

Accessories

Model

Number

Water

Dispenser

Coin / Token

Mechanisms Both

CD40022 Yes Yes Yes

Ice Form

CUBED ICE

Full Cube

W x D x H (in) ⁄x ⁄ x ⁄

W x D x H (mm) 22 x 22 x 22

Half Cube

W x D x H (in) ⁄x ⁄x ⁄

W x D x H (mm) 22 x 22 x 10

Space-Saving Solutions

•Great for hard water, food safety and tight spaces.

•Ultra-low profile design.

•Maximum ice storage in a minimum amount of space.

•ARI Storage 120 lbs (54 kg) of ice.

•Only 22” (559 mm) wide.

•User friendly push-to-dispense operation.

ISO 9001 Certied

CD40022/40522 Cube Ice Dispenser

CD40022/40522 - Cube Ice Dispenser

11100 E. 45th Avenue

Denver, CO 80239

Phone: 1. 866. PURE. ICE

Fax: 303. 371. 6296

www.iceomatic.com

Part: 4005

Rev: A-01/09

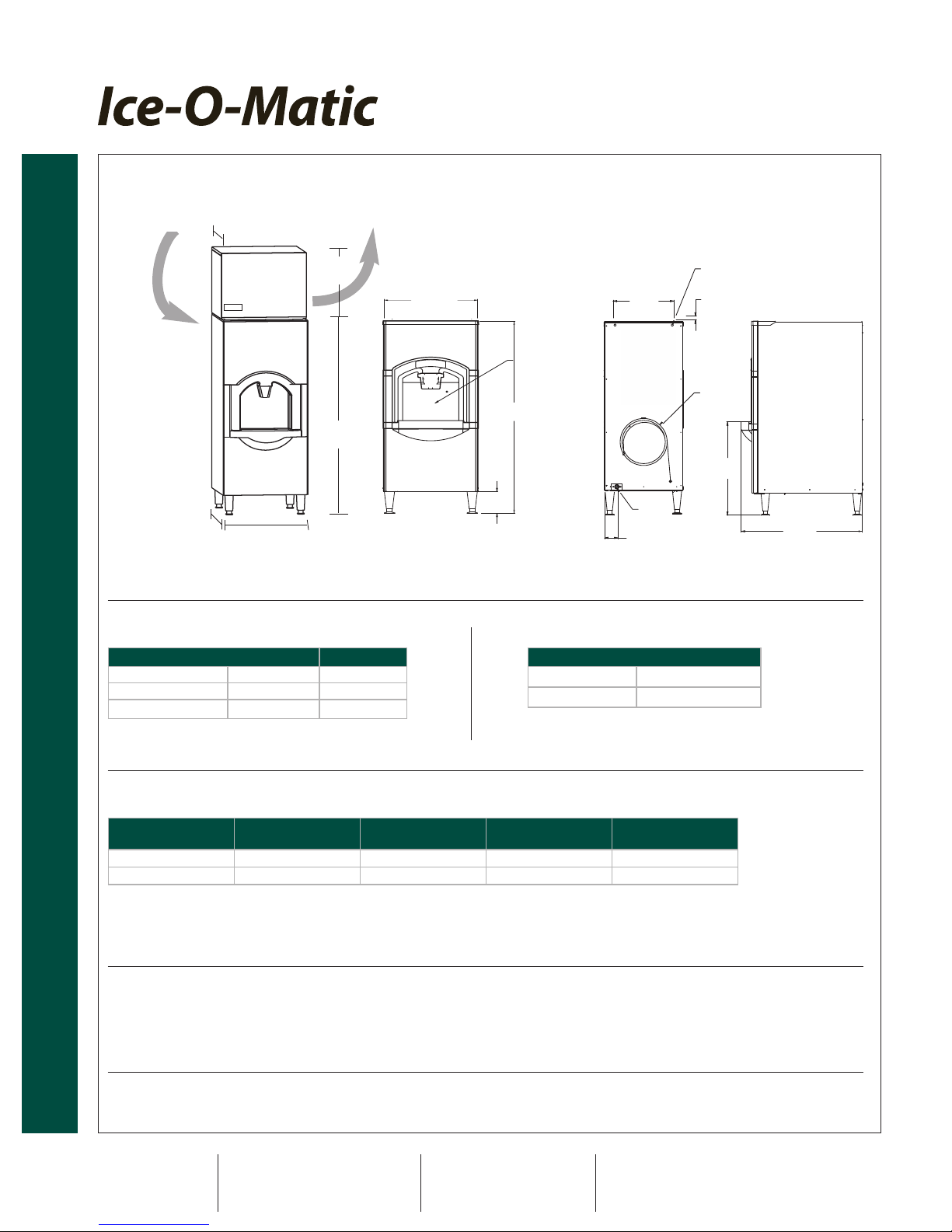

Air out -

(Side discharge)

Front View Front View Rear View Side View

Air in -

(Rear of ice maker)

53.25"

(1353 mm)

22"

(559 mm)

24"

(610 mm)

33.5"

(851 mm)

23"

(584 mm)

22"

(559 mm)

(152 mm)

53.25"

(1353 mm)

Ice ll station

8.75" (222 mm) height

13.5" (343 mm) width

8.5" (216 mm) depth

33.5"

(851 mm)

25.6"

(650 mm)

16"

(406 mm)

(25 mm)

3.5"

89 mm

Power

Cord

¾ fpt

Drain

(2) 5/16-18 unc

Ice head

(851 mm)

Operating Requirements

Minimum Maximum

AmbientTemp. Range Air 50˚F (10˚C) 110˚F (43˚C)

WaterTemp. 40˚F (4.4˚C) 100˚F (38˚C)

Water Pressure 20 PSIG (1.4 BAR) 60 PSIG (4.1 BAR)

Dimensions (dispenser only)

All Models

W x D x H (inches) 22 x 33.5 x 53.25

W x D x H (mm) 559 x 851 x 1,353

Specifications

Model Number

Dispenser

Operation

ARI Bin Storage

lbs (kg)

Voltage

Characteristics

Min. Circuit

Ampacity

CD40022 Push 120 (55) 115/60/1 2.1

CD40522 Push 120 (55) 230/50/1 2.1

•Note #1: Model CD40022 and CD40522 dispensers accept all 22” ICE Series™ Cube Ice Makers

•Note #2: CD40022 and CD40522 Series units do not require an Adaptor and Bin Level Kit

NOTES:

Number of Wires: 3 (including ground)

Approx. Shipping Weight lbs (kg): 230 lbs (105 kg)

Refrigerant Type: R404A

CD40022/40522 Cube Ice Dispenser
