Ice-O-Matic ICE2106 Series Bedienungsanleitung

11100 E. 45th Avenue

Denver, CO 80239

Phone: 1. 866. PURE. ICE

Fax: 303. 371. 6296

www.iceomatic.com

Rev: A-01/09

Part: 1016

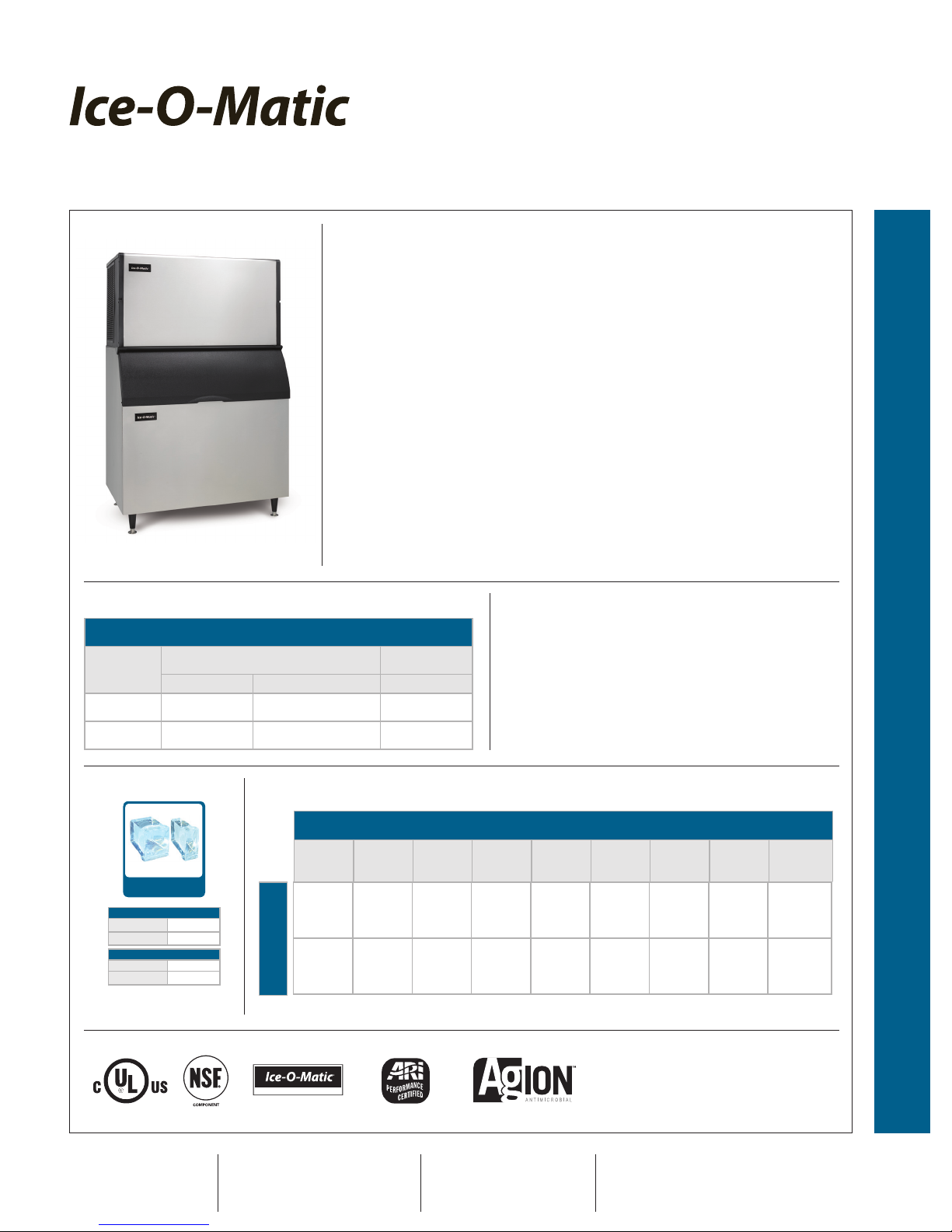

ICE2106/2107Cube Ice Machine

ICE2106 on B100

Features

•Space saving 26" (660 mm) tall design.

•Produces up to 1,998 lbs (908 kg) of ice perday.

•HarvestAssist provides consistent ice production for the life of the ice

maker while reducing energy consumption and increasing capacity.

•PureIce® exclusively by Ice-O-Matic. Built-in antimicrobial protection for the life of the

ice maker inhibits bacteria growth on ice maker surfaces. Ice-O-Matic's optional water

filtration system provides protection against unpleasant tastes, odors and scale formation.

•Durable, electroless nickel plating on all evaporator plates ensures reliability.

•Longestwarrantyintheindustry. Purchase an Ice-O-Matic water filter with your

cube ice maker, replace the filter every six months, and the evaporator warranty

is extended to 7 years parts and labor (availableintheU.S.andCanadaonly).

•Constructed from corrosion-resistant stainless steel and fingerprint-proof plastic.

Options & Accessories

Water Filters

Ice Machine

Model

Manifold Inline

System Replacement System

ICE2106 IFQ2 IOMQ (2) N/A

ICE2107 IFQ2 IOMQ (2) N/A

Ice Maker Warranty

Every Ice-O-Matic ice maker is backed by a warranty that

provides both parts and laborcoverage.

•Three years Parts and Labor.

•Five years Parts coverage on the evaporator and compressor.

•Seven years Parts and Labor on the evaporator when you

purchase an Ice-O-Matic water filter with your cube ice maker

and replace the filter every six months (availableintheU.S.

andCanadaonly).

Ice Form

CUBED ICE

Full Cube

W x D x H (in) ⁄x ⁄ x ⁄

W x D x H (mm) 22 x 22 x 22

Half Cube

W x D x H (in) ⁄x ⁄x ⁄

W x D x H (mm) 22 x 22 x 10

Bin Chart

KitsforCombiningWiderBinswithSmallerModels

Ice Storage Bins

ModelNo.

Capacity

Width

B25

255lbs(116kg)

30in(762mm).

B40

365lbs(165kg)

30in(762mm)

B42

374lbs(170kg)

22in(559mm)

B55

556lbs(252kg)

30in(762mm)

B100

927lbs(420kg)

48in(1219mm)

B120

1193lbs(541kg)

48in(1219mm)

B150

1499lbs(679kg)

60in(1524mm)

B170

1866lbs(846kg)

60in(1524mm)

Kits

ICE2106 N/A N/A N/A N/A KIT NOT

REQUIRED

KIT NOT

REQUIRED

KIT NOT

REQUIRED

KIT NOT

REQUIRED

ICE2107 N/A N/A N/A N/A KIT NOT

REQUIRED

KIT NOT

REQUIRED

KIT NOT

REQUIRED

KIT NOT

REQUIRED

*SeeIce-O-MaticPriceListforAdapterKitstocombineicemakerswithmostavailableice/beveragedispensers.

ISO 9001 Certied

ICE2106/2107 - Cube Ice Maker

11100 E. 45th Avenue

Denver, CO 80239

Phone: 1. 866. PURE. ICE

Fax: 303. 371. 6296

www.iceomatic.com

Rev: A-01/09

Part: 1016

Water Cooled/Remote

A. Ice maker potable water in, ⁄"FPT.

B. Ice maker water out, ⁄"FPT.

C. Hole for electricalconnections, ⁄".

D. Electrical Junction Box.

E. Condenser water in, ⁄"FPT.

F. Condenser water out, ⁄"FPT.

G. Liquid line, ⁄" male quick connect

coupling for precharged line set

(remoteonly).

H. Discharge line, ⁄" male

quickconnect coupling for

precharged line set (remoteonly).

I. Hole for remote electrical

connections, ⁄" (remoteonly).

1.75" (45 mm)

2.9"

(74 mm)

3.2"

(81 mm)

.75" (19 mm)

8.9"

(229 mm)

18"

(460 mm)

18"

(460 mm)

19.1"

(485 mm)

19.1"

(485 mm)

21.2"

(536 mm)

21.2"

(536 mm)

15"

(381 mm)

15"

(381 mm)

6.7" (170 mm)6.7" (170 mm)

3.4"

(86 mm)

3.4"

(86 mm)

8.9"

(229 mm)

8.9"

(229 mm)

17.2" (565 mm)17.2" (565 mm)

23.3" (565 mm)23.3" (565 mm)

H. A.

3.6" (92 mm)

Bin Strap Bin Strap

WaterCooled&Remote

Operating Requirements

Minimum Maximum

AmbientTemp. Range Air 50˚F (10˚C) 100˚F (38˚C)

WaterTemp. 40˚F (4.4˚C) 100˚F (38˚C)

Water Pressure 20 PSIG (1.4 BAR) 60 PSIG (4.1 BAR)

Dimensions

All Models

W x D x H (inches) 48 x 26 x 24

W x D x H (mm) 1,219 x 660 x 610

Specifications

Model Number Cond. Unit

Ice Production

per 24hrs

Water Usage

gallons per 100 lbs of Ice

90°F air/70°F water kWH Used

per 100 lbs

of ice @

90°F air/

70°F water

Voltage

Characteristics

Min.

Circuit

Ampacity

Fuse

Size

Approx.

BTUs

per hour

70°F air/

50°F water

lbs (kg)

90°F air/

70°F water

lbs (kg)

Potable Condenser

ICE2106R Remote* 1,737 (790) 1,561 (710) 21.8 - 5.0 208-230/60/1 26.9 30 30,034

ICE2106W Water 1,856 (844) 1,692 (769) 23.6 156 3.9 208-230/60/1 22.3 30 29,091

ICE2107R Remote* 1,636 (744) 1,525 (693) 21.8 - 5.0 208-230/60/3 21.2 25 29,342

ICE2107W Water 1,814 (825) 1,650 (750) 24.2 154 3.9 208-230/60/3 13.5 30 28,369

*RequiresRemoteVRC5061Condenserandprechargelineset.

NOTES:

NumberofWires: ICE2106:3(includingground) • ICE2107:4(includingground)

Approx.ShippingWeightlbs(kg): ICE2106R340(155) • ICE2106W310(141) • ICE2107R340(155) • ICE2107W340(155)

Refrigerant Type: R404A

ICE2106/2107Cube Ice Machine
