Ice-O-Matic ICE0806A3-W3-R4 Leitfaden

SERVICE PARTS MANUAL

ICE SERIES CUBERS

Includes 50Hz. and 3 Phase Units

MODEL - ICE0806A3-W3-R4, ICE1006A3-W3-R4

Ice-O-Matic

11100 East 45th Ave

Denver, Colorado 80239

Part Number 9081307-02 Date 1/09

Table Of Contents

This parts list contains the service parts available for the ICE Series icemakers listed below:

ICE0250 A4, T4 and W4, Includes 50 hz. Models

ICE0400 A3, T3 and W3, Includes 50 hz. Models

ICE0500 A3, T3, W3 and R4

ICE0606 A3, T3, W3 and R4 Includes 50 hz. Models

Check the model number on the data plate and refer to the correct listing for the specific component.

Check carefully that the correct part is identified and ordered.

Table of Contents Page 1

Cabinet Assembly Page 2 - 3

Evaporator/Water System Page 4 - 5

Air Cooled and Top Discharge Page 6 - 7

Water Cooled Page 8 - 9

Remote Page 10 - 11

Control Box Page 12 - 13

Specific Compressor Components Page 13

Harvest Assist Assembly Page 14 - 15

Remote Condenser Page 16 - 17

The ICE Series Service Manual is available separately, Part number 9081270-01

ICE-O-Matic

11100 East 45th Ave.

Denver Co. 80239

800-423-3367

ICE Series Service Parts Table Of Contents

This parts list contains the service parts available for the ICE Series icemakers listed below:

ICE0806 A3, W3 and R4, Includes 50 hz. Models

ICE1006 A3, W3 and R4, Includes 50 hz.and 3 Phase Models

Check the model number on the data plate and refer to the correct listing for the specific component.

Check carefully that the correct part is identified and ordered.

Table of Contents Page 1

Cabinet Assembly Page 2 - 3

Evaporator/Water System Page 4 - 5

Air Cooled and Top Discharge Page 6 - 7

Water Cooled Page 8 - 9

Remote Page 10 - 11

Control Box Page 12 - 13

Specific Compressor Components Page 13

Harvest Assist Assembly Page 14 - 15

Remote Condenser Page 16 - 17

The ICE Series Service Manual is available separately, Part number 9081270-01

Ice-O-Matic

11100 East 45th Ave.

Denver Co. 80239

800-423-3367

Page 1

ICE Series Service Parts Cabinet Assembly

Page 2

ICE Service Parts Exterior Panels

Item

No. ICE0805 ICE0806 ICE1005 ICE1006 ICE1007 Description

1 2031511-02S 2031511-02S 2031511-02S 2031511-02S 2031511-02S Front Panel

9051562-03 9051562-03 9051562-03 9051562-03 9051562-03 Front Panel End Cap, Right Hand

9051562-04 9051562-04 9051562-04 9051562-04 9051562-04 Front Panel End Cap, Left Hand

2 9031098-04 9031098-04 9031098-04 9031098-04 9031098-04 Front Panel Screws

3 9031141-01 9031141-01 9031141-01 9031141-01 9031141-01 Plastic Nut

4 2101428-02 2101428-02 2101428-02 2101428-02 2101428-02 Right Hand Side Panel-Air Cooled Only

5 9051565-04 9051565-04 9051565-04 9051565-04 9051565-04 Right Hand Side Panel-Water and Remote Only

6 2101425-01S 2101425-01S 2101425-01S 2101425-01S 2101425-01S Top Panel

7 3012724-01 3012724-01 3012724-01 3012724-01 3012724-01 Rear Brace

8 9051565-04 9051565-04 9051565-04 9051565-04 9051565-04 Left Hand Side Panel

9 3021740-01 3021740-01 3021740-01 3021740-01 3021740-01 Rear Panel

10 9031046-01 9031046-01 9031046-01 9031046-01 9031046-01 Rear Panel Screws

11 3012905-01 3012905-01 3012905-01 3012905-01 3012905-01 Control Box Top Cover

12 3012891-01 3012891-01 3012891-01 3012891-01 3012891-01 Control Box Side Cover

13 3012931-01 N/

3012931-01 N/

Machine Compartment Cover

Model Number

Page 3

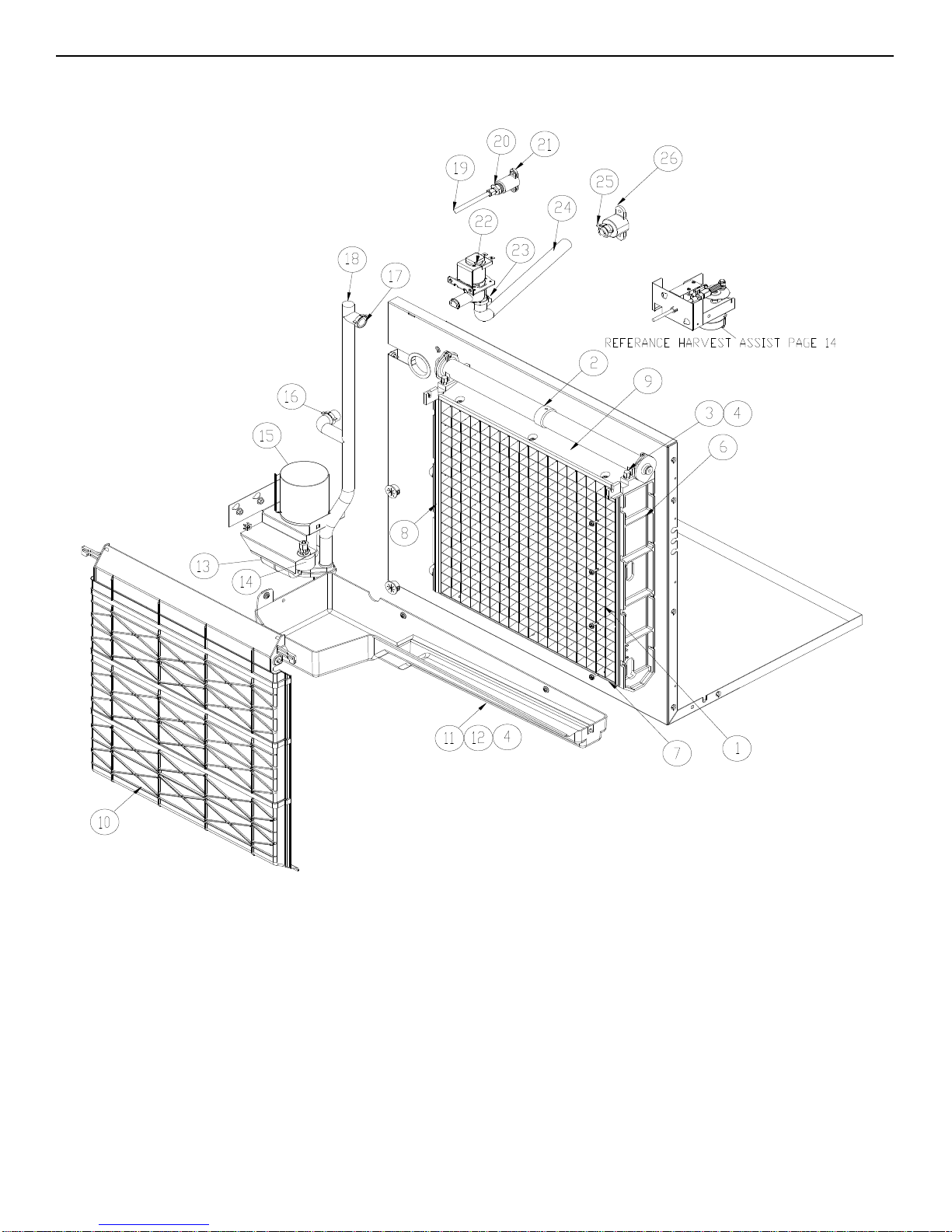

ICE Series Service Parts Evaporator/Water System

Page 4

ICE Series Service Parts Evaporator/Water System

Item Model Number

No. ICE0805 ICE0806 ICE1005 ICE1006 ICE1007 Description

12051239-81 2051239-81 2051239-81 2051239-81 2051239-81 Evaporator Full Cube

12051239-82 2051239-82 2051239-82 2051239-82 2051239-82 Evaporator Half Cube

22041338-01 2041338-01 2041338-01 2041338-01 2041338-01 Water Distribution Tube

39031122-01 9031122-01 9031122-01 9031122-01 9031122-01 Thumb Screw

49031004-19 9031004-19 9031004-19 9031004-19 9031004-19 Rubber Washer

5N/A N/A N/A N/A N/A Curtain Stopper

69051170-03 9051170-03 9051170-03 9051170-03 9051170-03 Evaporator Mounting Panel Right Side

79051135-04 9051135-04 9051135-04 9051135-04 9051135-04 Evaporator Water Return

89051170-04 9051170-04 9051170-04 9051170-04 9051170-04 Evaporator Mounting Panel Left Side

99051135-05 9051135-05 9051135-05 9051135-05 9051135-05 Evaporator Spillway

10 9051154-12 9051154-12 9051154-12 9051154-12 9051154-12 Evaporator Splash Curtain

11 9051537-01 9051537-01 9051537-01 9051537-01 9051537-01 Water Return Trough

12 9031046-24 9031046-24 9031046-24 9031046-24 9031046-24 Water Return Trough Screw

13 9131111-01 9131111-01 9131111-01 9131111-01 9131111-01 Float

14 9131026-02 9131026-02 9131026-02 9131026-02 9131026-02 Caplug (Float Deflector)

15 9161079-03 9161079-03 9161079-03 9161079-03 9161079-03 Water Pump

16 9021010-04 9021010-04 9021010-04 9021010-04 9021010-04 Clamp

17 9021010-04 9021010-04 9021010-04 9021010-04 9021010-04 Clamp

18 9051472-01 9051472-01 9051472-01 9051472-01 9051472-01 Water Pump Tube

19 3032898-26 3032898-26 3032898-26 3032898-26 3032898-26 Water Float Tubing (26 Inches required)

20 9091083-01 9091083-01 9091083-01 9091083-01 9091083-01 Water Inlet Fitting

21 9091074-01 9091074-01 9091074-01 9091074-01 9091074-01 Drop Adapter

22 9041086-02 9041086-02 9041086-02 9041086-02 9041086-02 Purge Valve

23 9021010-04 9021010-04 9021010-04 9021010-04 9021010-04 Clamp

24 3051222-18 3051222-18 3051222-18 3051222-18 3051222-18 Purge Drain Hose

25 9021010-03 9021010-03 9021010-03 9021010-03 9021010-03 Clamp

26 9091140-01 9091140-01 9091140-01 9091140-01 9091140-01 Purge Drain Fitting

Page 5

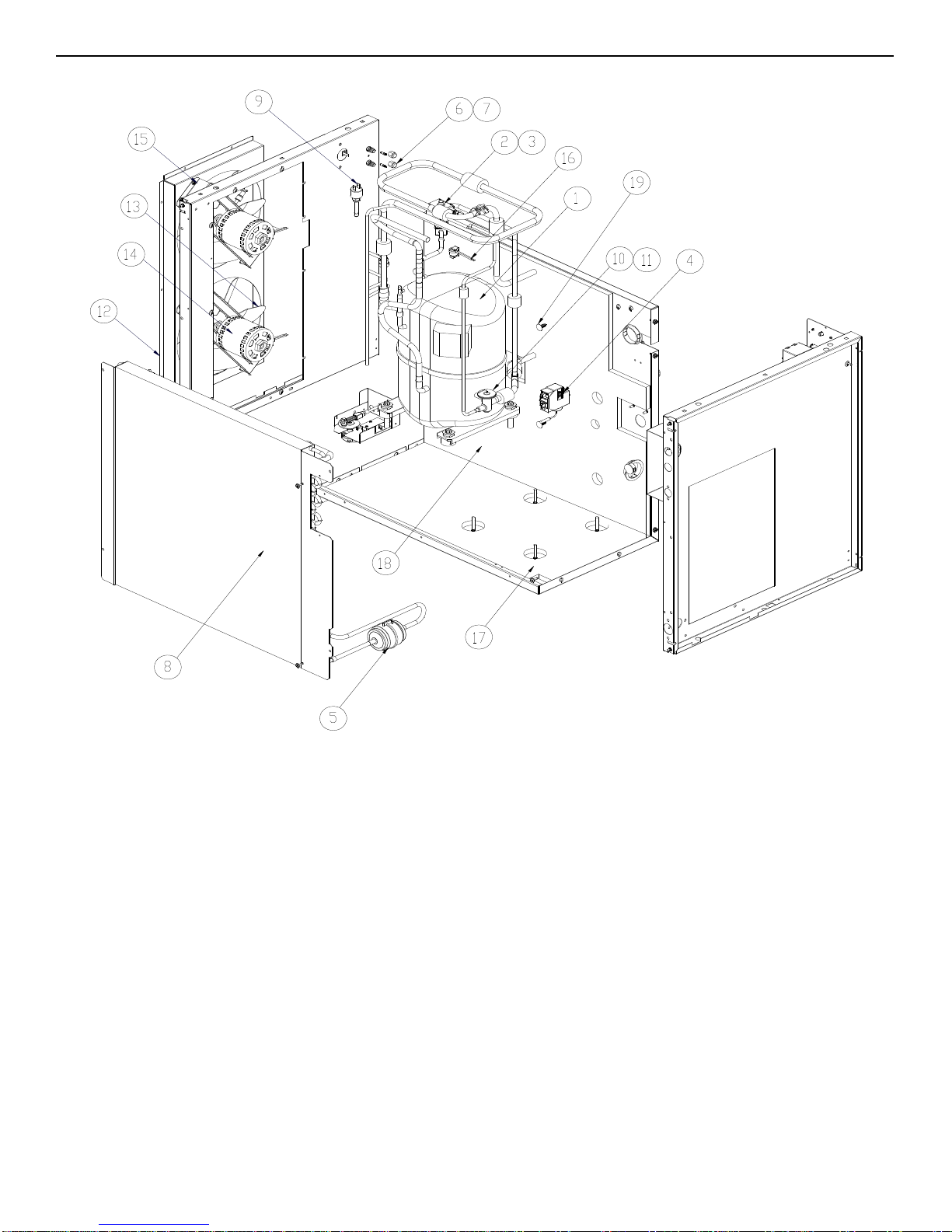

ICE Series Service Parts Air Cooled

Page 6

ICE Series Service Parts Air Cooled

Item Model Number

No. ICE0805 ICE0806 ICE1005 ICE1006 ICE1007 Description

19181107-12 9181106-11 9181090-12 9181107-11 9181107-13 Compressor Kit

29151123-02 9151123-02 9151123-02 9151123-02 9151123-02 Hot Gas Valve Body

39151123-04 9151123-04 9151123-04 9151123-04 9151123-04 Hot Gas Valve Coil

49041094-01 9041094-01 9041094-01 9041094-01 9041094-01 Low Pressure Control

59151004-04 9151004-04 9151004-04 9151004-04 9151004-04 Filter Drier

69091086-02 9091086-02 9091086-02 9091086-02 9091086-02 Service Valve Core

79091086-03 9091086-03 9091086-03 9091086-03 9091086-03 Service Valve Cap

89141122-01 9141122-01 9141122-01 9141122-01 9141122-01 Condenser

99041096-01 9041096-01 9041096-01 9041096-01 9041096-01 Fan Control

10 9151147-01 9151147-01 9151147-01 9151147-01 9151147-01 Expansion Valve

11 9131465-01 9131465-01 9131465-01 9131465-01 9131465-01 Insulation-Danfoss Expansion Valve

12 3012742-01 3012742-01 3012741-01 3012741-01 3012741-01 Fan Shroud

13 9131383-01 9131332-02 9131383-01 9131333-01 9131333-01 Fan Blade

14 9161078-02 9161089-03 9161078-02 9161089-03 9161089-03 Fan Motor

15 2021612-01 3012527-01 2021612-01 3012527-01 3012527-01 Fan Motor Bracket

16 9041098-01 9041098-01 9041098-01 9041098-01 9041098-01 High Temperature Safety Control

17 9131353-02 9131353-02 9131353-02 9131353-02 9131353-02 Insulation Panel Bottom

18 9131456-01 9131456-01 9131456-01 9131456-01 9131456-01 Insulation Panel Top Divider

19 9031154-01 9031154-01 9031154-01 9031154-01 9031154-01 Insulation Clip

Note: The ICE800 series has 1 fan motor, the ICE1000 series has 2 fan motors.

Page 7

ICE Series Service Parts Water Cooled

Page 8
