ICON I-Controls Pro Bedienungsanleitung

N16549

MIDI/Audiocontrolsurfacewith

motorizedfaders

Controls Pro

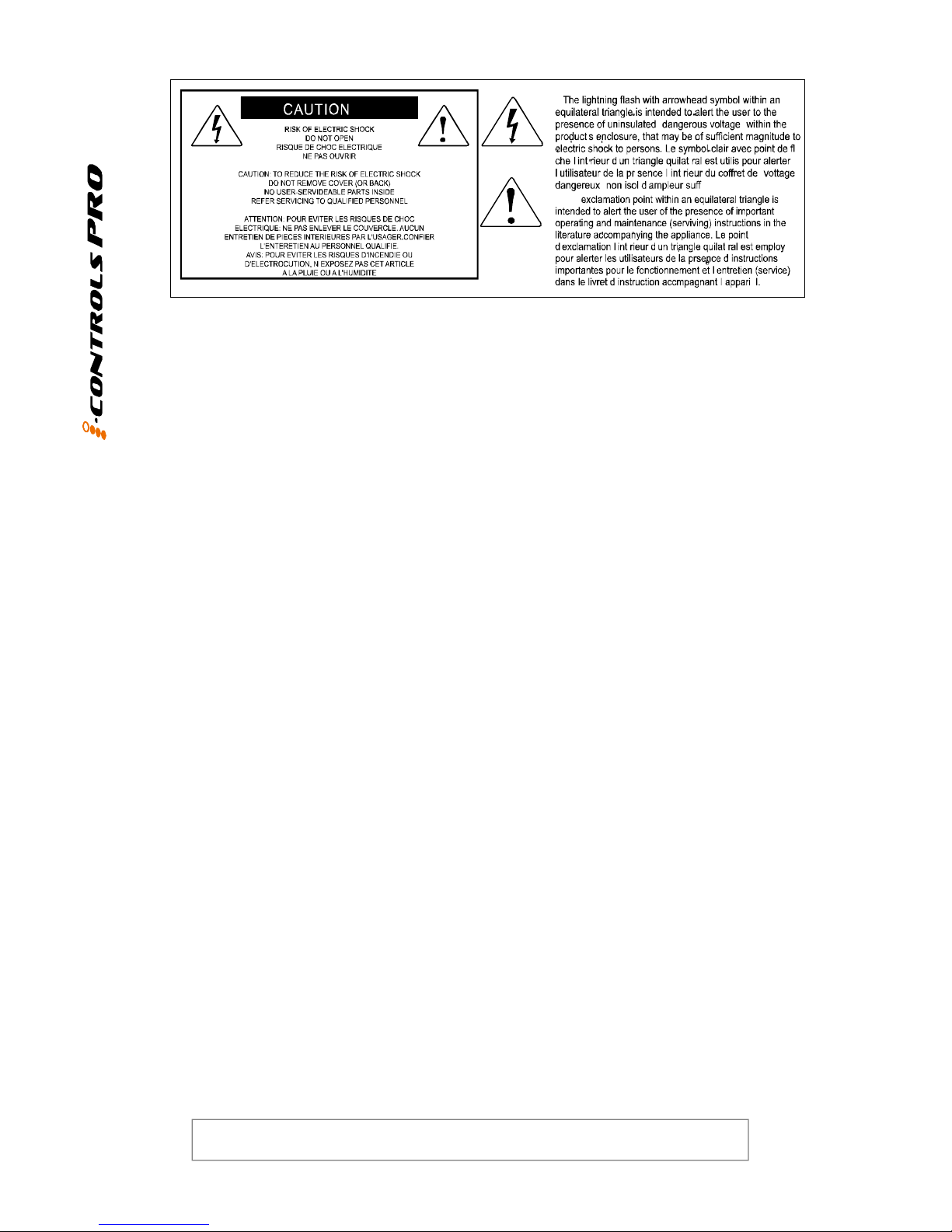

ARNING: To reduce the risk of fire or electric shock, do not expose this unit to

rain or moisture

Important SafetyInstructions

. Read this manual thoroughly before using this unit.

2. Keep this manual for future reference.

3. Take notice of and comply with all warnings included in the user's manual or indicated

on the appliance.

4. Follow all instructions included in this manual.

5. Do not expose this unit to rain or moisture. Avoid having water or other liquids spilled

on this unit.

6. When cleaning the cabinet or other parts of this appliance, use only a dry or slightly

damp soft cloth.

7. Do not block any ventilation openings or interfere with the proper ventilation of this unit.

Install in accordance with the manufacturer's instructions.

8. Do not use or store near any heat sources such as radiators, heat registers, stoves, or

other heat-producing appliances.

9. Do not interfere with the safety purpose of the polarized or grounding-type plug. A

polarized plug has two blades with one wider than the other. A grounding-type plug h

as two blades and a third grounding prong. These are designated for your safety. If the

provided plug does not fit into your outlet, consult an electrician.

0. Protect the power cord from being walked on or otherwise damaged by items placed

on or against them. Particular attention should be given to the plugs, receptacles, and

the point where the cord exits the appliance.

. To avoid the risk of electrical shock, do not touch any exposed wiring while the unit is

in operation.

2. Only use attachments/accessories specified by the manufacturer.

3. Unplug this unit and all connected electrical equipment during lightning storms or when

left unused a long period of time.

4. Refer all servicing to qualified service personnel. Servicing is required when the

appliance has been damaged in any way or fails to operate normally.

Introduction

hat's in the package

Features

Front Panel Layout

Side Panel Layout

Getting Started

Connecting your iControls Pro controller system

Installing iMap Software for MAC OSX

Installing iMap Software for indows

Assigning MIDI functions with iMap

iMap iControls Pro software panel

Firmware upgrade

Restore the factory default settings

Daisy Chain with iControls Pro or any i-Pro series Controllers

Services

Specifications

Contents

3-5

5-6

7-8

9-10

Introduction

Please write your serial number here for future reference:

Purchased at:

Date of purchase:

Thank you for purchasing the ICON iControls Pro Midi/Audio control surface. We sincerely

trust this product will provide years of satisfactory service, but if anything is not to your

complete satisfaction, we will endeavor to make things right.

In these pages, you'll find a detailed description of the features of the iControls Pro, as well

as a guided tour through its front and side panels, step-by-step instructions for its setup and

use, and full specifications.

You'll also find a warranty card enclosed - please don't forget to fill it out and mail it so that

you can receive online technical support at: www.icon-global.com. And so we can send you

updated information about these and other ICON products in the future. As with most

electronic devices, we strongly recommend you retain the original packaging. In the

unlikely event the product must be returned for servicing, the original packaging (or

reasonable equivalent) is required.

With proper care and adequate air circulation, your iControls Pro will operate without any

trouble for many years. We recommend that you record your serial number in the space

provided below for future reference.

What's inthepackage?

iControls Pro USB-MIDI Controller x pc.

AC adaptor x pc

Software CD / User’ Manual x

Quick Start Guide x

USB2.0 Cable x

Features

1 2 3 4 5 6 7 8 M

Zoom

1234

Layer

Track

Bank

1 2 3 4 5 6 7 8

Solo

Mute

Sel

Solo

Mute

Sel

Solo

Mute

Sel

Solo

Mute

Sel

Solo

Mute

Sel

Solo

Mute

Sel

Solo

Mute

Sel

Solo

Mute

Sel

Solo

Mute

Sel

Extremely compact, designed to match the MacBook

8 touch-sensitive motorized channel faders

touch-sensitive motorized fader for master channel

9 encoder knobs

Jog wheel shuttle for fast search and control

Illuminated buttons for each channel including Sel, Mute, Solo and Record

6 illuminated transport buttons including Play, Stop, Rec, Rewind, Fast

forward and Loop

Illuminated “Zoom” buttons with 2 direction keys

2 illuminated “Track” buttons for easy selection of different channels

2 illuminated “Bank” buttons for shifting 8-channels

2 illuminated “Layer” buttons for selecting from layers to 4

2xUSB Connectors for a daisy chain with the i-Pro series product

Mackie control build-in for Cubase, Nuendo, Samplitude, Logic Pro and Abelton Live.

iMap software included for easy mapping of MIDI functions

Class-compliant with Windows XP, Vista (32-bit), Windows 7 (32-bit & 64-bit),

and Mac OS X (IntelMac)

USB 2.0 high speed connectivity

Robust aluminum and metal casing with Kensington lock port

An aluminium cover in different graphic designs and colours is available as

an optional extra

9V/3A power adapter included

ProTM

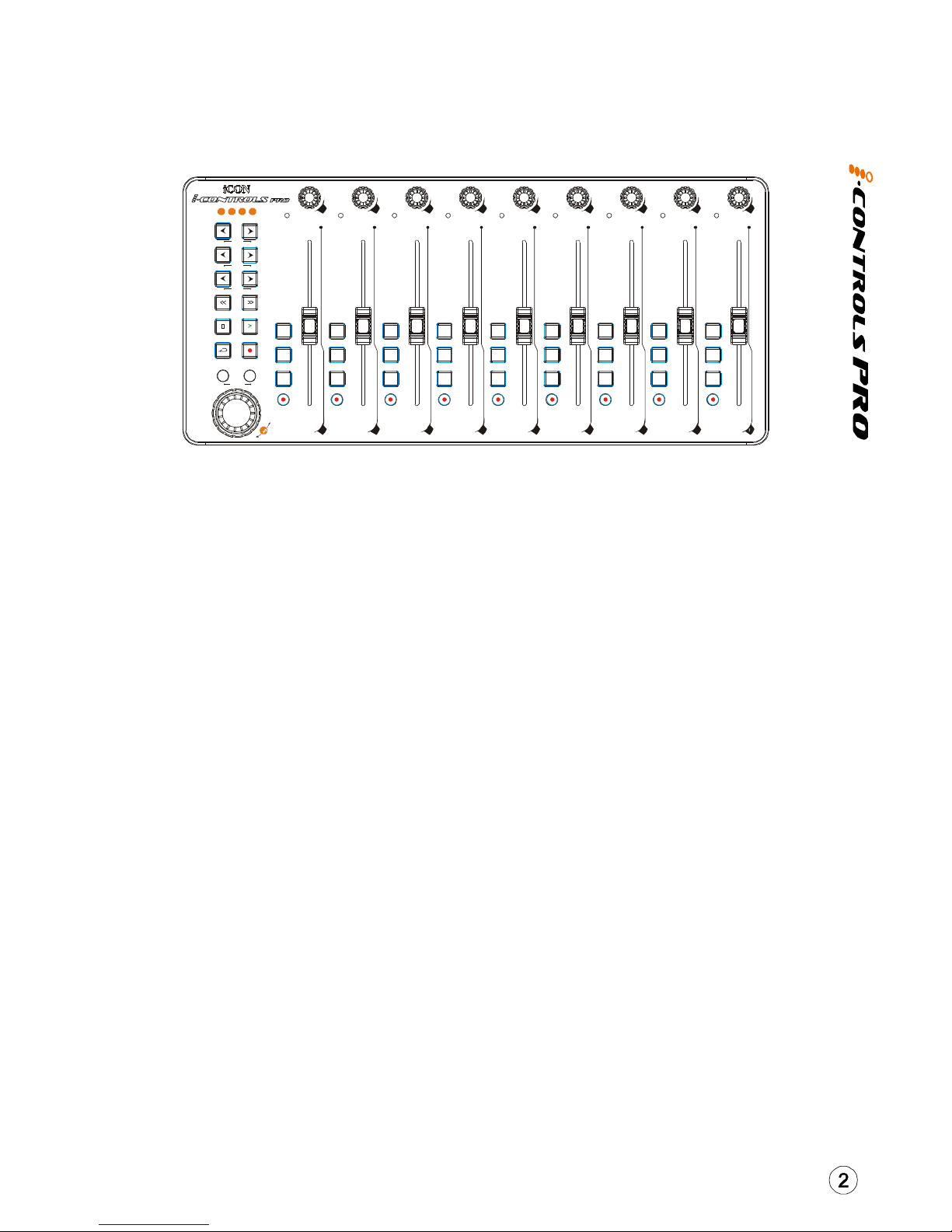

Front Panel Layout

Functions described below for the different controls are based on the Mackie

Control mode that are set on layer of the iControls Pro. You may set your own

midi functions for each control at the “User defined” mode for 2-4 layers with

the iMap software provided.

Channel faders

Master fader

Knobs

The eight 00mm motorized faders are generally used for controlling the

track volume of your DAW. Depending on your DAW, you may use the “Flip”

button to switch the function of these faders to change other settings.

They are all touch sensitive to allow override automation the moment you

touch a fader. Also, they are motorized; they will automatically move to

reflect the current level of the selected channels in your DAW application.

Any automation recorded in a project will be reflected by the fader positions.

This 00mm motorized fader operates the same as the other 8 faders. It

controls your DAW software's master channel fader.

The nine rotary encoder knobs are generally used for controlling the track

pan position, aux send levels and EQ of your DAW. You may also preset them

to adjust specific parameters within plug-ins and virtual instruments.

1 2 3 4 5 6 7 8 M

Zoom

1234

Layer

Track

Bank

123 4 5 6 7 8

Solo

Mute

Sel

Solo

Mute

Sel

Solo

Mute

Sel

Solo

Mute

Sel

Solo

Mute

Sel

Solo

Mute

Sel

Solo

Mute

Sel

Solo

Mute

Sel

Solo

Mute

Sel

Control buttons

4a) Recording channel control buttons section

REC buttons -

SOLO buttons -

MUTE buttons -

SEL buttons -

Motorized fader control buttons section

Track < button -

Track > button -

BANK < button-

BANK > button -

Transport and Zoom control buttons section

PLAY button -

STOP button -

REC button -

REIND button -

FAST FORARD button -

LOOP button -

Zoom < button -

Zoom > button -

MIXER button -

READ button -

RITE button -

LOCK button -

Activate and deactivate the recording state of the associated

channel. The switch will light red when the channel is armed.

Turn On and Off the solo state of the associated channel.

The switch will light green when the channel solo state is on and other

channels will be muted. You could solo multiple channel by pressing SOLO

buttons on additional channels.

Activate and deactivate the mute state of the associated

channel. The switch will light blue when the channel is muted.Mute the

channel.

The SEL buttons activate the associated channels in the DAW

software in order to perform a specific operation (for example, when

adjusting EQ with the ASSIGNABLE ENCODERS, the SEL switch will be used

to choose the channel you want to adjust). When a channel is selected,

the associated SEL switch's red LED will light up

Shift “one” channel up for all faders (except the master

channel).

Shift “one” channel down for all faders (except the master

channel).

Shift “eight” channels up for all faders (except the master

channel).

Shift “eight” channels down for all faders (except the

master channel).

Activate the play function of the DAW.

Activate the stop function of the DAW.

Activate the record function of the DAW.

Activate the rewind function of the DAW.

Activate the fast forward function of the DAW.

Activate the loop function of the DAW.

The LEFT button is used to navigate (left movement)

through the Graphical User Interface (GUI) of the DAW application.

The RIGHT button is used to navigate (right movement)

through the Graphical User Interface (GUI) of the DAW application.

Press this button to launch the mixer window of theDAW.

Press the READ button to activate the read function of the

current audio track.

Press the WRITE button to activate the write function of

the current audio track.

Activate to lock all motorized faders.

4b)

4c)

4d)

Jog wheel

The jog wheel is used for various purposes specific to the DAW application,

including shuttle and scrubbing functions.

Layer Buttons

These two buttons allow you to switch between the four layers. Each layer

can be set to different parameters for the faders, knobs and buttons etc.

Side PanelLayout

Usetodaisychain withthesecondunitofiControlsProoranyi-Pro

seriescontrollers suchasiDJpro.

USB port (B-Type)

USB port

FunctionsasaMIDIporttoyournotebook(orcomputer) and compatible

software.AlsoprovidespowertoyouriControlsPro.

GettingStarted

Connecting your iControls Pro controller system

Connect the iControls Pro to your Mac/PC via the USB port.

Choose a USB port on your Mac/PC and insert the wide (flat) end of the USB

cable. Connect the cable's small jack end to the iControls Pro. Your Mac/PC

should automatically “see” the new hardware and notify you that it is ready

to use.

Note:Makesureyou haveconnectedthe9Vpowersupplyadapter(provided)to

youriControlsProastheUSB-busitselfisnotabletosupplysufficientpowerto

theiControlsPro.

Diagram 1Diagram 2

Set the iControls Pro's Mackie Control mode for your DA

and make your own midi mapping for layers 2-4

DA setup

Dependent on what mode you have set your iControls Pro with iMap,

please set your DA as followings:

User Define mode:

Mackie Control mode:

Traktor mode:

Launch the iMap software and select the Mackie Control mode according

to your DAW or Traktor for “MIDI Learn” at the “Control Mode” pull down

menu on layer . Then set your preferred midi function for each controller

for layers 2-4. Press the “MIDI Devices” button to select the iControls Pro

as the MIDI input and output device. Press the “Send Data” button to

upload the settings.

Select iControls Pro as your MIDI In and Out device at

your DAW.

Add “Mackie Control” device and select iControls

Pro at the MIDI In & Out sections.

Use MIDI Learn function to set your controls.

Note:IfiControlsProdoesnotappearonthepull-downmenu,select USBAudio”

as theMIDIInandOutdevice.

Installing iMapSoftware for MAC OSX

Pleasefollowthe proceduresbelow step-by-step toinstallyouriMap

softwaretoMacOSX

iMap “Device select” window pop-up, click the device button accordingly

to launch the iMap software.

Insert the Utility CD in your CD-Rom and

double click “i-Pro Series iMap” icon.

Tips:By drag anddrop”the i-ProiMap”icon intothe Applications”folder,you

couldcreatea iMap”shortcuton yourMac'sdesktop.

Installing iMapSoftware for Windows

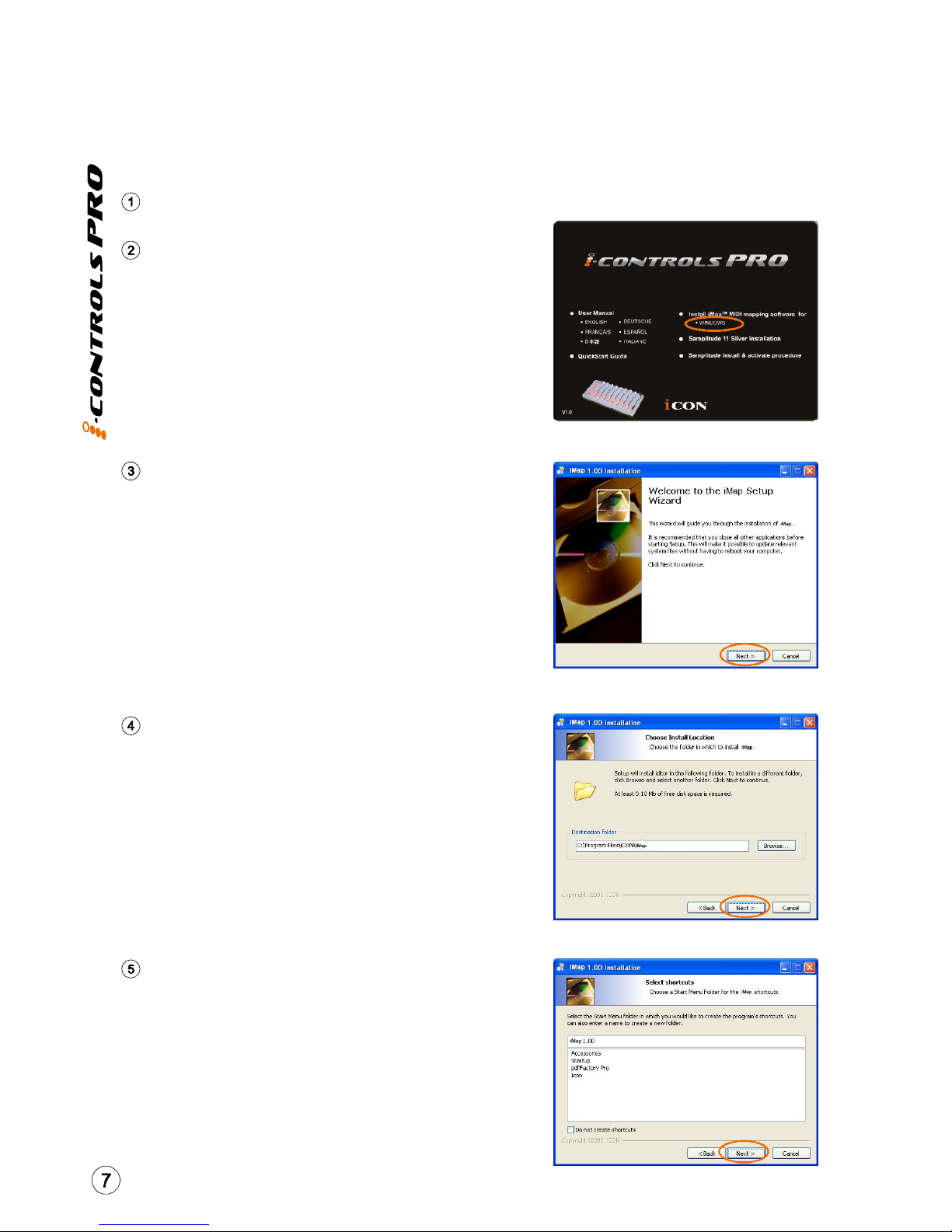

Please follow the procedures below step-by-step to install your iMap

software.

Turn on your PC.

Diagram1

Insert the Utility CD in your CD-Rom

After you have inserted the CD into

your CD-Rom, an installation screen

should appear as shown in diagram

; click "iMapinstallation".

(Note:Iftheinstallation screennot

appearautomaticallygotothe CD

folderand doubleclickon "Setup")

Setup izard appear

Setup wizard appears, please click

"Next"

Choose Install Location

Choose your preferred install

location for iMap or use the

default location and click "Next"

Select shortcut

Select the start menu folder in

which you would like to create

the iMap shortcut. Then click

"Next"

Diagram3

Diagram2

Diagram4

Inhaltsverzeichnis

Andere ICON Aufnahmegeräte Handbücher

ICON

ICON QconProX Kurzanleitung

ICON

ICON Upod Live Bedienungsanleitung

ICON

ICON P1-NANO Bedienungsanleitung

ICON

ICON XDJ Bedienungsanleitung

ICON

ICON QCon Bedienungsanleitung

ICON

ICON I-stage Bedienungsanleitung

ICON

ICON Pro Audio UPorts2 Dyna Bedienungsanleitung

ICON

ICON PLATFORM M Plus Bedienungsanleitung

ICON

ICON Cube 2nano Bedienungsanleitung

ICON

ICON UMIX1010 RACK Bedienungsanleitung

ICON

ICON MicU Bedienungsanleitung

ICON

ICON iPAD Bedienungsanleitung

ICON

ICON Platform M+ Bedienungsanleitung

ICON

ICON ProAudio PlatformNano Air Bedienungsanleitung

ICON

ICON QCon Bedienungsanleitung

ICON

ICON Qcon ProX Bedienungsanleitung

ICON

ICON PlatformNano Bedienungsanleitung

ICON

ICON iControls Bedienungsanleitung

ICON

ICON Cube G Bedienungsanleitung

ICON

ICON QConEX Bedienungsanleitung

ICON

ICON QCon Pro Xs Bedienungsanleitung

ICON

ICON iKey Pro Bedienungsanleitung

ICON

ICON MOBILE U Bedienungsanleitung

ICON

ICON QCon Pro G2 Bedienungsanleitung

Beliebte Aufnahmegeräte Handbücher anderer Marken

KV2 Audio

KV2 Audio 500 Series Bedienungsanleitung

Robotics Technologies

Robotics Technologies microBus-Cam II Bedienungsanleitung

Seca

Seca 460 Bedienungsanleitung

Cognex

Cognex MVS-8000 Series Bedienungsanleitung

Mect

Mect MPNC006 Series Bedienungsanleitung

Bad Caf

Bad Caf THE LEASH Bedienungsanleitung

Strymon

Strymon NIGHTSKY Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric 16CH DIGITAL RECORDER DX-TL5000U Bedienungsanleitung

Tews Technologies

Tews Technologies TPMC465 Bedienungsanleitung

Honeywell

Honeywell Excel 50 Bedienungsanleitung

SeaLevel

SeaLevel COMM+8.LPCI Bedienungsanleitung

Arturia

Arturia AUDIOFUSE STUDIO Bedienungsanleitung

Rukra

Rukra RK-1240 Bedienungsanleitung

Samson

Samson SCOM Bedienungsanleitung

Dynacord

Dynacord DPS260 Bedienungsanleitung

Nice

Nice Core Bedienungsanleitung

Pyle Pro

Pyle Pro PSS8 Bedienungsanleitung

RF-System

RF-System TinyGate Gebrauchs- und Pflegehandbuch

ICON i-Controls Pro Bedienungsanleitung

Beliebte Aufnahmegeräte Handbücher anderer Marken
