I-2533 Quick Start (ver. 2.0, 2021/11/09) -----1

I-2533 Quick Start

v2.0, November 2021

Packing List

In addition to this guide, the package includes the following items:

I-2533

RS-232 Cable (CA-0910)

Technical Support

service@icpdas.com

www.icpdas.com

Resources

How to search for drivers, manuals and spec

information on ICP DAS website.

For Mobile Web

For Desktop Web

Model Name

I-2533 Quick Start (ver. 2.0, 2021/11/09) -----2

1. Introduction

This quick start helps users to apply the I-2533 in

users’applications quickly. If users need the details

of I-2533 or the difference about the meaning of the

[V2] mark, please refer to the I-2533 user manual.

Users can free download it from the website below.

https://www.icpdas.com/en/download/index.php?model=I-2533

2. Hardware Installation

Before using I-2533, some things must be done.

1. Prepare one pair of I-2533.

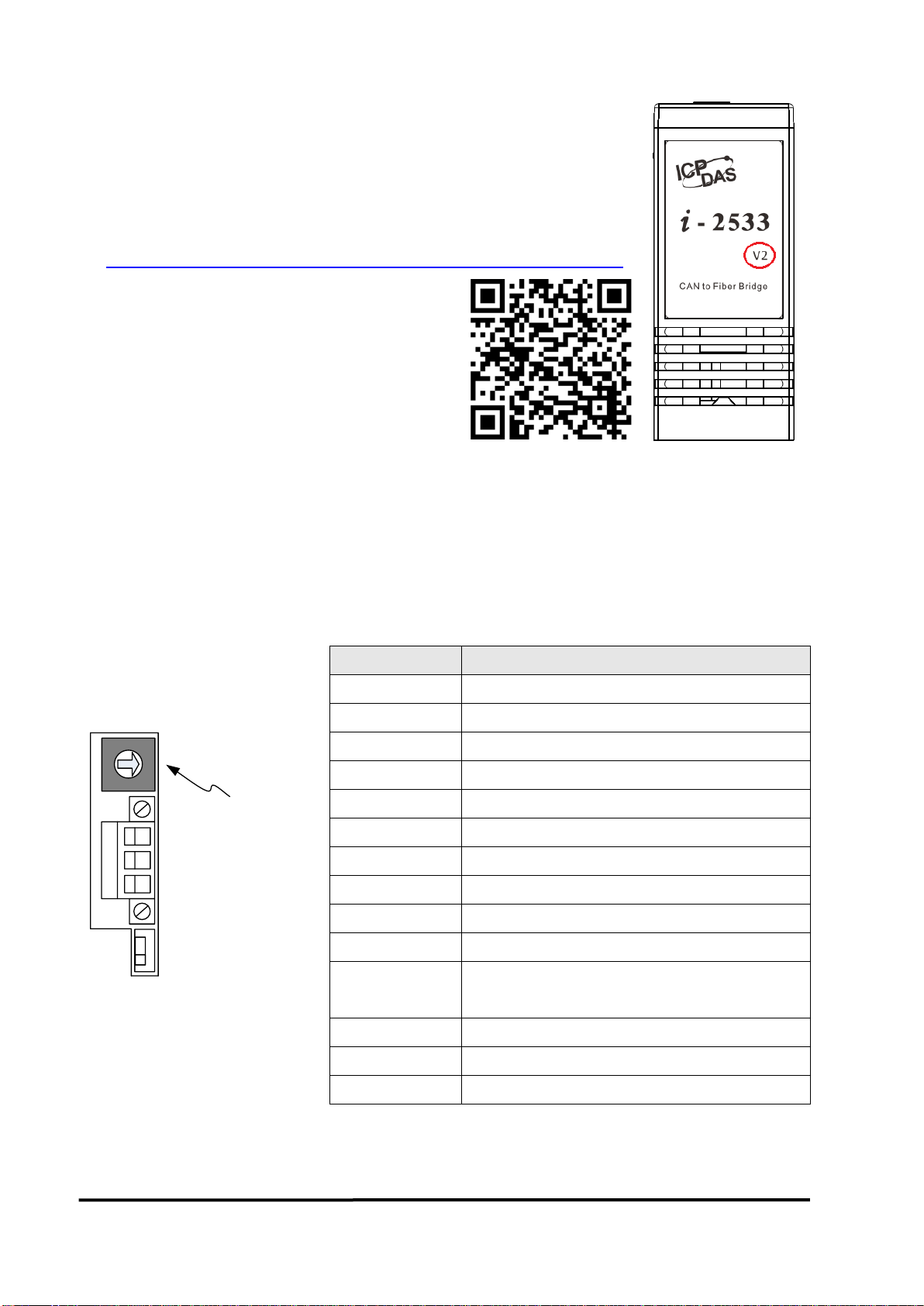

2. Set the CAN baud rate of each I-2533 by using rotary switch. You

can refer to the following table for details. (If you set the rotary

switch to “A”, please use utility tool to do the configuration before.)

Rotary switch for

CAN baud rate

Switch Value

Description

Set baud rate to 10 kbps

Set baud rate to 20 kbps

Set baud rate to 50 kbps

Set baud rate to 80 kbps

Set baud rate to 100 kbps

Set baud rate to 125 kbps

Set baud rate to 250 kbps

Set baud rate to 500 kbps

Set baud rate to 800 kbps

Set baud rate to 1 Mbps

Set baud rate to user-defined baud rate

which is configured by I-2533 utility.

B~D

Not-available

Update firmware

Set I-2533 into configuration mode.

I-2533 Quick Start (ver. 2.0, 2021/11/09) -----3

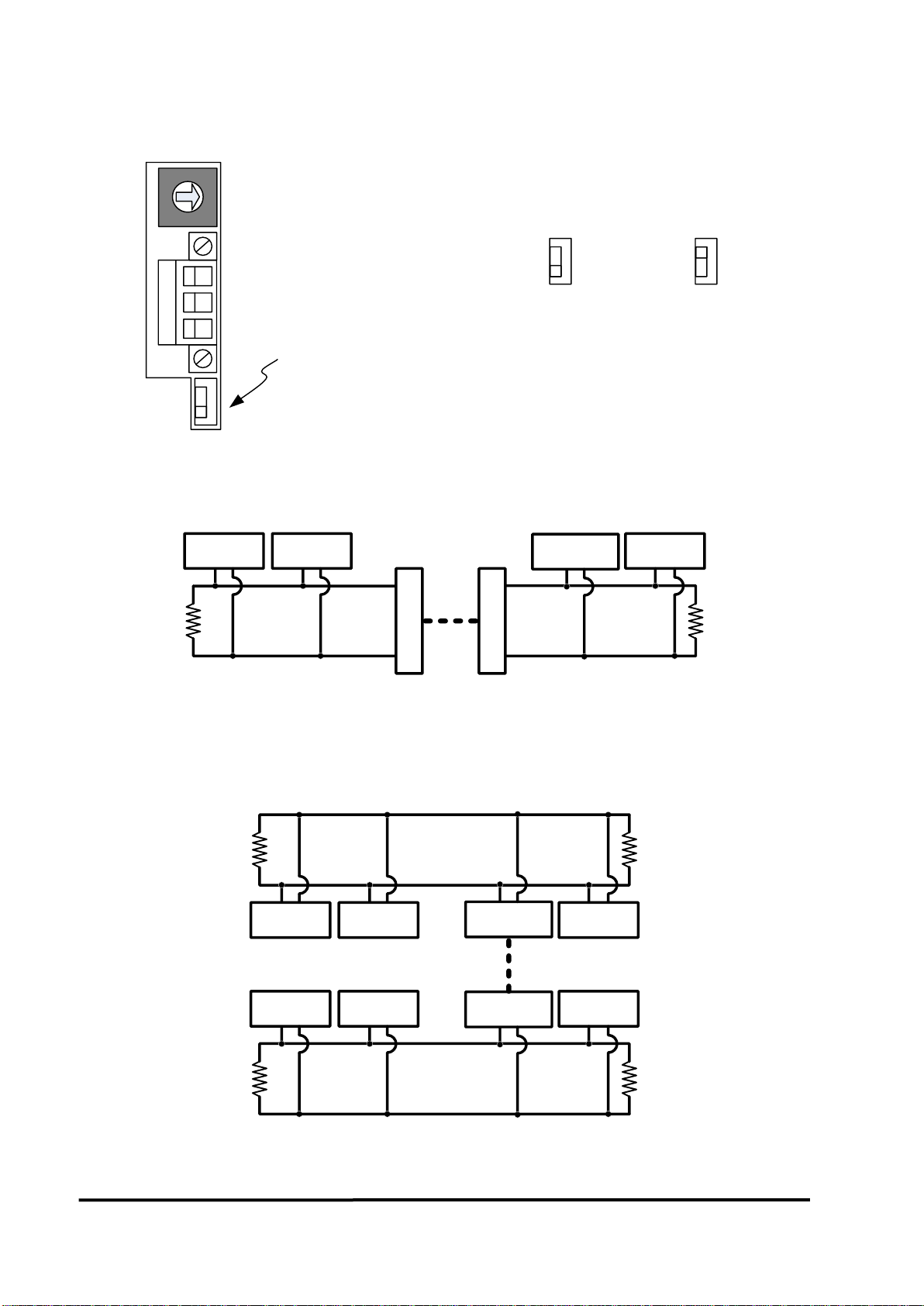

3. Check the application structure, and determine if the terminator

resistor is needed or not. You can find it at the position as follows.

DIP switch for

terminator resistor

(Enable)

(Default)

OFF

(Disable)

Generally, if your application is as follows, we recommend you to

enable the terminator resistor.

120Ω

CAN_H

CAN_L

Device NDevice 2Device 1 ... Device N-1

...

I-2533 I-2533

Fiber

If your application is like the structure as follows, the terminator

resistor is not needed.

120Ω

CAN_H

CAN_L

Device NDevice 2Device 1 ... I-2533

Fiber

120Ω

CAN_H

CAN_L

Device NDevice 2Device 1 ... I-2533

I-2533 Quick Start (ver. 2.0, 2021/11/09) -----4

4. Connect the fiber port of these I-2533, CAN port, power line and

frame ground. The pin assignment and wire connection are as follows.

When finished, run your application with these I-2533 modules.

Pin No.

Description

TxD

Fiber TxD port

RxD

Fiber RxD port

TxD pin of the RS-232 port for configuration

RxD pin of the RS-232 port for configuration

GND pin of the RS-232 port for configuration

Non-available

CAN_L pin of CAN bus

CAN_H pin of CAN bus

CAN_GND pin of CAN bus

Interconnecting

Metallic Board

(F.G.)

F.G.

CAN_H

CAN_L

CAN_GND

Earth

Power GND

+10VDC ~ +30VDC

CAN_H

CAN_L

CAN_GND

Earth

Power GND

+10VDC ~ +30VDC

Tx Tx

Rx Rx

Fiber Port

CAN Port

(ISO 11898-2)

Power Port
