iDaSer-9000 Quick Start

Oct 2017, Version 1.0.0

Congratulations! ··············································

Thanks for purchasing the iDaSer-9000 module - the data management server.

This Quick Start Guide will provide related information which needed to get

start with the iDaSer-9000 module. Please also consult the user manual for

detailed information on the setup and usage of the iDaSer-9000 module.

What’s In the Box! ············································

In addition to this guide, the package includes the following items:

iDaSer-9000

Fieldbus

Quick Start

Screw

Drive

44 MM DIN-Rail

Clip*2

M3x6L

Screw * 8

Technical Support ············································

iDaSer-9000 User Manual

ftp://ftp.icpdas.com.tw/pub/cd/idaser/9000/manual/

iDaSer-9000 Website

http://www.icpdas.com/root/product/solutions/industrial_iot/idaser/idaser-9000.html

ICP DAS Website

http://www.icpdas.com/

Appearance

NO.

Name

Description

PWR

Turn ON / OFF.

Reset

Keep pressing for 3 seconds, and the network setting

will be reset as default.(Reboot after this action)

UART

The interfaces of RS-232 and RS-485(Reserved)

USB

On purpose to connect USB or keyboard.

Ethernet

Two network cards for internal and external network.

VGA

Connection to monitor.

LED

Display the status of devices.

Wire connections and pin assignments

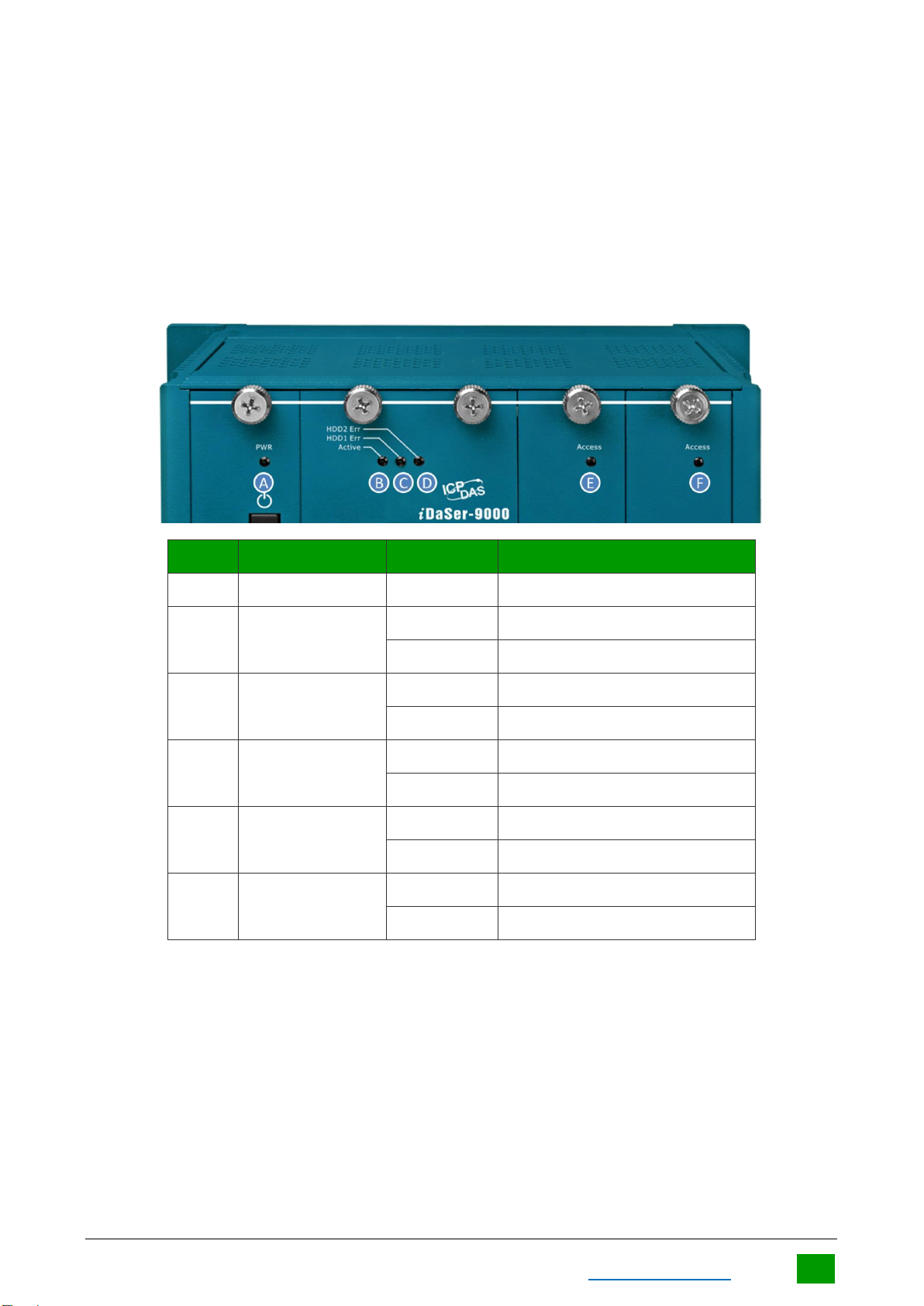

LED Indicator

The iDaser-9000 module provides six LED indicators.

The Following is an overview of the purpose and function of each LED

indicator together with a description.

NO.

LED name.

LED state

LED Description

PWR (G)

The power of the module is ON.

Active (G)

Flashing

The system is working.

OFF

The system is OFF.

HDD1 Err (R)

HDD1 error.

OFF

HDD1 is normal.

HDD2 Err (R)

HDD2 error.

OFF

HDD2 is normal.

Access (G)

HDD1 is active.

OFF

HDD1 disconnected.

Access (G)

HDD2 is active.

OFF

HDD2 disconnected.

Ethernet

The Ethernet status indicator on iDaSer-9000 is part of the built-in RJ-45

connector, such as shown in the figure below.

No.

LED Name

LED Status

LED Description

10/100M

Normal operation.

OFF

Ethernet lost connection.

Link/Act

Flashing

System is handling data.

GbE

Normal operation.

OFF

Ethernet lost connection.

Link/Act

Flashing

System is handling data.

Web Configuration

The configuration for the module parameters on the iDaSer-9000 module

can be performed via a standard web browser using the embedded web

configuration function. The user can configure the services via connecting

the IP address of the iDaSer-9000 module on web browser.

The default IP addresses of the iDaSer-9000 Module are 192.168.255.1

and 10.0.8.1. (Username:admin;Password:icpdas888)

About the more detail information for the iDaSer-9000 module, please

refer to the user’s manual.
