ET-87Pn Quick Start Guide

Quick Start Guide for

ET-87Pn Series

October 2010, Version 1.0.1

Congratulations on purchasing ET-87Pn - the most popular automation solution for

remote monitoring and control application. This Quick Start Guide will provide

information needed to get started with ET-87Pn. Please also consult the User Manual

for detailed information on the setup and use of ET-87Pn.

In addition to this guide, the package includes the following items:

ET-87Pn Module

(ET-87P2/4/8)

Software Utility CD

Screw Driver

(1C016)

ET-87Pn User Manual

CD:\NAPDOS\NAPDOS\u87pn_io_unit\ET-87Pn\Document\

http://ftp.icpdas.com/pub/cd/8000cd/napdos/87pn_io_unit/et-87pn/document/

ET-87Pn Website

http://www.icpdas.com/products/io_expansion_unit/et-87pn.htm

ICP DAS Website

http://www.icpdas.com/

ET-87Pn Quick Start Guide

----------------------------------------------------------------------------------

Mounting the Hardware

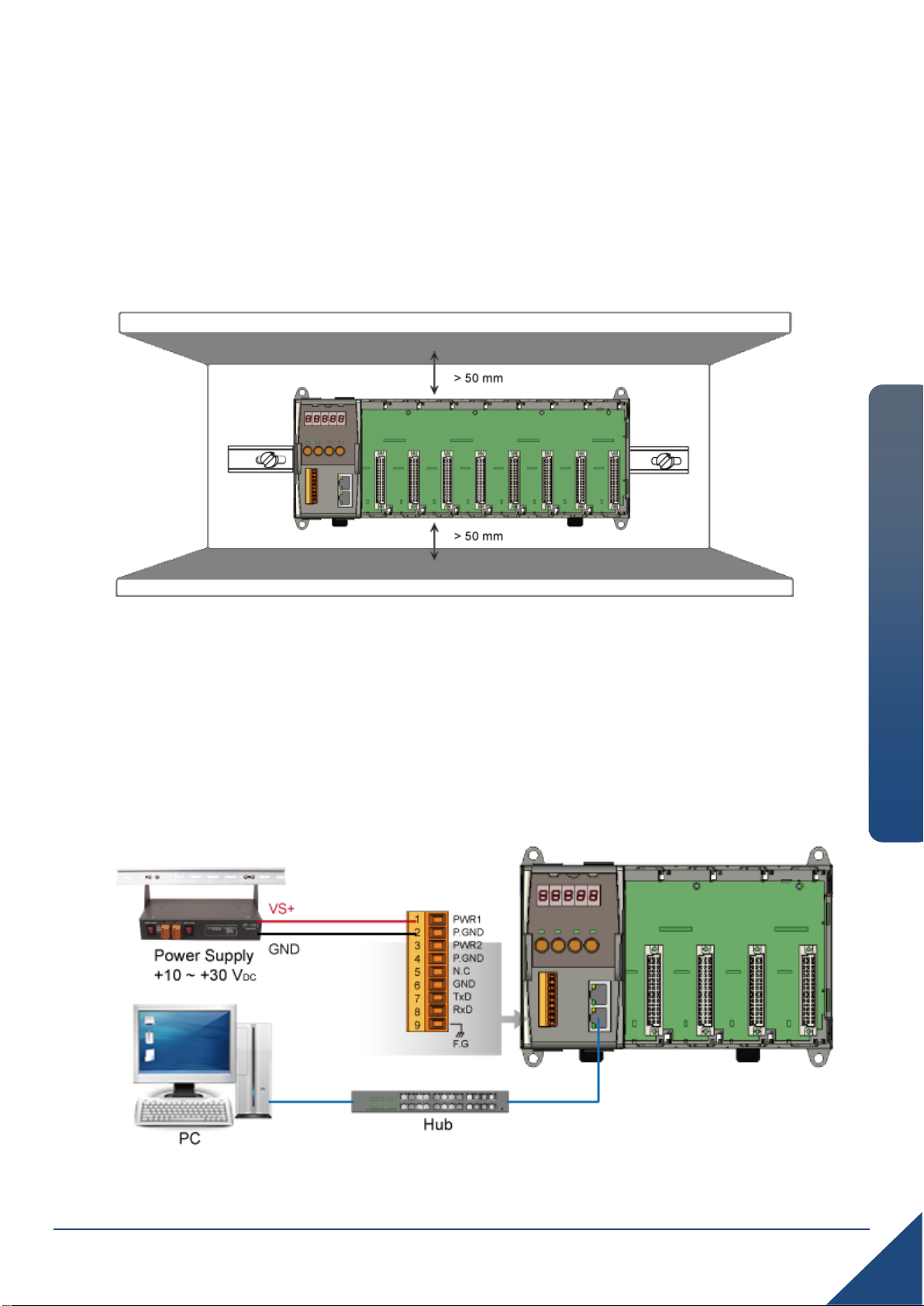

The ET-87Pn installation must provide proper ventilation, spacing, and grounding to

ensure the equipment will operate as specified. Aminimum clearance of 50mm between

the ET-87Pn and the top and bottom side of the enclosure panels must be provided.

-----------------------------------------------------------------------------------

Connecting to PC, Network and Power

The ET-87Pn is equipped with RJ-45 Ethernet ports for connection to an Ethernet

hub/switch and PC. You can also link directly the ET-87Pn to PC with an Ethernet cable.

ET-87Pn Quick Start Guide

---------------------------------------------------------------------------------

Installing the Tools and Utilities

Step 1: Install the MiniOS7 Utility tool

The MiniOS7 Utility can be obtained from companion CD or our FTP site:

CD:\Napdos\minios7\utility\minios7_utility\

ftp://ftp.icpdas.com/pub/cd/8000cd/napdos/minios7/utility/minios7_utility/

Step 2: Install the VxComm Utility tool

The VxComm Utility can be obtained from companion CD or our FTP site:

CD:\NAPDOS\Driver\VxComm_Driver\

ftp://ftp.icpdas.com/pub/cd/8000cd/napdos/driver/vxcomm_driver/

Step 3: Install the DCON Utility tool

The DCON Utility can be obtained from companion CD or our FTP site:

CD:\NAPDOS\Driver\DCON_Utility\

ftp://ftp.icpdas.com/pub/cd/8000cd/napdos/driver/dcon_utility/

----------------------------------------------------------------------------------

Using MiniOS7 Utility to Assign a New IP

The ET-87Pn are Ethernet devices, which comes with a default IP address, therefore,

you must first assign a new IP address to the ET-87Pn.

The factory default IP settings are as follows:

Item

Default

IPAddress

192.168.255.1

Subnet Mask

255.255.0.0

Gateway

192.168.0.1

ET-87Pn Quick Start Guide

Step 1: Run the MiniOS7 Utility

Double-click the MiniOS7 Utility

shortcut on your desktop.

Step 2: Press “F12” or choose “Search” from the “Connection” menu

After pressing F12 or choosing Search from Connection menu, the MiniOS7 Scan

dialog will appear, that will display a list of all the MiniOS7 modules on your network.

See the status tip, waiting

for the search to be done.

ET-87Pn Quick Start Guide

Step 3: Choose the module name and then choose “IP setting” from the toolbar

Choose the module name for fields in the list, and then choose IP setting from the

toolbar.

Step 4: Assign a new IP address and then choose “Set” button

Step 5: Choose “Yes” button

After completing the settings, press the Yes

button in the Confirm dialog box to exit the

procedure.

1. Choose the field “192.168.255.1”

ET-87Pn Quick Start Guide

----------------------------------------------------------------------------------

Using VxComm Utility to Create Virtual COM Ports

You can join Ethernet ports into one virtual COM port in order to let one application

receive data from your ET-87Pn.

Step 1: Run the VxComm Utility

Double-click the

VxComm Utility

shortcut on your

desktop.

Step 2: Press “Search Servers” toolbar

After pressing Search Servers from the toolbar, that will search all of your network

modules.

Press the “Search Servers”

ET-87Pn Quick Start Guide

Step 3: Choose the IP Address field you specified easier and press “Add

Server(s)” button from the toolbar

Choose the IPAddress field you specified in the list, and then press Add Server(s) from

the toolbar.

Step 4: Choose the Valid COM Port number you wish to use

1. Choose the IP Address field you specified

1. Choose the COM Port name you wish to use

ET-87Pn Quick Start Guide

----------------------------------------------------------------------------------

Inserting and Wiring I/O modules

There are various types of I/O expansion modules for interfacing many different field

devices to the ET-87Pn system.

For more information about I/O

expansion module, please refer to

http://www.icpdas.com/products/PA

C/i-8000/8000_IO_modules.htm

These modules have their own

manuals, so if you are using them

you should supplement this manual

with the manual specifically

designed for the special module.

----------------------------------------------------------------------------------

Using DCON Utility to Configure I/O Modules

DCON Utility is an easy-to-use utility to help you configure the I/O modules.

For more detailed information on how to use DCON Utility to configure I/O modules,

please refer to ET-87Pn User Manual

For more details, please refer to DCON Utility web site:

http://www.icpdas.com/products/dcon/introduction.htm
