M-7069 4-ch Form A Relay and 4-ch Form C Relay DAQ Module- QuickStart (Mar/2018)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717

M-7069

4-channel Form A Relay Output and 4-

channel Form C Relay Output Data

Acquisition Module

Quick Start Guide

Product Website:

https://www.icpdas-usa.com/m_7069.html

http://www.icpdas-usa.com/dcon_utility_pro.html

1. Introduction

The M-7069 provides 4 Form A signal relay output channels and 4 Form C

signal relay output channels, while the M-7069 provides 4 Form A power

relay output channels and 4 Form C power relay output channels. 4 kV

ESD, 4 kV EFT and 3 kV surge protection are also provided to enhance

noise protection capabilities in industrial environments. The M-7068 is the

ideal solution for small signal switching, while the M-7069 is the ideal

solution for high power applications.

2. Terminal Assignment

M-7069 4-ch Form A Relay and 4-ch Form C Relay DAQ Module- QuickStart (Mar/2018)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717

3. Block/ Wiring Diagram

4. Default Settings

。Protocol: Modbus RTU

。Module Address: 01

。DIO Type: Type 40

。Baud Rate: 9600 bps

M-7069 4-ch Form A Relay and 4-ch Form C Relay DAQ Module- QuickStart (Mar/2018)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717

5. Configuration

To install the module, follow the steps below:

1. Connect the digital input and output.

2. Connect the module to the RS-485 network using the DATA+ and DATA- terminals. If

the host is only equipped with an RS-232 interface, then an RS-232 to RS-485

converter will be required.

3. Connect the module to the power supply using the +Vs and GND terminals. Note that

the voltage supplied should be in the range of +10 to +30V DC.

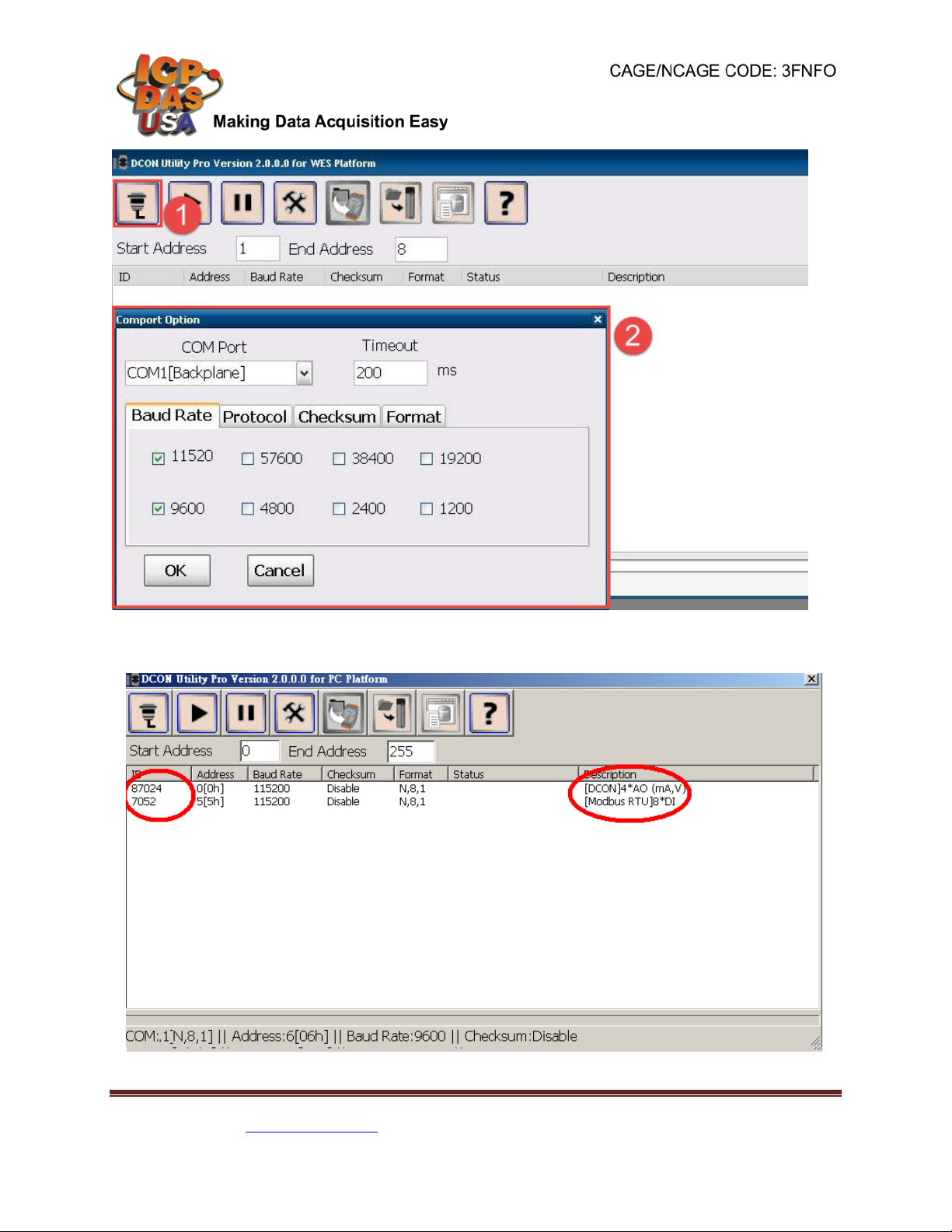

4. Open DCON utility pro

click on COM port(first icon).

It can select multi-options such as Baud Rate, Protocol, Checksum, and Format

to search module. The default settings for the module can be found in Section 3.

Click OK after selecting the COM port setting.

M-7069 4-ch Form A Relay and 4-ch Form C Relay DAQ Module- QuickStart (Mar/2018)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717

5. DCON utility pro will search for the selected COM port according the setting

previously set. DCON Utility Pro supports DCON and Modbus protocol for all ICPDAS

and the others modules.

M-7069 4-ch Form A Relay and 4-ch Form C Relay DAQ Module- QuickStart (Mar/2018)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717

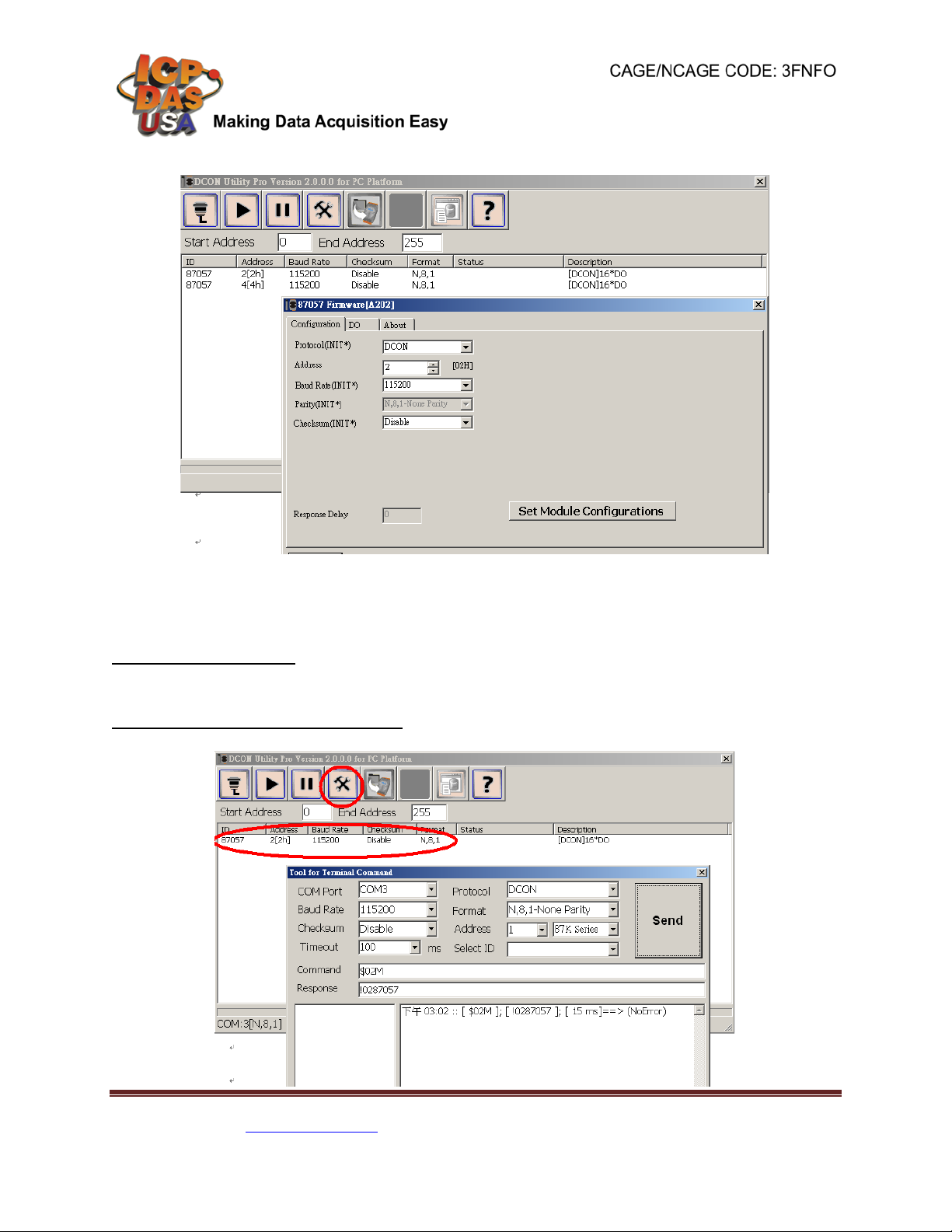

6. Configuration I/O module setting on PC

7. For I-7000 modules, DCON utility pro terminal can send command to the module.

See user manual Sections 2 for details command.

Configure the module: sending the %AANNTTCCFF command. See user manual

Section 2 for details.

Read data from the input channels: send either the #AA or #AAN command to the

module.

M-7069 4-ch Form A Relay and 4-ch Form C Relay DAQ Module- QuickStart (Mar/2018)

ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717

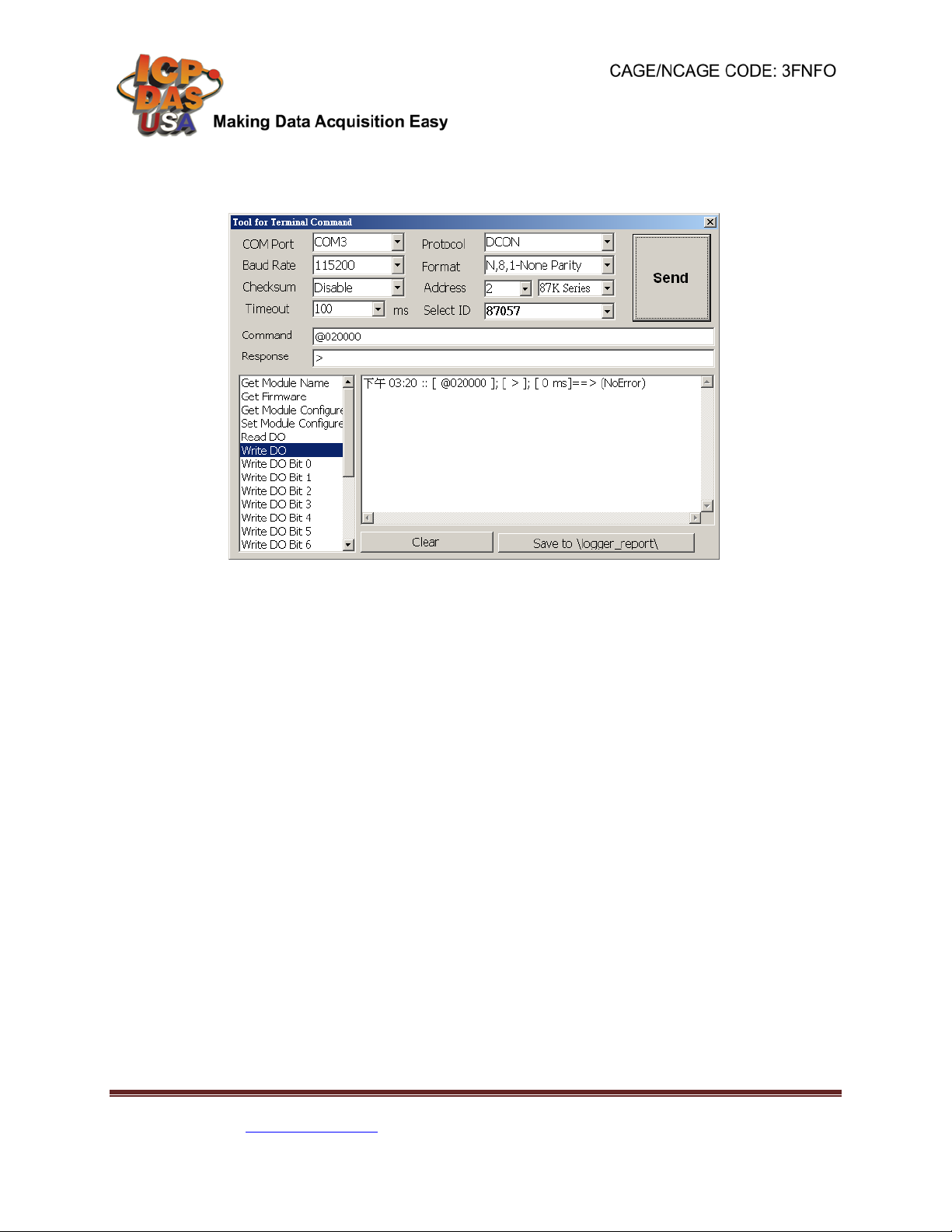

8. If user doesn’t know command, user can select Address and ID, it will show some

refer commands as below. User can select necessary command to test or debug

modules.
