IDataLink Maestro RR Bedienungsanleitung

NOTICE: Automotive Data Solutions Inc. (ADS) recommends having this installation performed by a certiﬁed technician. Logos and trademarks used here in

are the properties of their respective owners.

WARNING

Pressing the printer icon or “quick printing” this document will print

all of the guides in this compilation.

Open the Bookmarks menu and find your vehicle OR scroll

down until you find the install guide for your vehicle.

Print only the pages for your vehicle using the advanced

options in the Print menu.

Install your Maestro RR according to the guide for your vehicle.

HOW TO USE THIS INSTALL GUIDE

SELECT VEHICLE

PRINT PAGES NEEDED

2020

ToyoTa 4 RunneR

WiTh JBL

INSTALL GUIDE

RETAINS STEERING WHEEL CONTROLS, BACKUP CAMERA, AND MORE!

NOTICE: Automotive Data Solutions Inc. (ADS) recommends having this installation performed by a certiﬁed technician. Logos and trademarks used here

in are the properties of their respective owners.

PRODUCTS REQUIRED

iDatalink Maestro RR or RR2 Radio Replacement Interface

iDatalink Maestro HRN-RR-TO3 Installation Harness

PROGRAMMED FIRMWARE

ADS-RR(SR)-TOY03-AS

ADDITIONAL RESOURCES

Maestro RR2 Programmable Outputs Guide

OPTIONAL ACCESSORIES

ADS-RR(SR)-TOY03-AS-IG-EN maestro.idatalink.com

ToyoTa 4 RunneR WiTh JBL 2020

NEED HELP?

TABLE OF CONTENTS

Installation Instructions 3

Wiring Diagram 4

Troubleshooting Table 5

WELCOME

Congratulations on the purchase

of your iDatalink Maestro RR Radio

replacement solution. You are

now a few simple steps away from

enjoying your new car radio with

enhanced features.

Before starting your installation,

please ensure that your iDatalink

Maestro module is programmed

with the correct ﬁrmware for your

vehicle and that you carefully review

the install guide.

Please note that Maestro RR will

only retain functionalities that

were originally available in the

vehicle.

1 866 427-2999

maestro.idatalink.com/support

www.12voltdata.com/forum

[email protected]

ADS-RR(SR)-TOY03-AS-IG-EN maestro.idatalink.com

ToyoTa 4 RunneR WiTh JBL 2020

INSTALLATION INSTRUCTIONS

STEP 1

• Unbox the aftermarket radio and locate its main harness.

• Connect the wires shown on the next page from

aftermarket radio main harness to the TO3 T-harness

and match the wire functions (Note: Rear speaker wire

connections are not required).

• Remove the factory radio.

STEP 2

• Connect the factory harness to the TO3 T-harness.

STEP 3

• Plug the aftermarket radio harnesses into the aftermarket

radio.

• Connect the backup camera RCA cable into the

aftermarket radio (if equipped).

• Connect the auxiliary cables into the aftermarket radio (if

equipped).

• Plug the steering wheel control cable into the aftermarket

radio.

STEP 4

• Connect all the harnesses to the Maestro RR module then

test your installation.

ADS-RR(SR)-TOY03-AS-IG-EN maestro.idatalink.com

ToyoTa 4 RunneR WiTh JBL 2020

AUXAUX

BACKUP CAMBACKUP CAM

YELLOW - 12V (+)

BLACK - GROUND

RED - ACCESSORY (+)

ORANGE - ILLUMINATION (+)

PURPLE/WHITE - REVERSE LIGHT (+)

PINK - VEHICLE SPEED

LTGREEN - E-BRAKE (-)

BLUE/WHITE - AMP. TURN ON (+)

MAIN

HARNESS

FACTORY RADIO HARNESS

TO3 T-HARNESS

STEP 1

STEP 2

STEP 3

WIRES FROM

VEHICLE

GREEN - LR SPEAKER (+)

GREEN/BLACK - LR SPEAKER (-)

PURPLE/BLACK - RR SPEAKER (-)

PURPLE - RR SPEAKER (+)

STEP 4

NOT REQUIRED

N.C.

MAESTRO RR MODULE

RCA CABLES

WHITE

WHITE/BLACK

GRAY

GRAY/BLACK

LF RCA INPUT

RF RCA INPUT

CONNECTIONS

NOT

REQUIRED

WITH AMP

AUDIO

CABLE

DATA

CABLE

STEERING WHEEL

CONTROL CABLE

CONNECT TO

AFTERMARKET RADIO

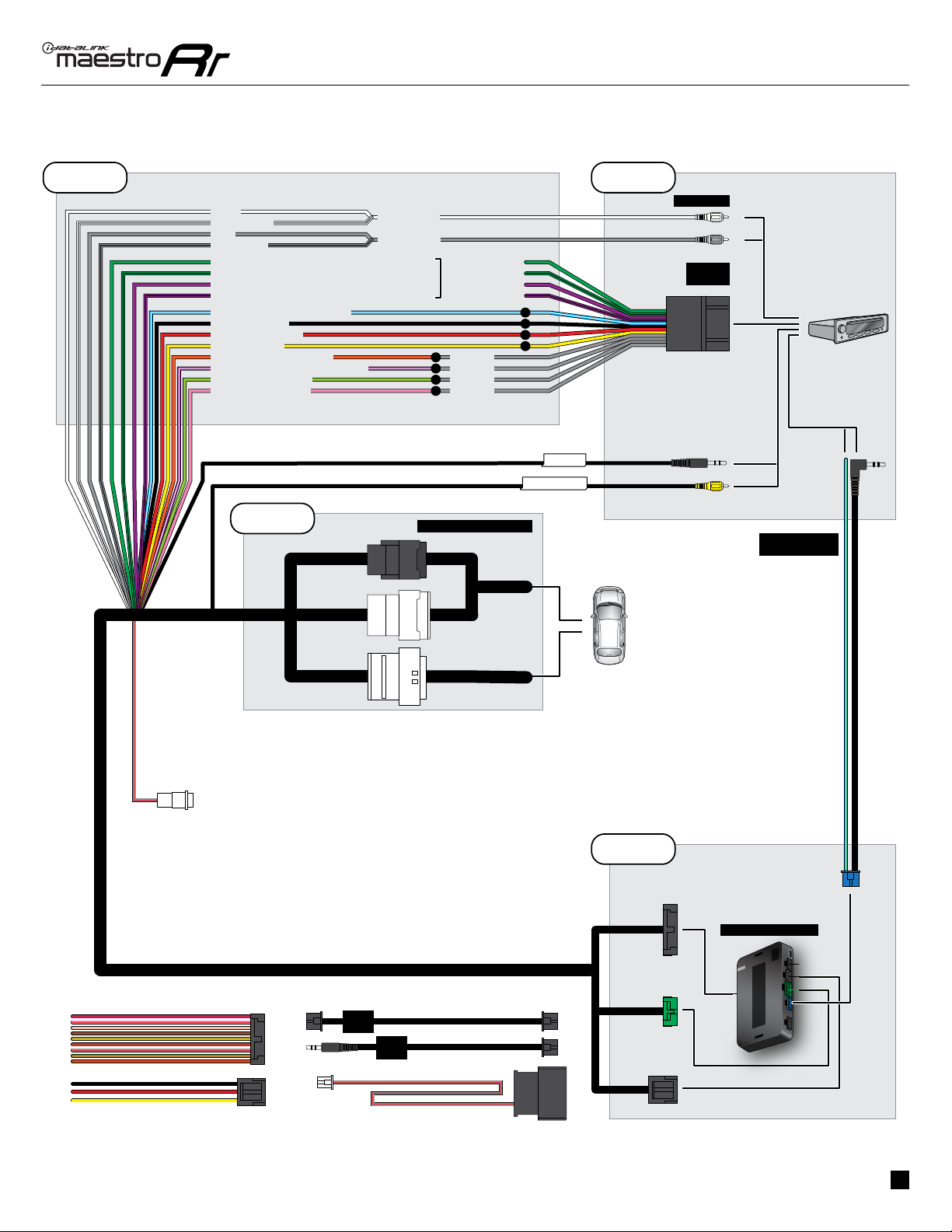

WIRING DIAGRAM with JBL

CONNECT

THERE IS

A MATCH

ADS-RR(SR)-TOY03-AS-IG-EN maestro.idatalink.com

ToyoTa 4 RunneR WiTh JBL 2020

TROUBLESHOOTING TABLE

PROBLEM SOLUTION

When a button on the steering wheel is pressed, the light on the Maestro

module blinks but the radio does not respond.

Ensure the blue 4-pin steering wheel control cable is connected between the

maestro and the radio (the radio will use either the 3.5mm jack or the Blue/

Yellow wire, not both).

Refer to radio’s owners manual to veriﬁe if the radio has this function:

Steering Wheel Control (ON/OFF) : choose ON.

Steering Wheel Control (Custom/Preset): choose Preset

The light on the Maestro is ﬂashing RED ONCE. There is no ﬁrmware on the module; ﬂash the RR module.

MAESTRO RR RESET PROCEDURE:

Turn the key to the OFF position, then disconnect all connectors from the module.

Press and hold the module’s programming button and connect all the connectors back to the module. Wait, the module’s LED will ﬂash RED rapidly (this may

take up to 10 seconds).

Release the programming button. Wait, the LED will turn solid GREEN for 2 seconds to show the reset was successful.

TECHNICAL ASSISTANCE

Phone: 1-866-427-2999

Email: maestr[email protected]

Web: maestro.idatalink.com/support add www.12voltdata.com/forum/

IMPORTANT: To ensure proper operation, the aftermarket radio needs to have the latest ﬁrmware from the manufacturer. Please visit the radio

manufacturer’s website and look for any updates pertaining to your radio.

2020

ToyoTa 4 RunneR

WiThouT JBL

INSTALL GUIDE

RETAINS STEERING WHEEL CONTROLS, BACKUP CAMERA, AND MORE!

NOTICE: Automotive Data Solutions Inc. (ADS) recommends having this installation performed by a certiﬁed technician. Logos and trademarks used here

in are the properties of their respective owners.

PRODUCTS REQUIRED

iDatalink Maestro RR or RR2 Radio Replacement Interface

iDatalink Maestro HRN-RR-TO3 Installation Harness

PROGRAMMED FIRMWARE

ADS-RR(SR)-TOY03-AS

ADDITIONAL RESOURCES

Maestro RR2 Programmable Outputs Guide

OPTIONAL ACCESSORIES

ADS-RR(SR)-TOY03-AS-IG-EN maestro.idatalink.com

ToyoTa 4 RunneR WiThouT JBL 2020

NEED HELP?

TABLE OF CONTENTS

Installation Instructions 3

Wiring Diagram 4

Troubleshooting Table 5

WELCOME

Congratulations on the purchase

of your iDatalink Maestro RR Radio

replacement solution. You are

now a few simple steps away from

enjoying your new car radio with

enhanced features.

Before starting your installation,

please ensure that your iDatalink

Maestro module is programmed

with the correct ﬁrmware for your

vehicle and that you carefully review

the install guide.

Please note that Maestro RR will

only retain functionalities that

were originally available in the

vehicle.

1 866 427-2999

maestro.idatalink.com/support

www.12voltdata.com/forum

[email protected]

ADS-RR(SR)-TOY03-AS-IG-EN maestro.idatalink.com

ToyoTa 4 RunneR WiThouT JBL 2020

INSTALLATION INSTRUCTIONS

STEP 1

• Unbox the aftermarket radio and locate its main harness.

• Cut and remove the front speaker wire junction connectors.

• Connect the wires shown on the next page from

aftermarket radio main harness to the TO3 T-harness

and match the wire functions (Note: Rear speaker wire

connections are not required).

• Remove the factory radio.

STEP 2

• Connect the factory harness to the TO3 T-harness.

STEP 3

• Plug the aftermarket radio harnesses into the aftermarket

radio.

• Connect the backup camera RCA cable into the

aftermarket radio (if equipped).

• Connect the auxiliary cables into the aftermarket radio (if

equipped).

• Plug the steering wheel control cable into the aftermarket

radio.

STEP 4

• Connect all the harnesses to the Maestro RR module then

test your installation.

ADS-RR(SR)-TOY03-AS-IG-EN maestro.idatalink.com

ToyoTa 4 RunneR WiThouT JBL 2020

AUXAUX

BACKUP CAMBACKUP CAM

YELLOW - 12V (+)

BLACK - GROUND

RED - ACCESSORY (+)

ORANGE - ILLUMINATION (+)

PURPLE/WHITE - REVERSE LIGHT (+)

PINK - VEHICLE SPEED

LTGREEN - E-BRAKE (-)

BLUE/WHITE - AMP. TURN ON (+)

MAIN

HARNESS

FACTORY RADIO HARNESS

TO3 T-HARNESS

STEP 1

STEP 2

STEP 3

WIRES FROM

VEHICLE

CONNECT

THERE IS

A MATCH

GREEN - LR SPEAKER (+)

GREEN/BLACK - LR SPEAKER (-)

PURPLE/BLACK - RR SPEAKER (-)

PURPLE - RR SPEAKER (+)

STEP 4

CUT AND REMOVE

THE SPEAKER WIRE

JUNCTION CONNECTORS

WHITE - LF SPEAKER (+)

WHITE/BLACK - LF SPEAKER (-)

GRAY - RF SPEAKER (+)

GRAY/BLACK - RF SPEAKER (-)

N.C.

MAESTRO RR MODULE

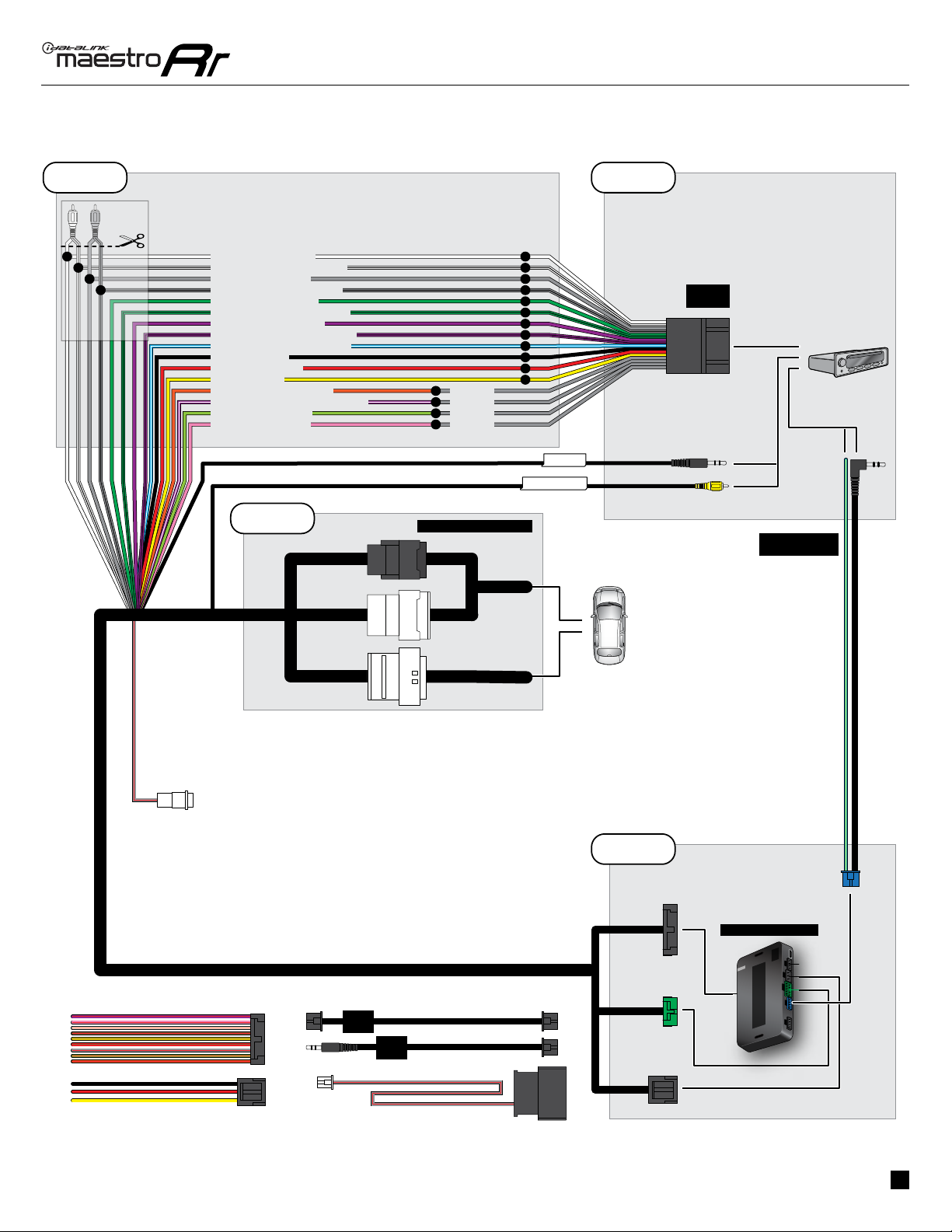

WIRING DIAGRAM without JBL

NOT REQUIRED

AUDIO

CABLE

DATA

CABLE

STEERING WHEEL

CONTROL CABLE

CONNECT TO

AFTERMARKET RADIO
