IDTECH 80140502-001 Bedienungsanleitung
International Technologies & Systems Corporation
10721 Walker Street, Cypress, CA 90630-4720; Tel: (714) 761-6368; Fax: (714) 761-8880
www.idtechproducts.com
80140502-001
User Manual
Spectrum Pro
PCI PTS 4.X Hybrid Insert Reader
USB / RS232 Interface
80140502-001
Rev. A 5/17/2017
Spectrum Pro User Manual
Copyright © 2017, International Technologies & Systems Corp. All rights reserved.
Page 2 of 15
Copyright © 2017 ID TECH. All rights reserved.
ID TECH
10721 Walker St.
Cypress, CA 90630
This document, as well as the software and hardware described in it, is furnished under
license and may be used or copied online in accordance with the terms of such license.
The content of this document is furnished for information use only, is subject to change
without notice, and should not be construed as a commitment by ID TECH. While every
effort has been made to ensure the accuracy of the information provided, ID TECH
assumes no responsibility or liability for any unintentional errors or inaccuracies that may
appear in this document.
Except as permitted by such license, no part of this publication may be reproduced or
transmitted by electronic, mechanical, recording, or otherwise, or translated into any
language form without the express written consent of ID TECH.
ID TECH and ViVOpay are trademarks or registered trademarks of ID TECH.
Warranty Disclaimer: The services and hardware are provided "as is" and "as-available"
and the use of the services and hardware is at its own risk. ID TECH does not make, and
hereby disclaims, any and all other express or implied warranties, including, but not
limited to, warranties of merchantability, fitness for a particular purpose, title, and any
warranties arising from a course of dealing, usage, or trade practice. ID TECH does not
warrant that the services or hardware will be uninterrupted, error-free, or completely
secure.
Spectrum Pro User Manual
Copyright © 2017, International Technologies & Systems Corp. All rights reserved.
Page 3 of 15
Revision History
Revision
Date
Description of Changes
By
50
2/23/2015
Preliminary Version
CH
51
3/10/2015
Revise low power mode
CH
52
10/27/2015
Expanded description of Features and Benefits
Default sleep timeout value is 120 seconds
KT
A
5/17/2017
Update status LED table, add low-power mode
details, correct various items.
KT
Spectrum Pro User Manual
Copyright © 2017, International Technologies & Systems Corp. All rights reserved.
Page 4 of 15
Table of Contents
1. INTRODUCTION .............................................................................................................................. 5
2. FEATURES AND BENEFITS................................................................................................................ 5
3. ABBREVIATIONS.............................................................................................................................. 5
4. APPLICABLE DOCUMENTS ............................................................................................................... 6
5. FRONT AND BACK VIEW.................................................................................................................. 6
6. SPECIFICATIONS .............................................................................................................................. 7
6.1 SUPPLY POWER ................................................................................................................................. 7
6.2 RELIABILITY AND ENVIRONMENT..................................................................................................... 8
6.3 ENVELOPE DRAWING........................................................................................................................ 9
6.4.1 RS232 COMMUNICATION SETTINGS........................................................................................... 10
7. MOUNTING INSTRUCTIONS .......................................................................................................... 11
8. LED MANAGEMENT ...................................................................................................................... 12
8.1 FRONT LED STATUS....................................................................................................................... 12
8.2 DIAGNOSTIC LED STATUS.............................................................................................................. 12
9. OPERATION PROCEDURE .............................................................................................................. 15
Spectrum Pro User Manual
Copyright © 2017, International Technologies & Systems Corp. All rights reserved.
Page 5 of 15
1. Introduction
Spectrum Pro is a PCI PTS 4.X and SRED certified outdoor hybrid insert reader which
can read both magstripe cards and chip cards. Meeting the latest requirements of the
payment industry, the Spectrum Pro is EMV Level 1 and Level 2 approved, and features
DUKPT key management with Triple DES (TDES) encryption to ensure MagStripe and
Smart card data will always be protected.
The Spectrum Pro integrates directly with ID TECH’s SmartPIN L100 keypad for a
complete Chip & PIN solution.
Integrators and application developers can create apps that communicate with Spectrum
Pro using ID Tech's Universal SDK, which provides a comprehensive Windows-based
development environment for programmatic control of the unit. Developers can also
communicate with Spectrum Pro directly using UART and/or USB-HID. For details, see
the P/N 80140505-001 Spectrum Pro Low Level API Manual. This manual contains the
complete firmware-level API guide for controlling Spectrum Pro directly. The low-level
API manual can be downloaded from:
https://atlassian.idtechproducts.com/confluence/display/KB/Spectrum+Pro+-+downloads
2. Features and Benefits
-EMV Level 1 and Level 2 certified
-PCI 4.X certification with SRED support
-PBOC level 1 and 2
-Supports TDES encryption with DUKPT key management
-Reads up to 3 tracks of card data
-Two SAM modules
-Front switch, card seated switch, and latch
-IP 65 rating and IK 10
-Low power sleep mode and stop mode
3. Abbreviations
AAMVA American Association of Motor Vehicle Administrators
DES Data Encryption Standard
MSR Magnetic Swipe Reader
TDES Triple Data Encryption Standard
PCI Payment Card Industry
POS Point of Sale
USB Universal Serial Bus
PCI Payment Card Industry
SRED Secure Reading and Exchange of Data
EMV Europay, MasterCard, and Visa
Spectrum Pro User Manual
Copyright © 2017, International Technologies & Systems Corp. All rights reserved.
Page 6 of 15
4. Applicable Documents
ISO/IEC 7813 –Identification cards, Physical Characteristic
ISO/IEC 7811 –Identification cards, Recording Techniques, Magnetic Stripe
80140505-001 –ID Tech Spectrum Pro Low Level API Manual
5. Front and Back View
Spectrum Pro User Manual
Copyright © 2017, International Technologies & Systems Corp. All rights reserved.
Page 7 of 15
6. Specifications
6.1 Supply power
-Supply voltage:
DC 5V without supporting latch
Additional DC 12V to support latch if latch is needed
-Operating current
oIdle –100mA
oMax –120mA
-USB suspend current: 200 uA
-Sleep mode current: 20 uA
-Stop mode current:
with UART wakeup, 16 uA
with no UART wakeup, 10 uA
-Reader falls into sleep mode after it is idle for specified time duration. The default
time duration is 120 seconds. (This can be adjusted, or even disabled.)
-Reader can be commanded to go to Stop mode (which is a special very-low-power
consumption mode).
-Reader can wake up from Sleep mode by card insertion or via UART command.
Response time: < 100 ms.
-Reader can wake up from Stop mode by card insertion.
-Power-Off to Power-On time: < 500 ms
Spectrum Pro User Manual
Copyright © 2017, International Technologies & Systems Corp. All rights reserved.
Page 8 of 15
6.2 Reliability and Environment
Reliability
-Magnetic Head Life: 1,000,000 passes minimum
-Rail and Cover Life: 1,000,000 passes minimum
Environmental Temperature range:
Operating:
-13º F to 158º F ( -25º C to 70º C) non-condensing
Storage:
-40º F to 176º F ( -40º C to 80º C) non-condensing
Relative humidity
10% to 95% non-condensing
ESD
- 6kV contact, and 12 kV air discharge, per ID TECH ESD testing
procedure, without permanent damage
Spectrum Pro User Manual
Copyright © 2017, International Technologies & Systems Corp. All rights reserved.
Page 9 of 15

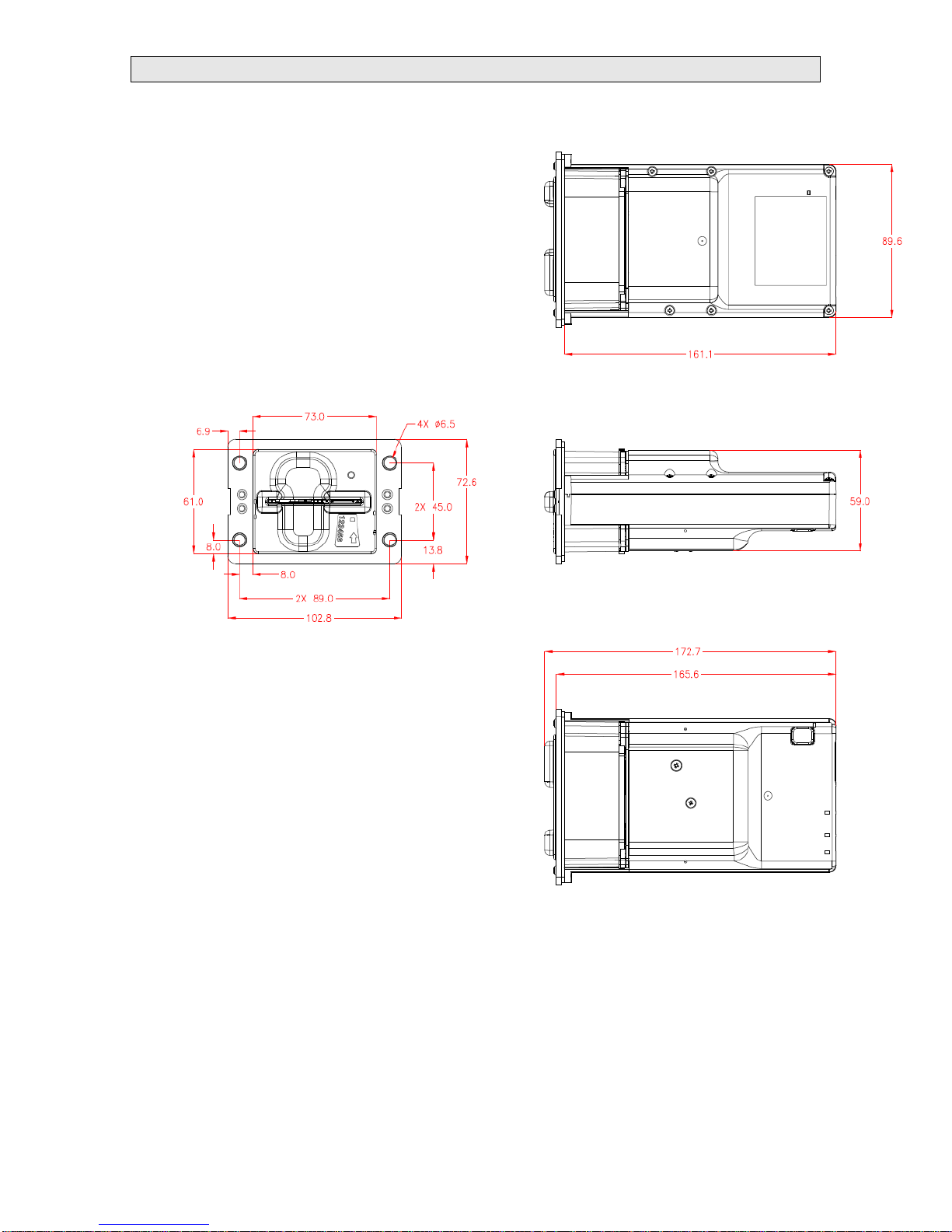

6.3Envelope Drawing
Spectrum Pro User Manual
Copyright © 2017, International Technologies & Systems Corp. All rights reserved.
Page 10 of 15
6.4.1 RS232 Communication Settings
Parameter
Specification
Transmission protocol
Asynchronous
Communication method
Full Duplex
Start bit
l bit
Data length
8 bits (Bit7: MSB, Bit0: LSB)
Parity
None
Stop bit
l bit
Transmission speed
(Baud rate)
115200 bps (default)
