IFM Electronic Efector300 SD2000 Bedienungsanleitung

Operating instructions

Compressed air meter

SD2000

11406629 / 00 10 / 2013

Contents

1 Preliminary note��4

1�1 Symbols used ��4

2 Safety instructions ��4

3 Functions and features ��5

4 Function��5

4�1 Processing of the measured signals��5

4�2 Volumetric flow monitoring��6

4�3 Consumed quantity monitoring (totalizer function) ��6

4�3�1 Consumed quantity monitoring with pulse output��6

4�3�2 Consumed quantity monitoring with preset counter ��6

4�4 Temperature monitoring��7

4�5 Volumetric flow or temperature monitoring / switching function��7

4�6 Volumetric flow or temperature monitoring / analogue function��8

4�7 Setting of the standard conditions of the volume flow ��8

4�8 Low flow cut-off (LFC)��9

5 Installation��9

5�1 Installation location ��9

5�2 Installation conditions ��9

5�3 Installation position ��10

5�4 Installation in pipes ��10

6 Electrical connection�� 11

7 Operating and display elements ��12

8 Menu��13

8�1 Menu structure��13

8�2 Explanation of the menu��14

9 Parameter setting ��15

9�1 General parameter setting��15

9�2 Settings for volumetric flow monitoring��17

9�2�1 Settings for limit value monitoring with OUT1��17

9�2�2 Settings for limit value monitoring with OUT2��17

9�2�3 Setting the analogue value for volumetric flow ��17

9�3 Settings for consumed quantity monitoring ��18

9�3�1 Settings for quantity monitoring via pulse output��18

9�3�2 Settings for quantity monitoring via the preset counter ��18

9�3�3 Settings for program-controlled counter reset ��18

9�3�4 Deactivation of the counter reset��18

9�3�5 Counter reset using an external signal ��18

9�4 Settings for temperature monitoring ��19

9�4�1 Settings for limit value monitoring with OUT2��19

9�4�2 Setting the analogue value for temperature ��19

9�5 User settings (optional)��19

9�5�1 Setting of the standard unit of measurement for volumetric flow��19

9�5�2 Configuration of the standard display ��19

9�5�3 Setting of measured value damping ��20

9�5�4 Setting of the error behaviour of the outputs ��20

9�5�5 Setting of the standard pressure to which the measured and display

values for volumetric flow refer��20

9�5�6 Setting of the standard temperature to which the measured and dis-

play values for volumetric flow refer ��20

9�5�7 Setting of the low flow cut-off��20

9�6 Service functions ��21

9�6�1 Reading of the min/max values for the volumetric flow ��21

9�6�2 Reset of all parameters to factory setting ��21

9�7 Setting of the preset counter / the pulse value (ImPS) ��21

10 Operation��23

10�1 Reading of set parameters ��24

10�2 Changing the display unit in the Run mode��24

10�3 Error indications��24

10�4 General operating conditions��24

11 Technical data and scale drawing ��24

12 Factory setting ��25

1 Preliminary note

1.1 Symbols used

►Instruction

> Reaction, result

[…] Designation of pushbuttons, buttons or indications

→Cross-reference

Important note

Non-compliance can result in malfunction or interference�

Information

Supplementary note�

2 Safety instructions

• Please read this document prior to set-up of the unit� Ensure that the product is

suitable for your application without any restrictions�

• Work on compressed air systems as well as mounting, setting for operation

and set-up of the unit must be carried out by qualified personnel� When doing

so, state of the art as well as safety and accident prevention regulations have

to be adhered to�

• Ensure before mounting the components into or removing them from the

compressed air system that the installation is at a standstill and no pressure is

applied�

• Improper or non-intended use may lead to malfunctions of the unit or to un-

wanted effects in your application� That is why installation, electrical connec-

tion, set-up, operation and maintenance of the unit must only be carried out by

qualified personnel authorised by the machine operator�

• Checkthecompatibilityoftheproductmaterials(→11Technicaldataandscale

drawing) with the media to be measured in all applications�

• In order to guarantee the correct condition of the device for the operating time it

is necessary to use the device only for media to which the wetted materials are

sufficientlyresistant(→Technicaldata).

• The responsibility whether the measurement devices are suitable for the

respective application lies with the operator� The manufacturer assumes no

liability for consequences of misuse by the operator� Improper installation and

use of the measurement devices results in a loss of the warranty claims�

3 Functions and features

The unit monitors the standard volume flow of compressed air in industrial use�

It detects the 4 process categories flow velocity, volumetric flow quantity, con-

sumed quantity, medium temperature�

• Applications: compressed air systems in industrial use�

• All indications apply for standard volume flow to DIN ISO 2533, i�e� volume flow

at 1013 hPa, 15 °C and 0 % relative air humidity�

• Theunitcanbesettodifferentstandardconditions(→9.5.5and9.5.6).

• The general operating conditions of compressed air equipment apply�

• Pressure Equipment Directive (PED): Devices with a measuring section comply

with art� 3 sec� (3) of the Directive 97/23/EC and are designed and manufac-

tured for stable gases of the fluid group 2 in accordance with sound engineer-

ing practice�

4 Function

4.1 Processing of the measured signals

• The unit displays the current process values�

• It generates 2 output signals according to the parameter setting�

OUT1: 4 selection options

Switching signal for volumetric flow limit value ��(→9.2.1)

or switching signal for flow velocity limit value ��(→9.2.1)

or pulse sequence for quantity meter ��(→9.3.1)

or switching signal for preset counter ��(→9.3.2)

OUT2: 6 selection options

Switching signal for volumetric flow limit value ��(→9.2.2)

or switching signal for flow velocity limit value ��(→9.2.2)

or switching signal for temperature limit value ��(→9.4.1)

or analogue signal for volumetric flow quantity ��(→9.2.3)

or analogue signal for flow velocity ��(→9.2.3)

or analogue signal for temperature ��(→9.4.2)

Instead of an output OUT2 (Pin2) can be used as an input

for an external reset signal: ��(→9.3.5)

4.2 Volumetric flow monitoring

The flow is monitored by a calorimetric measuring system, the measured signals

are evaluated by the electronics�

• 2 switching signals for volumetric flow limit values can be provided (output 1

andoutput2).Switchingfunctions→4.5.

• An analogue signal which is proportional to the volumetric flow (4��20 mA) can

beprovidedonoutput2.Analoguefunctions→4.6.

4.3 Consumed quantity monitoring (totalizer function)

The unit has an internal quantity meter which continuously totals the volumetric

flow quantity� The sum corresponds to the current consumed quantity since the

last reset�

• The current meter reading can be displayed�

• In addition the value before the last reset is stored� This value can also be

displayed�

The meter saves the totalled consumed quantity every 10 minutes� After a

power failure this value is available as the current meter reading� If a time-

controlled reset is set, the elapsed time of the set reset interval is also stored�

So the possible data loss can be maximum 10 minutes�

• Overflow: After the maximum value (9,999,999 Nm³) the meter is reset to 0�

The meter can be reset as follows:

• Manualreset(→9.3.3.).

• Time-controlledautomaticreset(→9.3.3).

• Externalinputsignalonpin2(→9.3.5).

4.3.1 Consumed quantity monitoring with pulse output

Output 1 provides a counting pulse each time the value set in [ImPS] is reached

(→9.3.1).

4.3.2 Consumed quantity monitoring with preset counter

2 types of monitoring are possible:

• Time-dependent quantity monitoring�

- Settings: [ImPS] = quantity X, [ImPR] = [no], [rTo] = time t�

- If the quantity x is reached during the time t, output 1 switches and remains

switched until the meter is reset via the digital input or [rTo] = [rED�T]�

In this case the time-controlled totalizer reset is not carried out if [ImPS] =

quantity X exceeded�

- If the quantity x is not reached during the time t, the meter is automatically

reset and counting starts again; output 1 does not switch�

• Quantity monitoring not time-dependent�

- Settings: [ImPS] = quantity x, [ImPR] = [no], [rTo] = [OFF]�

- If the quantity x is reached during the time t, output 1 switches and remains

switched until the meter is reset via the digital input or [rTo] = [rED�T]�

4.4 Temperature monitoring

• A switching signal for temperature limit values can be provided on output 2�

Switchingfunctions→4.5.

• An analogue signal which is proportional to the temperature (4��20 mA) can be

providedonoutput2.Analoguefunctions→4.6.

4.5 Volumetric flow or temperature monitoring / switching

function

OUTx changes its switching state if it is above or below the set switching limits

(SPx, rPx)� The following switching functions can be selected:

• Hysteresis function / normally open (figure 1): [OUx] = [Hno]�

• Hysteresis function / normally closed (figure 1): [OUx] = [Hnc]�

First the set point (SPx) is set, then the reset point (rPx) with the requested

difference� Note: when SPx is adjusted rPx is changed automatically; the differ-

ence remains constant�

• Window function / normally open (fig� 2): [OUx] = [Fno]�

• Window function / normally closed (figure 2): [OUx] = [Fnc]�

The width of the window can be set by means of the difference between SPx

and rPx�SPx = upper value, rPx = lower value�







































 





1 2

HY = hysteresis; FE = window

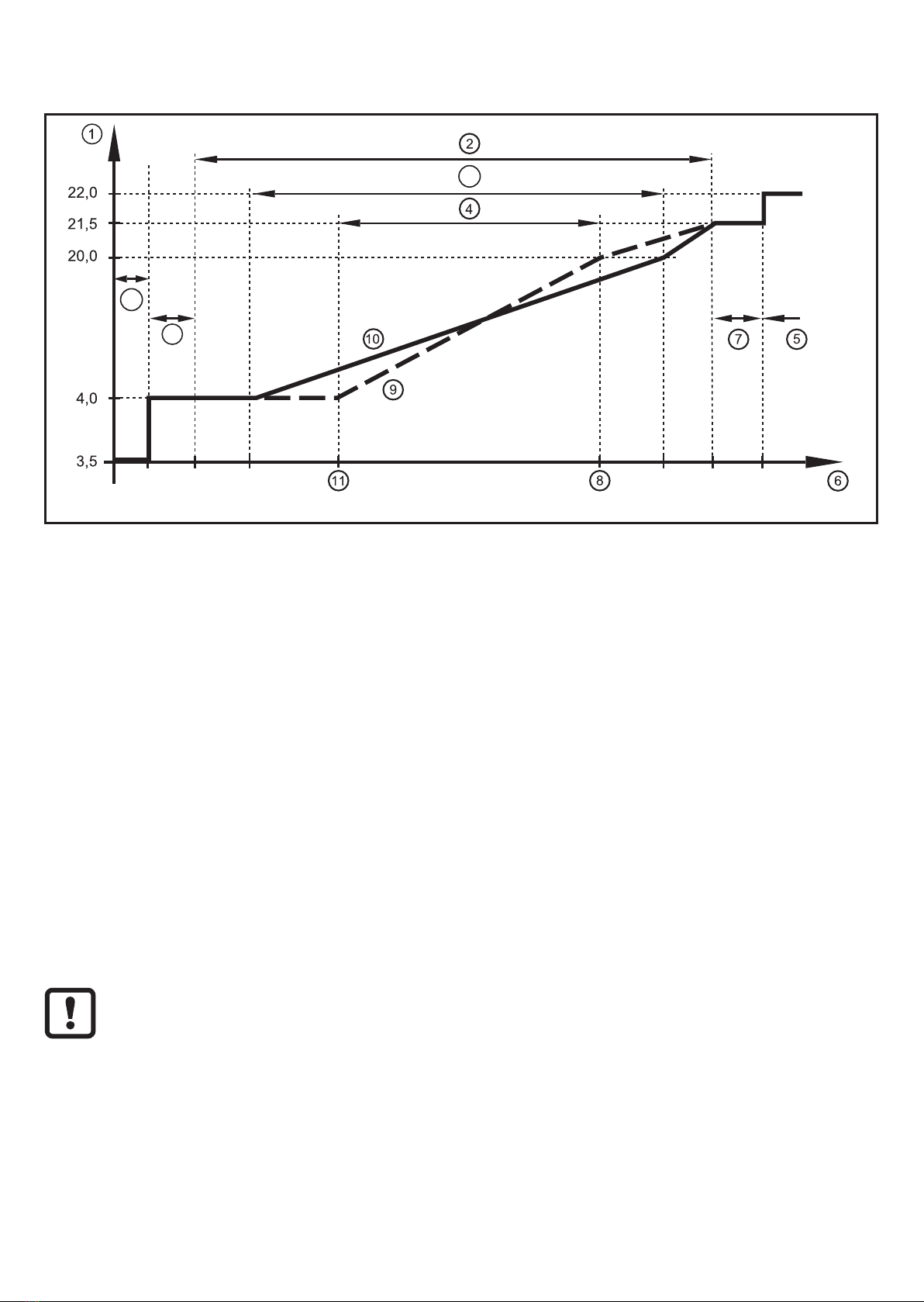

4.6 Volumetric flow or temperature monitoring / analogue

function

-30% -20% 0% 100% 120% 130%

Characteristics of the analogue output to the standard IEC 60947-5-7

1: Output current in mA

2: Operating area

3: Measuring range

4: Range between analogue start point and analogue end point

5: Error message [Err] is displayed

6: Final value of the measuring range (VMR)

7: Error message [OL] is displayed (= overload)

8: Analogue end point (AEP): determines at which measured value the output signal is

20 mA�

9: Curve of the analogue signal with shifted analogue start point

10: Curve of the analogue signal at factory setting

11: Analogue start point (ASP): determines at which measured value the output signal is

4 mA�

12: Error message [UL] is displayed (= underload)

13: Error message [Err] is displayed

Minimum distance between ASP and AEP = 25 % of the final value of the

measuring range�

4.7 Setting of the standard conditions of the volume flow

The unit is adjusted to a standard volume flow to DIN ISO 2533, i�e� volume flow

at 1013 hPa, 15 °C and 0 % relative air humidity�

The unit can be set to different standard conditions:

• Via the menu item [rEF�P] the standard pressure is set, which serves as a refer-

enceforthemeasuredanddisplayvaluesforvolumetricflow(→9.5.5).

• Via the menu item [rEF�T] the standard temperature is set, which serves as a

referenceforthemeasuredanddisplayvaluesforvolumetricflow(→9.5.6).

4.8 Low flow cut-off (LFC)

Withthisfunctionsmallvolumetricflowquantitiescanbesuppressed(→9.5.7).

Flows below the LFC value have no effect on the display and output signals�

Example: For LFC = 0�5 volumetric flow quantities below 0�5 Nm³/h are sup-

pressed�

5 Installation

The rules and regulations for the installation and operation of compressed

air equipment must be observed�

5.1 Installation location

• Behind the cold dryer / near the load�

• If compressed air is fed into the main pipe through parallel pipes, the unit

should be mounted in the main pipe�

• Installation after the maintenance unit is also possible (if oil is used for the

loads, the units must be mounted before the oiler)�

5.2 Installation conditions

To achieve the specified measurement accuracy, the following installation condi-

tions must be adhered to: defined inlet and outlet pipe lengths, defined flow cross-

section area, fixed installation depth and correct positioning of the measuring

elements�

The unit is mounted in a measuring range which meets these conditions�

In case of disturbances on the inflow side additional calming sections (B) are

recommended:

changes to the pipe diameter B = 5 x pipe diameter

90° elbow B = 5 x pipe diameter

two 90° elbows, one plane B = 10 x pipe diameter

two 90° elbows, two planes B = 15 x pipe diameter

valve, slide B = 35 x pipe diameter

5.3 Installation position

• Permitted installation positions: pipe length vertical, any position (fig� 1, 2); pipe

length horizontal, unit vertical (fig� 3, 5), unit on side, pipe length left (fig� 4)�

• Avoid the installation position in fig� 6 (unit on side, pipe length right)� If the flow

rate is low, the specified measurement accuracy cannot be adhered to�

1 2 3 4

5 6

5.4 Installation in pipes

►Fit the unit in the pipe in accordance with the flow direction (arrow on the unit)

and tighten�

IN OUT

Inhaltsverzeichnis

Andere IFM Electronic Messgerät Handbücher

IFM Electronic

IFM Electronic efector 300 SD6101 Bedienungsanleitung

IFM Electronic

IFM Electronic Efector 300 SI1007 Bedienungsanleitung

IFM Electronic

IFM Electronic efector300 SD6000 Bedienungsanleitung

IFM Electronic

IFM Electronic efector300 SD8001 Bedienungsanleitung

IFM Electronic

IFM Electronic Efector 300 Bedienungsanleitung

IFM Electronic

IFM Electronic SI0562 Bedienungsanleitung

IFM Electronic

IFM Electronic efector300 SD2001 Bedienungsanleitung

IFM Electronic

IFM Electronic efector300 SM0510 Bedienungsanleitung

IFM Electronic

IFM Electronic Efector 300 SA3010 Bedienungsanleitung

IFM Electronic

IFM Electronic SD8000 Bedienungsanleitung

IFM Electronic

IFM Electronic OW Bedienungsanleitung

IFM Electronic

IFM Electronic efector300 SD6050 Bedienungsanleitung

IFM Electronic

IFM Electronic SD5100 Bedienungsanleitung

IFM Electronic

IFM Electronic efector 300 SM6100 Bedienungsanleitung

IFM Electronic

IFM Electronic efector300 SD5000 Bedienungsanleitung

IFM Electronic

IFM Electronic SI5007 Bedienungsanleitung

IFM Electronic

IFM Electronic efector 300 SD9000 Bedienungsanleitung

IFM Electronic

IFM Electronic Efector 300 SD8000 Bedienungsanleitung

IFM Electronic

IFM Electronic SD6050 Bedienungsanleitung

IFM Electronic

IFM Electronic efector 300 SI0519 Bedienungsanleitung

IFM Electronic

IFM Electronic efector 200 OJ50 Series Bedienungsanleitung

IFM Electronic

IFM Electronic efector 300 SV Series Bedienungsanleitung

IFM Electronic

IFM Electronic Efector 300 Bedienungsanleitung

IFM Electronic

IFM Electronic PK5520 Bedienungsanleitung

Beliebte Messgerät Handbücher anderer Marken

Suaoki

Suaoki D40 Bedienungsanleitung

Elster

Elster BK-G1.6 Bedienungsanleitung

Endress+Hauser

Endress+Hauser Deltabar FMD71 Handbuch

Duratool

Duratool D03128 Bedienungsanleitung

Vega

Vega VEGAPULS 65 Bedienungsanleitung

Tonghui

Tonghui TH2618B Bedienungsanleitung

Tenmars

Tenmars TM-801 Bedienungsanleitung

MSR

MSR 145 Bedienungsanleitung

TPS

TPS WP-82 Bedienungsanleitung

ELMETRON

ELMETRON CP-511 Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics 003C30 Bedienungsanleitung

Tenma

Tenma 72-10465 Bedienungsanleitung

Endress+Hauser

Endress+Hauser Proline Promag 50 Technische Daten

Siemens

Siemens SITRANS F Coriolis FCT030 Stücklistenhandbuch

KLINGER

KLINGER CMF V Series Bedienungsanleitung

EXFO

EXFO FTB-2 Bedienungs- und Wartungshandbuch

Keysight

Keysight M8290A Bedienungsanleitung

ADTEK

ADTEK MW-5 Bedienungsanleitung

IFM Electronic efector300 SD2000 Bedienungsanleitung

Beliebte Messgerät Handbücher anderer Marken
